Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw tiger 3tons mini dump truck in China. If you're going to buy high quality faw tiger 3tons mini dump truck, welcome to get more information from our factory. For price consultation, contact us.

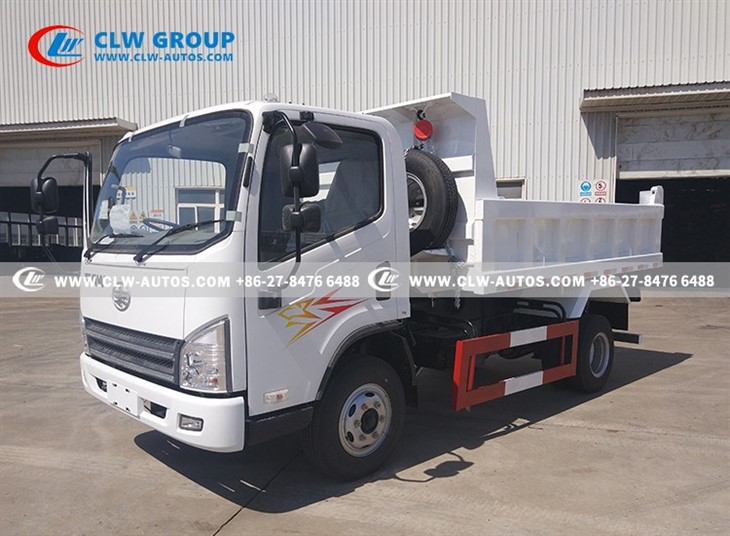

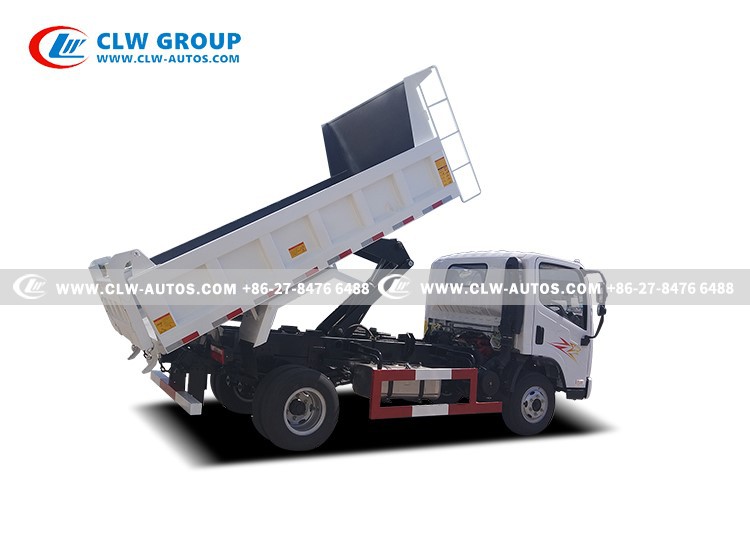

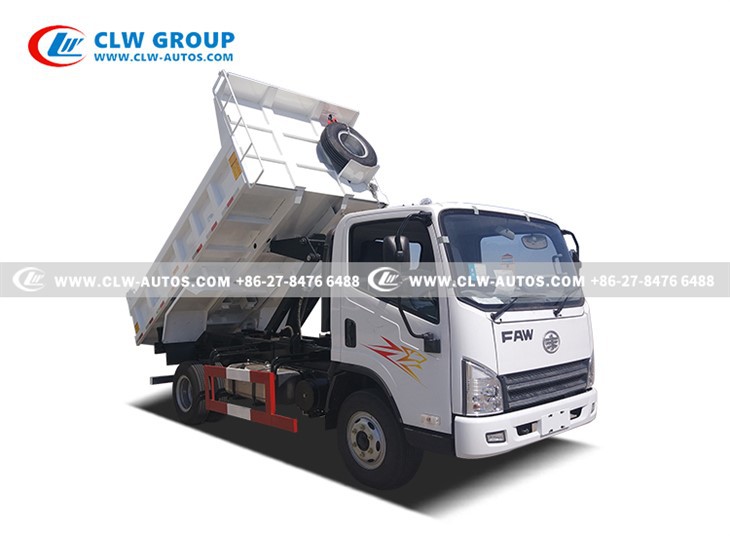

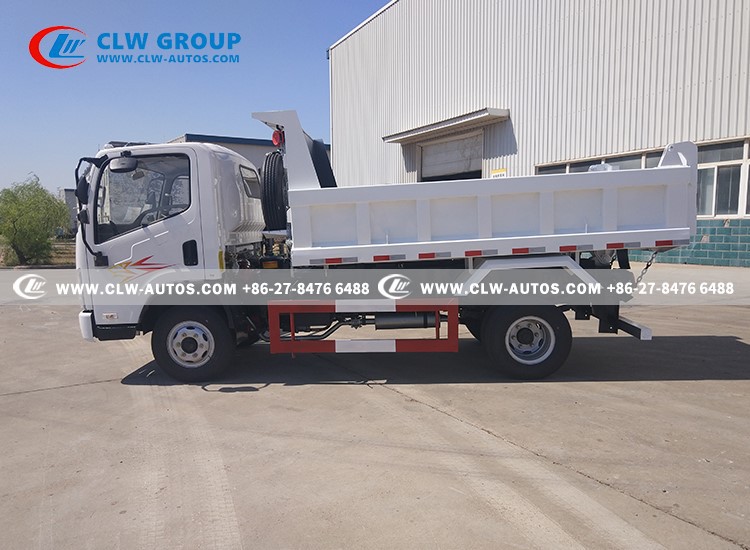

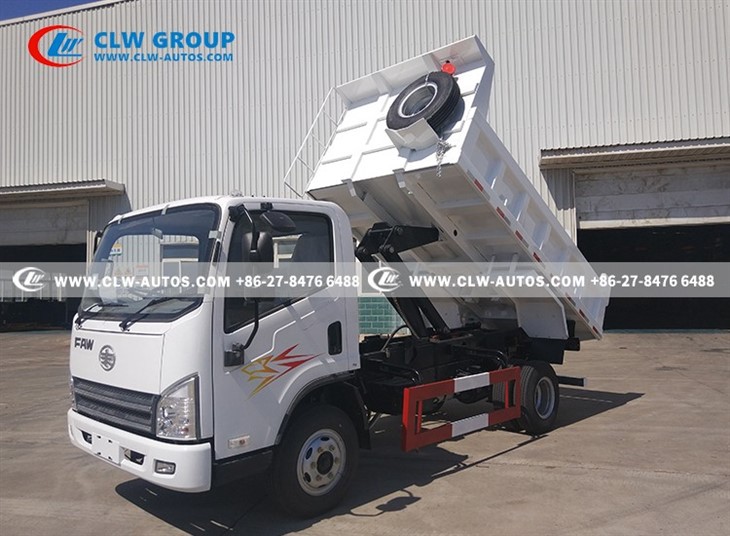

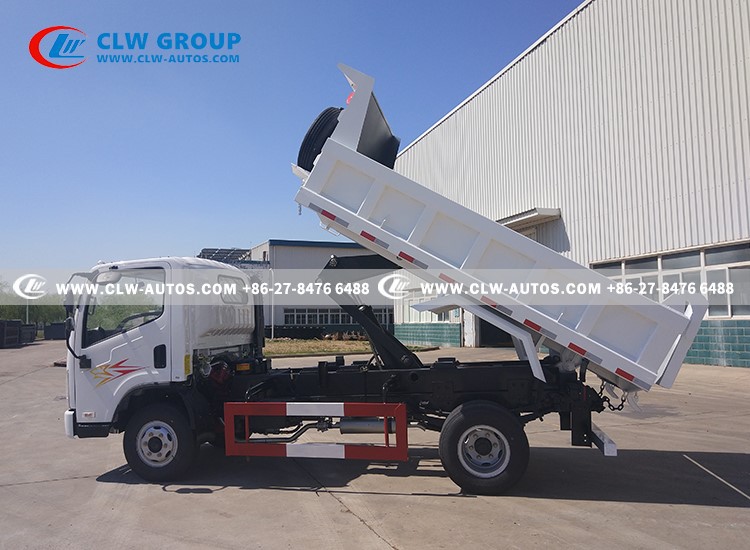

FAW Tiger VH 4x2 130HP 3Tons Mini Rear Dump Truck
Brand New Truck, Factory Price For Sale.
Rear dump trucks, also known as rear tipping trucks or rear tipper trucks, are vehicles designed for transporting heavy loads.They feature a back part that can be raised at one end to facilitate the unloading of contents. These trucks, equipped with hydraulic cylinders driven by the engine, are commonly used in urban waste management, construction, mineral transportation, and other industries.
The Tiger V, a flagship product of FAW's new generation of wide-body light trucks, offers the following product features:
| Chassis brand | FAW |
| Driving type | 4x2 |
| Loading Capacity | 3,000kgs |
| Cabin | Tiger VH, LHD, single row, with AC |
| Engine | Yuchai Diesel Engine YC4D130-33, 130HP |
| Emission | Euro II |
| Displacement | 4.2L |
| Transmission | Manual, WLY 6TS55, 6 Forward & 1 Reverse |
| Clutch | Ф330 |
| Front axle load | 2,900kgs |
| Front suspension | Leaf spring |
| Rear axle load | 8,000kgs |
| Rear suspension | Leaf spring |
| Fuel Tank | 100L with locking fuel cap |
| Wheel base | 3300mm |
| Tyres | 8.25R16, 6 pcs with 1 spare tire |
| Dump Box Material | Q235 carbon steel |
| Dump Box Size | 4200*2300*410mm / 3.9m3 |
| Dump Box Thickness | Side 3mm, Bottom 4mm |
| Oil Cylinder | Middle Tipping |
English operation videos
Spare parts at factory price
One Year Warrenty for Engine, Transmission and Axles
Acceptable for third party inspection
