Name: China Sinotruk HOWO 42-Meter Aerial Ladder Fire Truck Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 271582550

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 42-meter aerial ladder fire truck in China. If you're going to buy high quality sinotruk howo 42-meter aerial ladder fire truck, welcome to get more information from our factory. For price consultation, contact us.

-- Before everything: what is a ladder fire truck?

A ladder fire truck, also known as aerial ladder truck, fire engine ladder truck or simply ladder truck, is a specialized firefighting vehicle equipped with a large, extendable ladder (often with a hydraulic or mechanical platform) to reach high places. It is a mechanically-operated extendable ladder mounted on a fire truck with either a mid-mount, rear-mount configuration or tractor-drawn configuration. It's designed to maximize vertical reach for rapid response, ventilation, extinguishment and rescue operations.

Key Features of a Ladder Fire Truck:

Extendable Ladder/Aerial Device – Can reach heights of 50 to 135+ feet (15 to 40+ meters), allowing firefighters to access tall buildings, rescue people, and spray water from above.
Water Pump & Hose – Many ladder trucks have built-in pumps and hoses for firefighting operations.
Bucket or Platform – Some models have a turntable ladder with a basket/platform for rescuing people or directing water streams.
Additional Equipment – May carry tools like axes, saws, and hydraulic rescue tools (e.g., the "Jaws of Life").
Ground Ladders – Besides the main aerial ladder, these trucks often carry smaller portable ladders.

Common Types of Ladder Fire Trucks:

Straight Ladder Truck – Traditional rigid or telescopic ladder.
Aerial Platform (Snorkel/Platform Truck) – Has a bucket or cage at the top for firefighters.
Tiller (Articulated) Ladder Truck – Used in tight urban areas, with a rear steering axle for better maneuverability.

Primary Uses:

High-rise firefighting & rescue
Ventilation (breaking windows to release smoke/heat)
Gaining access to upper floors
Elevated water streams for fire suppression

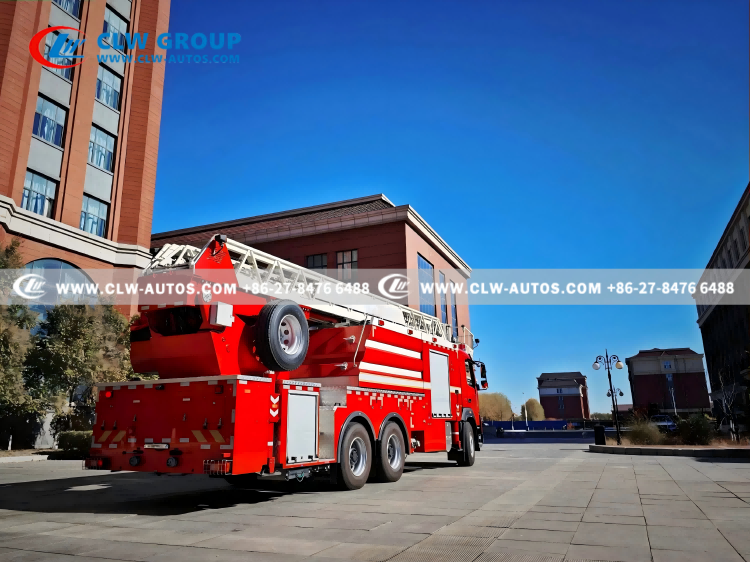

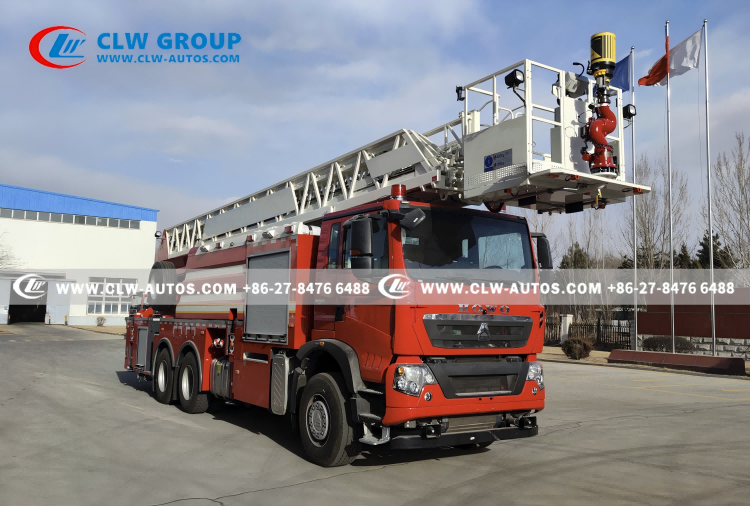

Reference Pictures for 42-Meter Sinotruk HOWO Ladder Fire Truck

2025-06-21131946704

2025-06-21132021994

2025-06-21132017565

QQ20250621-145108

1bbe6592-e778-46e0-80f2-7ca4e85e5e21

5ecea598-32a6-479a-86de-8a8c58c37a45

-- What are the advantages of our fire ladder truck?

The Sinotruk HOWO 42-meter Fire Ladder Truck is a high-performance aerial firefighting vehicle designed for rescue and fire suppression in high-rise buildings. Here are its key advantages:

Extended Reach & High Working Height

42-meter (~138 ft) fully electric boom ladder – Allows access to high floors (typically 12-15 stories), making it suitable for urban high-rise firefighting.

360° continuous rotation – Provides flexible positioning for rescue and firefighting operations.

Advanced Stability & Safety

Automatic outriggers (hydraulic stabilization system) – Ensures balance even on uneven terrain.

Load-sensing safety system – Prevents overloading and automatically adjusts stability.

Emergency descent function – Ensures safe lowering in case of power failure.

Powerful Firefighting Capabilities

Integrated water cannon (on the ladder platform) – Delivers high-pressure water or foam from an elevated position.

Compatible with fire hydrants & onboard water tanks – Can connect to external water sources for sustained operations.

Intelligent Control System

Remote control operation – Allows firefighters to adjust the ladder from a safe distance.

Real-time monitoring & fault detection – Enhances operational safety and efficiency.

Reliable Chassis & Engine Performance

Built on Sinotruk HOWO's heavy-duty chassis – Ensures durability and load-bearing capacity.

High-power diesel engine – Provides strong mobility and quick response.

Cost-Effective Compared to Western Brands

Offers high performance at a more competitive price than similar European or American ladder trucks

Configurations
(1)Overall Parameters
Dimensions	Approx. Overall Dimensions	1225025504000 mm
	Gross Vehicle Weight	35, 000 kg
	Wheelbase	4600 + 1400 mm
Ladder System	Max. Height	42 meters
	Cradle Capacity	400 kg
	Range of Working Angle	-12°~75°
Power Train Performance	Max. Engine Power	341 kW/ 460 hp
	Max. Torque	2200 N.m
	Displacement	10.518 L
	Max. Speed	95 km/h
(2)Chassis
Condition	Factory New
Brand	Sinotruk HOWO
Cabin	Left hand drive,single row 2 doors
Engine	Model	MC11.46-50
	Max. Power	341 kW/ 460 hp
	Displacement	10.518 L
	Emission Standard	Euro 6
	Max. Speed	95 km/h
Gearbox	Manual, HW25712XSTL, 12 forwards & 2 reverses HW80QZ power take-off
Steering System	BOSCH
Frame	(8+5/300) mm double frame
Suspension	Reinforced leaf spring 4/5
Axles	Axle Configuration	6x4
	Front	9 tons
	Rear	13 tons*2, speed ratio 3.7
Tire	Size	385/65R22.5 18PR
	Quantity	11 pcs including 1 spare
Fuel Tank	300 L
Other Features	AC, power steering, air brake, power windows, air seats
(3)Superstructure & Equipment
Ladder System	Max. Height	42 meters
	Max. Cradle Capacity	400 kg
	Max. Working Radius	18.5 meters
	Ladder Crane	5 sections synchronous telescopic ladder
	Ladder Control	At platform; rear control panel; manual multi-way valve
	Range of Working Angle	-12°~75°
	Rotation	360°infinite
	Time of rising to rated altitude and rotating 90°	Less than 100s
Outrigger System	Structure Design	H style
	Transverse	5810 mm
	Leveling	Hydraulic handle leveling with level gauge
	Time of full extension and leveling	Less than 35s
	Inlet & outlet	DN76
Fire Fighting System	Fire Pump	CB10/80-TF, single stage centrifugal pump, 80L/s @ 1.0MPa
	Fire Monitor	Model	water/foam electronic control
		Max. Range	water≥55m, foam≥50m
		Rotation Range	±45°
		Pitch Angle	-45°~+85°
On Board Equipment List	Fire hose Φ80X20M	4 nos.
	Fire hose Φ65X20M	4 nos.
	Fire Extinguisher	1 nos.
	Water Collector	1 nos.
	Suction Pipe Wrench	2 nos.
	Rubber Hammer	1 nos.
	Ground Fire Hydrant Wrench	1 nos.
	Reduce Interface 80/65	2 nos.
	Hose Protection Bridge	2 nos.
	Hose Coat	8 nos.
	DN150 2-meter Suction Hose	4 nos.
	Filter	1 nos.
	Wheel Block Stopper	2 nos.
	DN50 Pump Suction Pipe	1 nos.
	ABC Wrench	2 nos.
	Emergency Air Valve Spanner	1 nos.
	Outriggers Pad	4 nos.
	Hydraulic Wearing Parts	1 nos.
	Toolbox	1 nos.
	Inner Hexagon Spanner	1 nos.
	Foam Monitor Head	1 nos.
	Safe Belt (with safe hook)	4 nos.

-- Why choose us?

Chengli Group (CLW Group) is a leading Chinese manufacturer of specialized vehicles. In 2023, CLW Group reported over 1.4 billion USD for annual revenue, with over 50,000 units sold, at least 20% of which is for overseas market. Here are our key advantages:

Strong Customization Capabilities: We can offer tailored solutions for different industries (utilities, construction, municipal, etc)
Cost-Effective Solutions: Competitive pricing compared to Western brands, with good after-sales support. Lower maintenance costs due to locally sourced parts and efficient design.
Rich Experience in Export Industry: We have exported to over 80 countries in the world, familiar with the requirements of local clients
