High-end Hook Lift Garbage Compactor Trucks Develop

Since the Chengli Compression Equipment Factory and the Environmental Sanitation Equipment Factory are deeply integrated, the high-end detachable garbage trucks jointly developed and produced have been put on the market and have won the fans of users with their excellent quality and reputation.

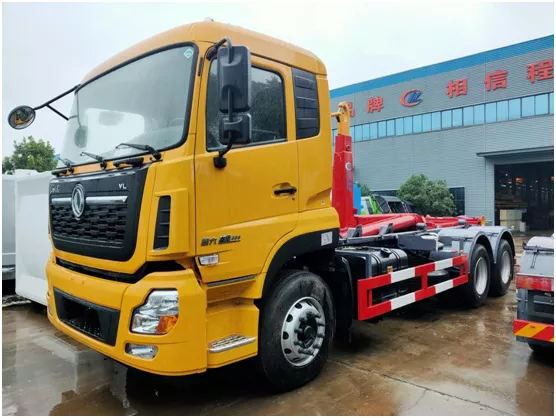

The detachable garbage truck is also known as the hook lift truck. Due to its advanced production technology, stable performance, simple operation and high cost performance, the terminal market has continued to grow steadily.

The truck’s sleeve arm (also called telescopic arm) has strong lifting force, low dead weight and stable performance; the unique buffer design improves the protection of the equipment and the ground when the hook box and the box are unloaded.

The vehicle is equipped with rear outriggers to enhance the stability of the vehicle during loading and unloading. It adopts a unique hydraulic locking design. The key components are high-quality imported parts to maximize the safety and stability of the pull arm hook.

Its main performance characteristics are:

1. The movable hook arm is selected, which can be applied to a variety of boxes with different lengths. The box body and the chassis can be completely separated, and several equipment boxes can be configured according to user requirements to realize one vehicle with multiple uses and circular transportation.

2. The secondary beam of the pull arm hook is designed with high-strength steel plate, and the control system adopts pneumatic control mode. It can be operated wirelessly inside and outside the cab. It has the characteristics of simple operation, strong reliability and stable performance.

3. The arm hook is designed and manufactured according to European standards, and the product has high reliability. Equipped with a mechanical dump lock mechanism and a hydraulic box lock structure to effectively ensure the safety of the box during transportation and dumping.

4. The whole vehicle can be optionally equipped with a rear roller support mechanism or a bridge support mechanism to avoid head-lifting when operating the vehicle and improve the safety of the vehicle.

5. Safety, reliability and ease of operation are fully considered in the design. The sequence and safety considerations of the action of the car body support and the locking hook, etc. are rationally designed. Optional units can be used to meet higher requirements under special circumstances.

6. Imported high-pressure plunger pump and four-position pneumatic pilot valve are standard, equipped with accessories such as enlarged fuel tank. The pressure resistance of the high-pressure tubing of the hydraulic system: ≥450 BAR. Stable and reliable operation, easy to maintain. The total pressure of the system and the unit valve block are all set with overload protection. Lifting cylinders, sliding cylinders, rear box lock cylinders and rear stabilizing devices are equipped with load holding valves.

7. Hydraulic interlocks are set up between functional circuits such as sliding hook arm, self-unloading of the box, loading and unloading of the box, and locking of the rear box to avoid misoperation.
