Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 8ton crane truck for russia in China. If you're going to buy high quality isuzu 8ton crane truck for russia, welcome to get more information from our factory. For price consultation, contact us.

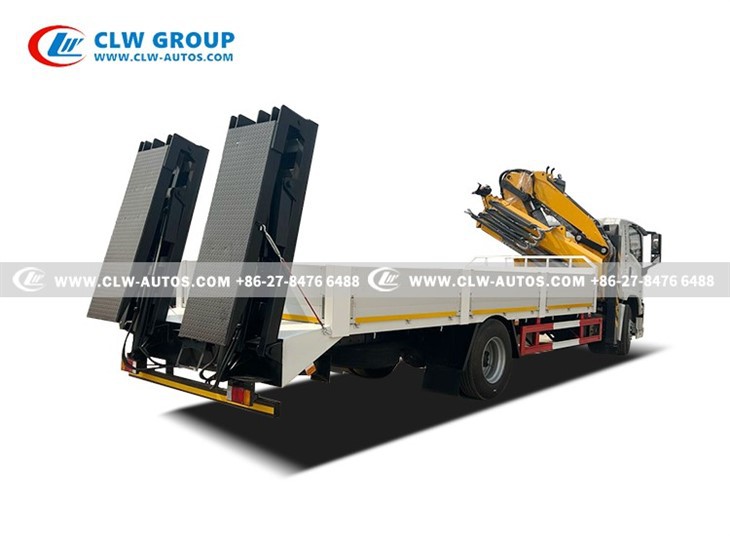

ISUZU FTR 6 Wheels 8Ton Crane Truck With Alumium Alloy Box Plate For Russia

Description for product use

The Isuzu FTR 205-horsepower 8-ton truck-mounted crane is a versatile model tailor-made by Isuzu for the Russian market. With its reliable quality, fuel efficiency, a 6300mm wheelbase that ensures optimal stability and cargo space, and its core capability of self-loading and unloading, it precisely addresses the key pain points of small and medium-sized enterprise owners and individual truck owners in Russia-reducing operating costs and improving operational efficiency. It is a highly competitive and efficient solution.

01/

Efficient Power Matching
Equipped with a 205 hp Isuzu 4HK1 turbocharged engine, it delivers ample low-speed torque, well-matched to the power demands of the 8-ton crane, ensuring efficient lifting and driving.

02/

Exceptional Operational Flexibility
The 8-ton crane features full hydraulic operation, 360-degree rotation, and multiple telescopic boom configurations, enabling flexible lifting operations even in tight spaces for versatile applications.

03/

Excellent Chassis Stability
The 6300mm long wheelbase provides a stable platform for both driving and crane operation, significantly enhancing anti-tip capability and ensuring operational safety.

04/

Reliable and Durable Quality
Built on Isuzu's robust chassis and axle design with high-strength steel, it offers rugged durability, adapting well to heavy-duty and frequent use in demanding conditions with high availability.

05/

Humanized Driving Experience
The spacious, well-sealed, and quiet cab comes standard with air conditioning and air-suspension seats, reducing driver fatigue during long hours of operation.

06/

High Cost-Effectiveness & Low Operating Costs
Isuzu's fuel-efficient engine, combined with high reliability and low failure rates of the powertrain, ensures manageable maintenance costs and a low total cost of ownership (TCO).

product key technologies

3Isuzu FTR 4X2 8Ton Crane Truck For Russia

01.

Chassis Key Technologies

Equipped with ISUSU 4HK1 diesel engine, which suitable for transportation in the mountainous underground of Philippines.

The load range is usually 8~10 tons, the length of the cargo compartment can be customized, and the vehicle has good passing performance.

02.

Crane Key Technologies

The lifting capacity of the crane covers 3~8 tons, and the arm length is 5~12 meters.

The crane can rotate 360° to support precise operation inside and outside the cargo compartment.

Products Parameters

ISUZU Crane Truck With 8Tons Folding Boom Crane
Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	10000 x 2400 x 3800 mm
Cab	Original ISUZU FTR Wide cabin With Air Conditioner Left Hand Drive
Wheelbase	6300 mm
Gross vehicle Weight	18000 kg
Curb Weight	8200 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Tire	295/80R22.5
Tire	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1-TCG60
	Horse power: 205 HP
	Displacement: 5193ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	6 Forward & 1 Reverse
Fuel Tank Capacity	120L
Upper Parameters
Cargo Box
Size (LWH)	6500 X 2300 X 550 mm
Loading Capacity	10 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane
Model	XCMG - SQZ160
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 4 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 8000 kg at 2.0 meters
Max. Working Radius	12.75 meters
Max. Lifting Height	15 meters
Max. Lifting Moment	168 kN.m
Max. Oil Flow of Hydraulic System	40 L/min
Max. Pressure of Hydraulic System	28 Mpa
Crane Weight	2960 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color

Chassis Pictures

Crane Pictures

Advantages Of Aluminum Alloy Box Plate

Increased Effective Payload & Lighter Body

The reduced self-weight can be fully converted into additional legal loading capacity. With the total weight limit remaining unchanged, the vehicle can carry over one ton more cargo, significantly boosting profit per trip.
A lighter curb weight means the engine requires less power output, particularly in scenarios with frequent stops and starts in urban areas or acceleration on national highways, leading to noticeably lower fuel consumption.

Excellent Corrosion Resistance and Durability

Coping with Russian Winters: Most regions in Russia experience long winters, during which large amounts of de-icing agents (chlorides) are used. These agents are highly corrosive to steel bodies, causing ordinary steel cargo compartments to rust extensively within a few years, reducing strength and compromising both service life and resale value.
Properties of Aluminum Alloy: Aluminum alloy forms a dense oxide layer on its surface, effectively resisting corrosion from chlorides and humid environments. This means:
Longer Lifespan: The service life of the cargo compartment far exceeds that of steel counterparts, nearly matching the lifespan of the chassis.
Better Appearance Retention: The vehicle maintains a newer appearance over time, enhancing the company's image.
Lower Maintenance Costs: There is no need for frequent anti-rust treatments or repairs, saving both time and maintenance expenses.

Improved Vehicle Performance

Power Performance: A lighter body allows the 205-horsepower engine to propel the vehicle more effortlessly, resulting in better acceleration and climbing performance, with a greater sense of power reserve.
Braking and Handling: Reduced mass means lower inertia during braking, improving braking effectiveness to some extent and enhancing safety. Additionally, the vehicle becomes more agile and easier to maneuver.
Tire Wear: Reduced pressure on tires helps extend their service life.
