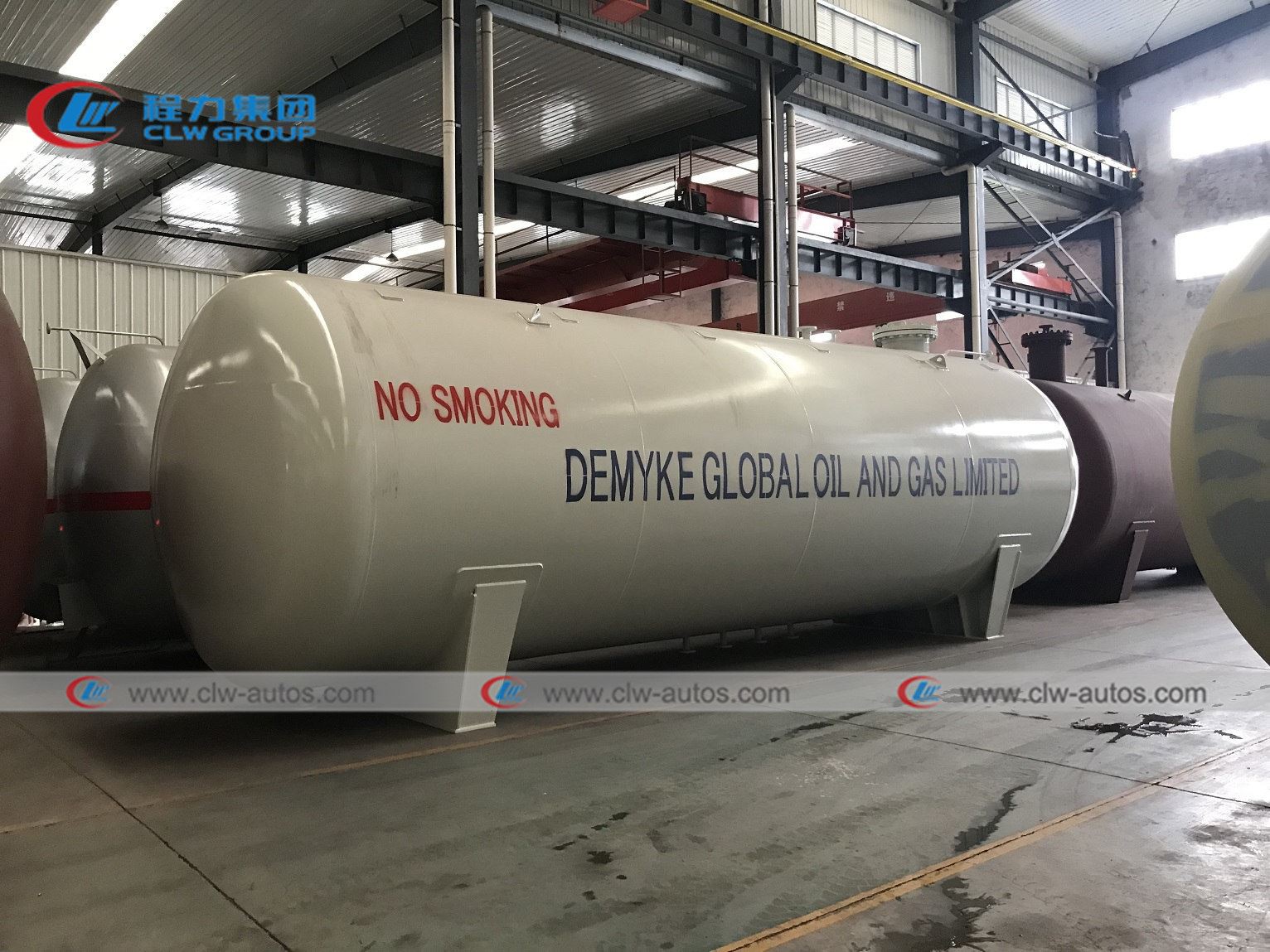

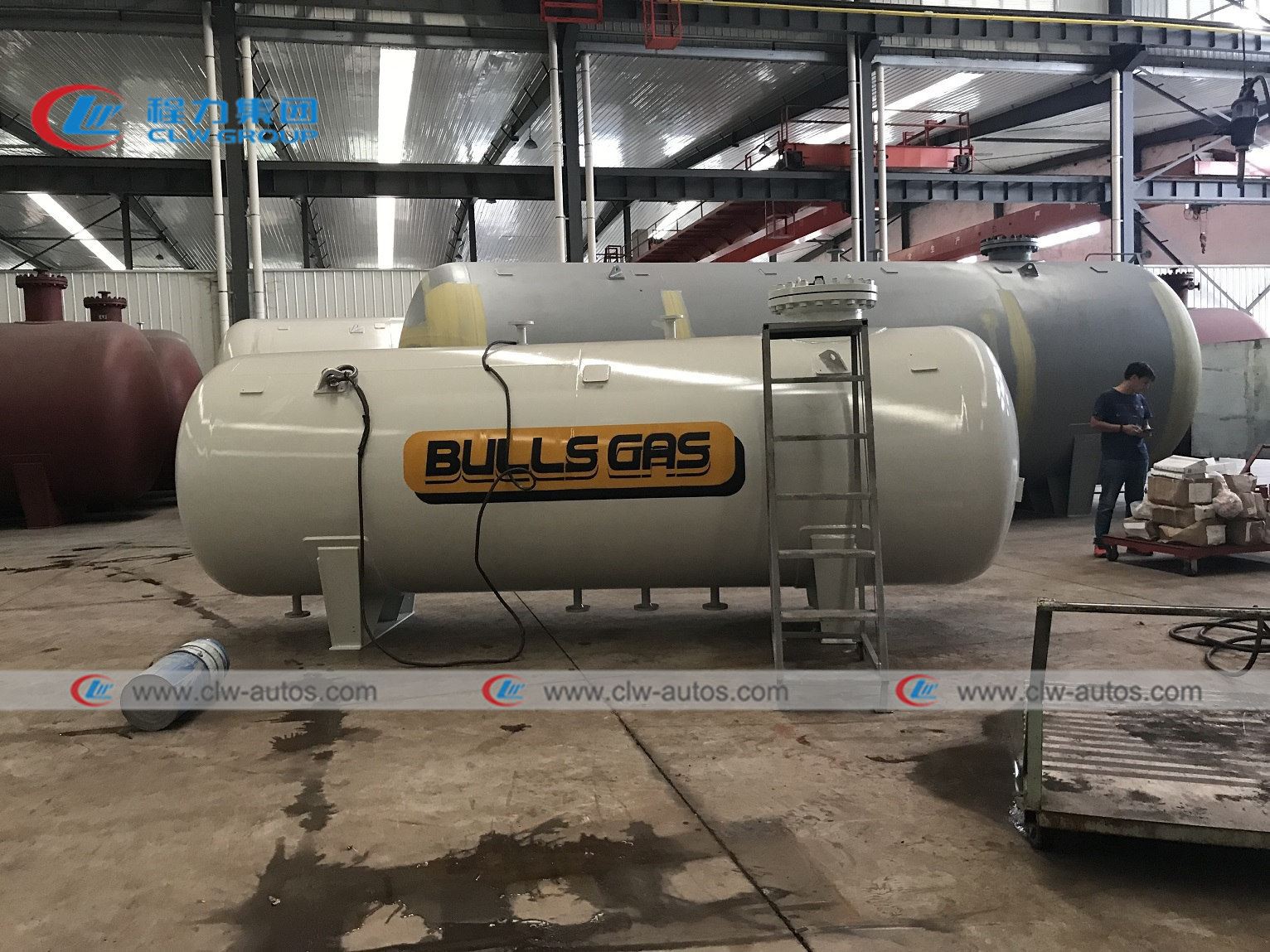

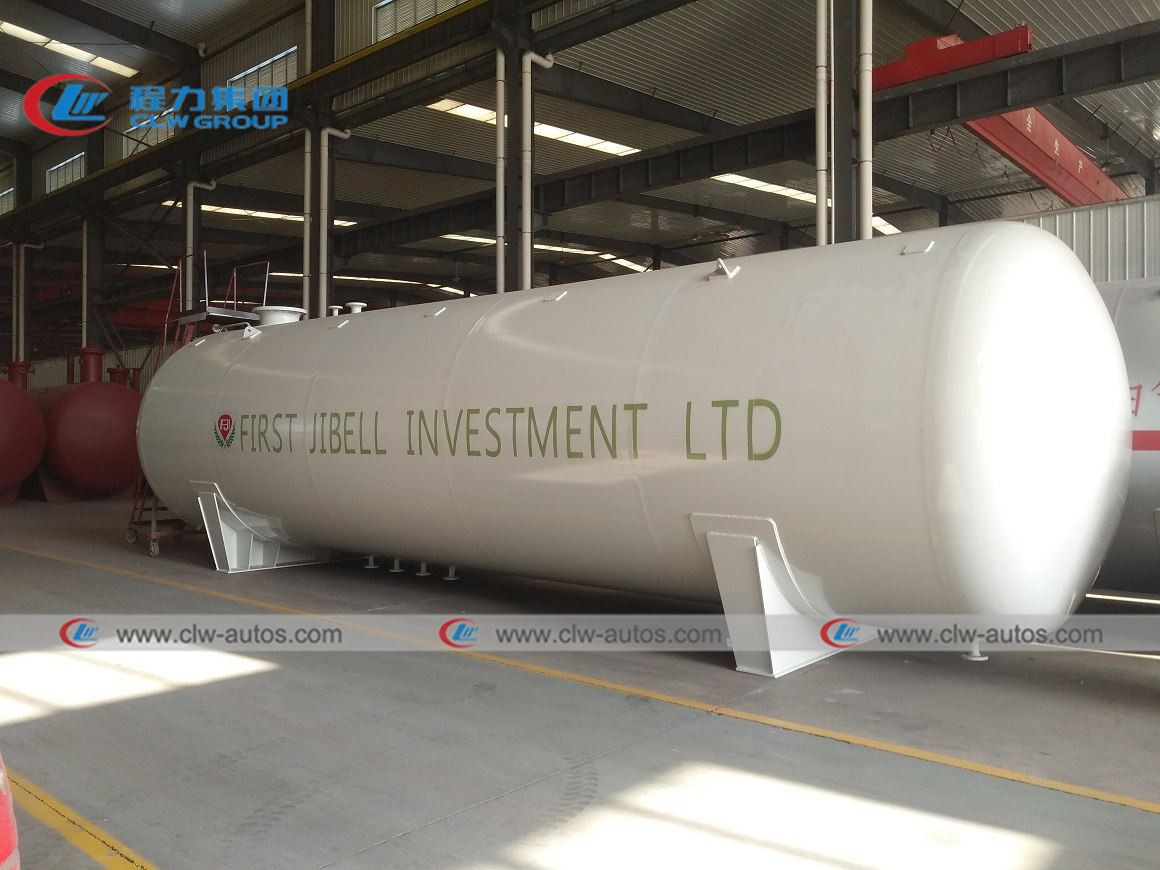

40000Liters 20Tons Propane LPG Liquid Gas Storage Tank

40000 Liters 20 tons LPG storage tank. For Liquid Petroleum Gas Storage.

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40000liters 20tons propane lpg liquid gas storage tank in China. If you're going to buy high quality 40000liters 20tons propane lpg liquid gas storage tank, welcome to get more information from our factory. For price consultation, contact us.

Material: Q345R for Pressure Vessel

Diameter:2300mm;

Tank thickness :12mm;

Thickness of end plate:14mm;

Tank weight: 8630kg

Dimensions: 10040*2324*2914mm

Parameter of 40000Liters LPG Storage Tank
ITEM		PARAMETER	ITEM		PARAMETER
Volume		40cbm	Thickness of Shell		12mm
Tank Material		Q345R	Thickness of End plate		14mm
Overall Size		1004023242914mm	Tank Net Weight		8630kg
Tank Diameter		2300mm	Loading Capacity		20000kg
Design Pressure		1.77Mpa	Gas Density		510~590kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20℃~50℃	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Designed Life time		15 years
Safety Accessories like follows
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-80	Stop Valve DN80			1		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-100	Safety Valve DN80			1		RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40℃~60℃
