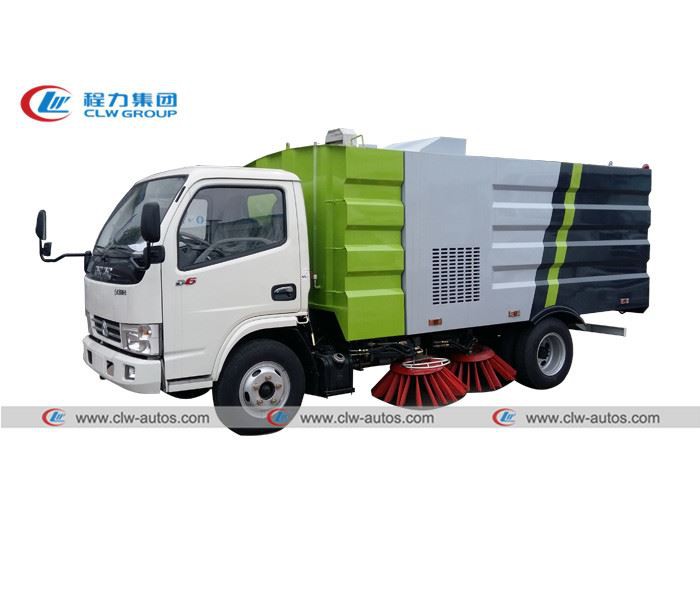

China 5tons Dongfeng Road Sweeper Truck
Hydraulic Pump & Motor:US/Italy/Chinese Brand
Deputy Engine:International brand and Chinese brand for optional
Hydraulic Valve: China famous brand
Tanker material:Carbon steel and Stainless Steel for optional
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of china 5tons dongfeng road sweeper truck in China. If you're going to buy high quality china 5tons dongfeng road sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose: For city road cleaning, industry area road cleaning, coal plants, power plants, cement plants, steel plants and mining pavements cleaning.
2. Main parts: Deputy engine, Fan, Hydraulic System and Pump etc.
3. Internation brand of main parts: Japanese ISUZU brand and China JMC deputy engine are optional.
4. Warranty: 1 Year of main parts such as Deputy engine and Fan etc.
5. Tank material: Carbon steel Q235 and Stainless Steel SUS304 are optional for the water tanker and garbage bin.
6. Deputy Engine: Powerful diesel engine
7. Painting and LOGO: We can do the customized design of the painting and LOGO for each customer.
8. Certificate: ISO CCC; We also can supply some certificate as clients' request like BV SGS COC SONCAP FERI
To all customers
1. Why we buy the Dongfeng Road Sweeper?
CLW group reply: To make money and clean city road, technology changed our life and make cleaning works easier.
2. How we can make big money from this business?
CLW group reply: Cooperate with reliable supplier like CLW and choose top quality products.
3. What's the top quality Road Sweeper?
CLW group reply: Reliable Deupty Engine and Fan, few repair works and good after sales service.
4. Purchasing concept
CLW group reply: Save time, earn enough moeny and make our works easy.
5. Why choose us?
CLW group reply: Our 5tons Dongfeng Road Sweeper have been exported to more than 30 countries such as Nigeria, Tanzania, Uganda, Rwanda, UAE, Ivory Coast, Ghana, Kenya, LAOS and South America etc.

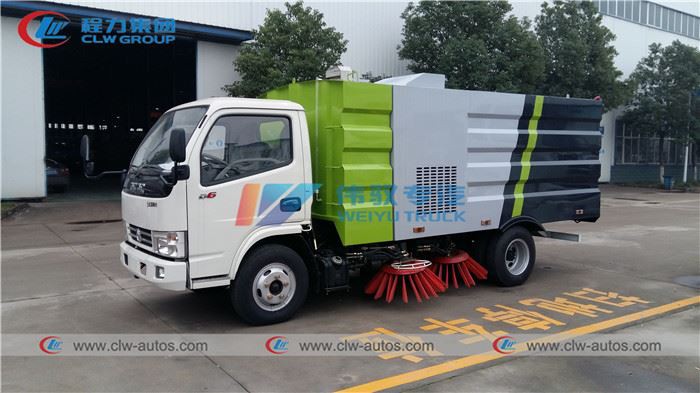

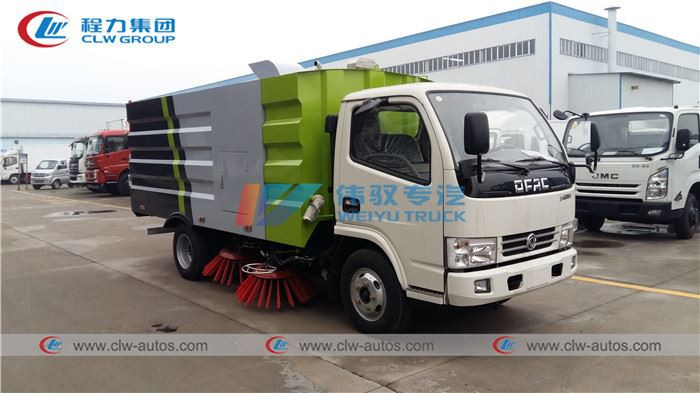

Reference Picture
Specification
Condition | New condition/RHD/LHD/4x2 | ||||||
| Brand | Dongfeng | |||||
Curb weight(kg) | 4865 kg | ||||||
Wheelbase(mm) | 3300 mm | ||||||
Dimensions(mm) | 5970×2100×2380 mm | ||||||
Overhang (front/rear) (mm) | 1032/1638 mm | ||||||
Wheel track (front/rear) (mm) | 1506/1466 mm | ||||||
Approach/Departure angle(°) | 19/12° | ||||||
Axle Load(kg) | 2450/4300 kg | ||||||
Max. driving speed(km/h) | 90 km/h | ||||||
Clutch | Reinforced diaphragm clutch | ||||||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||||||
Steering Gear | Power steering, hydraulic steering with power assistance | ||||||
Tire | Quantity(pcs) | 6pcs with one spare tire, 7pcs tires in total | |||||
Specifications | 7.00-16 nylon tire | ||||||
| Manual type, 5 Forwards & 1 Reverse | ||||||
| Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||||||
| Model | CY4102 | |||||
Displacement(ml) | 3856 ml | ||||||
Power(kw)/Horsepower(HP) | 70 kw/95 HP | ||||||
Cylinder quantity(pcs) | 4 pcs | ||||||
Emission standard | Euro 3 | ||||||
Upper | |||||||
| Garbage tank | Tank material | Stainless steel 304 | ||||
Tank volume(cbm) | 4.0 cbm | ||||||
Water tank | Tank material | Stainless steel 304 | |||||
Tank volume(cbm) | 1.5 cbm | ||||||
| Model | ISUZU | |||||
Power(kw)/Horsepower(HP) | 55 kw/75 HP | ||||||
Fuel type | Diesel | ||||||
| Sweeper Diameter(mm) | 900 mm | |||||
Working area(m) | 2.7-3.0 m | ||||||
| 1, Rear LED pilot lamp | ||||||
Production Process
①Super Structure frame welding and installation.
②Deputy engine installation
③Hydraulic system and sweeping system installation.
④Control system and electricity device installation.
⑤Painting and Customized LOGO design
⑥Hydraulic control system is optional
Our Advantage
1. Easy to replace road cleaning brushes
2. International brand deputy engine and top quality.
3. With efficient filtration system
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
FAQ
Q1: Which brand hydraulic valves in your road sweeper?
A: We usually adopts China famous brand Hi-pressure hydraulic valves and hydraulic oil cylinder in our road sweeper
Q2: How about the power of your road sweeper’s deputy engine?
A: Different size road sweeper equip with different power deputy engine
Q3: If this road sweeper is easy to operate?
A: Yes. We can provide operation video and English operation manual.
Q4: Should we prepare any spare parts for future maintenance?
A: Yes. We will provide some spare parts for free, if you need more, we can supply it as factory cost price to you.
Key word: China Road Sweeper Truck, Dongfeng Road Sweeper Truck, 5tons Road Sweeper Truck, Road Sweeper Truck.
