Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8000liters asphalt distributor bitumen spreader truck in China. If you're going to buy high quality dongfeng 8000liters asphalt distributor bitumen spreader truck, welcome to get more information from our factory. For price consultation, contact us.
Product description
An asphalt distributor truck is used to transport, heat, and apply metered oil emulsion product (also known as bitumen) to help adhere asphalt to a prepared under-surface. It is equipped with a tank capable of handling a range of products, and the back end of the tank has a spray bar with nozzles attached. Buying an asphalt distributor is a cost-efficient alternative to asphalt distributor rental or buying new.
1. It can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.
Product specifications
| Chassis | ||
| Cab | Dongfeng145 model, 3 seats, one and a half row | |
| Driving Type | 4*2 Left hand driving | |
| Overall Dimension (mm) | 8200*2500*3250 | |
| GVW (kg) | 15900 | |
| Truck Tare Weight (kg) | 9700 | |
| Tank Capacity (L) | 8000 | |
| Wheelbase (mm) | 3950 | |
| F/R track base (mm) | 1920/1800 | |
| F/R overhang (mm) | 1450/2800 | |
| Approach/Departure Angel (°) | 20/10 | |
| Tire | 9.00-20 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Max Speed (km/h) | 99 | |
| Gear Box | 6 forward speed, 1 reverse speed | |
| Bridge | Front axle | 3000kg |
| Rear axle | 5500kg | |
| Engine | Brand | CUMMINS |
| Model | B170-33EGR | |
| Fuel Type | Diesel fuel | |
| Emission Standard | Euro III | |
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust (ml) | 5900 | |
| Max output power/rotate speed (hp /rpm) | 170/2500 | |
| Max torque/rotate speed (N.m/rpm) | 560/1300 | |
| Braking System | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary Brake | Engine exhaust brake | |
| Electric System | 24v | |
| Asphalt Spraying System | ||
| Spray width | 4500mm | |
| Spray Value | 0.5-3.0(Kg) | |
| Hydraulic pump model | CBQ-F540 | |
| Hydraulic motor | L2F63W2P2 (Liyuan Brand) | |
| Insulation Thickness | 50mm | |
| Nozzles | 34 | |
| Burner | G20(Riello) | |
| Asphalt pump | CB450 | |
| Generator(Converter) | YGBT2500 | |

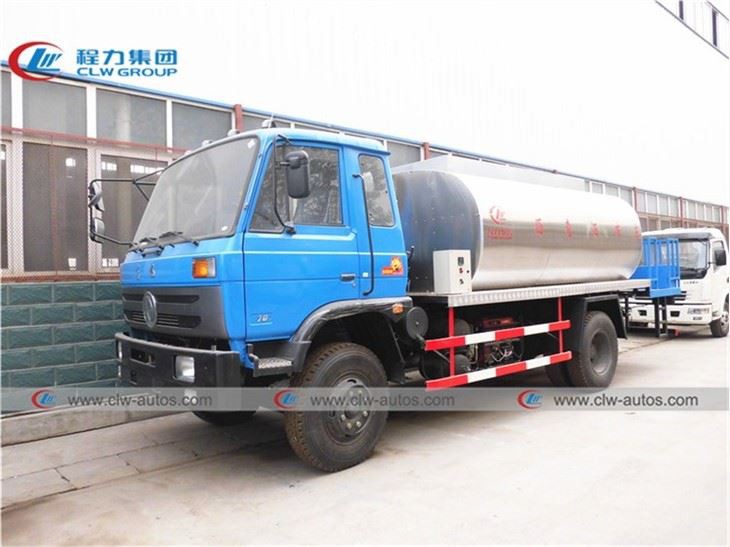

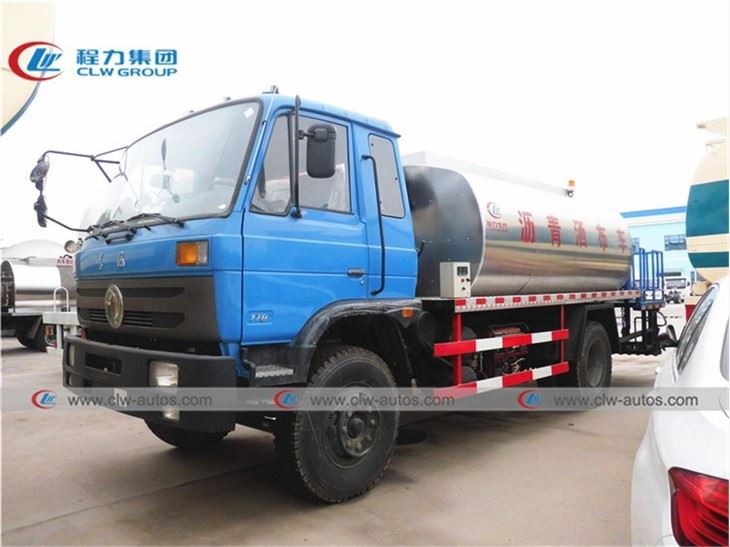

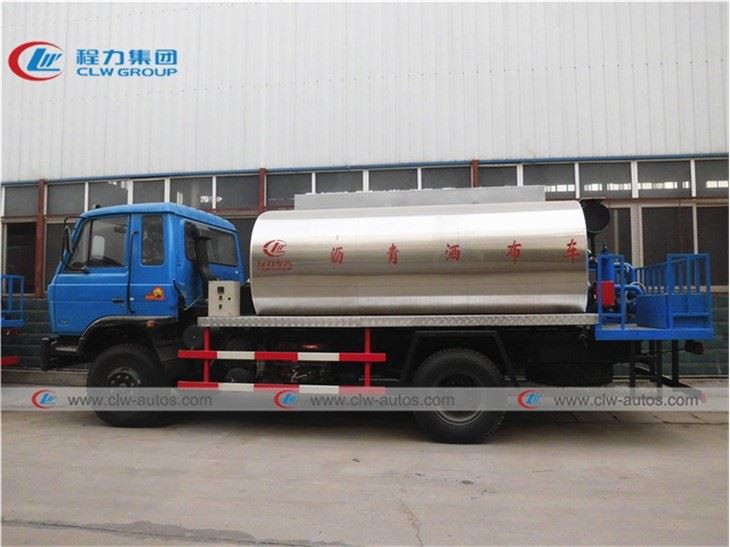

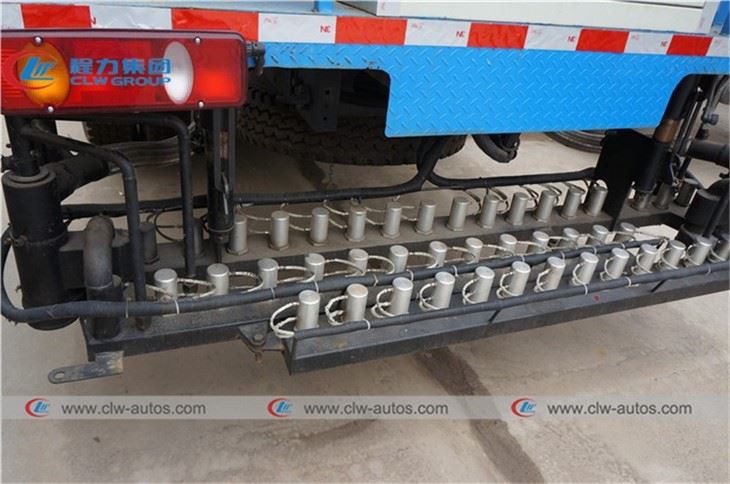

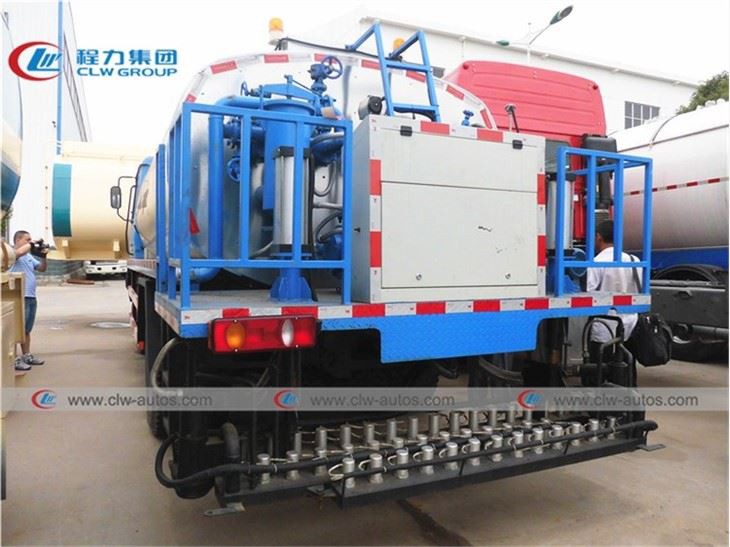

Product pictures
