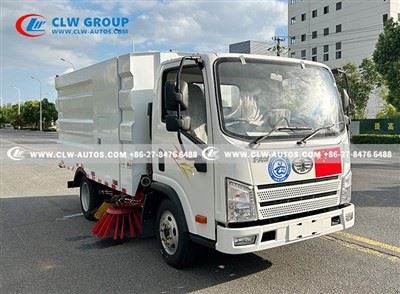

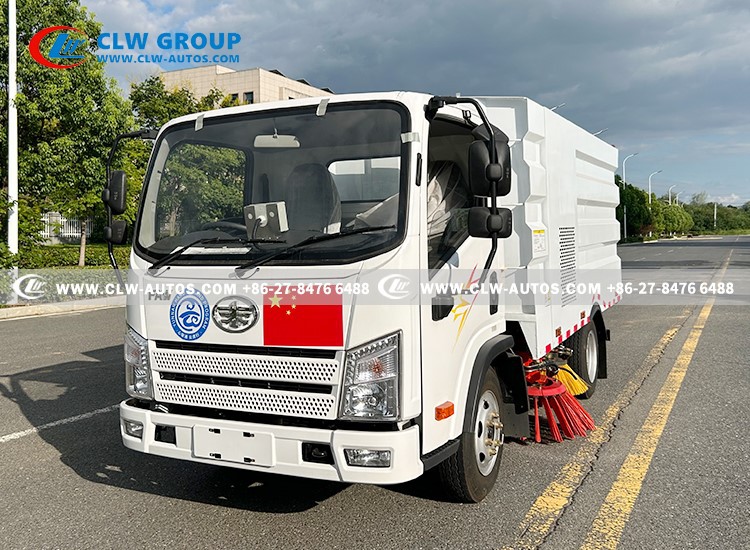

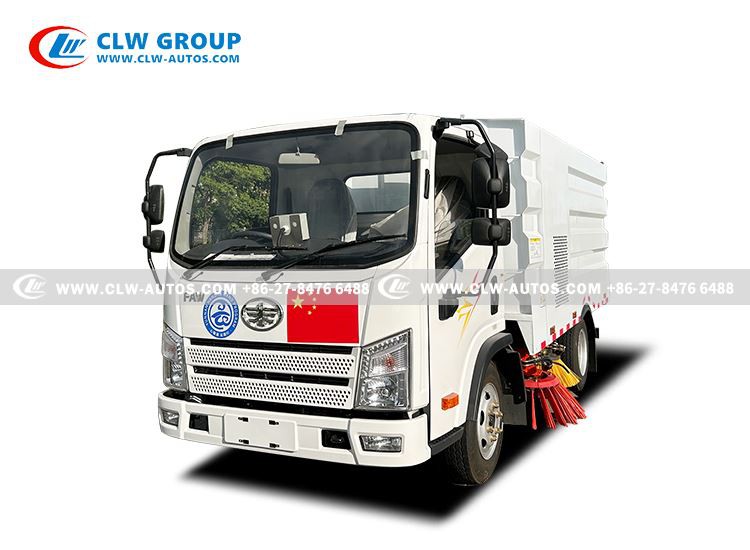

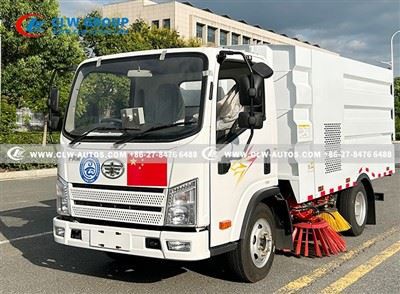

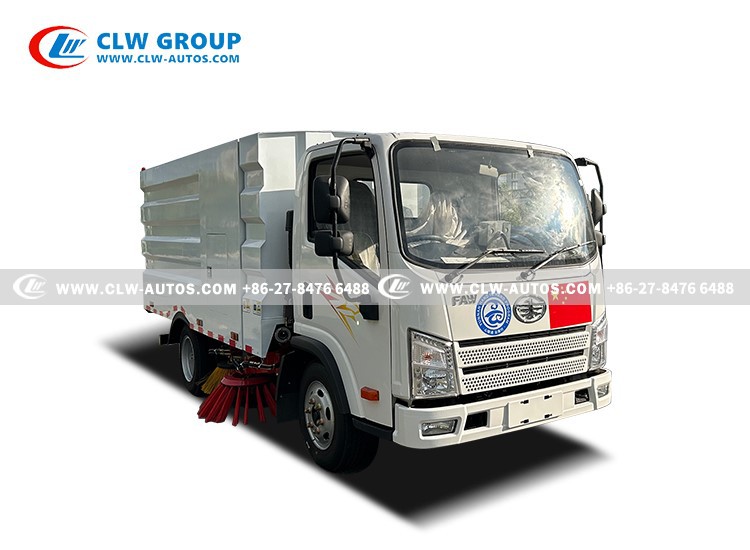

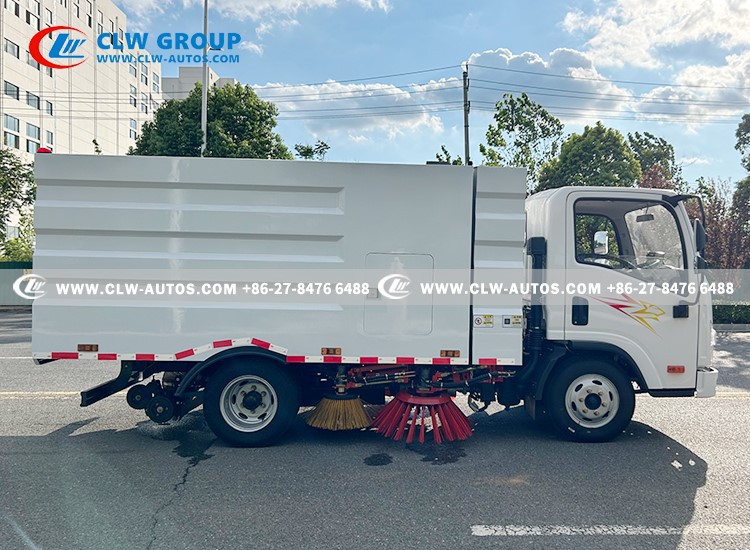

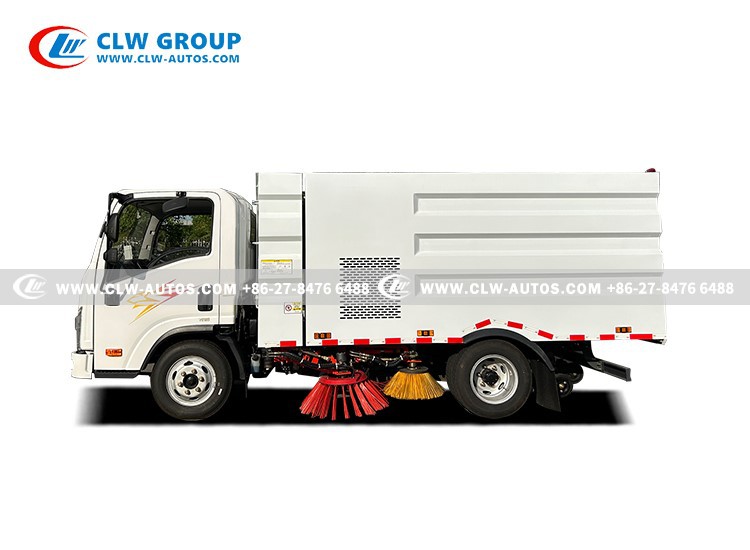

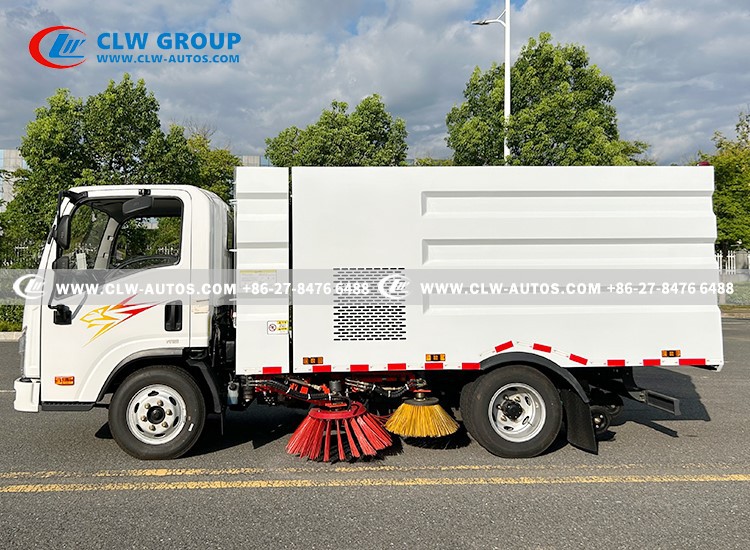

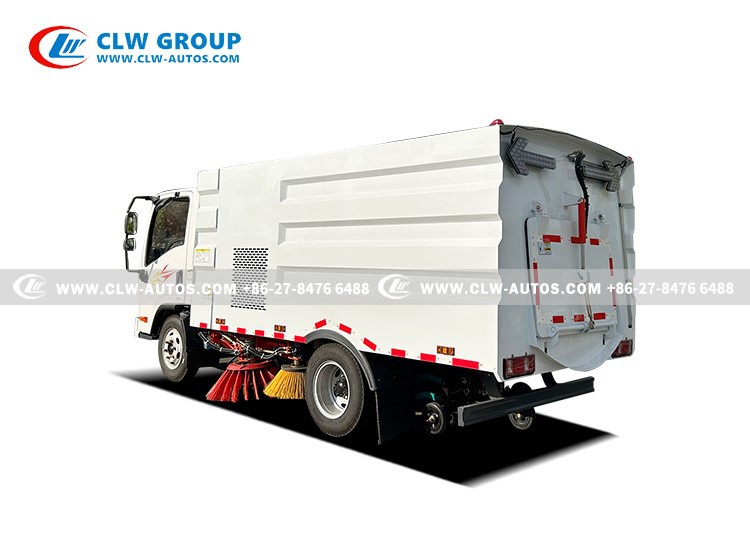

FAW 3CBM Small Street Sweeper Truck
FAW Tiger Cab with Air conditioner
Right Hand Driving
Engine:Diesel, Weichai 110HP
Sweeper brushes:4 units
Vacuum suction panel behind the tire brush
Auxiliary JMC Engine 87HP
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 3cbm small street sweeper truck in China. If you're going to buy high quality faw 3cbm small street sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
FAW Tiger VR 3CBM Small Vacuum Street Sweeper Truck
We are professional special vehicle manufacturer in China since 2004
Brand New Truck Factory Price For Sale
Product Descriptions
What is Street Sweeper Truck?
Street sweepers truck, also called road sweeper truck, street cleaning truck, road sweeping truck, vacuum sweeper truck, truck mounted road sweeper, road cleaning truck, street sweeper vehicle, street sweeper etc.
Street sweepers truck is mainly used for efficient cleaning of urban roads, highways, factories and other places. The street sweeper is mainly composed of a truck chassis, a garbage tank, a water tank, an auxiliary engine, a hydraulic motor, a fan, a water pump, four sweeping brushes, suction cup and other parts.
The street sweeper truck enhances the efficiency and quality of urban sanitation through its effective operation and versatility, making it essential for modern environmental maintenance.
Introduction of FAW Tiger VR 3CBM Street Sweeper Truck
Truck Chassis:

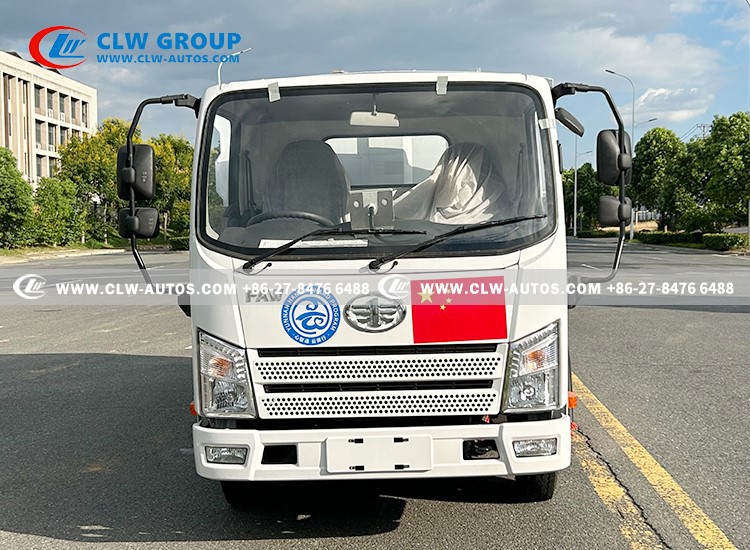

- FAW 3CBM street sweeper truck features FAW Tiger VR cab,with air conditioning for enhanced driver comfort.
- Weichai 110 horsepower diesel engine, known for stability and excellent fuel efficiency.
- WLY five-speed gearbox, offering clear gear shifts, smooth transition, and minimal power loss.
Upperstructure:
- Segmented structure with a front-mounted clean water tank and a rear-mounted garbage tank.
- Clean water tank capacity 1 cubic meter, with a low water level alarm system, treated for corrosion and rust resistance, ensuring safe water pump operation.
- Garbage tank capacity 2 cubic meters, made of stainless steel, incorporating a filter screen to prevent light debris, such as leaves and plastic bags, from clogging vents and dust discharge.
- Sweeping mechanism uses 'central four rotary brushes with rear suction' design, sweeps can work independently.
- Front brushes are equipped with an automatic obstacle avoidance feature that retracts upon encountering obstacles and resumes automatically after clearing them.
- Front brushes are fitted with high-pressure nozzles to suppress dust raised during operation. Nozzles are made from stainless steel for durability and corrosion resistance.
- A pair of LED arrow light is installed at the rear of the truck, with the control switch located in the cabin. Enhanced safety by alerting pedestrians and vehicles during operation.

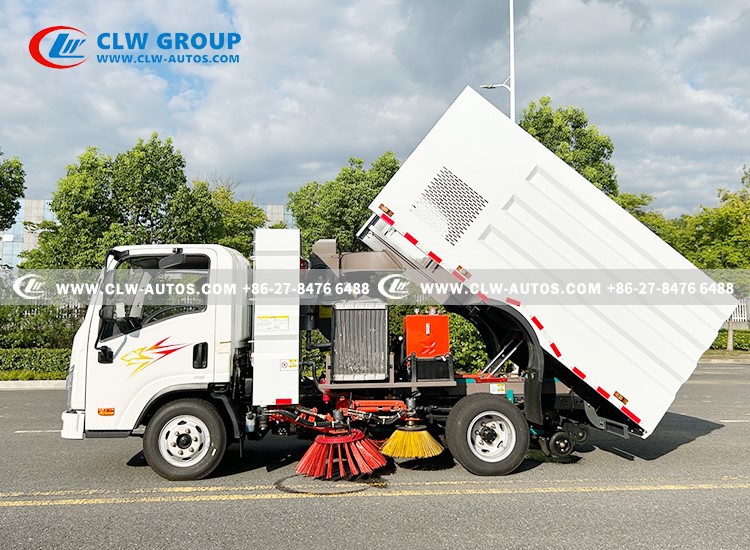

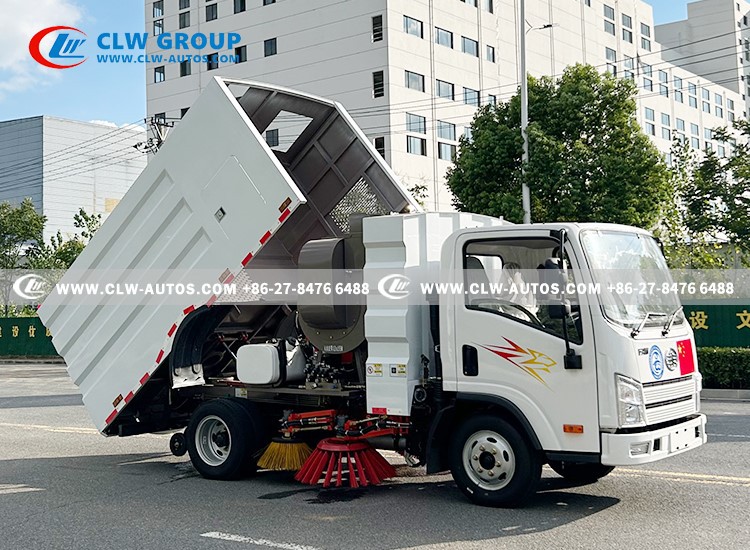

- The garbage tank utilizes a tipping discharge mechanism powered by dual hydraulic cylinders, providing strong support.
- Rear door opens hydraulically with direct control from the cabin, and features a large flat slope design for easier waste unloading.
- The truck is equipped with an intelligent control system that allows all operations within the cabin.
Optional Parts：
- Front flush function
- Rear spray function
- Waste tank self-cleaning function
For quick inquiry or more informations, please contact:
Ms.Juniper Gong
WhatsApp: + 86 139 2570 3918
WeChat: 139 2570 3918
Email: juniper@clw-autos.com
Reference Pictures
Technical parameters
| Condition | New condition/Right hand drive/4x2 | ||||
| Chassis | Brand | FAW Tiger VR | |||
| G.V.W | 4495kg | ||||
| Curb weight(kg) | 3690 kg | ||||
| Wheelbase(mm) | 2800mm | ||||
| Dimensions(mm) | 5800×2000×2540 mm | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Cab |
Single row cab, 2~3 seats Right hand driving With air conditioner |
||||
| Engine | Brand | Weichai | |||
| Model | WP2.3NQ110E20 | ||||
| Fuel type | Diesel | ||||
| Displacement | 2.3L | ||||
| Power/Horsepower | 81 kw/110 HP | ||||
| Emission standard | Euro II | ||||
| Gear box | Manual type, WYL MG85B, 5 Forwards & 1 Reverse | ||||
| Axle loading | Front/Rear 2,000kg/5,000 kg | ||||
| Tire | 6.50R16, 6 pcs with one spare tire | ||||
| Upperstructure Specification | |||||
| Tank | Waste tank | Tank material | 304 Stainless steel | ||
| Tank volume | 2 cbm | ||||
| Water tank | Tank material | 304 Stainless steel | |||
| Tank volume | 1 cbm | ||||
| Auxiliary Engine | Model | JMC | |||
| Horsepower | 87 HP | ||||
| Fuel type | Diesel | ||||
| Sweeping System | Type |
Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately. Rear brushes and suction nozzle are integrated controlled for up and down. |
|||
| Sweeper Diameter | 900 mm | ||||
| Working area | 2.2 m | ||||
| Cleaning Speed | 8-20km/h | ||||
| Sweeper angle adjustment | Forerake 4°-6°and extroversion 2°-4° | ||||
| Remarks | Corrosion resistant painting with customized logo | ||||
| Suction hose at rear door | |||||
Product Details

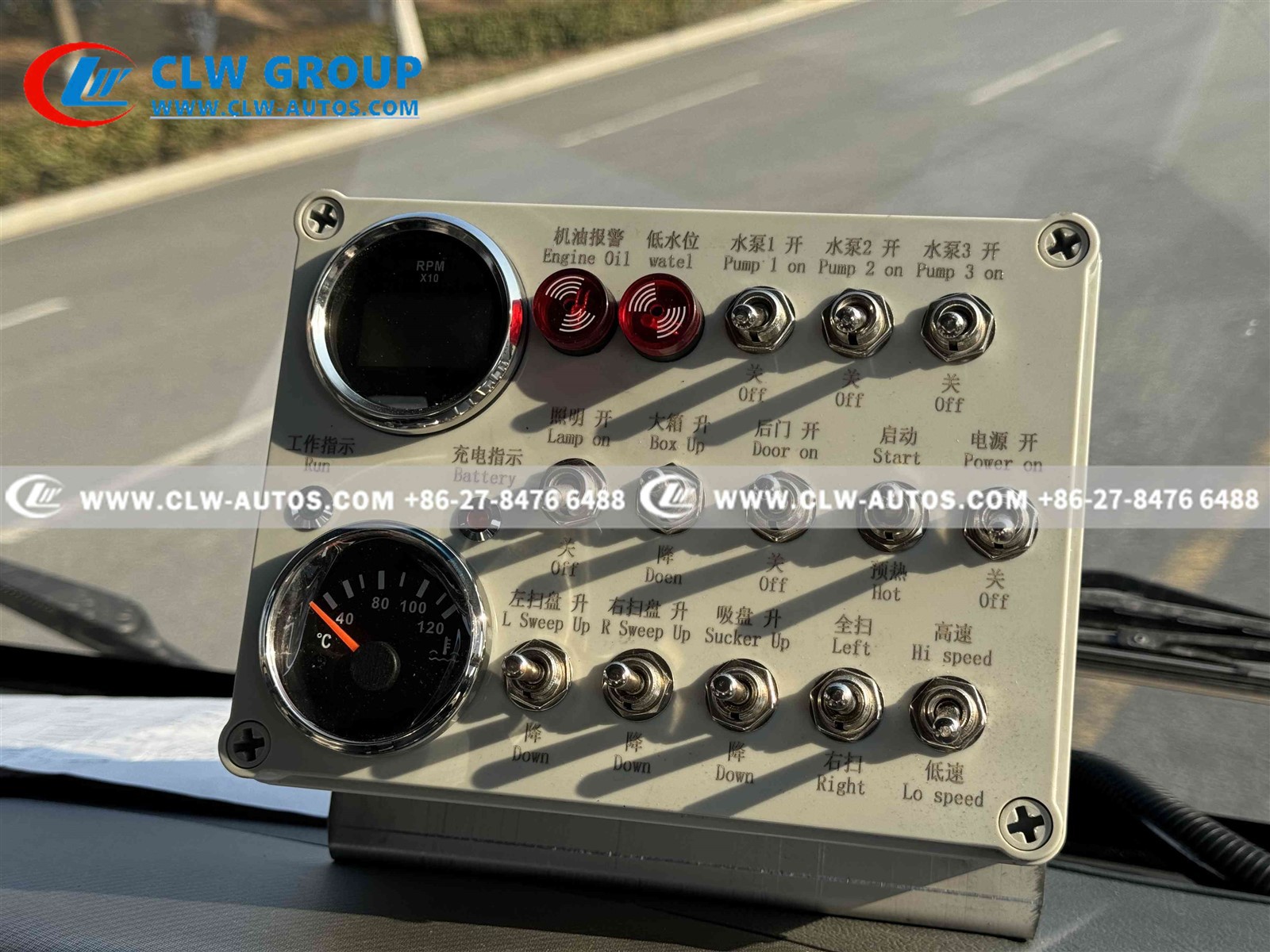

Control Panel in Driver's Cabin
With the intelligent control system in the cab, all operations of the special parts can be completed in the cab.
The control system uses a controller imported from Germany and a control switch imported from Japan. The system is responsive, stable and durable.
Sweeper & High Pressure Water Nozzle
The front sweeper features automatic obstacle avoidance, retracting upon detection and resetting automatically after clearing the obstruction, while the lateral sweep can be controlled independently, enabling multiple operational modes.
The hydraulic motor is a crucial component of street sweeper truck, and its quality and performance directly affect cleaning efficiency and effectiveness. The FAW 3CBM street sweeper truck features a hydraulic motor from a well-known Chinese brand, ensuring mature technology and stable operating speed for superior cleaning results.
Additionally, the front brushes is equipped with high-pressure nozzles to suppress dust generated during operation, effectively eliminating secondary pollution. The nozzles are made from high-quality stainless steel, making them resistant to corrosion and durable.

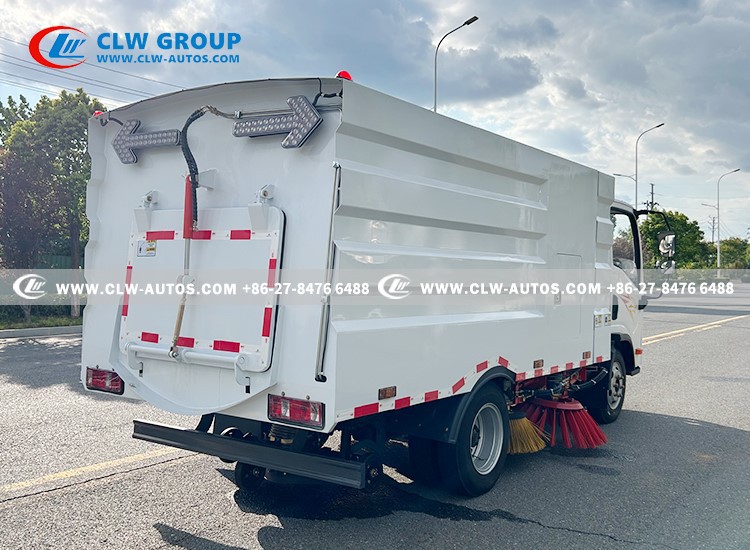

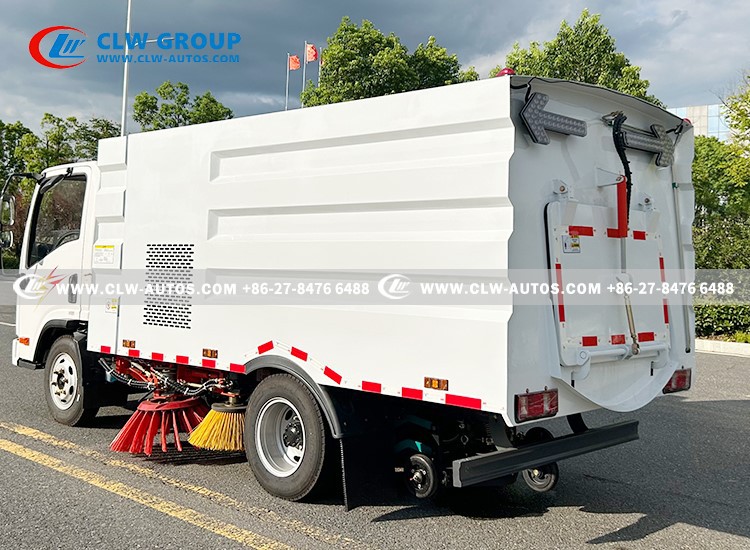

Self-unloading Waste Bin & Rear Working Light

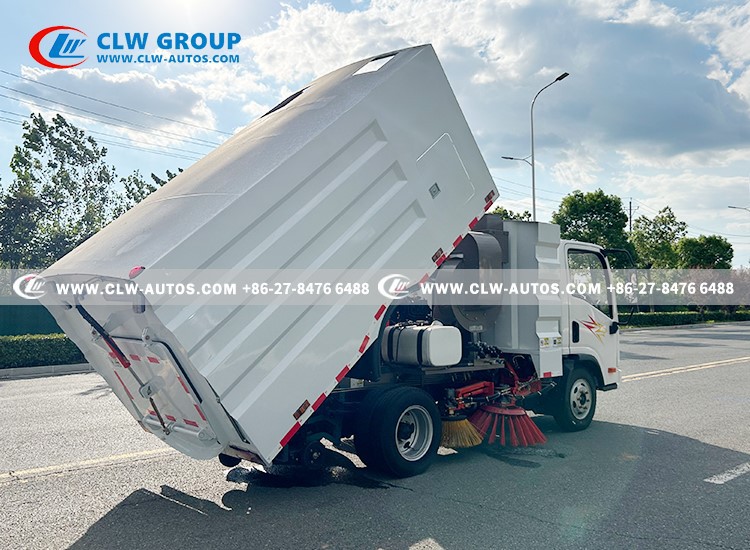

FAW 3CBM street sweeper truck features a tipping garbage bin with double hydraulic cylinders for robust lifting support. The tailgate operates hydraulically and is easily controlled from the cabin, allowing for an opening angle greater than 85 degrees. The interior of the bin employs a large flat sloped design for efficient waste disposal.

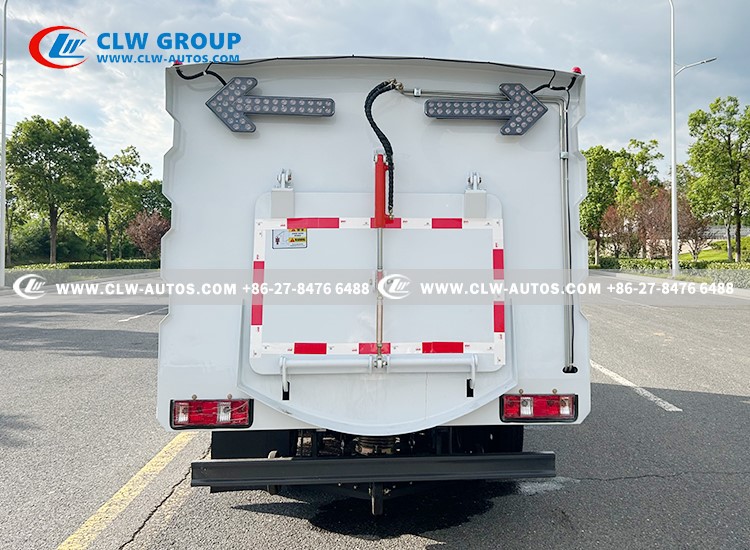

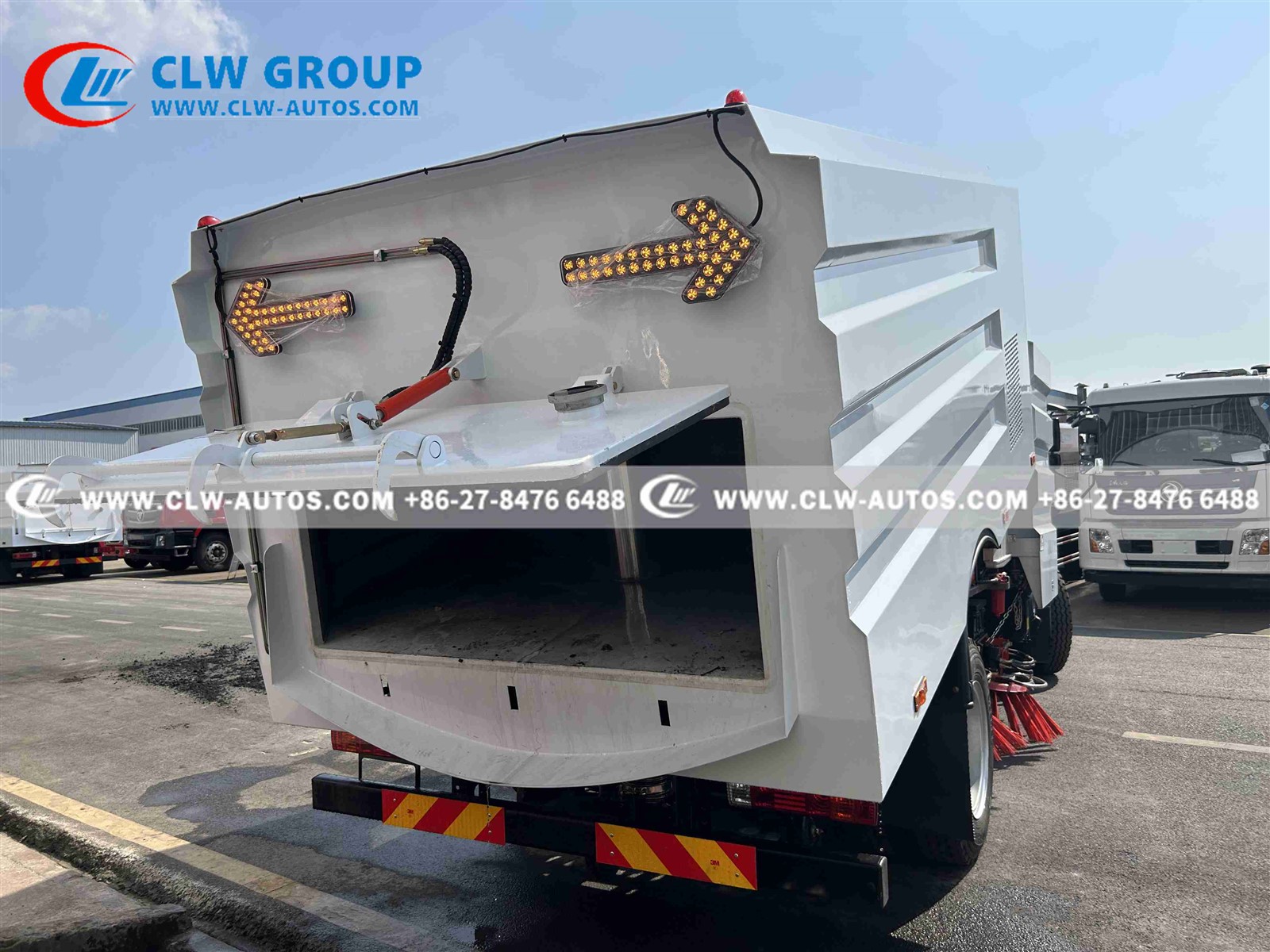

At the rear of the bin, the FAW 3CBM street sweeper truck is equipped with a pair of LED arrow light, which is controlled from the cabin. Activating this light enhances safety for pedestrians and vehicles during operation, thus improving cleaning efficiency.
