Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4x4 38meters telescopic boom lift truck in China. If you're going to buy high quality isuzu 4x4 38meters telescopic boom lift truck, welcome to get more information from our factory. For price consultation, contact us.

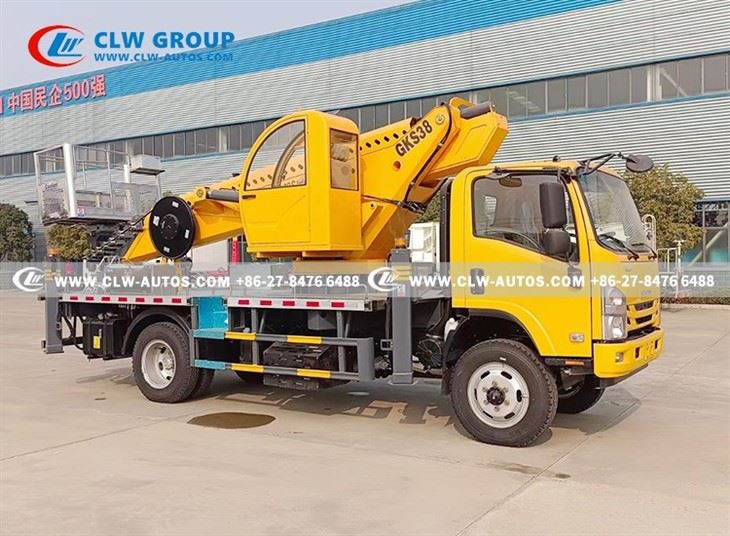

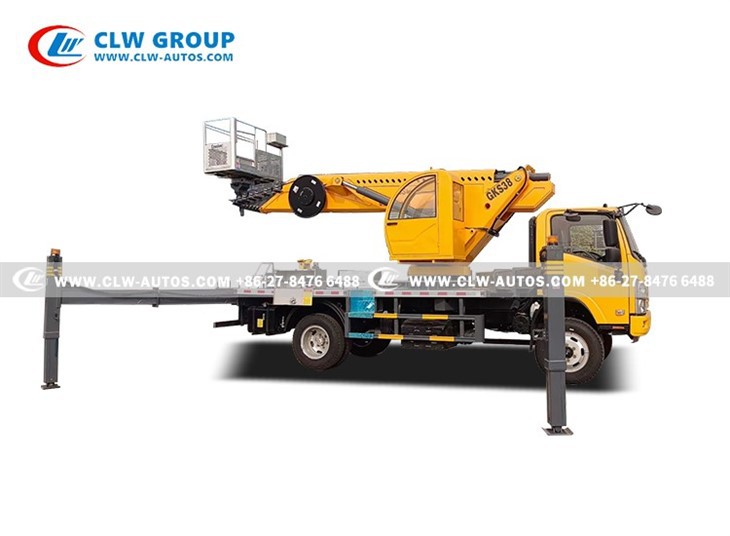

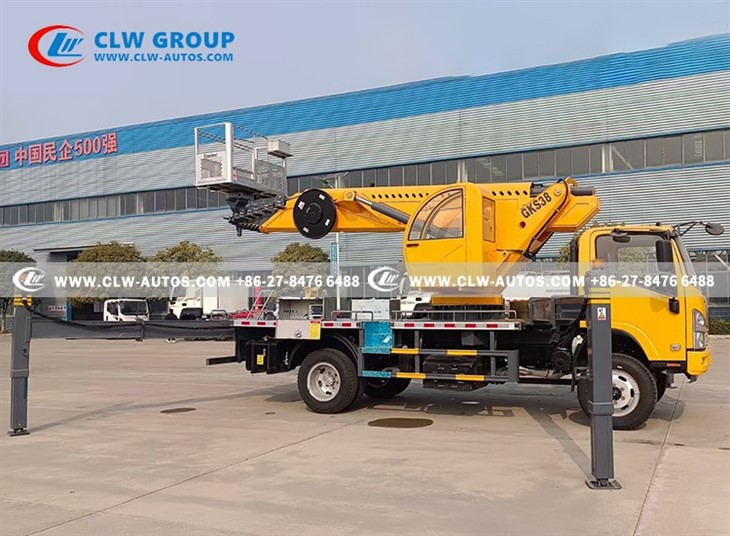

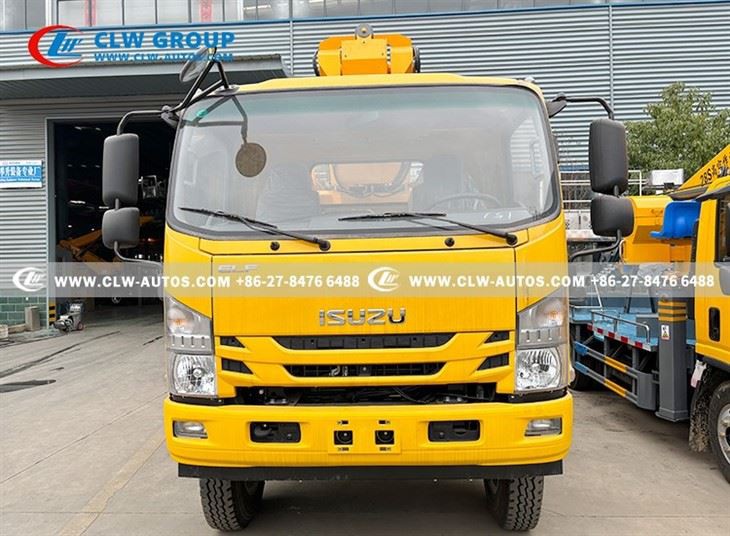

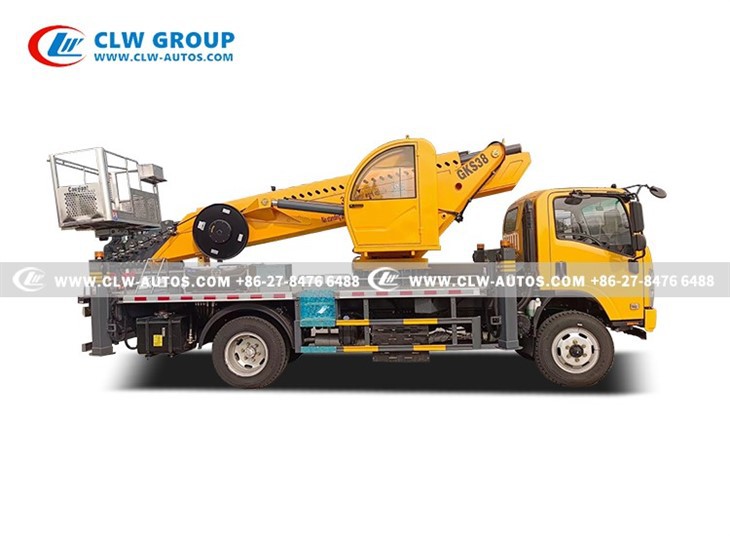

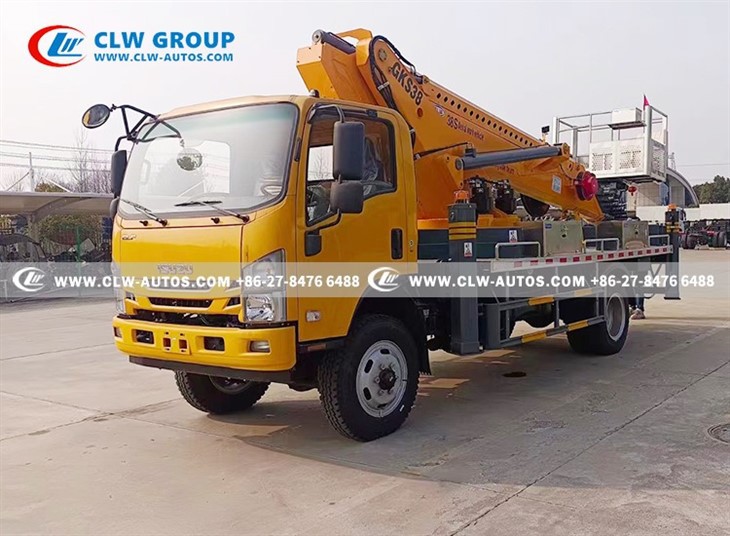

ISUZU 4X4 38Meters Telescopic Boom Lift Truck
Factory Price For Sale
We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance
Telescopic boom lift truck, also known as telescopic boom trucks, telescopic boom lifts, telescopic aerial lifts, telescopic aerial trucks, telescopic working platforms, articulated telescopic aerial trucks, articulated boom lifts, articulated basket platforms, etc., which is a utility truck equipped with a hydraulic boom that incorporates a man-carrying bucket at its extremity. Aerial working truck plays a crucial role in maintenance tasks such as servicing traffic lights, street lights, trimming trees, cleaning or installing signboards, and other high-elevation operations.
1. Various aerial platform heights available include: 14m, 16m, 18m, 20m, 21m, 22m, 24m, 26m, 28m, 29m, 30m, 32m, 34m, 45m, and more.
2. Diverse chassis brands such as ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG, BEIBEN, JAC, JMC, KAMA, and others are offered.
3. Choose from a range of insulated buckets for your convenience.
1. The chassis of the ISUZU truck remains true to its original design, incorporating cutting-edge Japanese technology.
2. Featuring all drive axles, this vehicle excels in traversing steep inclines and rough terrains with ease.
3. The truck showcases a sophisticated four-section telescopic boom, offering a full 360° rotation capability.
4. To ensure optimal stability, the truck is equipped with four adjustable landing legs that provide extensive span for superior support.
5. Boasting a stainless steel bucket with a loading capacity ranging from 200 to 400kg.
6. The bucket's design prioritizes maintaining a consistent balance throughout operations.
7. The monitor display provides real-time data on working amplitude, working height, working angle, and boom length for maximum operational efficiency.
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
| Overall Dimension |
8600×2060×3050mm |
| Gross Vehicle Weight | 18000 kg |
| Wheel Base | 3815mm |
| Driving Type | 4x4 all drive |
| Cabin | Left hand driving, single row cabine, with air conditionor |
| Engine | Diesel Engine 4KH1-TC60, 205 HP, Euro VI (Euro 6) |
| Gearbox | Manual type, ISUZU MLD 6 Forward & 1 Reverse Gear |
| Axle | 6.3 Ton Front Axle, 13 Ton Rear Axle |
| Tire | 295/80R22.5, 6 pieces with 1 spare tire |
| Working height | 38m |
| Maximum operating range of the platform |
≥19m |
| Platform operating range when operating height is maximum |
≥7m |
| Platform operating height when operating range is maximum |
≥7m |
| Landing leg |
4 landing legs, Individually adjustment |
| Leg span | Lateral leg span: 5385mm, Longitudinal leg span: 5195mm |
| Control system | Manual control and remote control system |
| Bucket Loading Capacity | 200kgs~400kgs, optional for insulated bucket |
Stainless Steel Basket, 200~400kgs
Operation Platform with Cabin
