Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 12m 40ft elevated work platform truck in China. If you're going to buy high quality howo 12m 40ft elevated work platform truck, welcome to get more information from our factory. For price consultation, contact us.

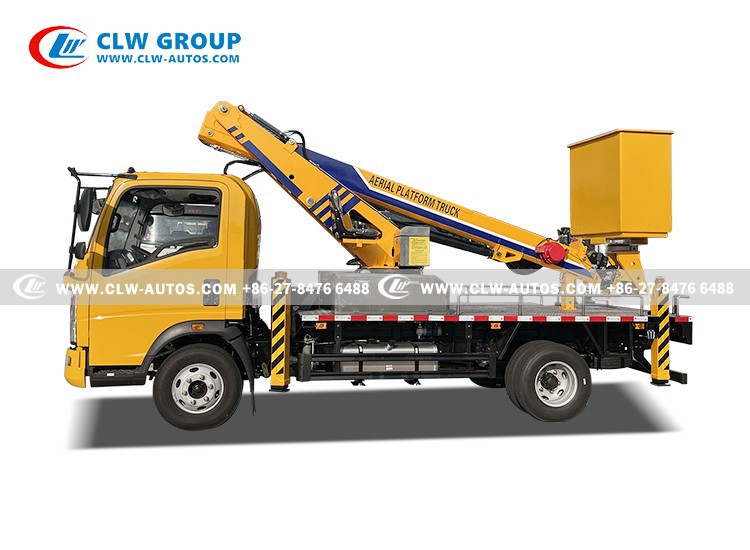

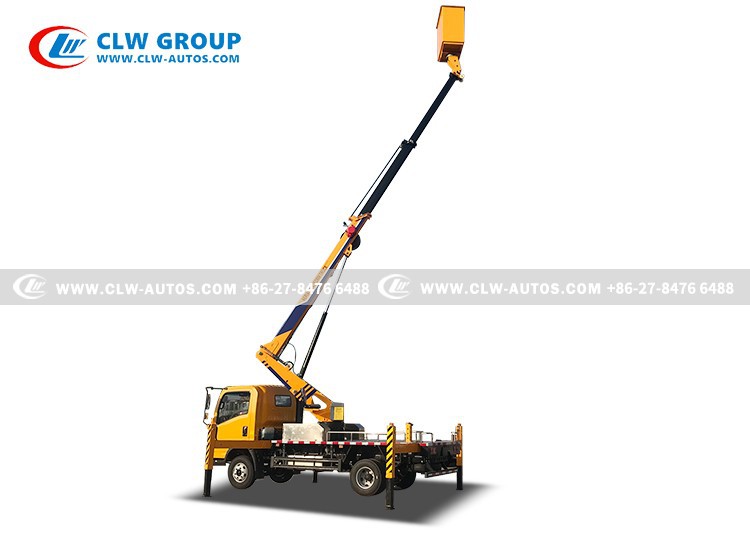

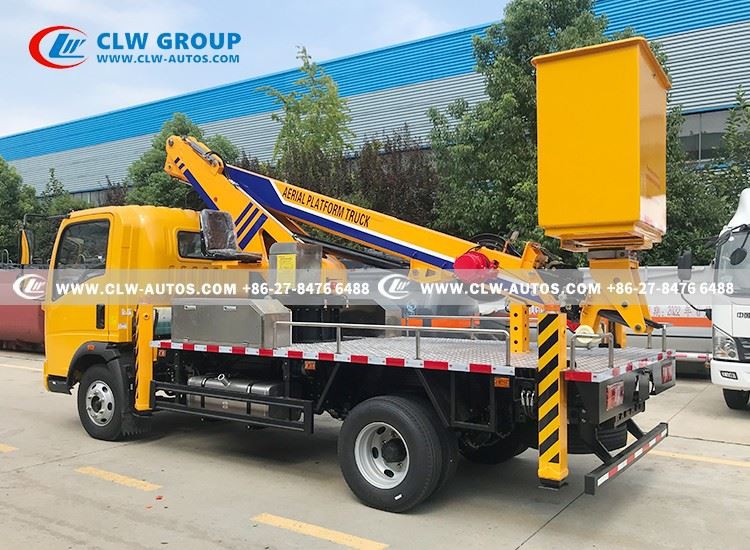

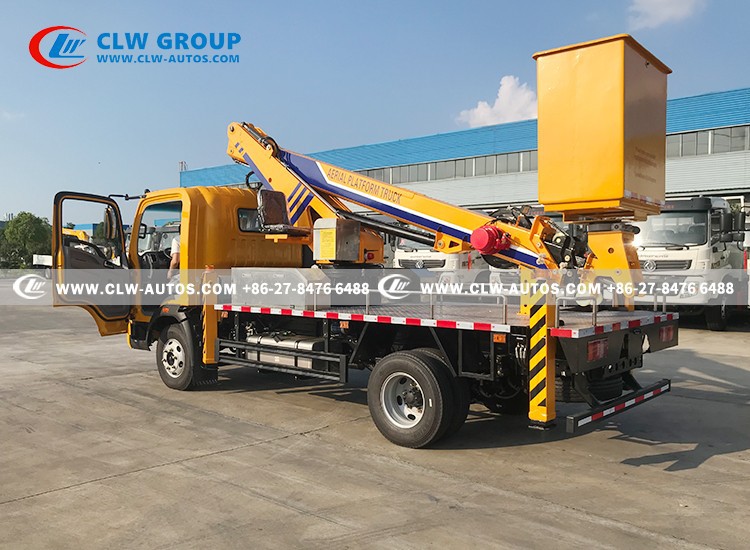

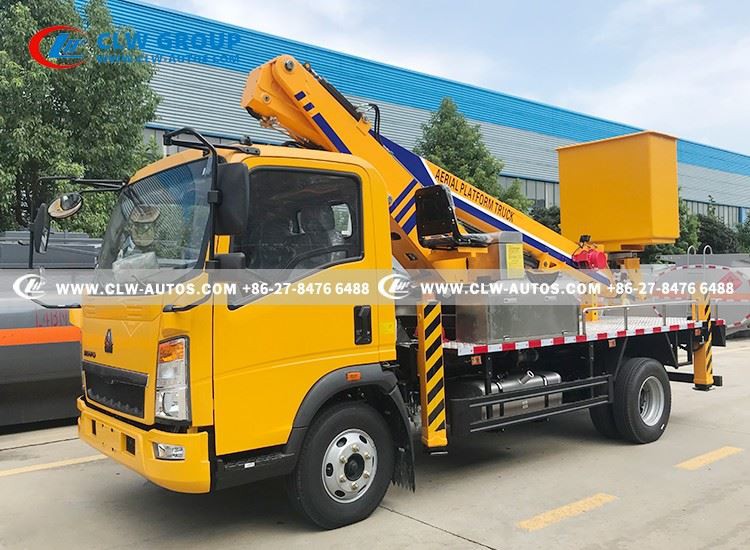

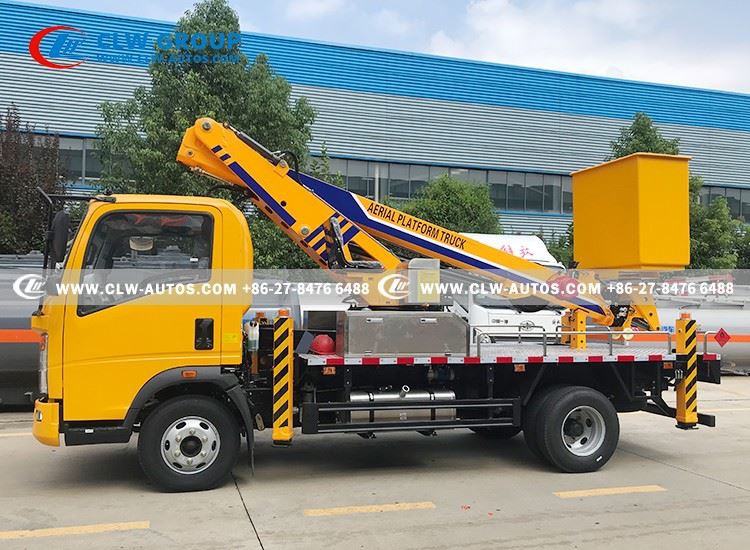

Sinotruk HOWO 12M 40FT Elevated Work Platform Truck
Factory Price For Sale
We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance
An elevated work platform truck, also known as an aerial work platform truck, aerial working truck, bucket truck, or cherry picker truck, among other names, is essentially a utility truck equipped with a hydraulic boom that features a man-carrying bucket at its end.
Elevated work platform trucks play a vital role across various industries such as municipal services, electric power maintenance, street light installation, advertising, communications, photography, landscaping, shipbuilding, transportation, operations at docks, airports, and ports, as well as in rescue and maintenance undertakings within large industrial and mining enterprises.
- Maximum operating height: up to 12 meters (40 foot)
- Load capacity of the platform: 200KG and above
- Platform rotation: 360°
- Advanced features: Imported electro-hydraulic proportional valve group with CAN bus control system, wireless remote control
- Operator interface: 5-inch LCD screen displaying real-time data such as detection arm length, elevation angle, platform height, and working height
- Working mechanism: Hexagonal working arm, synchronous telescopic, compact structure, high efficiency, large range
- Maintenance features: Built-in telescopic cylinder, double chain telescopic mechanism for easier fault observation and maintenance
- Boom structure: 4-section full chain type telescopic structure with built-in broken chain protector
- Leg design: Front V after H type legs, horizontal double-jointed legs telescopic, wide transverse span, "soft leg" protection function
- Coating: Vehicle electrostatic spraying for corrosion resistance and aesthetics
1. Aerial platform height:14m,16m,18m,20m,21m,22m,24m,26m,28m,29m,30m, 32m, 34m, 45m, etc.
2. Chassis brand: ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG,BEIBEN, JAC, JMC, KAMA, etc.
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
| Overall Dimension |
5998×2050×2850mm
|
| Gross Vehicle Weight | 4295 kg |
| Wheel Base | 2800mm |
| Cabin | LHD or RHD, Single row cabin,with A/C |
| Engine | Diesel engine,YN4100QBZL, 95HP, Euro 2 |
| Gearbox | Manual, WLY6TS40, 6 Forward & 1 Reverse Gear |
| Axle | Front/Rear 2,000kg/3,500kg |
| Tire | 7.00R16-14PR, 6 pieces with 1 spare tire |
| Max. working height | 12m |
| Maximum operating range |
6m
|
| Platform operating range when maximum operating height |
3m
|
| Platform operating height when maximum operating range |
8m
|
| Landing leg |
4 landing legs, front V rear H, independent operation
|
| Leg span | Lateral leg span: 4700mm, Longitudinal leg span: 4560mm |
| Control system | Manual control and remote control |
| Bucket Loading Capacity | 200kgs |
