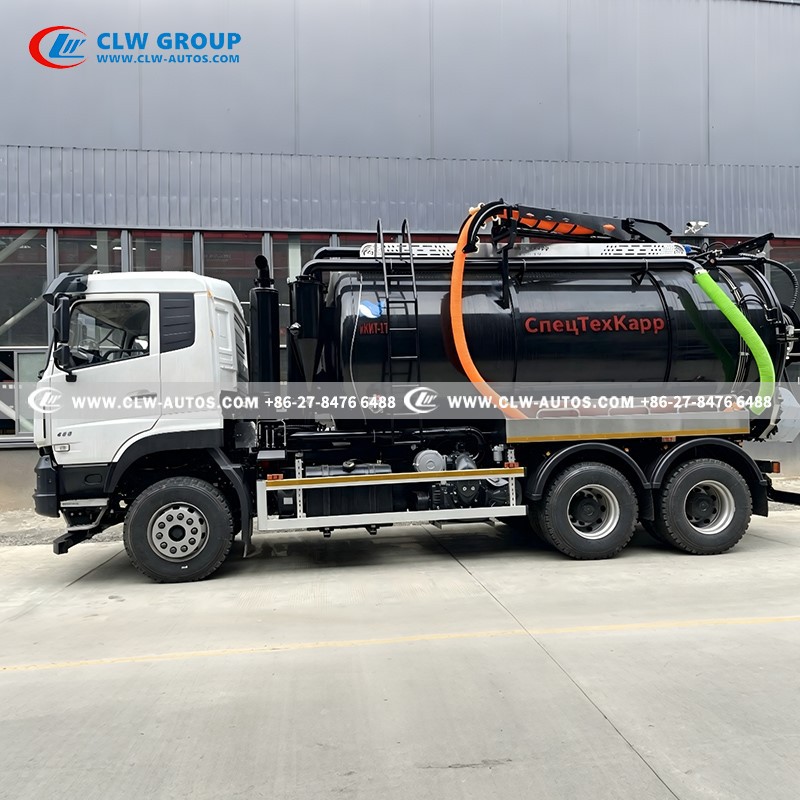

Dongfeng 20m3 Vacuum Jetting Truck
Truck brand: Dongfeng 6*4 driving model
Tank volume: 20cbm Vcuum Jetting Truck
Tank material: Q235 carbon steel or 304/316 stainless steel material
Engine:Euro6/ Euro5, 400hp
Vacuum pump: Italy brand Jurop PVT400 vacuum pump
PVT400 Roots vacuum pump, supports non-stop 24-hour continuous running
High-pressure jetting pump: Chinese brand Pinfu 350L/min
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 20m3 vacuum jetting truck in China. If you're going to buy high quality dongfeng 20m3 vacuum jetting truck, welcome to get more information from our factory. For price consultation, contact us.

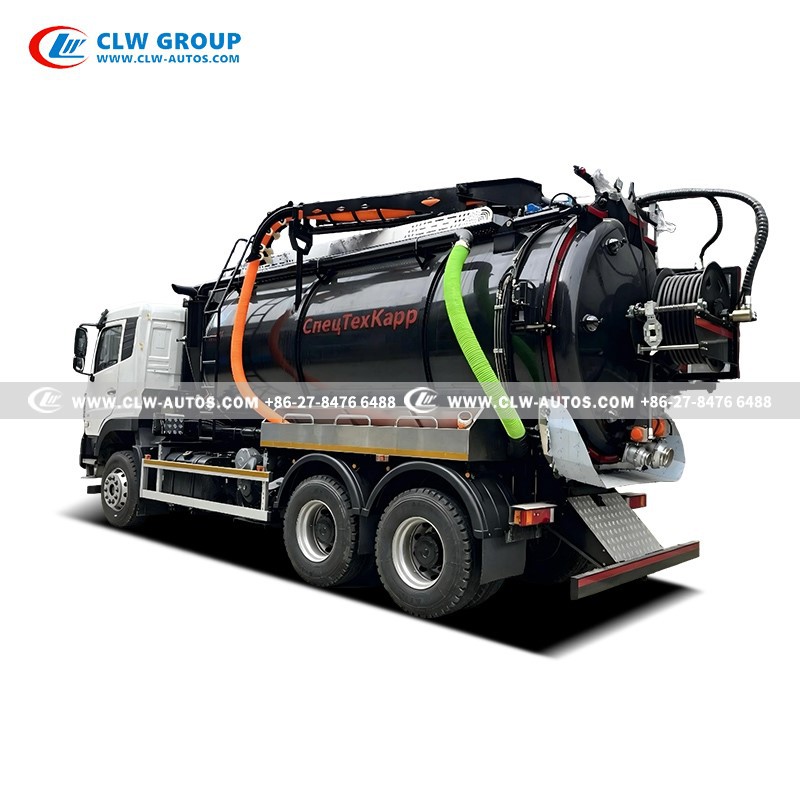

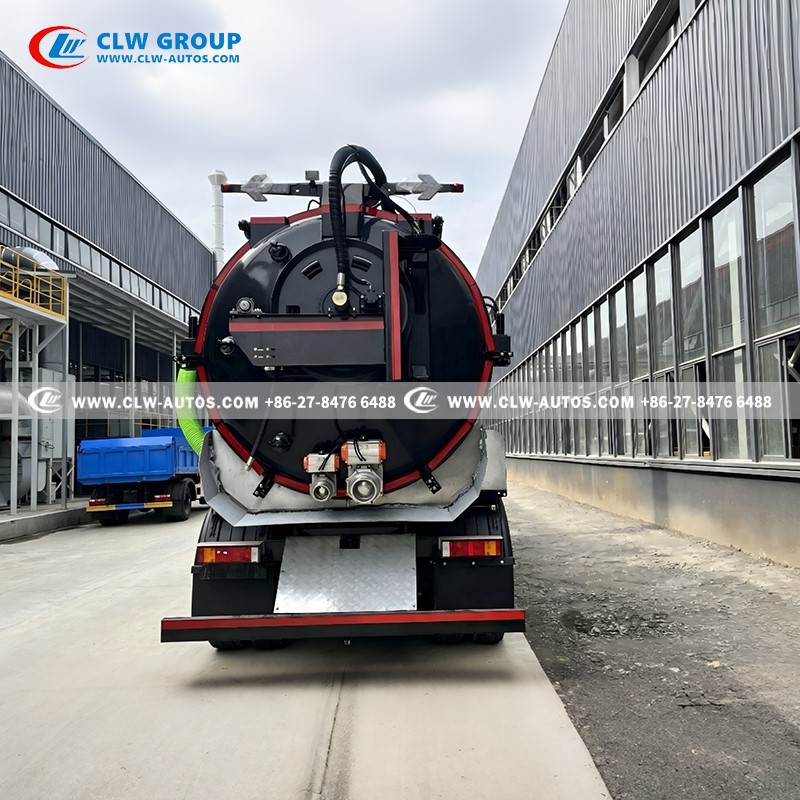

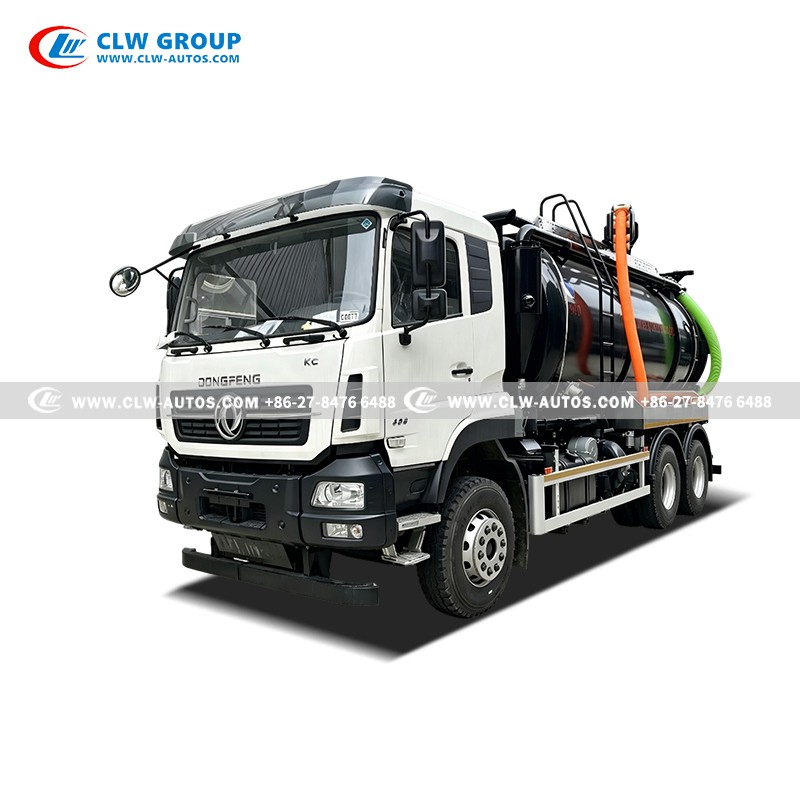

Dongfeng 6*4 20cbm, 20,000liters Vacuum Jetting Truck
Left hand drive, Euro 5/6 for Russia and Central Asia Market
Products Description
This Dongfeng 6x4 20m³ Combination Vacuum & High Pressure Jetting Truck is specially engineered and certified to satisfy import standards of Russia, Kazakhstan, Uzbekistan, Kyrgyzstan and all Central Asian Russian-speaking markets, with full EAC certification for seamless customs clearance across CIS countries.
Built on heavy-duty 6x4 rear double axle medium-heavy truck chassis, Euro 6 left-hand drive configuration complies with local vehicle emission and road legal regulations, widely applied in municipal sewer maintenance, septic tank emptying, industrial sludge suction, underground pipeline jet cleaning across frigid high-latitude regions of Russia and Central Asia.
Total effective tank capacity reaches 20 cubic meters, balancing large-volume waste storage and flexible cross-country operation in harsh cold weather.
Competitive Advantages:
- EAC Certified Ready for CIS Import: Full set of EAC certification documents, directly importable into Russia, Kazakhstan and other CIS nations without secondary certification, saving importer's time and customs expense.
- Customized Anti-freezing Design for Cold Weather: Optional water tank burner heating system solves freezing trouble in long Russian winter, unavailable on ordinary standard vacuum trucks from other manufacturers.
- Top-tier Brand Core Pumps: Italy Jurop vacuum pump + Pinffu high-pressure pump combination, mature spare parts supply chain across Russia, easy local after-sales maintenance and spare part sourcing for end users.
- Large 20m³ Tank Capacity: Big storage volume cuts down transport round trips, lowering fuel and labor cost for sanitation fleets running long-distance in vast territory of Russia and Central Asia.
- Remote Control Operation: Wireless remote controller simplifies field operation, reduces manpower requirement for pipeline maintenance teams in sparsely populated CIS areas.
Techinical Specification
|
Technical Specification |
|||||
|
1. Chassis Part |
|||||
|
Condition |
Dongfeng , LHD, 6*4 driving mode, factory brand new |
||||
|
Wheelbase |
4350+1350 mm |
||||
|
Cab |
Dongfeng classic cabin top, D310 LHD, 1+2 seats With Electric AC, Cooling Fan, one sleeper |
||||
|
Engine |
Engine brand |
Cummins engine, ISL9.5 400 |
|||
|
Horsepower |
400hp |
||||
|
Fuel type |
Diesel |
||||
|
Emission standard |
Euro 5/6 |
||||
|
Transmission |
Manual type, 12JSD180TA 0D, 12 speeds forward and 2 reverse |
||||
|
Front axle loading |
7,000kg |
||||
|
Rear axle loading |
15,00kg *2 |
||||
|
Tyre |
315/80R22.5, 12pcs with one spare |
||||
|
2. Vac and Jet Upperstructure Configuration |
|||||
|
Tank dimensions |
Tank volume capacity |
20 m3, 20,000 litres |
|||
|
Vacuum system |
Vacuum pump model |
Italy vacuum brand, Jurop PVT400 | |||
|
Vacuum flow |
2600m³/h / 43300L/min | ||||
| High-pressure system | High-pressure pump | Chinese brand Pinfu | |||
| Jetting flow | 350L/min | ||||
|
Drive system |
Vacuum pump driven by Side PTO |
||||
|
Suction ball valve |
DN 100 discharging outlet |
||||
|
Tank assembly |
Anti-overflow system |
Primary+ cyclone secondary valve |
|||
|
Vaccum pipe |
Hydraulic suction pipe |
||||
|
Accessories |
Top platform, filter ports, ladder |
||||
|
Discharge |
Side-mounted Ø100mm suction valve |
||||
|
Work platforms |
Both extended side platforms + toolboxs |
||||
|
Remarks |
Color is optional LOGO painting as per customer request |
||||
Reference Pictures

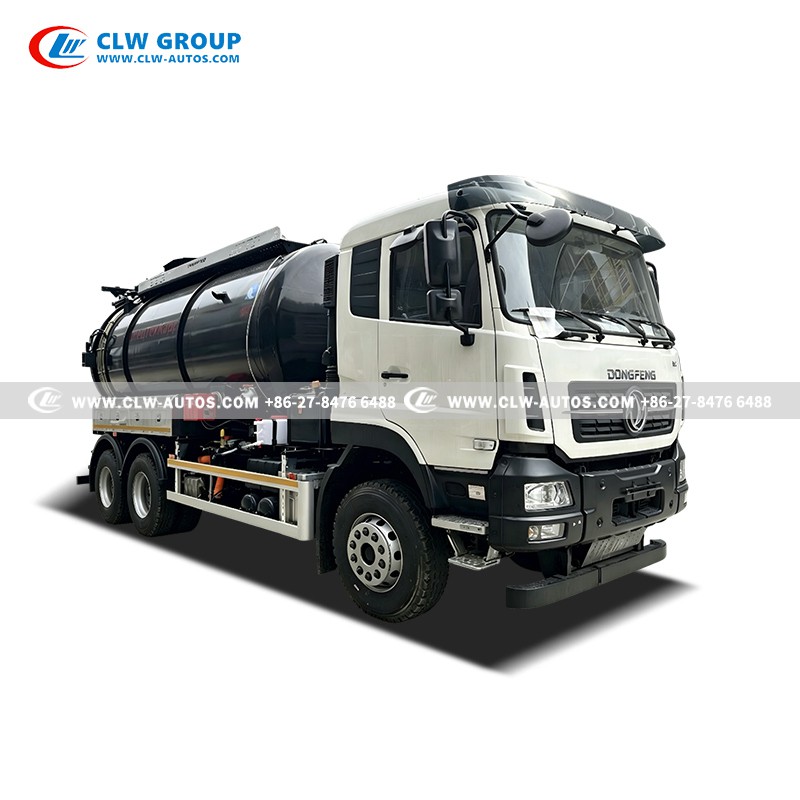

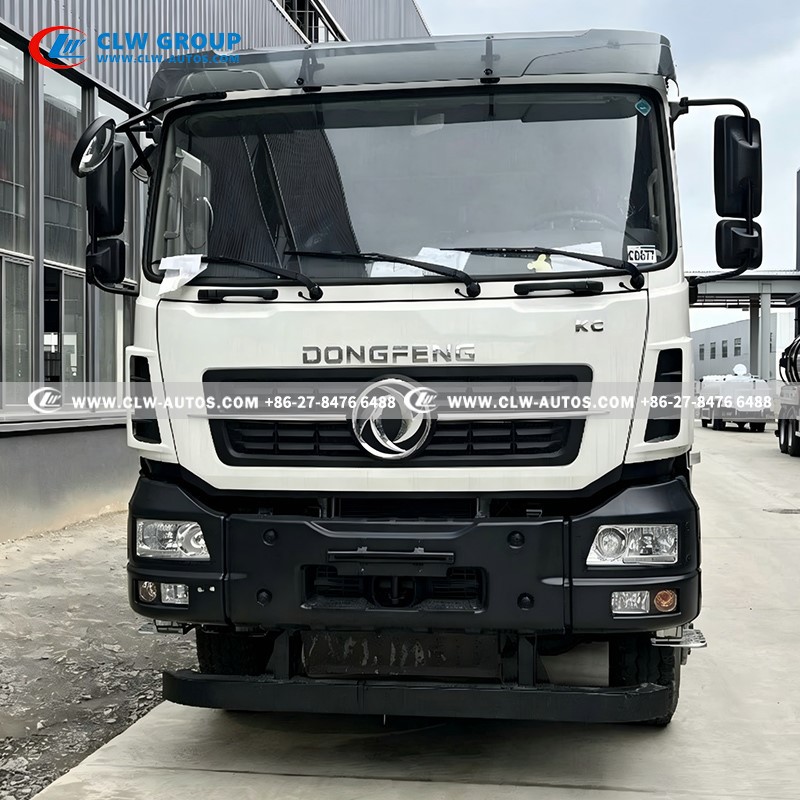

Brand & Drive Form: Original Dongfeng KC heavy-duty chassis, 6×4 rear tandem double rear axle layout, strong load-bearing capacity for rough rural and urban roads prevalent across Russia and Central Asia.
Power Unit: Dragon Engine (Longqing) 400HP diesel engine, high torque output under low temperature, reliable cold start performance to cope with long freezing winter in high-latitude CIS territories.
Transmission: FAST 12-speed manual gearbox, mature durable transmission technology, convenient shifting for complex road conditions including icy, gravel and mountainous routes in Russia.

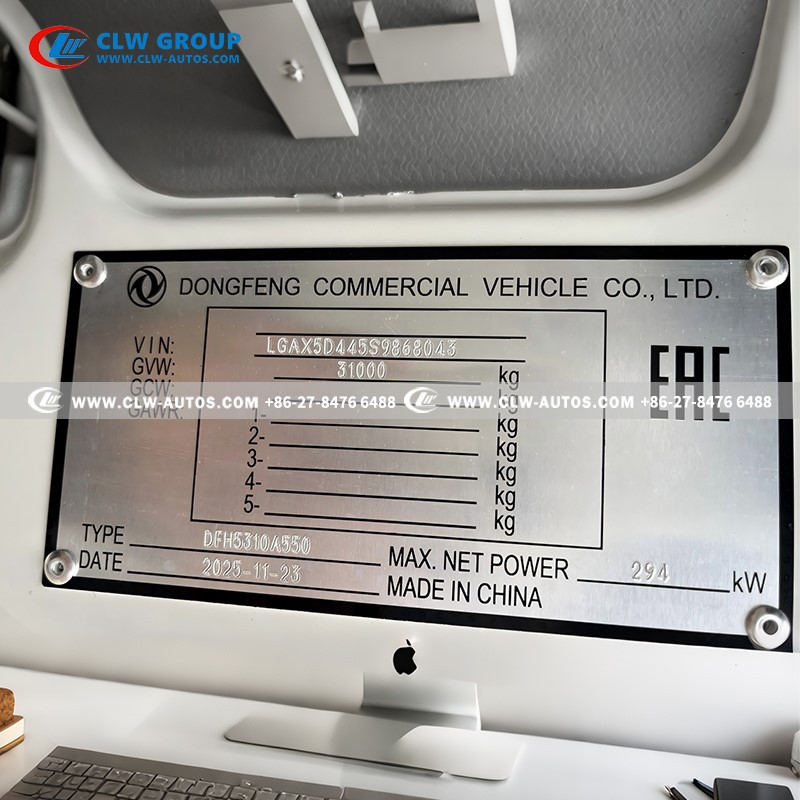

Emission & Certification: Euro 6 emission standard, Left Hand Drive (LHD), complete EAC certification as core advantage for CIS import customs clearance, eliminating complicated local certification procedures for buyers from Russia and Central Asian nations.
Exclusive Cold Climate Upgrade:
Water Tank Heating System (Core Selling Point for Russia High Latitude Winter)
Targeting the long freezing winter feature of Russia & Central Asia (low ambient temperature down to -30℃ ~ -40℃ in northern Russia), we configure independent fuel burner heating device for clean water tank.
The matched combustion heater prevents clean washing water inside tank from freezing in frigid environment, enabling normal truck operation all year round even in severe cold northern Russian areas, a customized upgrade unique for high-latitude CIS market.

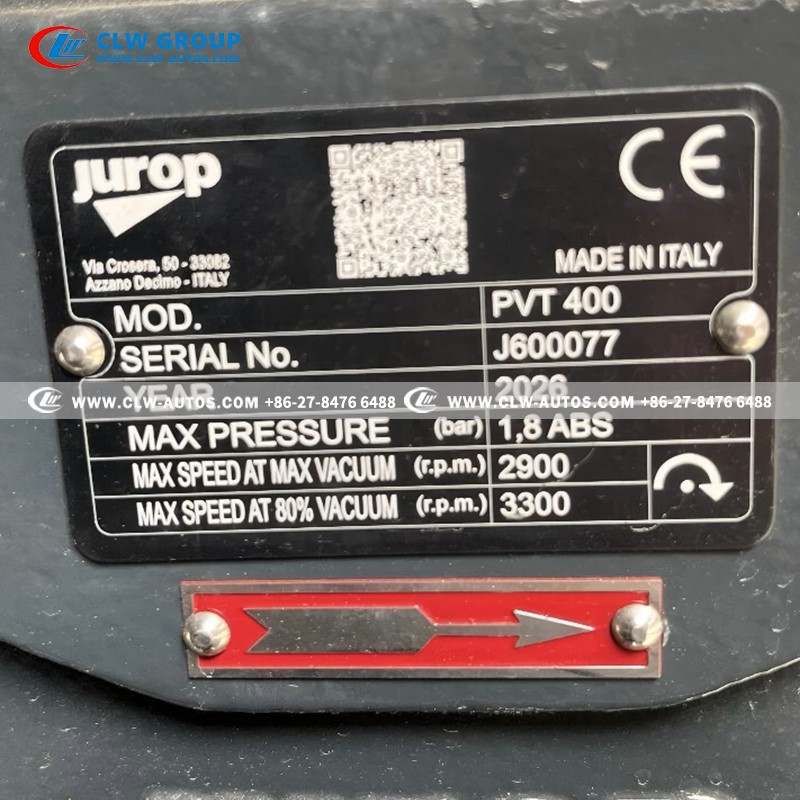

1. Italy Jurop PVT400 Roots Vacuum Pump (Sludge & Sewage Suction System)
We adopt world-famous Italian brand Jurop PVT400 Roots vacuum pump, the mainstream premium pump selected by most Russian municipal sanitation contractors:
- Max airflow volume: 2600m³/h / 43300L/min; Rated rotating speed:3300rpm
- Ultimate vacuum degree up to 93%; Max output power:71kW /96HP
- Supports non-stop 24-hour continuous running, wear-resistant structure for long-term heavy-duty sludge, septic waste and sewage suction, extremely popular for Russian sanitation fleet owners pursuing low maintenance cost and long service life.
2. China Pinffu 350 High Pressure Jetting Pump (Pipeline Cleaning System)
Equipped with trusted Chinese Pinffu high-pressure washing pump, core for underground sewer pipeline high-pressure jet cleaning:
- Rated flow rate:350L/min; complete set of interchangeable high-pressure nozzles supplied as standard accessory
- Rear-mounted hydraulic hose reel with long high-pressure hose, remote control available for one-person remote operation of jetting and suction functions, improving construction efficiency for urban pipeline renovation projects in CIS countries.
3. Optional Extra Customization Items
- Modify tank inner coating for corrosive industrial waste liquid transportation
- Upgrade thicker thermal insulation layer for entire clean water tank for ultra-low temperature northern Russia regions
- Add auxiliary lifting system for easy tank internal cleaning and maintenance
Our Official Website--Factory Real Shot Video For You
Ideal Application Scenarios
- Municipal Sanitation Works: Urban sewer pipeline blockage high-pressure jet cleaning, city septic tank, cesspit sludge suction & transportation for Russian municipal government bidding projects.
- Industrial Waste Treatment: Factory sewage tank sludge pumping, petrochemical plant waste liquid collection across industrial zones of Kazakhstan & Uzbekistan.
- Rural Environmental Renovation: Village septic tank cleaning, farm manure collection for countryside environmental projects in remote cold regions of Russia.
- Emergency Drainage Service: Road flood drainage, underground pipeline emergency blockage removal after snowmelt in cold high-latitude areas.
