DongFeng Combined Jetting Truck 12,000L
Chassis: Dongfeng Kingrun VR
Type:12,000-15,000 Liters Sewage Suction Truck
Engine:190HP Cummins
Maximum Mileage With Full Oil&Full Loading: 650KM
Loading Weight:12-15 Ton
Tank Consistance:5.5-ton for Water section&6.5-ton for Sewage Section
Contact(Ryan Ran):+86 131 9727 3661
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng combined jetting truck 12,000l in China. If you're going to buy high quality dongfeng combined jetting truck 12,000l, welcome to get more information from our factory. For price consultation, contact us.
DongFeng Kingrun12,000 Liters Combined Jetting Truck
Technical Data
Technical Data of Chassis
| Chassis | DongFeng KingRun | Engine&Horsepower | Cummins&190 HP |
| Drive Model | 4x2/ 6 Tires | Emission Standard | EURO III |
| Cabin | D530 Type | Gear Box | 6 forwards& 1 reverse |
| Loading Volume | 12 CBM/12,000 Liters | Diesel Tank Volume | 200 Liters |
| Wheel Base | 4700mm | Maximum Mileage With Full Oil&Full Loading | 650 KM |
| Tank |
Tank Material:Carbon Steel Treatment:Eletrophoretic, Rotomolding
Section:5.5CBM for Water 6.5CBM for Sewage Thickness: 5mm for side 6mm for bottom |
Auxiliary Engine | Weicai 140HP Engine |
| Water Circulation Vacuum Pump |
Brand: Yifeng Maximum Vacuum: -0.095MPa Suction Capacity：12 m3 /Min |
High-pressure Plunger Pump |
Max. Pressure: 220 bar (22 MPa) Max. Flow Rate: 170 L/min Power Consumption: 55 kW Driven by: PTO derived from Independent Weichai Auxiliary Engine |
| The Range of Pipe&Hose |
20m for suction pipe
15m for water hose |
Hydraulic System |
Angle of the rear door: ≤60° System pressure: 12MPa Volume of hydraulic oil tank: 60L |
Core Advantages & Application Scenario
core advantages
The company conducted the competitive advantages analysis to identify Dongfeng KinRun VR strengths compared to its rivals.
High Efficiency & Fuel Economy
The Cummins 190 HP Engine with Euro III technology provides ample power while maintaining low fuel consumption.
Compared to older models, Euro III engines reduce emissions by approximately 20%, allowing the vehicle to operate in regions with basic environmental standards.
Proven Durability & Ultra-Low Maintenance
Built on Dongfeng's classical D530 Type platform, which has been rigorously tested and proven reliable in the market. Parts for the Euro III engine are widely available, and local mechanics can easily service these vehicles even in remote areas.
Optimized Duty Performance
The 4700mm wheelbase combined with a 6-ton front axle and 10-ton rear axle provides a "golden" balance of load capacity and stability.
The integrated high-pressure cleaning and vacuum suction system enables one truck to handle both tasks on a single trip, effectively clearing about 8–10 km of range per operation.
Excellent Global Adaptability
The Euro III standard is still widely accepted in many developing regions across Africa, the Middle East, South America, and Southeast Asia, and the truck is already actively exported to these markets.
Dongfeng offers flexible delivery forms, including complete vehicles or CKD (Completely Knocked Down) kits, allowing local assembly to reduce tariffs and logistics costs.
Application Scenario
1. Municipal Sewer & Drainage Systems – Cleaning and unblocking city sewer lines, manholes, and storm drains, as well as vacuuming accumulated sludge and debris.
2. Waste Management – Industrial & Factory,Construction Site. Removing liquid waste, sludge, and sediments from factory pits, treatment ponds, and industrial drainage systems,even after-calamity cleanup.
3. Rural & Remote Area Sanitation – Serving regions with limited access to modern Euro V/VI vehicles, where simple, durable, and low‑cost Euro III trucks are still widely accepted.
4. Emergency Spill Response – Rapidly cleaning up liquid spills or flood‑related sludge in streets, tunnels, and underpasses.
5. Septic Tank & Household Pit Emptying – Using the truck's vacuum function to empty residential or commercial septic tanks.
YouTube Video
DongFeng Kingrun12,000 Liters Combined Jetting Truck
Successful Case
Reference Photo&Features

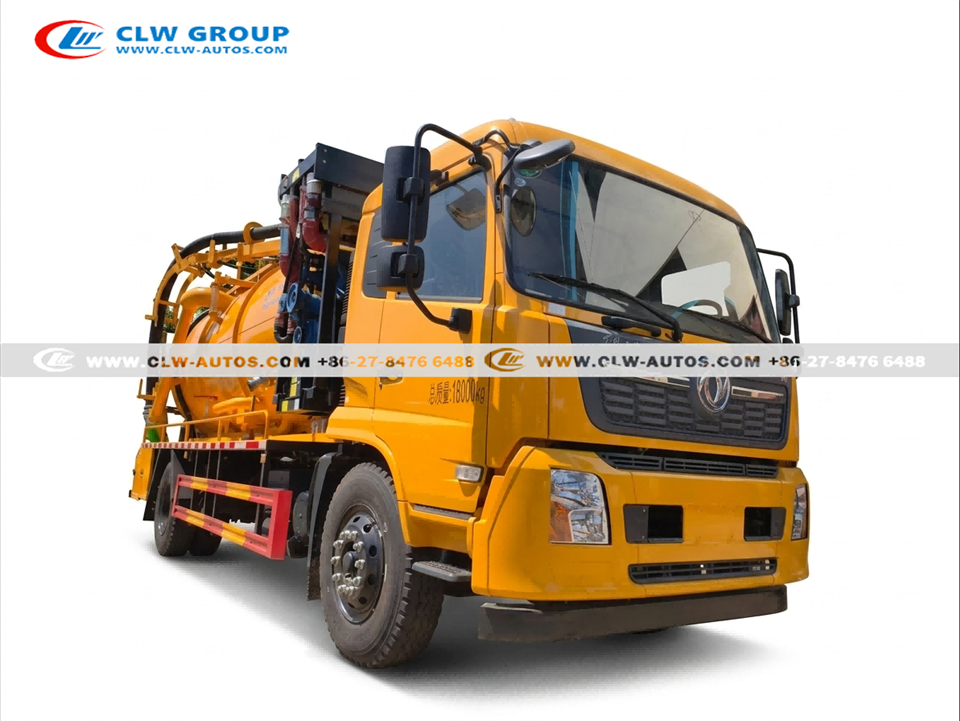

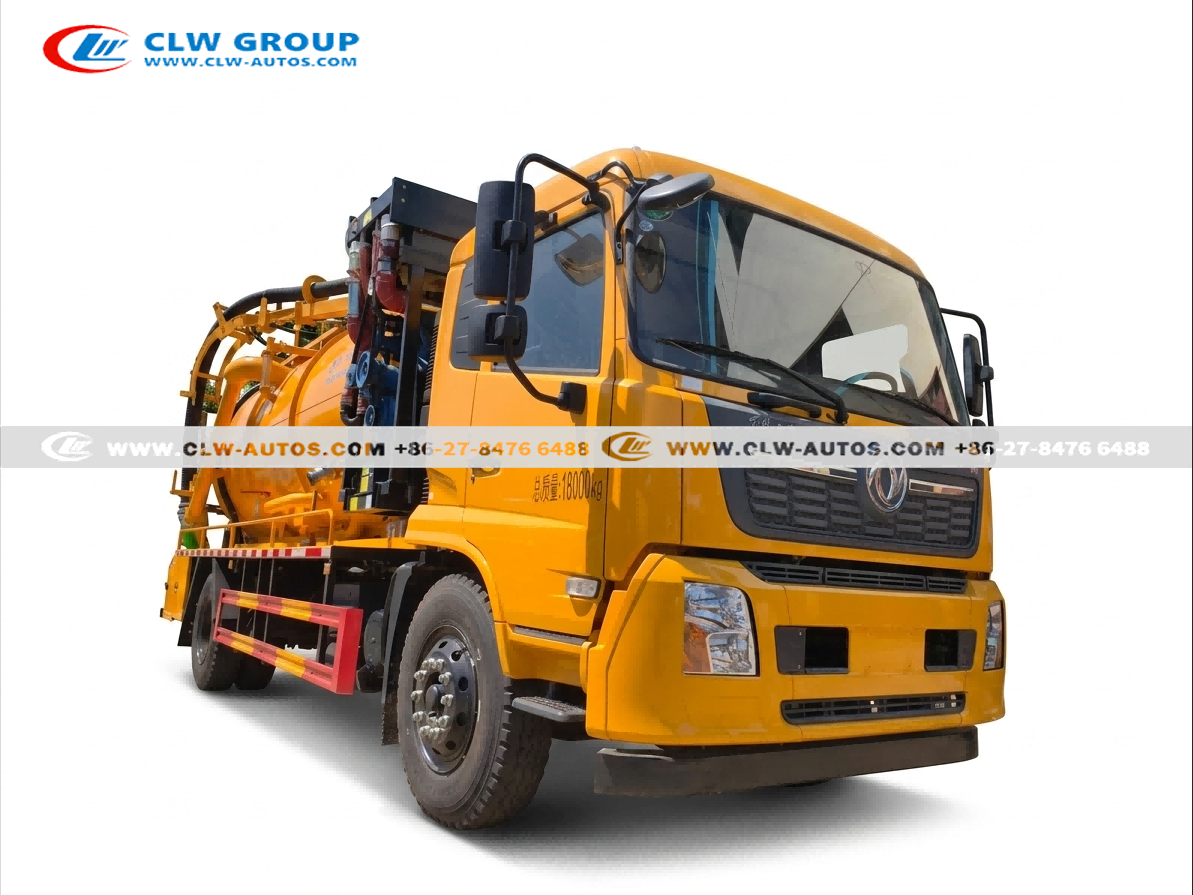

The Observe
The clear sight for the appearance.

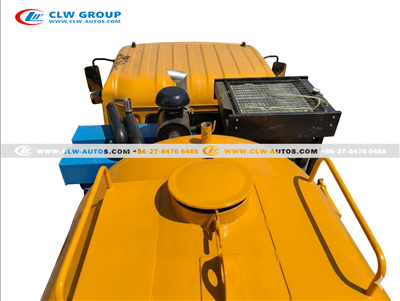

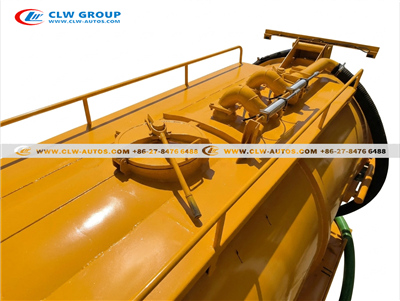

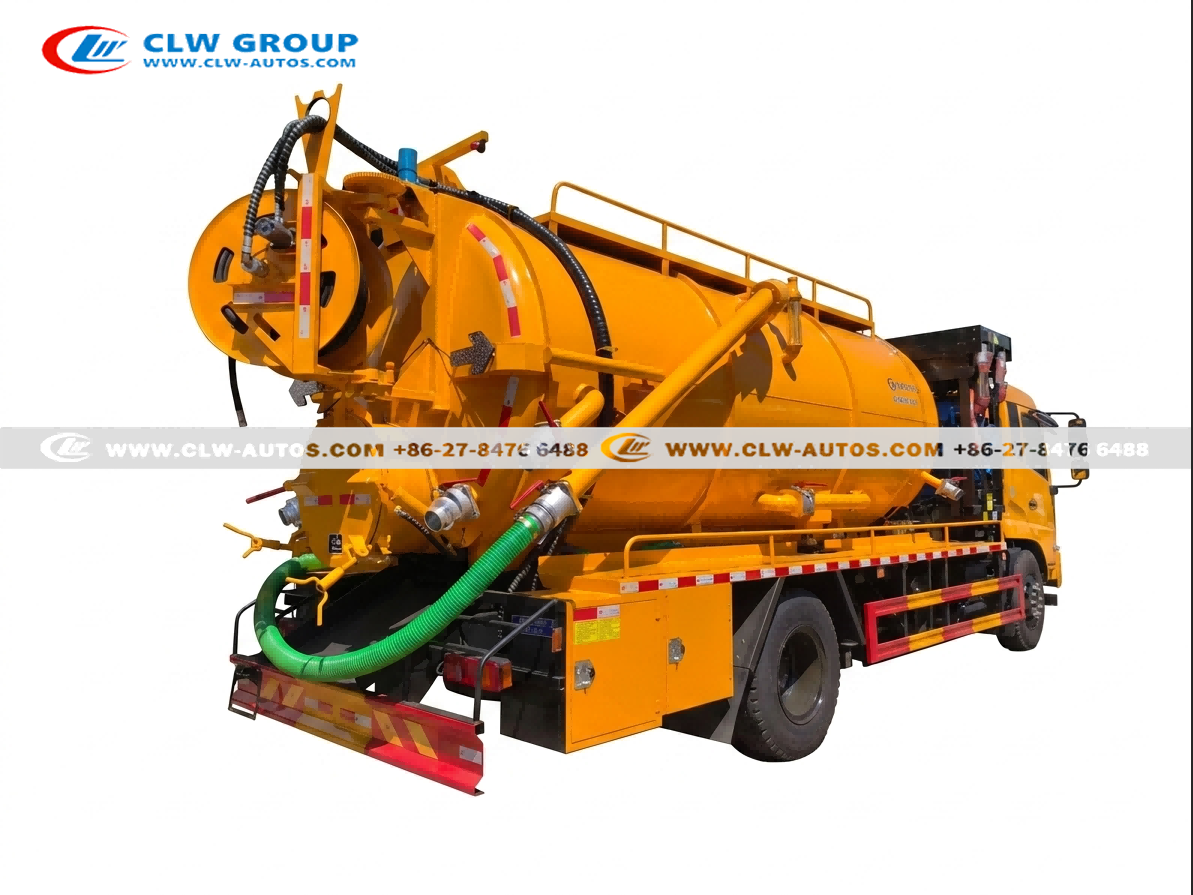

The Reverse
It provides specific structure of where the functional tools place.

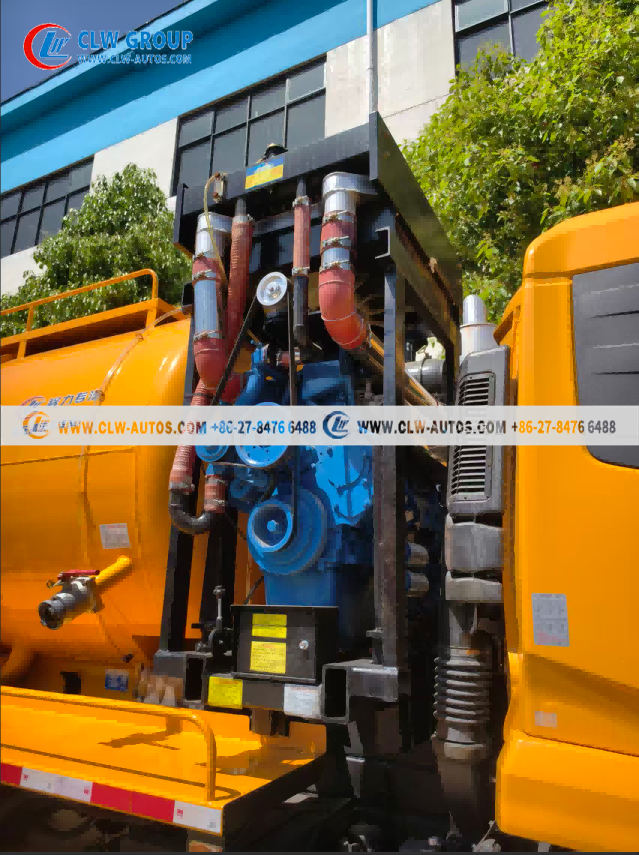

Core Advantage: High Reliability & Dedicated Power Output
Details: Weichai engines are renowned for their robust torque output at low speeds, high fuel efficiency, and exceptional durability under harsh working conditions. As an auxiliary engine, the WP140 provides a steady, independent power source for top-tier equipment (like vacuums or high-pressure pumps) without draining the chassis engine's power, ensuring overall operational stability and longevity.

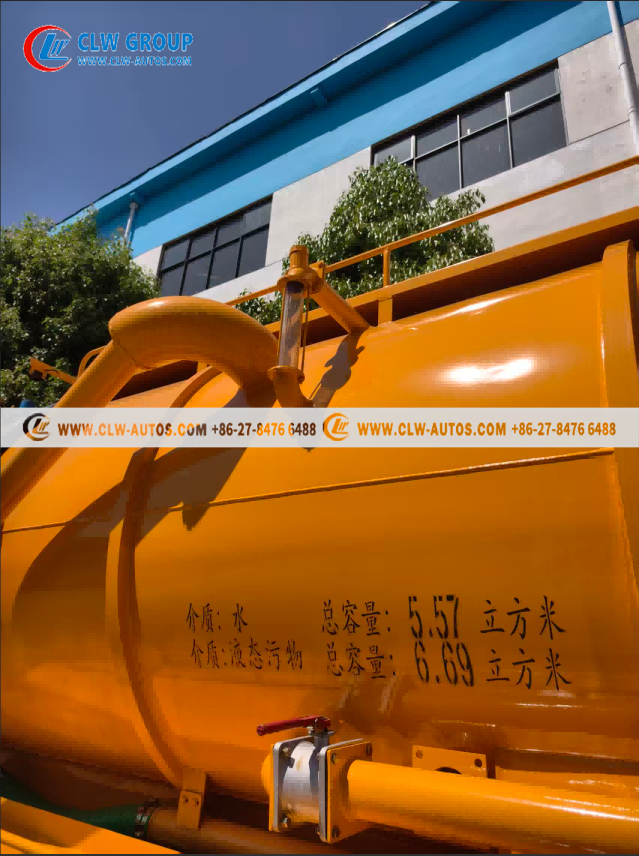

Liquid Level Indicator / Gauge
Core Advantage: High-Precision Monitoring & Safety Automation
Details: The primary advantage is its ability to provide real-time, accurate measurements of fluid levels (whether it's water, waste, or chemicals). Advanced liquid level indicators prevent tank overfilling or dry running of pumps by integrating with electronic control systems to trigger automatic shut-offs, thereby protecting the equipment from damage and ensuring operational safety.

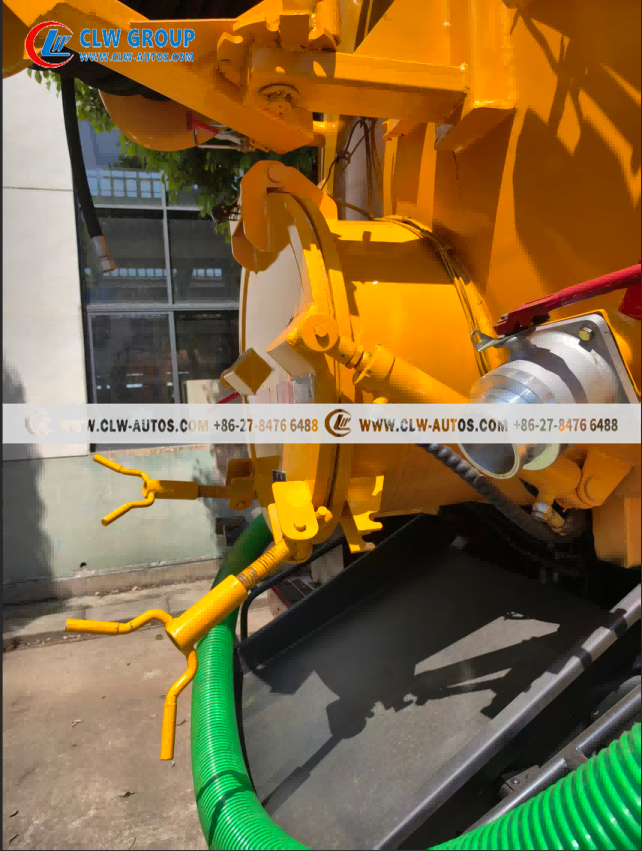

Hydraulic Cylinder Rear Door
Core Advantage: Powerful Sealing & Smooth Mechanical Actuation
Details: Utilizing high-pressure hydraulic cylinders for the tailgate ensures an immense locking force and a tight seal, which completely prevents sewage or waste leakage during transport. Furthermore, it offers smooth, controllable opening and closing operations, heavily reducing labor intensity and increasing dumping efficiency.

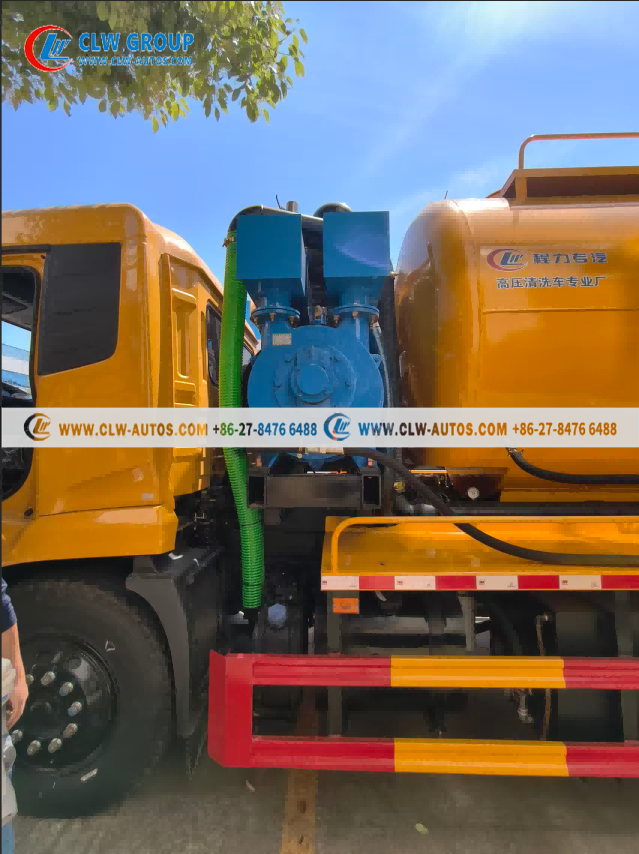

Water Circulation Vacuum Pump
Core Advantage: High Vacuum Efficiency & Low Wear
Details: Yifeng is a leading brand in vacuum pumps. Its water circulation design allows the pump to dissipate heat effectively during continuous, high-intensity operations, preventing overheating. Compared to traditional oil-sealed pumps, it offers a higher vacuum degree, lower maintenance costs, environmental friendliness (no oil smoke), and a much longer service life when handling humid or particle-heavy air gases.

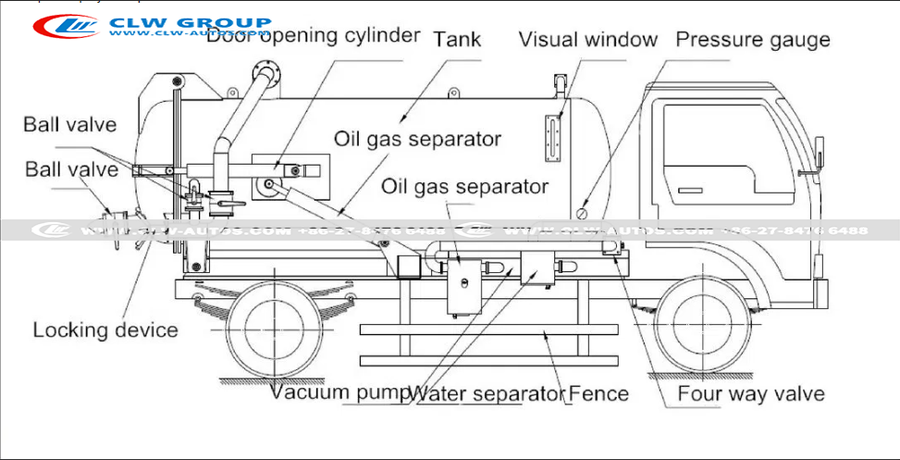

Specific Structure
Hubei CHENGLI Automobile Group is a large automobile
manufacturing enterprise designated by the Ministry of
Industry and Information Technology of China for producing
various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and
has employs over 7, 000 people, including more than 500
technical personnel and over 1,000 skilled workers.
The company has an annual production capacity of 7,000
special vehicles.
Through professional vocation technical training, it annually
provides society with over 500 automotive talents, making it a
well-deserved incubator in the domestic special vehicle field
01
High Quality
02
Advanced Equipment
03
Experienced Team
04
Customized Service
