10CBM Vacuum Fecal Waste Removal For Uganda
Truck brand: FAW JK6 Rhd 4*2 driving mode
Tank volume: 10cbm vacuum sewage truck
Tank material: Q235 carbon steel
Engine: Xichai engine CA6DL1-26, 260hp, Euro 2
Front/rear axle loading: 5tons, 11.5tons
Tire: 11.00R20 18PR, 6+1pcs
Vacuum pump: Chinese brand vacuum pump: SK-12, 12m3/min, 980rpm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10cbm vacuum fecal waste removal for uganda in China. If you're going to buy high quality 10cbm vacuum fecal waste removal for uganda, welcome to get more information from our factory. For price consultation, contact us.

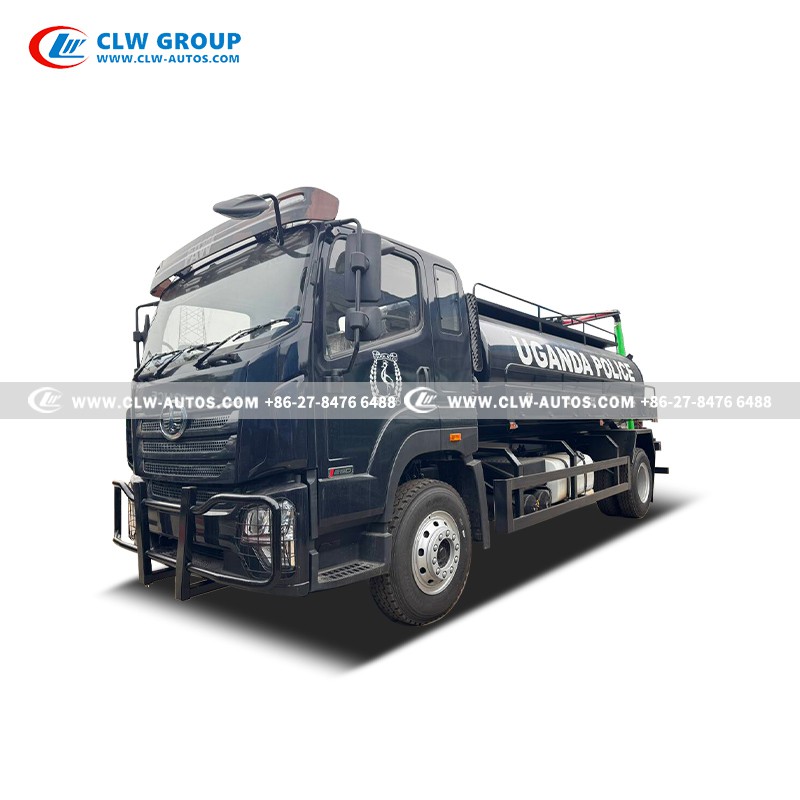

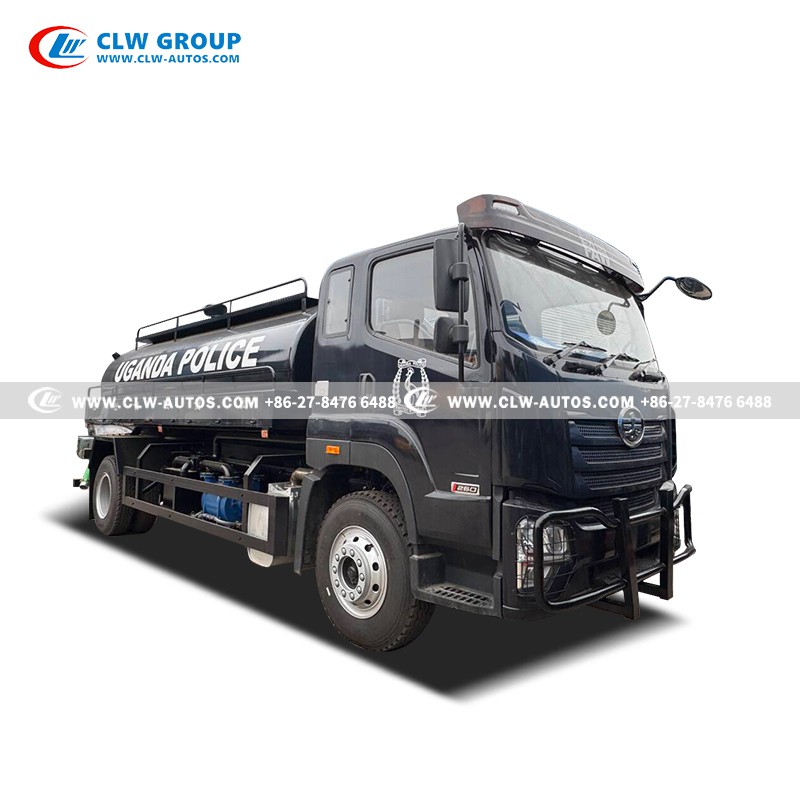

FAW JK6 4*2 RHD Vacuum Sewage Suction Truck
Uganda version Sewage and Fecal Waste Removal
Products Description
This FAW JK6 4x2 right-hand drive vacuum sewage suction truck is purpose-built for the demanding sanitation needs of Uganda and other African markets. Built on the reliable FAW JK6 chassis with a 5.4-meter wheelbase, this truck is powered by a robust Xichai CA6DL1-26 260HP Euro 2 engine that meets African emission standards, ensuring reliable performance in remote and harsh environments.
Equipped with a manual Fast 8-speed transmission, 11.00R20 18PR tires (6+1 spare), and heavy-duty axles (5-ton front / 11.5-ton rear), this truck delivers the strength and durability required for daily sewage and waste collection tasks. At its core is a high-performance SK-12 domestic vacuum pump (with JUROP/BP brand options available), capable of 12m³/min suction at -0.093MPa, making it ideal for fast, efficient cleaning of septic tanks, sewers, and cesspits.
Customizable to meet specific operational requirements, including livery, pump brands, and tank configurations, this truck is a versatile solution for municipal sanitation, police services, and private contractors across Uganda.
Techinical Specification
|
Technical Specification |
|||||
|
1. Chassis Part |
|||||
|
Condition |
FAW JK6, RHD, 4*2 driving mode, factory brand new |
||||
|
Wheelbase |
5400 mm |
||||
|
Cab |
FAW JK6 classic cabin RHD, 1+2 seats With Electric AC, Cooling Fan, one sleeper |
||||
|
Engine |
Engine brand |
XICHAI engine, CA6DL1-26 |
|||
|
Horsepower |
260hp |
||||
|
Fuel type |
Diesel |
||||
|
Emission standard |
Euro 2 |
||||
|
Transmission |
Manual type, FAST, 8 speeds forward and 2 reverse |
||||
|
Front axle loading |
5,000kg |
||||
|
Rear axle loading |
11,500kg |
||||
|
Tyre |
11.00R20 18PR, 6pcs with one spare |
||||
|
2. Fecal Suction Upperstructure Configuration |
|||||
|
Tank dimensions |
Tank volume capacity |
10 m3, 10,000 litres |
|||
|
Vacuum system |
Vacuum pump model |
Chinese vacuum brand, SK-12 | |||
|
Vacuum flow |
12m3/min, 980r/min |
||||
|
Drive system |
Vacuum pump driven by Side PTO |
||||
|
Suction ball valve |

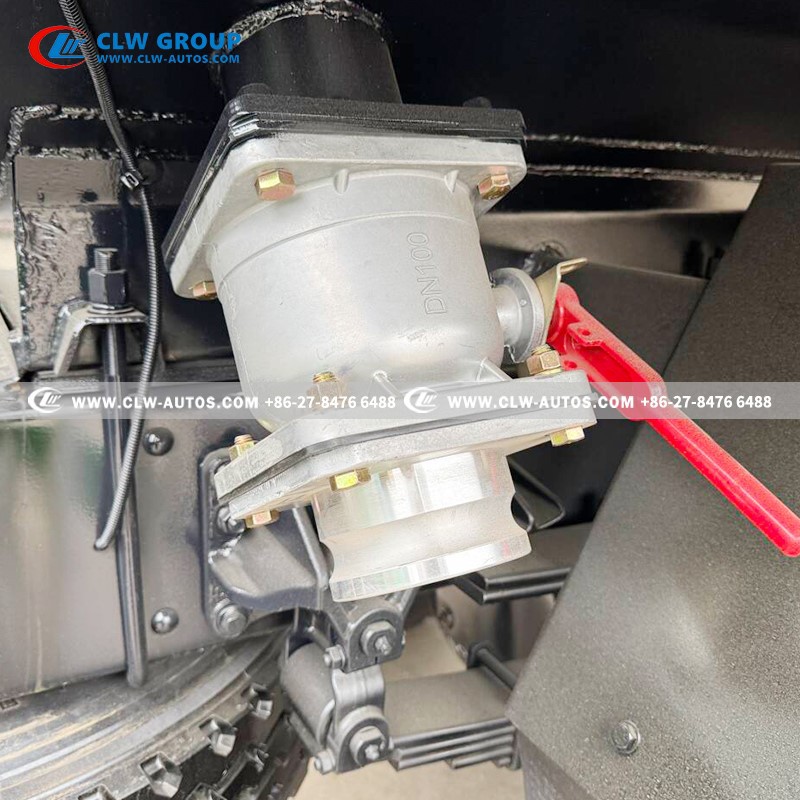

DN 100 discharging outlet |
||||
|
Tank assembly |
Anti-overflow system |
Primary+ cyclone secondary valve |
|||
|
Vaccum pipe |
Hydraulic suction pipe |
||||
|
Accessories |
Top platform, filter ports, ladder |
||||
|
Discharge |
Side-mounted Ø100mm suction valve |
||||
|
Work platforms |
Both extended side platforms + toolboxs |
||||
|
Remarks |
Color is optional LOGO painting as per customer request |
||||
Reference Pictures
Xichai CA6DL1-26 260HP Euro 2 Engine: A workhorse engine with a long history of reliable service in Africa. Its simple, robust design minimizes breakdowns and is compatible with locally available fuel, reducing operational costs.
Fast 8-Speed Manual Transmission: The manual gearbox offers precise control and low maintenance requirements, ideal for regions where complex automatic systems may be difficult to service.
Heavy-Duty Chassis & Suspension: The 5.4m wheelbase, combined with 5-ton front and 11.5-ton rear axles, provides exceptional load-bearing capacity and stability on uneven roads. The 11.00R20 18PR tires offer superior puncture resistance and durability

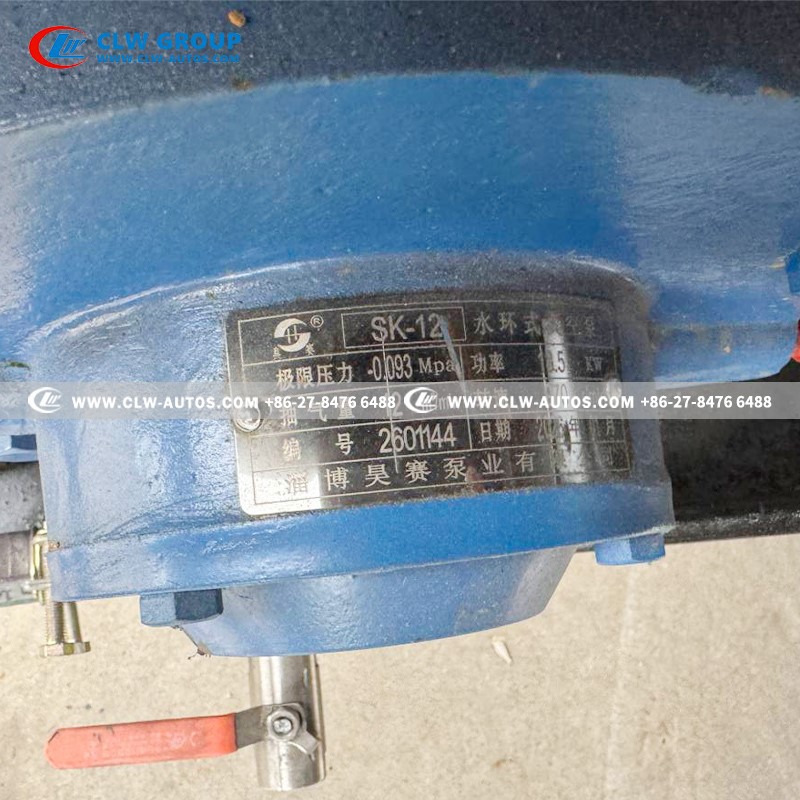

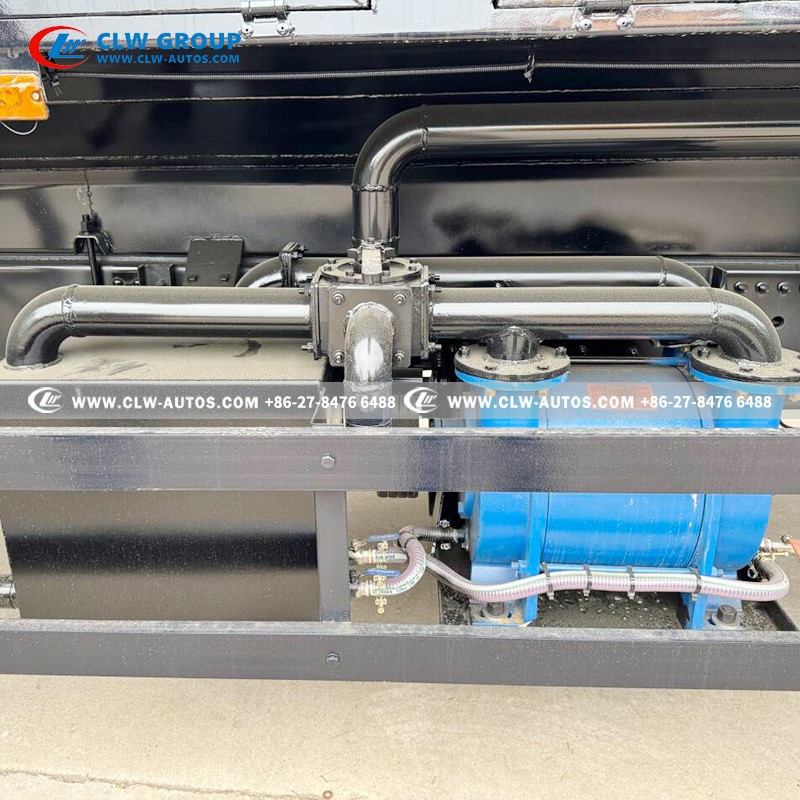

At the heart of the vehicle's functionality is its vacuum suction system. As standard, we equip this truck with the high- performance domestic SK-12 vacuum sewage pump, a reliable and cost-effective solution with industry-leading specifications:
- Maximum suction flow rate: 12 m³ per minute
- Ultimate vacuum pressure: -0.093 MPa (ideal for fast and complete waste extraction)
- Motor power: 18.5 kW
- Pump operating speed: 980 r/min

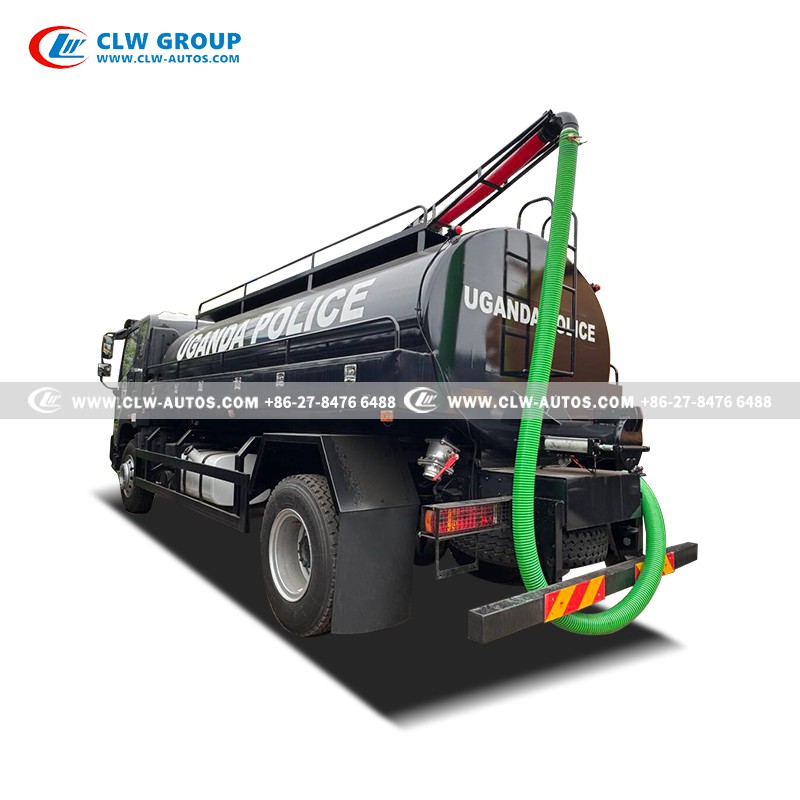

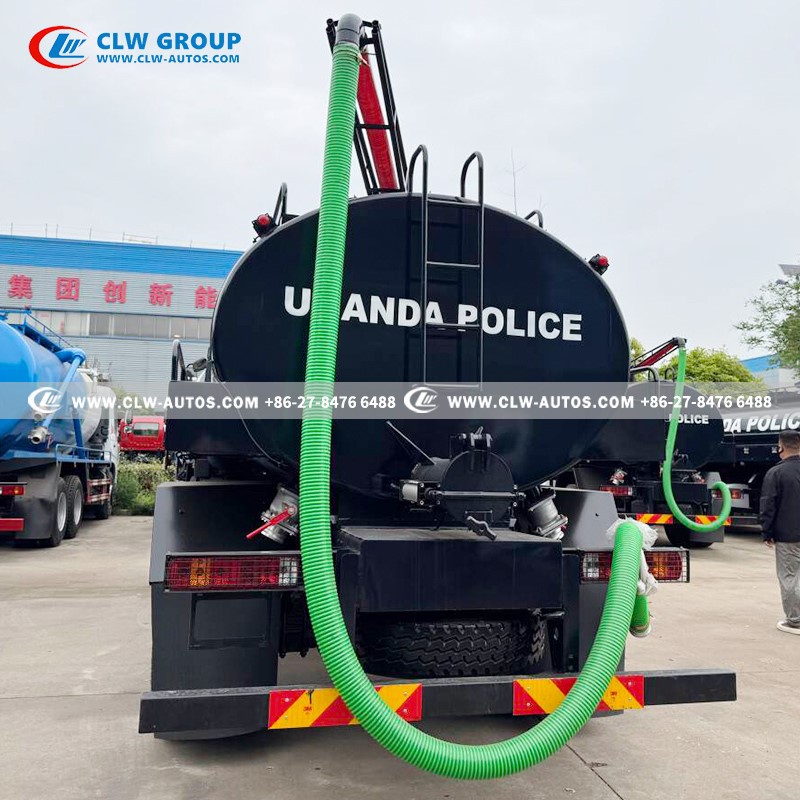

Rear Hydraulic Boom System:
The integrated hydraulic boom allows the operator to position the suction hose accurately from the safety of the truck, eliminating the need for manual handling and improving worksite safety.

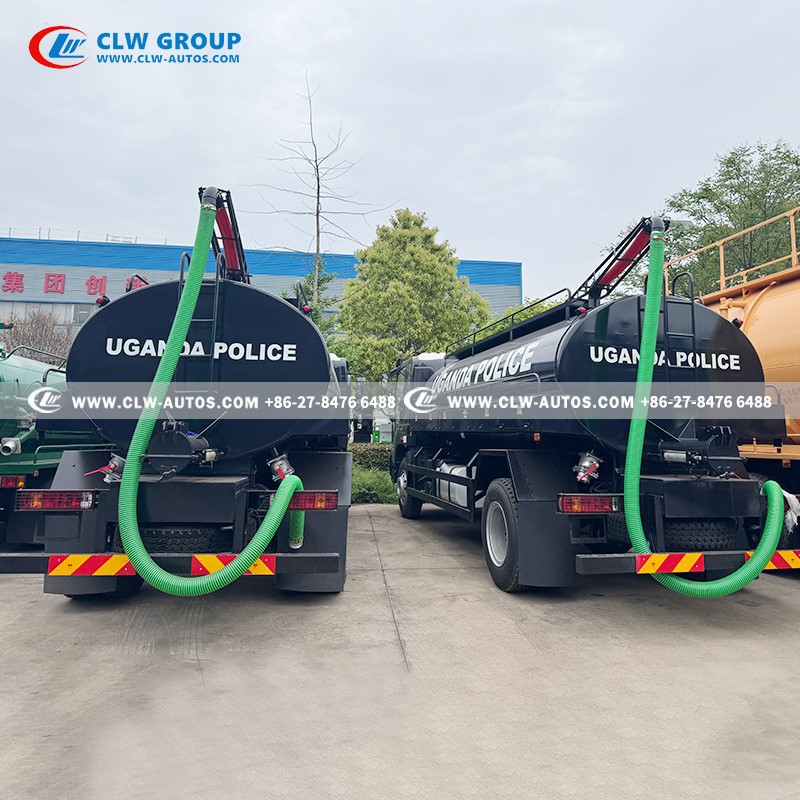

We tailor every truck to your needs, including tank volume, material options (carbon steel, stainless steel), pump brands, exterior branding (like the Uganda Police livery), and additional features such as high-pressure cleaning systems.
Customization & Operational Flexibility:
Right-Hand Drive (RHD) Configuration: Fully adapted for Uganda's road rules, ensuring immediate compliance and ease of use for local operators.
Africa-Ready Design: The truck is built with corrosion-resistant materials and a climate-tolerant cooling system, designed to perform reliably in Uganda's tropical climate.
Low Total Cost of Ownership：
- Easily Serviceable Components: The use of widely available, proven parts (including the Xichai engine and Fast transmission) ensures easy access to spare parts and service in Uganda, reducing downtime.
- Robust Build Quality: Constructed with heavy-duty materials to withstand the rigors of daily waste collection, minimizing repair costs over the vehicle's lifespan.
- High Productivity: The high-flow vacuum pump and large tank capacity allow operators to complete more jobs per day, maximizing return on investment.
Our Official Website--Factory Real Shot Video For You
Ideal Application Scenarios
This FAW JK6 sewage suction truck is a versatile solution for a wide range of sanitation and waste management applications across Uganda and East Africa:
1. Municipal Sanitation Services: Cleaning septic tanks, public sewer lines, and cesspools in urban and semi-urban communities. The truck's maneuverability makes it ideal for navigating city streets, while its powerful pump handles high volumes of waste efficiently.
2. Government & Law Enforcement Operations: As configured for the Uganda Police, supporting sanitation needs at barracks, training camps, and remote outposts. Its rugged build and reliable performance ensure continuous operation in isolated areas.
3. Private Waste Management Contractors: Perfect for septic tank cleaning businesses and commercial waste removal services. The truck's productivity and low operating costs make it a profitable asset for small to medium-sized enterprises.
4. Rural & Community Development Projects: Serving remote villages and communities with limited infrastructure, where reliable sanitation solutions are critical. The truck's off-road capability allows it to reach areas inaccessible to smaller vehicles.
5. Industrial & Construction Sites: Removing liquid waste, sludge, and sewage from construction sites, factories, and mining camps, ensuring compliance with environmental regulations.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Ready to Invest in a Sewer Cleaner Built to Last?
Sales Manager
Cathy Gao
Phone Number (whatsapp)
+86 173 4334 1170
cathy@clw-autos.com
Contact Us Today for a Detailed Quotation and Customization Options!
Contact us now for a detailed quotation and to discuss custom configuration options!
We are ready to provide you with a high-quality, reliable solution and comprehensive support.
If you are looking for a durable, efficient, and customizable sewage suction truck for Uganda, the FAW JK6 4x2 RHD model is the ideal choice. Whether you need a standard configuration or a fully customized solution with premium pump options, our team is here to help.
Contact CATHY today to discuss your requirements, request a detailed quotation, or learn more about how we can tailor this truck to your operational needs. Send us an inquiry now and let's build the perfect sanitation solution for you!
