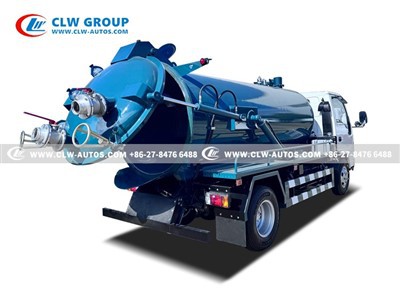

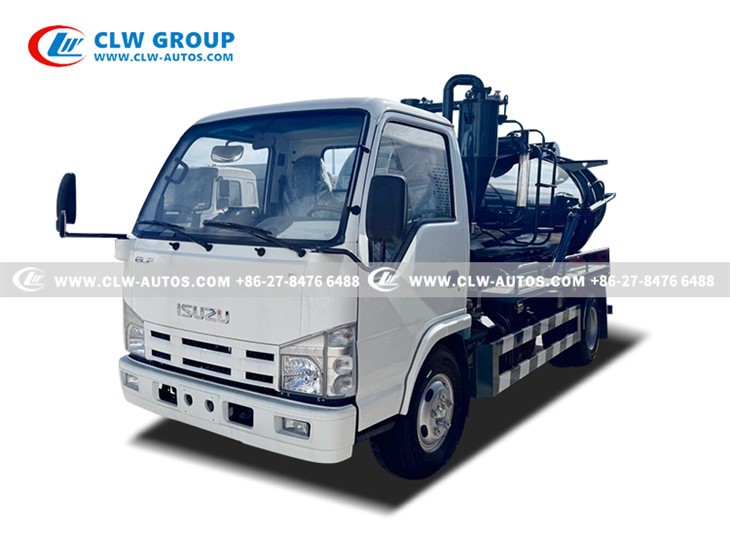

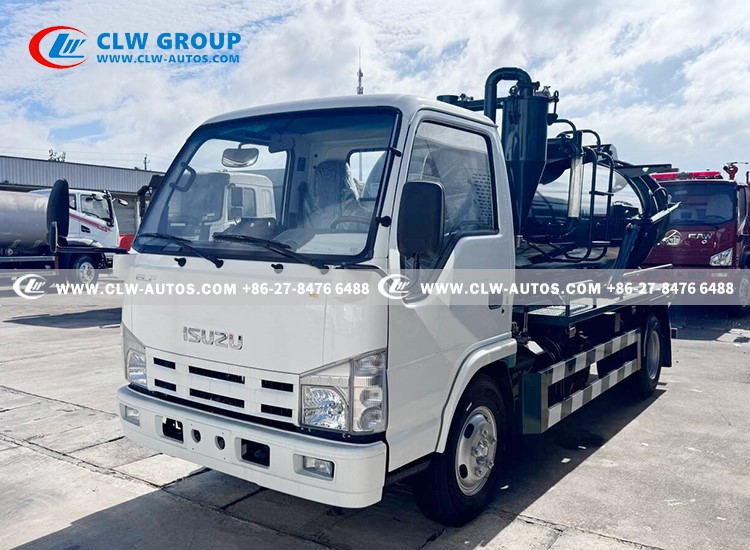

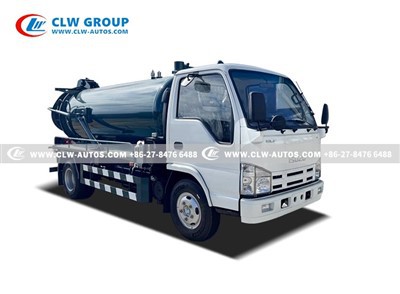

SA ISUZU 100P 5CBM Vacuum Truck
Wheelbase: 3360mm
Engine Power: 120hp
Tank Capacaity;5CBM/5,000Liters
Left Hand Drive
With BP Pump
For Saudi Arabia
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sa isuzu 100p 5cbm vacuum truck in China. If you're going to buy high quality sa isuzu 100p 5cbm vacuum truck, welcome to get more information from our factory. For price consultation, contact us.

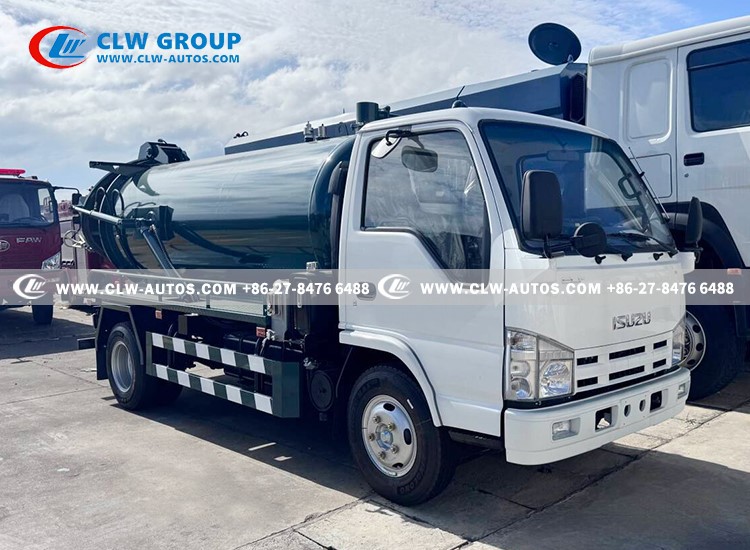

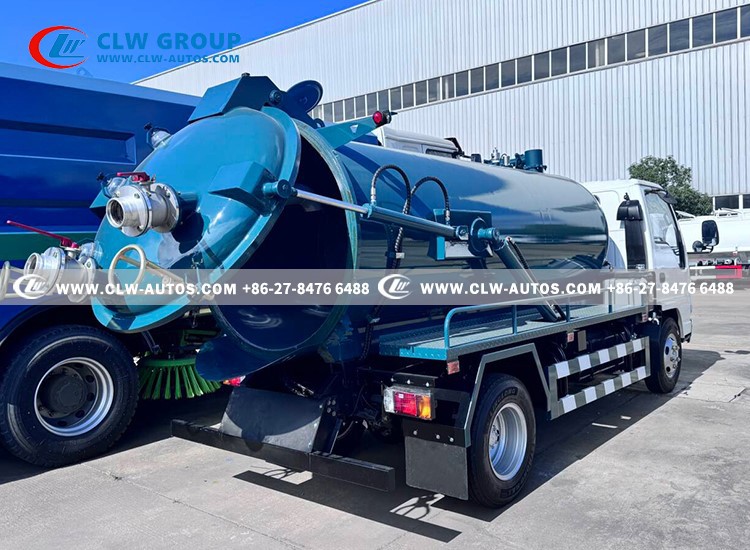

ISUZU 4X2 100P 5CBM Vacuum Sewage Suction Truck With BP Pump For Saudi Arabia
Products Description
The Isuzu 100P chassis is mature and reliable, resistant to high temperatures and suitable for the Saudi desert climate, with a stable oil pump vacuum; the 5-cubic-meter tank is suitable for municipal needs, and the vehicle is compact and flexible; there are many maintenance outlets, universal parts, and high cost performance, making it suitable for the Saudi infrastructure and sanitation market.
product key technologies

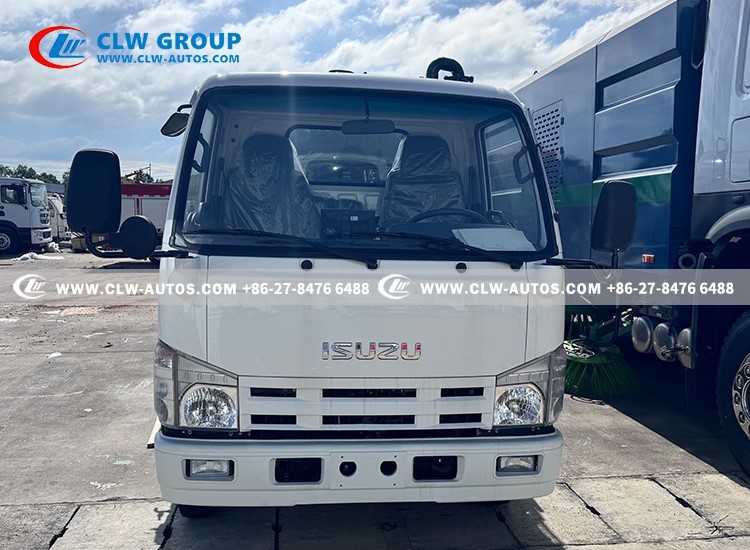

I. Chassis: Heat-Resistant, Desert-Optimized Performance
- Engine: 4KH1 (120HP / 2.5L), high-temp tuned, stable at 40°C – ideal for Saudi heat.
- Emission: Euro IV, no complex aftertreatment, easy maintenance.
- Reinforcement: 4×2 rear drive, 3360mm wheelbase, desert-grade leaf springs + heavy-duty shocks for sand/rough terrain; 7.00R16 tires – anti-sink & puncture-resistant.
Ⅱ. Superstructure: Anti-corrosion, pump suited for desert heat
- Tank: 5m³ round carbon steel (6mm), epoxy anti-rust coating + white/green finish (Saudi preference); hydraulic lift & full rear opening for easy discharge.
- Pump system: Oil-circulation vacuum pump, operating -20°C~60°C, stable vacuum ≥95% – no scaling, no freezing, better than water-ring pumps for Saudi.
- Performance: Suction range ≥80m horizontal, ≥9m vertical; fills in 5 min, empties in 3 min; includes anti-spill valve & oil-water separator for oily wastewater.
Ⅲ. Applications: Municipal + oilfield + commercial/residential
- Municipal: Sewer networks, septic tanks, storm drains; 5m³ + compact size for old city narrow streets.
- Oilfield: Oily wastewater & drilling mud cleanup; oil-resistant pump & stable vacuum.
- Residential/commercial: Villas, resorts, malls – septic maintenance; white/green color + quiet operation.
- Construction: Sludge & slurry transport; hydraulic dump for rapid discharge.
Ⅳ. Saudi-specific details
- Heat protection: Tank/pipe heat-reflective coating; high-temp hydraulic oil; reinforced AC in cab.
- Sand/dust readiness: 3-stage desert air filter; dust-sealed chassis & electrics; quick-clean port on tank.
- Safety & compliance: English manual/warning decals; LED strobes + reflective tape; emergency shutoff & anti-roll design.
- Local support: Arabic manual & common spare parts (filters/seals); easy chassis maintenance.
Products Parameters
|
ISUZU 100P 4x2 5CBM Sewage Suction Truck |
||
|
Chassis Specification |
||
|
Chassis Model |
QL104 |
|
|
Driving Model |
4X2 |
|
|
Cab |
|
|
|
Dimension |
6000 x 2100 x 2700 mm |
|
|
Wheelbase |
3360 mm |
|
|
Gross vehicle Weight |
4000 kg |
|
|
Curb Weight |
2720 kg |
|
|
Front Axle Loading Capacity |
2000 kg |
|
|
Rear Axle Loading Capacity |
4000 kg |
|
|
Axle Number |
2 |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
|
Model: 4KH1CN6LB |
||
|
Horse power: 120 HP |
||
|
Displacement: 2999 ml |
||
|
Emission standard: Euro 6 |
||
|
Transmission |
Model: Manual Type |
|
|
5 Forward & 1 Reverse |
||
|
Tire |
7.00R16 |
|
|
6 Pcs with one spare tire |
||
|
Fuel Tank Capacity |
100L |
|
|
Upper Specifications |
||
|
Tank |
Capacity: 5m3 |
|
|
Thickness: 6mm |
||
|
Suction Pipe |
7meter φ102 |
|
|
Number: 2pcs |
||
|
Drain Ball Valve |
150mm |
|
|
Suction Port |
100mm |
|
|
Pump |
BP Oil Pump |
|
|
Other |
The tank can be lifted |
|
|
Equipped with a hand-washing device |
||
|
A rear self-flowing outlet |
||
|
A sewage suction and fecal viewing window, and a pressure gauge |
||
|
The interior of the tank is treated for anti-corrosion |
||
Products Detailed Pictures

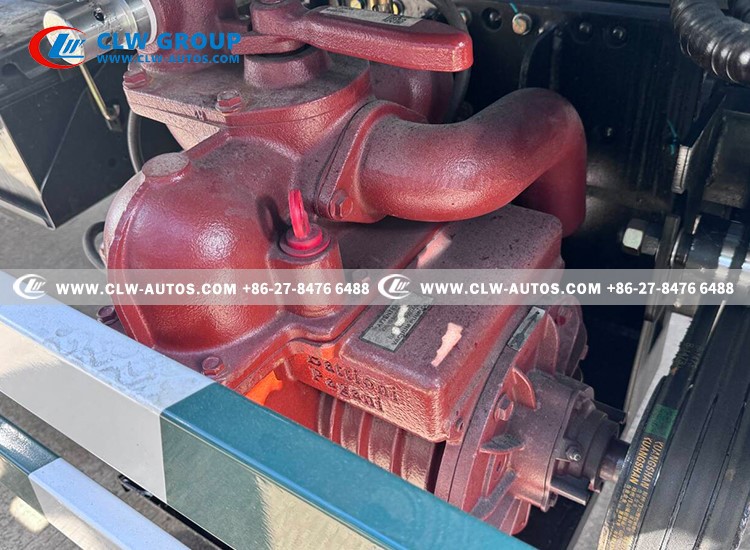

Vacuum Pump - BP Oil Pump
Pump body
cast iron with anti-rust red paint, robust for high-load and corrosive media suction.
port
Upper pipes and handle are vacuum/exhaust ports, working with tank piping and valves to switch between vacuuming and draining.

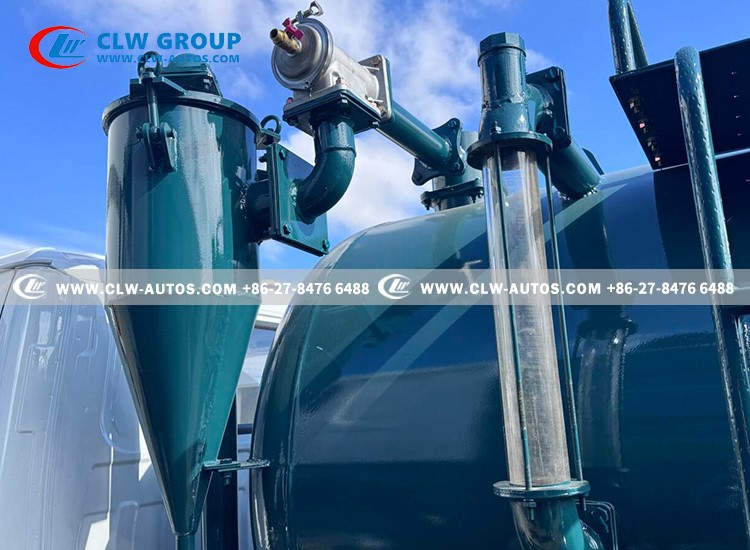

Anti-overflow Valve
Function
Automatically shuts off when the tank is full and the liquid level reaches the warning point, preventing sewage from being drawn into the vacuum pump and avoiding pump damage or oil contamination.
Value for export to Saudi Arabia
Compatible with BP pumps, blocks oily sludge and sewage from entering the pump - significantly extending pump life under heavy-duty conditions in Saudi oilfields and septic tank operations.

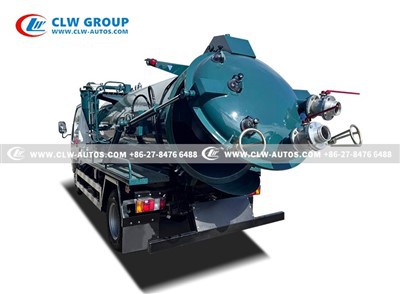

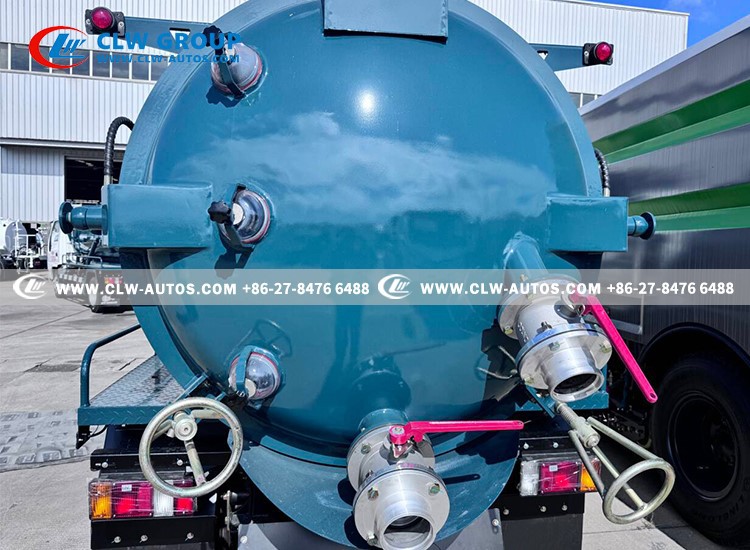

Suction port & Sewage outlet
Top right port (red handle)
Suction inlet. Connects to suction hose; vacuum pump creates negative pressure to draw sewage, sludge, or septic waste into the tank. Quick-coupling fitting for fast hose connection.
Lower port (red handle)
Discharge outlet. When the tank is raised or under positive pressure, waste is expelled here. Compatible with large-diameter discharge hose for smooth removal of thick or sandy debris.

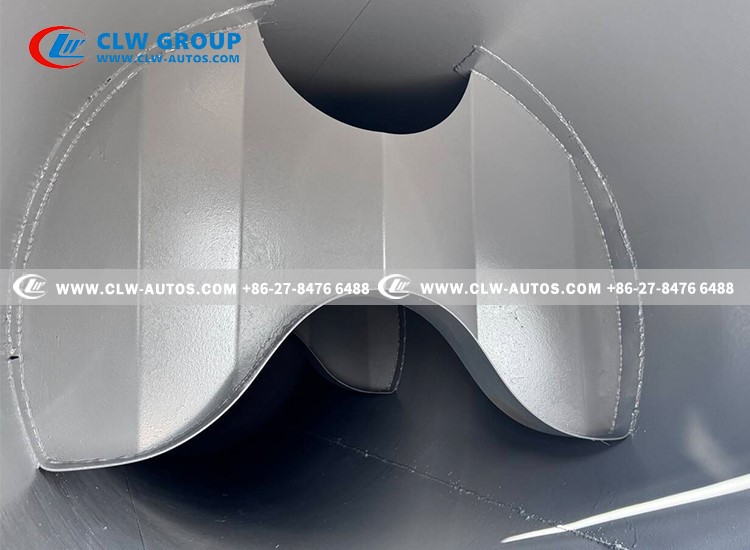

Interior
Internal coating
Smooth gray anti-corrosion and wear-resistant paint. Smooth surface reduces residue buildup, ensuring cleaner discharge and less leftover inside the tank.
Baffle (core structure)
Curved internal partitions that suppress liquid surge. On desert terrain, wastewater and mud slosh violently-baffles significantly reduce impact, preventing: tank deformation, weld cracks, unstable center of gravity, rollover risk, and extra stress on chassis suspension.
