FAW 45m 147ft Telescopic Aerial Work Platform Truck

Factory Price For Sale

We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance

Product Descriptions

Aerial work vehicles refer to vehicles over 3 meters high that are controlled by a hydraulic or electric system with multiple hydraulic cylinders and can be lifted up and down for operations.

They can be used for electrical line maintenance, aerial cleaning, tree pruning, municipal administration, electricity, street lights, advertising, photography, communications, gardening, transportation, industry and mining, docks and other aerial operations.

The primary characteristics of aerial work platform vehicle

- Elevating Capability: Aerial work platforms are equipped with lifting mechanisms that allow for rapid and stable ascension and descent of the work platform, facilitating efficient operations for personnel engaged in high-altitude tasks.

- Robust Load Capacity: These platforms support substantial weight, enabling multiple individuals to work alongside their necessary tools and equipment, making them suitable for collaborative efforts.

- Agile Maneuverability: Designed with versatile steering systems, aerial work platforms can operate in confined spaces and complex environments. Typically featuring all-wheel drive and steering capabilities, they can navigate tight turns and adapt to varying operational contexts.

- Safety and Reliability: In their design and manufacture, aerial work platforms prioritize safety, incorporating various protective features such as limit switches, overload protection, and weight monitoring. They also provide slip-resistant, anti-tip, and scratch-resistant functionalities, ensuring the safety of operators.

- Multifunctional Operations: These platforms can be utilized for a variety of high-altitude tasks, including building maintenance, electrical infrastructure upkeep, landscaping, and warehouse stacking. By adjusting the height and angle of the work platform, they can meet diverse operational demands effectively.

- Adaptability to Specialized Functional Requirements: Aerial work platforms come in diverse designs, including telescoping, articulating, hybrid, and vertical lift styles, each offering distinct advantages and suitable scenarios; for instance, telescoping models provide intuitive and straightforward operation, while articulating types excel in overcoming obstacles.

These attributes render aerial work platforms powerful and versatile tools that significantly enhance operational efficiency while ensuring the safety of personnel, leading to their widespread application across various high-altitude working environments.

Working principle of aerial work platform vehicle

The design of aerial work platforms primarily aims to transport workers safely and efficiently to required heights and locations. Their operation can be classified into two types: hydraulic systems and electric systems.

-Hydraulic aerial work platforms use hydraulic pumps to convert fluid pressure into mechanical energy, controlling the movement of extending arms and height of the lift through hydraulic cylinders. These platforms are also equipped with various safety features, such as platform guardrails, safety harnesses, and self-balancing controls, ensuring worker safety at heights.

-Electric aerial work platforms utilize electric motors to drive the movement of extending arms and lifting platforms, offering a more environmentally friendly and energy-efficient alternative.

Structural characteristics of aerial work platforms include the use of a chassis engine to transmit power to the hydraulic pump. Hydraulic oil is filtered through coarse and fine filters to maintain system cleanliness and safety. The operations of components like stabilizer leg extension and retraction, lifting mechanisms, and rotating platforms are controlled by corresponding hydraulic devices via directional valves. When not in use, hydraulic oil is returned directly to the tank through a relief circuit.

Additionally, aerial work platforms are equipped with rotary mechanisms and swivel joints, with the rotary mechanism driven by hydraulic motors to enable platform rotation. The swivel joint, located at the center of the rotating platform, resolves the issue of the sub-frame remaining stationary relative to the ground during operation, facilitating fluid and electrical energy transfer from the lower to the upper sections of the platform.

In summary, aerial work platforms provide a safe and efficient working environment through their meticulously designed hydraulic or electric systems, along with various safety features and structural characteristics, making them widely applicable in numerous high-altitude operations.

Customized vehicle to meet your demands

Tell us your needs, we can customize your aerial work platform vehicle from 8m to 45m (8m, 12m, 14m, 16m, 18m, 20m, 21m, 22m, 24m, 26m, 28m, 29m, 30m, 32m, 34m, 45m, and more).

We cooperate with many chassis brand: ISUZU, FAW, FOTON, SINOTRUK HOWO, SHACMAN, DONGFENG, JAC, JMC, KAMA, BEIBEN, HINO and others.

Truck emission have choice from Euro 2~Euro 6 (Euro II, Euro III, Euro V, Euro VI).

Our aerial working vehicle can be supplied to Russia, Philippines, South America, Africa, etc.

For quick inquiry and more technical support, please contact Ms.Juniper Gong:

Whatsapp/Wechat: +86 139 2570 3918 Email: juniper@clw-autos.com

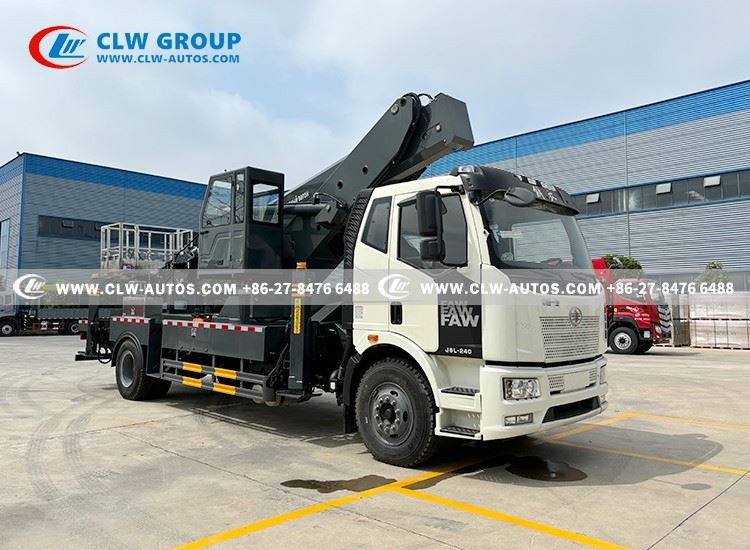

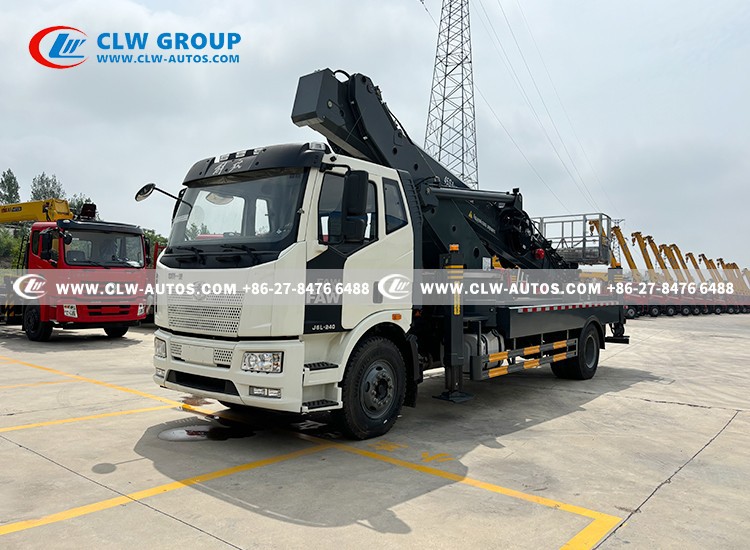

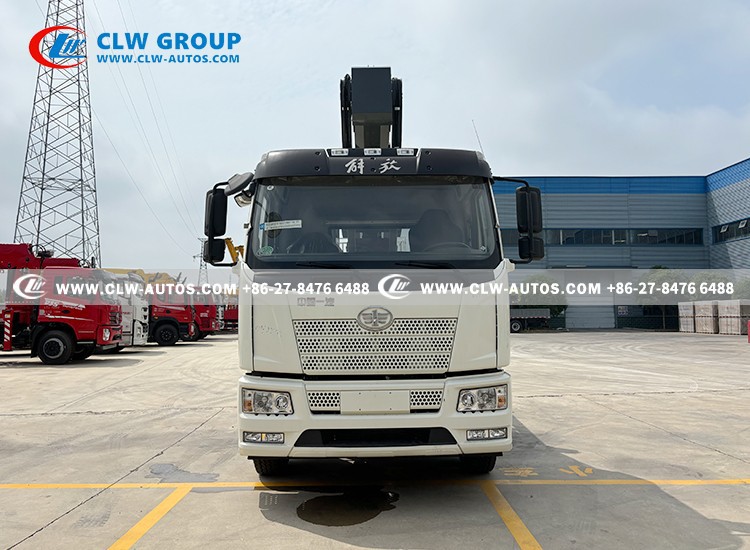

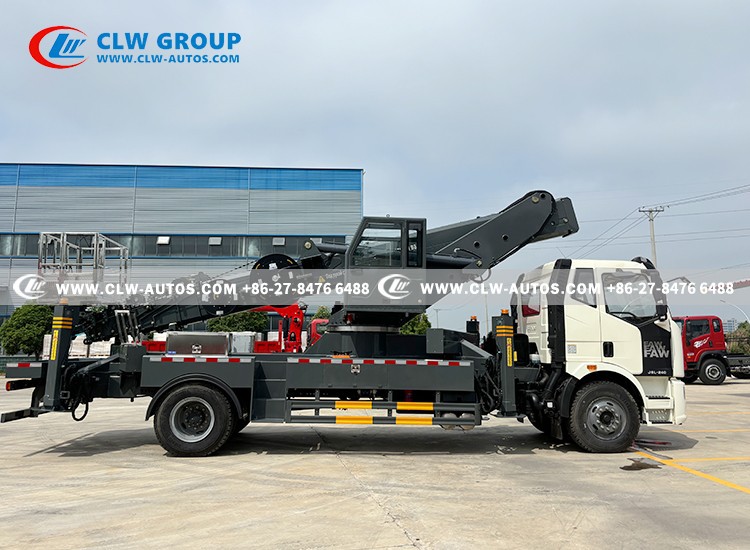

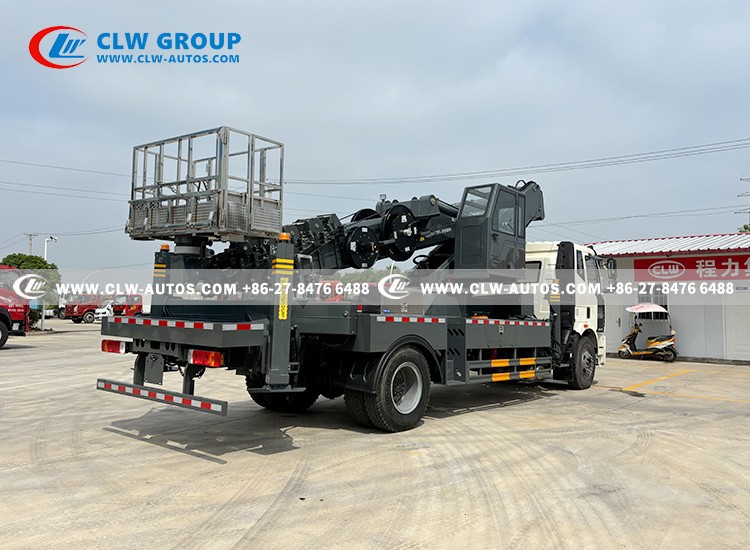

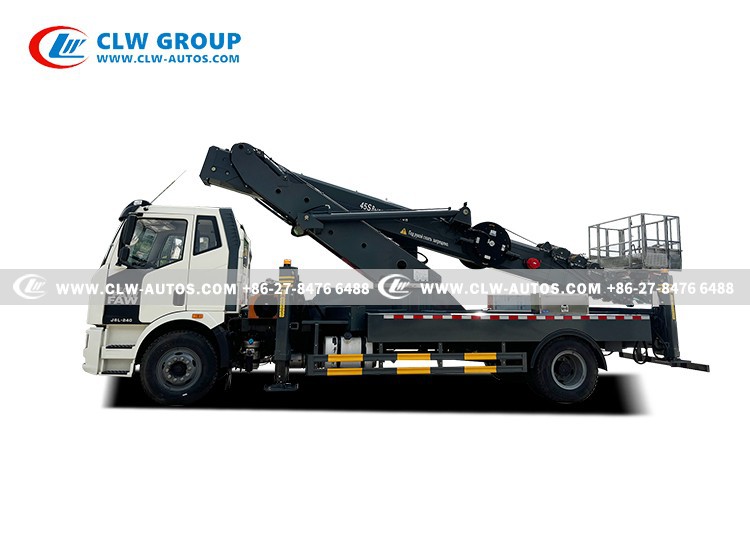

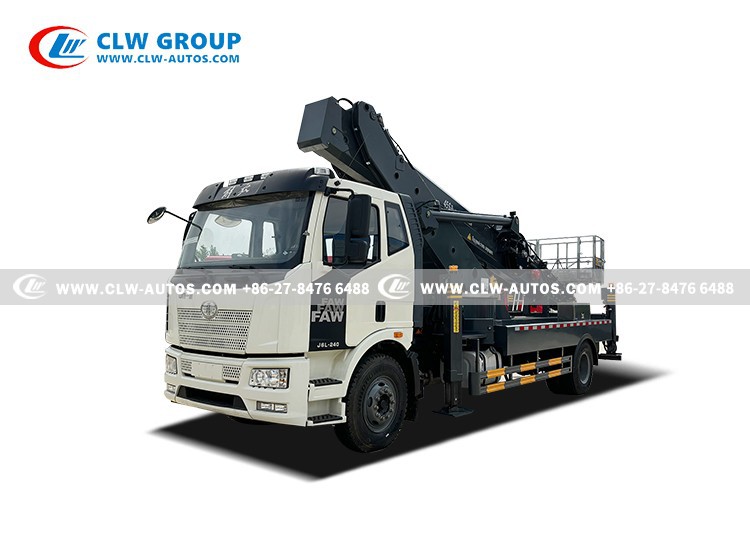

Product Pictures

Product Parameters

Specification of Truck Chassis
Driving Type	4 X 2
Cabin	FAW J6L Left Hand Driving With Air Conditioner Power Assistant Steering Electric Window Lifter
Axle Loading (Front/Rear)	5000kgs/11500kgs
Engine	Model	Dachai CA6DH1-22E5
	Type	Diesel engine, 6 cylinders in a line, water cooled, turbocharged, after cooled, cold start.
	Horse Power	240Hp
	Max output power	165kW
	Max. torque：	850N.m
	Emission standard	Euro V
	Displacement	5.7L
Gearbox	Manual type, FAST 8JS85TC, 8 forward and 1 reverse gear
Tire	11R22.5, 6 pieces with 1 spare tire
Clutch	Reinforced diaphragm clutch
Remarks	With ABS, Automatically air-cut brake

Specification of Aerial Platform
Arm Material	High intense BS960 steel
Arm type	Seven-section hexagon working arm
Working height	45 meters
Max working radius	≥22 meters
Operating height at maximum operating radius	18 meters
Maximum working Angle of platform	80 °
Bucket lifting capacity	200 kgs
Bucket size (L x W x H)	1800x680x1000 mm
Rotation Angle	360 degree
Outrigger	Model	Front V rear V design, Individually adjustment
	Quantity	4 units
	Horizontal span	6100mm
	Vertical span	5800 mm
Control Method	Remote controller with monitor Manual control on the platform and operator's cabin
LCD Working Monitor Panel	Display arm length, working height, working radius, tilt angle
Leveling system	Hydrostatic self-leveling
Hoarding and walking platform	Stainless steel fence and anti-slip walking platform
Remarks	Color is optional Customized LOGO painting as per client's request Painting with Electrostatic Spraying Treatment
