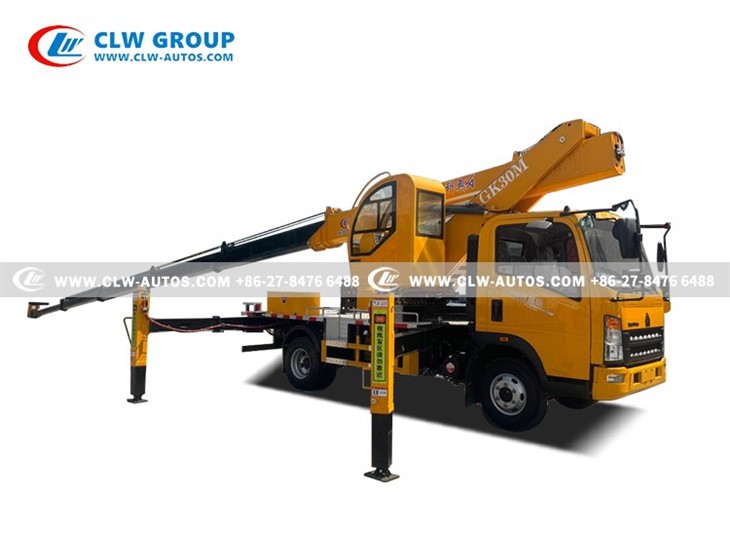

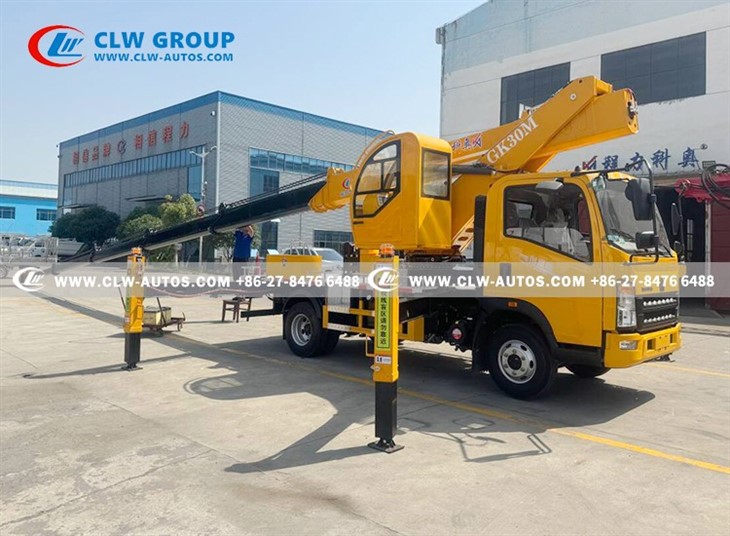

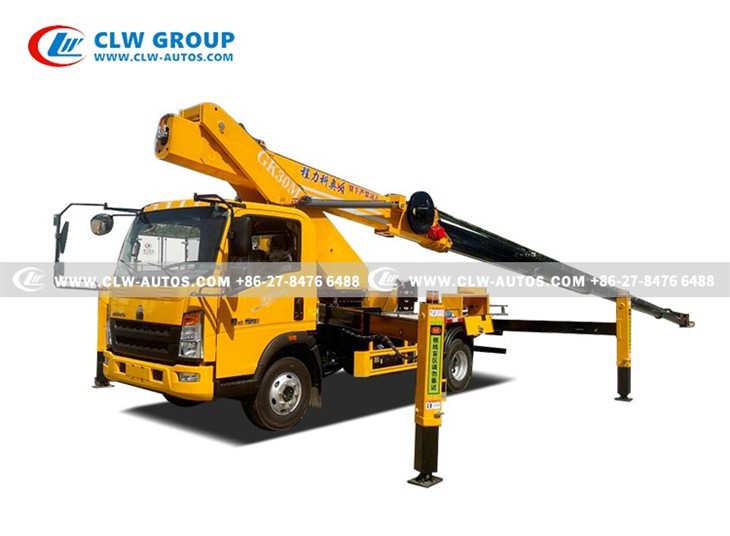

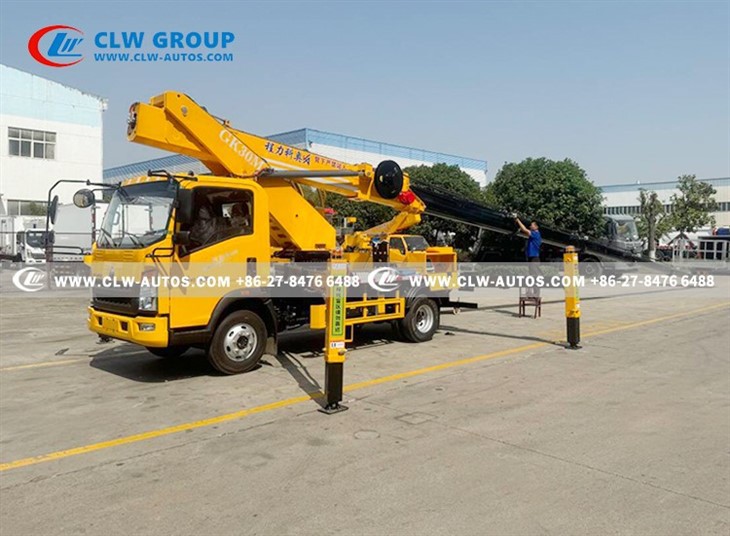

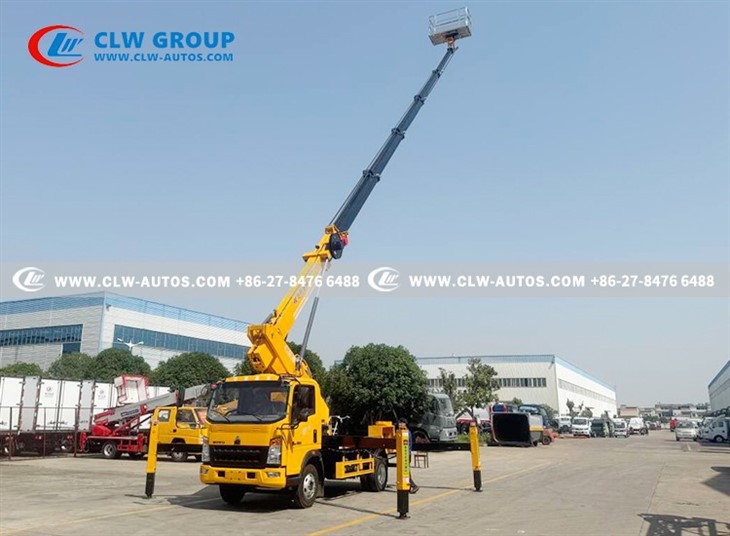

Sinotruk HOWO 30m Aerial Work Platform Truck
Factory Price For Sale
We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance
An aerial work platform truck, also referred to as aerial working truck, bucket truck, cherry picker truck, and elevated work platform truck, etc, which is a utility truck equipped with a hydraulic boom that incorporates a man-carrying bucket at its extremity.
Aerial work platform truck plays a crucial role in various industries such as municipal services, electric power maintenance, street light installation, advertising, communications, photography, landscaping, shipbuilding, transportation, operation at docks, airports, and ports, as well as rescue and maintenance tasks in large industrial and mining enterprises.
1. Features and Capabilities:
- Front V-shaped outriggers and rear H-shaped outriggers for stability.
- Two-section horizontal outriggers for adaptability to various working conditions.
- Can operate simultaneously or separately.
- Operating flexibility on both left and right sides of the frame.
2. Hydraulic and Electrical Components:
- Imported load-sensitive proportional valves, balance valves, controllers, etc.
3. Stability and Functionality:
- Double-luffing oil cylinders for stability during arm movement.
- Adjustable slewing mechanism for convenient adjustments.
- Real-time load weight display and overload alarm on the platform.
4. Safety and Efficiency:
- Wind speed inspection and alarm feature.
- Octagonal working arm for high efficiency and wide operating range.
- Computer control with automatic limit and dangerous work alarm.
5. Control System and Operation:
- CAN bus control system for electrical appliances.
- Three operation modes: subframe, turntable, and platform.
- Wired or wireless operation for convenience and safety.
- Real-time displays for monitoring vehicle's operating conditions.
1. Aerial working height:14m,16m,18m,20m,21m,22m,24m,26m,28m,29m,30m, 32m, 34m, 45m
2. Chassis brand: ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG,BEIBEN, JAC, JMC, KAMA, etc.
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
| Overall Dimension |
8900×2470×3850mm
|
| Gross Vehicle Weight | 11000 kg |
| Wheel Base | 4200mm |
| Cabin | LHD or RHD, Single row cabin,with A/C |
| Engine | Diesel engine,ISF3.8S3154, 154HP |
| Gearbox | Manual, WLY6TS55, 6 Forward & 1 Reverse Gear |
| Axle | 2.7Ton Front Axle, 7.2Ton Rear Axle |
| Tire | 8.25R16, 6 pieces with 1 spare tire |
| Working height | 30m |
| Maximum operating range of the platform |
≥18m
|
| Platform operating range when operating height is maximum |
≥6m
|
| Platform operating height when operating range is maximum |
≥6m
|
| Maximum working angle of platform |
80°
|
| Landing leg |
4 landing legs
|
| Leg span | Lateral leg span: 5370mm, Longitudinal leg span: 4970mm |
| Control system | Manual control and remote control system |
| Bucket Loading Capacity | 220kgs |






Manual operation system
LCD showing working condition
