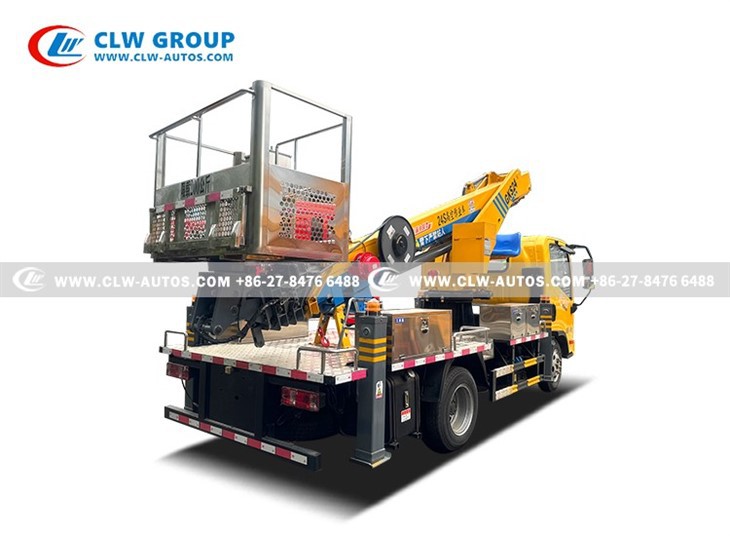

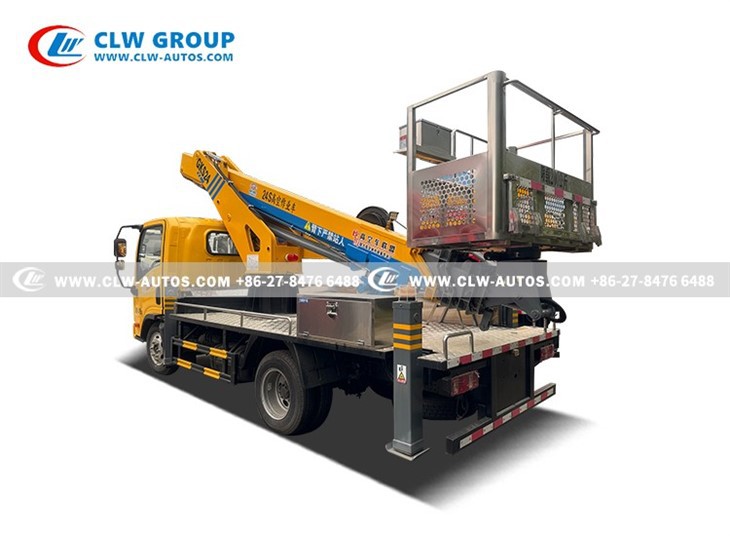

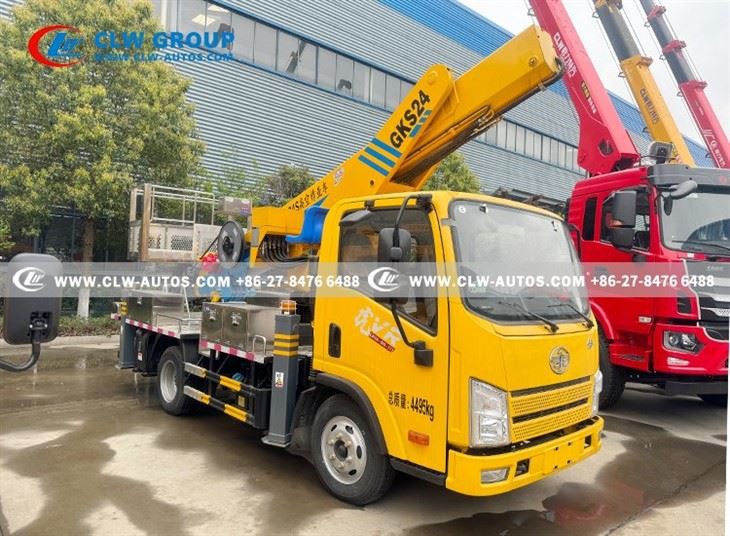

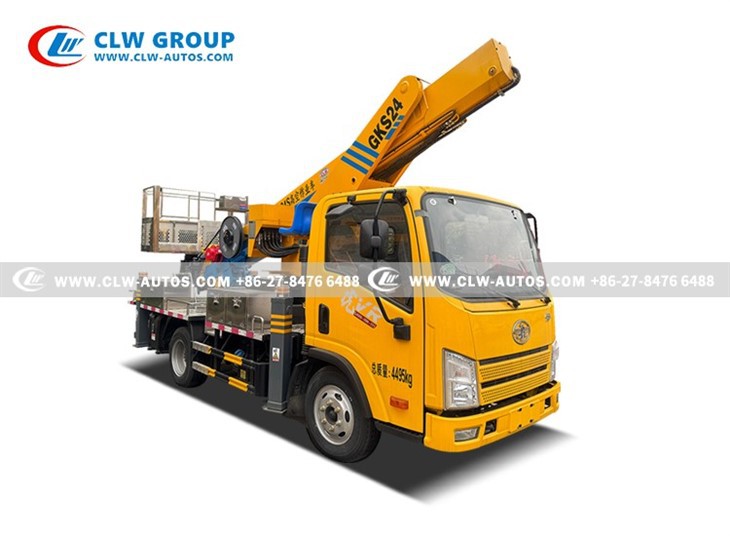

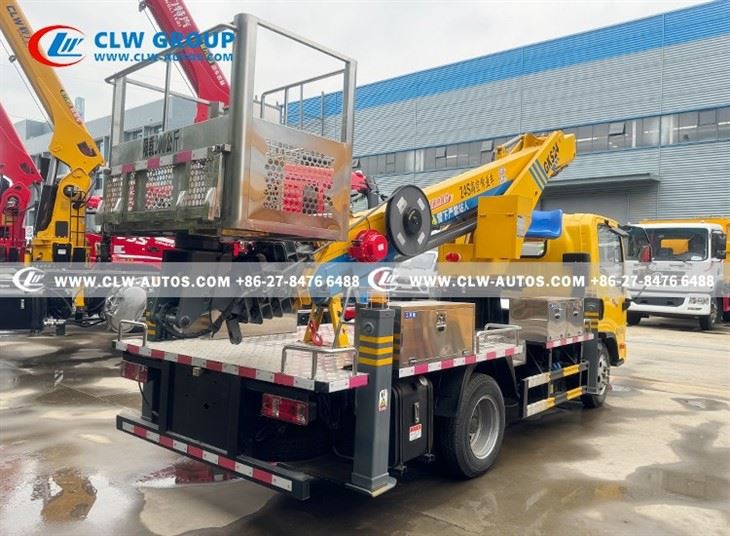

FAW Tiger VR 24 meters Aerial Platform Truck
An aerial platform truck, also known as a cherry picker or boom truck, is a type of vehicle-mounted aerial work platform that allows workers to access high places such as buildings, bridges, and construction sites. aerial platform trucks are versatile machines that can perform a wide range of tasks that require access to high places.
The truck is mounted on a heavy-duty chassis with a sturdy frame and suspension system to support the weight of the aerial platform and its occupants. The body of the truck is typically made of steel or aluminum and is designed to provide protection for the worker and equipment.
|
Advantage design features for Aerial platform truck |
|
|
Automatic interlock device for getting on and off the truck |
It is used for interlocking in and out of the truck to prevent the danger of misoperation |
|
Manual emergency pumps |
When the engine and main pump fail, the emergency system can send the staff back to the ground and the whole vehicle can be retracted to the driving state |
|
Emergency stop device for the working platform |
It is used for emergency stop operation and limits boom operation |
|
Automatically limit the working range |
When the working range reaches the specified value, the dangerous direction is automatically restricted. |
|
Uneven roads restrict work |
When the ground is uneven, the lifting boom will limit the work in the dangerous direction |
|
Night safety alerts |
On the vehicle there are engineering strobe lights, LED lights |
|
The engine ignitions and shutdown |
The controller can control the ignition and shutdown of the engine |
|
Anti-leakage protector |
It is equipped with a leakage protector to ensure the safety of the power supply of the whole vehicle and the use of power tools |
1. Aerial working height:14m,16m,18m,20m,21m,22m,24m,26m,28m,29m,30m, 32m, 34m, 45m
2. Chassis brand: ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG,BEIBEN, JAC, JMC, KAMA, etc.
| Condition | New condition/left hand drive/4x2 | ||||
| Chassis | Brand | FAW | |||
| Curb weight(kg) | 4495 kg | ||||
|
Wheelbase(mm ) |
3360mm | ||||
| Dimensions(mm) | 5998×2200×3150 mm | ||||
| Axle loading | 2800/6000 kg | ||||
| Max. driving speed(km/h) | 80 km/h | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Tire | Quantity(pcs) | 6 pcs with one spare tire | |||
| Specifications | 7.50R16 | ||||
| Gear box | Manual type, 6TS40, 6 Forwards & 1 Reverse | ||||
| Cab | Single row, Tiltable. It can accommodate two people. With air conditioner. | ||||
| Engine | Brand | Yunnei | |||
| Model | YC4D130-33 | ||||
| Displacement(L) | 4.214L | ||||
| Power(kw)/Horsepower(HP) | 6 kw/130HP | ||||
| Cylinder quantity(pcs) | 4 pcs | ||||
| Emission standard | Euro 2 | ||||
| Aerial Platform Structure Parameter | |||||
| Arm Material | High intense BS960 steel | ||||
| Working height (m) | 24 | ||||
| Platform height (m) | 21.3 | ||||
| Max working radius (m) | 9.5 | ||||
| Max working radius in max working height(m) | 2 | ||||
| Boom type | Five section telescopic arm,Synchronous scaling | ||||
| Bucket size(mm) | 1800*750*1150mm | ||||
| Bucket loading capacity | 200kg | ||||
| Rotation Angle | 360 degree | ||||
| Outrigger | Model | Front V, rear H design, individually adjustment | |||
| Quantity | 4 | ||||
| Horizontal span | 4500mm | ||||
| Vertical span | 4600 mm | ||||
| Hydraulic cylinder at telecopic arm | Two units, Chinese famous brand | ||||
| Main Control Mode | Remote control panel & side panel operating beside the chair, 5 inch LCD control panle, | ||||
| Leveling system | Hydrostatic self-leveling | ||||
| LCD Working display panel | Display arm length, working height, working radius, tilt angle. | ||||
| Hoarding and walking platform | Stainless steel fence and non-slip walking platform | ||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Working display panel
Operation panel
