Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 10m3 oil tank truck in China. If you're going to buy high quality sinotruk 10m3 oil tank truck, welcome to get more information from our factory. For price consultation, contact us.

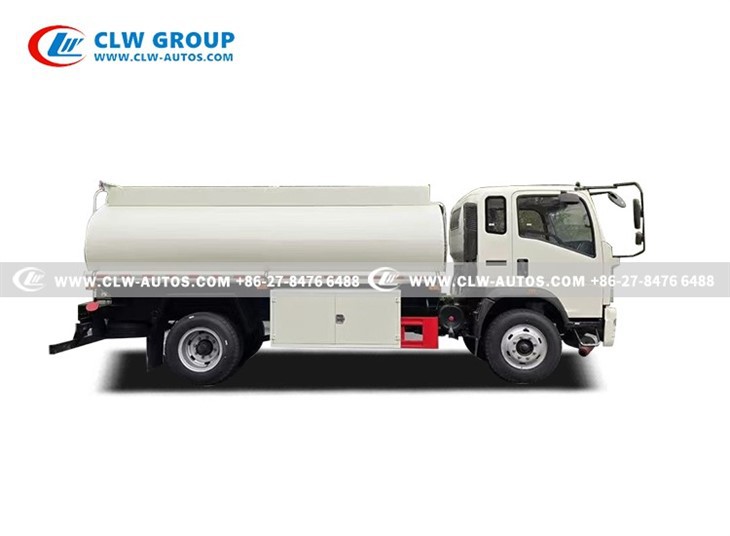

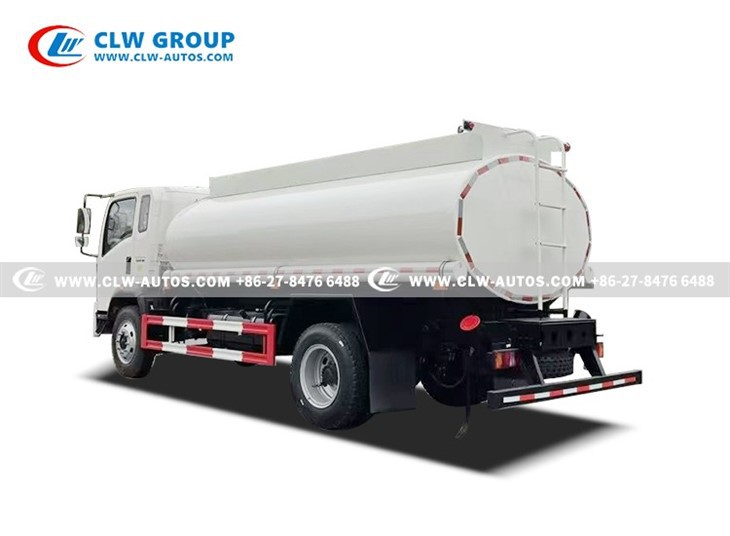

Sinotruk HOWO 4X2 6Wheels 10CBM / 10,000Liters Oil Tank Truck / Fuel Tank Truck
1. Oil Tank Truck: Also referred to as a mobile refueling vehicle, computerized tax-controlled fuel truck, fuel transport trailer, oil carrier, or petroleum transport vehicle, it is primarily designed for the transportation and storage of petroleum derivatives (e.g., gasoline, diesel, crude oil, lubricants, and coal tar).
2. Versatile Fuel Handling Capabilities: Depending on specific applications and operational environments, these trucks are equipped with multifunctional features such as fuel suction, pumping, multi-compartment loading/unloading, and segregated oil distribution. The specialized components of a fuel transport truck include:
1. The cross-section of an oil tank can be elliptical, trapezoidal-rounded, rectangular-rounded, etc. It is generally constructed by welding carbon steel plates and serves as the oil storage container for oil tankers. Depending on the transported medium, materials such as stainless steel or aluminum alloy may also be used.
2. The interior of the oil tank is equipped with longitudinal partition plates, while the top of the tank is fitted with protective plates, platforms, and other components. It also includes access holes, inspection holes, and vent valves. The bottom of the oil tank is designed with a sedimentation trough.
1. Lateral oil baffles and longitudinal oil baffles (also called anti-surge plates) function to minimize oil sloshing during vehicle operation.
2. Manhole: Located on the top for oil filling and providing access for personnel to perform maintenance and inspections inside the tank.
3. Attachment beams: Welded to the tank body and securely mounted to the chassis longitudinal beams using U-bolts or connection lugs for reliable installation.
4. Ladder: Provides convenient access to the top of the oil tank.
|
HOWO 10m³ Fuel Tank Truck |
|
|
Chassis Model |
ZZ112 |
|
Driving Model |
4x2 |
|
Cab |
|
|
Wheel Base |
4200 mm |
|
Axle Loading (front/rear) |
3200 / 8000 kg |
|
External Dimensions (L x W x H) |
8500×2500×3000 mm |
|
Loading weight (Kg) |
10,000 kg |
|
Approach / Departure Angle |
20/12° |
|
Max. Driving Speed |
105 km/h |
|
Engine |
Model: YC4E140-33 |
|
YUCHAI diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power: 140hp |
|
|
Emission standard: Euro 2 |
|
|
Displacement: 4257 ml |
|
|
Max. Torque: 500 N.m |
|
|
Gearbox |
Manual type 6 forward & 1 reverse |
|
Clutch |
Reinforced diaphragm clutch |
|
Tire |
8.25R20 16PR |
|
6 Pcs with 1 spare tire |
|
|
Fuel Box |
220L /steel material |
|
Fuel Tank Specification (10m3) |
|
|
Fuel Tank Capacity |
10m3 |
|
Tank Thickness |
5mm of tank and 5mm of end plate |
|
Tank Material |
Carbon steel / Stainless carbon / Aluminum alloy |
|
Compartment No. |
1 |
|
Fuel Dispenser |
2 sets, flow rate at 70L/min English operation panel Showing unit price / Filling volume / Total price |
|
Oil Pump |
2 Nos of 2.5" oil pumps, driven by PTO Independent pump in and pump our for each compartment |
|
Filling Hose |
1 inch and 15 meters |
|
Filling Hose Reel |
2 Nos |
|
Filling Nozzle |
2 Nos |
|
Manhole Cover |
2 sets with breath valves |
|
Bottom Valve |
2 sets of APL aluminum pneumatic bottom valves |
|
Level Gauge |
Each tank top is equipped with an electronic level meter |
|
Operation Compartment |
Located at rear of truck with aluminum alloy door |
|
Control System |
|
