Export FAW 25cbm 25,000L Oil Tank Truck For Sale

FAW - China Top 1 chassis brand
10 wheels
25tons 25cbm 25m3 25,000L 25,000liters tank capacity
Diesel engine
Q235 carbon steel oil truck
Aluminum Alloy fuel dispenser truck
3,000 liters to 40,000 liters Per Customer Request

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of export faw 25cbm 25,000l oil tank truck for sale in China. If you're going to buy high quality export faw 25cbm 25,000l oil tank truck for sale, welcome to get more information from our factory. For price consultation, contact us.







FAW 25cbm 25,000L Oil Tank Truck For Sale



We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance



Products Descriptions



Oil tank truck: also known as mobile refueling truck, computer tax control refueling truck, oil tank truck, oil loading truck, oil truck, oil transport truck, oil transport truck, mainly used for oil derivatives (gasoline, diesel, crude oil, lubricating oil and coal tar oil products) transportation, storage and dispensing.



According to different uses and use of the environment, it has refueling or oil transport functions, with oil suction, oil pump, oil storage, oil distribution and other functions. The special part of the oil truck is composed of tank, PTO, transmission shaft, gear oil pump, pipe network system and other components.



*Inner structure of the oil tank*



oil tank structure



Our vehicle is optional for:

  • Chassis Brand: FAW, SHACMAN, ISUZU, DONGFENG, JMC, JAC, FORLAND, SINOTRUK, etc.
  • Driving Type: 4X2, 4X4, 6X4, 6X6, 8X4
  • Emission Standard : Euro I, Euro II, Euro III, Euro IV, Euro V, Euro VI
  • Cabin: LHD or RHD
  • Tank Capacity: 5,000L, 10,000L, 15,000L, 20,000L, 25,000L, 30,000L, 35,000L
  • Tanker Compartment: Can be separated to different size
  • Refueling equipment: Pump, Dispenser or Flow meter, Filling hose



After-sales Service Provided:

  • One Year Warrenty
  • Video technical support
  • Overseas Call Centers
  • Online support



*Min. order: 1 pc



For more informations, please contact:

WhatsApp: +86 139 2570 3918

Wechat: +86 139 2570 3918

Email: juniper@clw-autos.com



Products Parameters



Overall Dimension

10900 x 2500 x 3250 mm

Gross Vehicle Weight

27600 kg

Curb weight

11500 kg

Loading Weight

16100 kg

Wheel Base

4600+1350mm

Cabin

2 or 3 Passengers Allowed, with A/C

Engine

EURO II, Weichai Diesel, WP10.290E32, 6 Cylinder

Horse Power

290 HP

Displacement

9.726L

Gearbox

Manual, FAST 9JS119, 9 Forward & 1 Reverse

Axle

6.5Ton Front Axle, 11.5Ton Rear Axle

Max Driving Speed

80 km/h

Tire

315/80R22.5, 10 Pieces with 1 Spare

Oil Box

400 Liters

Tank Volume

25,000 Liters, Compartment no. can be customized

Tank Material

Q235 Carbon Steel, 5mm Thickness

Tank color and design can be customized

Manhole

API Manhole

Safety Feature

Breather Valve+Emergency cut-off Valve

Oil Filling System

Oil dispenser - China Top Brand Censtar, 1 Unit

Oil filling nozzle & Rubber hose, 1 Unit

Oil filling pump, 1 Unit

Standard tool box, 1 Unit



Special Equipments


API Manhole to Container Oil Vapor for Safety

With spill-proof sensor and Safty Valve

QQ20231221095709
Anti-Overflow Sounding Rod

Spill-proof Sensor

The spill-proof sensor is mainly used in the fuel tank truck to detect the refueling situation in the tank. When the feed is excessive, the internal terminal transmission signal plays a role, and prompts the refueling platform to stop refueling, so as to ensure the safety of refueling. The anti-static system is composed of the anti-overflow probe rod, anti-overflow socket and ground bolt.

  • Made of Stainless steel material with strong corrosion resistance.
  • Easy to adjust. the alarm height can be adjustable.

Subsea Valve

Subsea valve is also named of emergency cut-off valve, installed at the bottom of the fuel truck and mainly sealed inside the tank body. When the pipeline valve is accidentally broken, it can make the tank body still sealed, avoiding liquid leakage in the tank, improving the safety and reliability of transportation.

  • Made of stainless steel material with strong corrosion resistance.
  • Simple structure and durable, easy maintenance.
emergency cut-off valve
QQ20231221093527

Pump, Dispenser, Filling Guns All in One Unit

PTO Drive High Efficiency Oil Pump

China top brand Oil Dispenser Powered by Truck Electricity

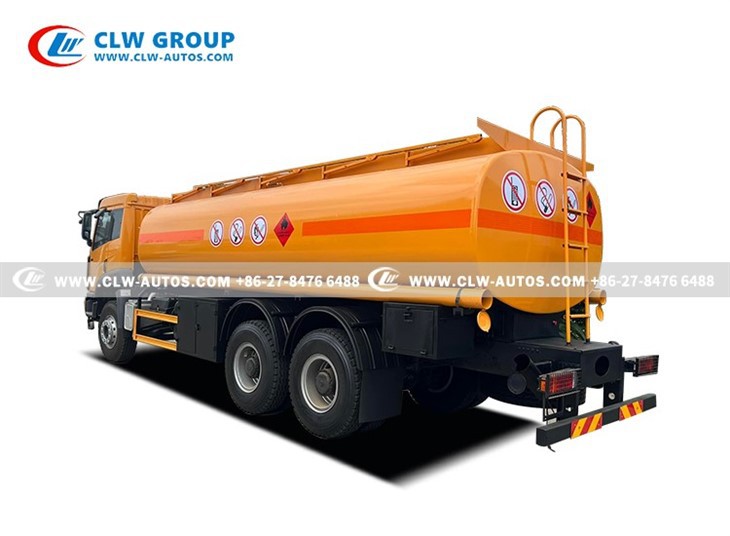

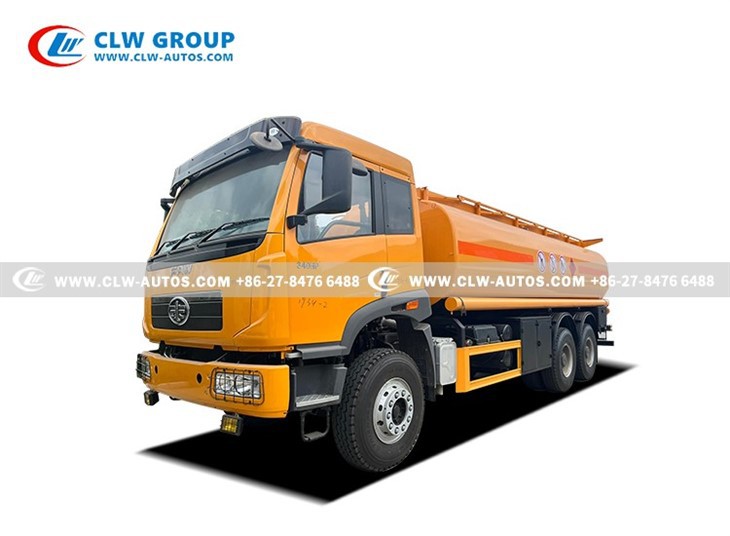

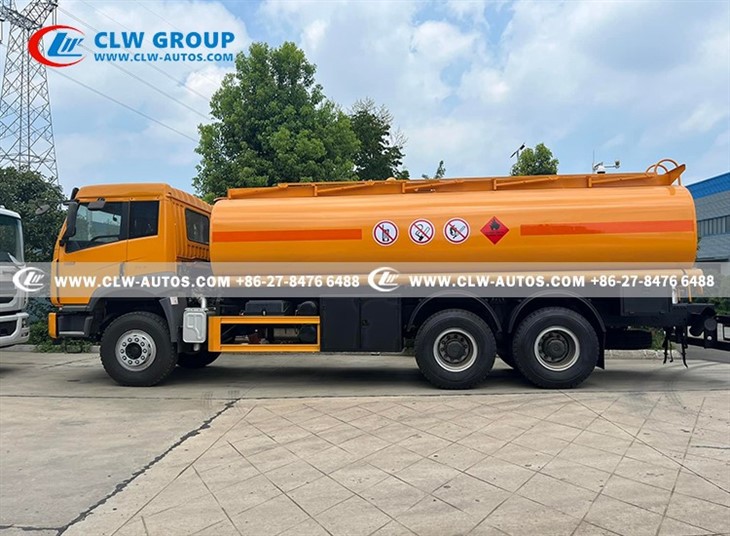

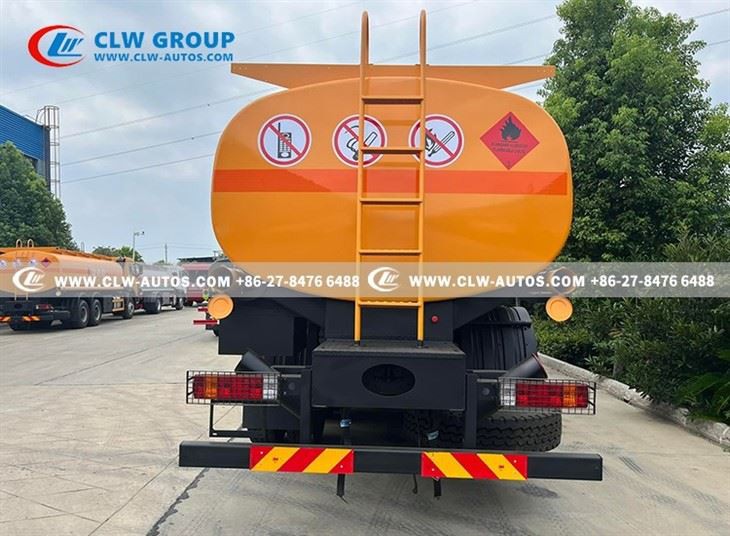

Reference Pictures



1
2
5
4



 *Color and Design can be Customized*



Company Profile



HUBEI WEIYU TRUCK



The "CLW" brand is honored as the "Hubei Well-kown Trademark", Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection, Pressure Vessels certificated by A2 C2 C3, ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd. tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.


20+

Years Manufacturing Experiences


100,000+

Annual Production


5,000+

Technical Workers


80+

Overseas Market



Contact now




By choosing one of our units, your truck will quickly become your best work partner.
