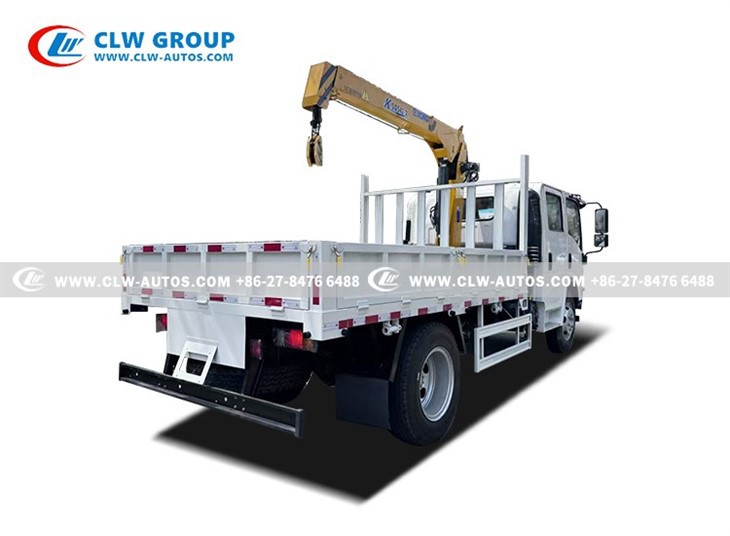

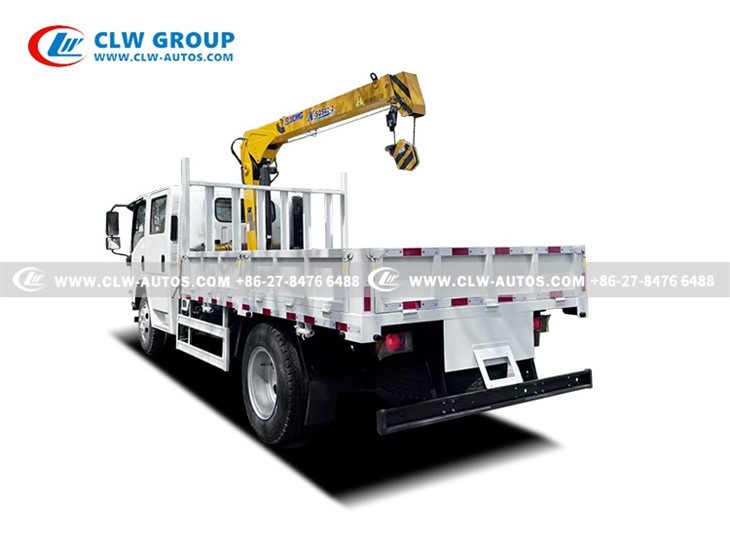

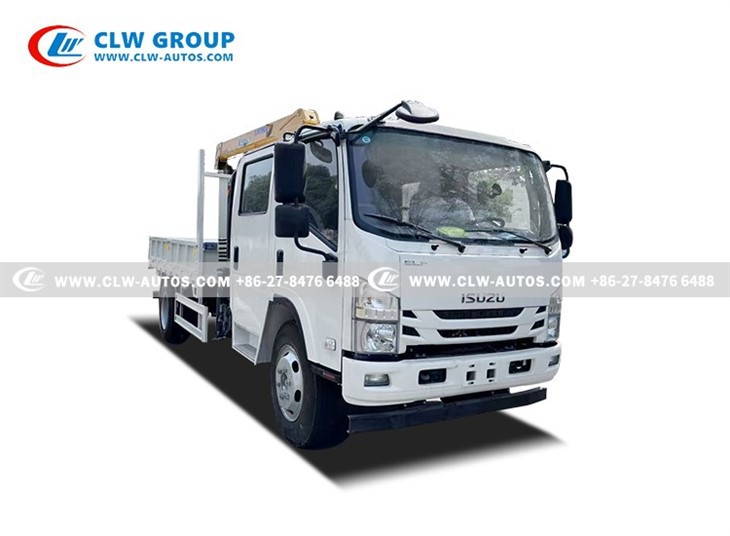

ISUZU NKR 2Tons Crane Truck

Drive Type: 4x2
Engine Power:120 HP
Cargo Box Capacity: 5Tons
Cargo Box Material: carbon steel
Crane Max. Lifting Capacity: 2 Tons / 2100 kg
Double-row Cabin

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu nkr 2tons crane truck in China. If you're going to buy high quality isuzu nkr 2tons crane truck, welcome to get more information from our factory. For price consultation, contact us.





ISUZU NKR 600P 2 Tons XCMG Straight Boom Crane  Crane Truck With Double-row Cabin



Products Description



The Isuzu 600P series dual-row cab models are highly regarded in the commercial vehicle market for their reliability, practicality, and comfort. The main advantages are reflected in the following aspects:



1. Space and Riding Comfort

  • Spacious Dual-Row Layout: Accommodates 5-6 people (certain models), with ergonomic seat designs to reduce fatigue during long-distance driving.
  • User-Friendly Features: Higher-end models come equipped with air conditioning, a multifunctional steering wheel, storage compartments, and more, enhancing the driving and riding experience.
  • Quiet Cabin Design: Optimized cabin sealing and soundproofing materials reduce engine and road noise.

2. Efficient Power and Fuel Economy

  • 4KH1 Diesel Engine: 3.0L displacement, approximately 130 horsepower, and 290N·m of torque, with strong low-speed torque, making it suitable for frequent urban stops and heavy-load demands.
  • Fuel-Saving Technology: Electronically controlled high-pressure common rail fuel system + EGR (Exhaust Gas Recirculation) balances power and fuel efficiency (fuel consumption around 10-12L/100km, depending on road conditions).

3. Load Capacity and Reliability

  • High-Strength Chassis: Enhanced rigidity, compatible with various superstructures (e.g., cargo boxes, refrigerated containers), with a load capacity of 3-5 tons.
  • Isuzu Chassis Technology: Proven suspension system (front independent suspension + rear leaf springs) ensures stability and durability.
  • Low Failure Rate: Market-tested engine and transmission (5-speed/6-speed manual), with low maintenance costs.

4. Safety Performance

  • Active Safety: ABS+EBD, anti-slip pedals, and wide-angle rearview mirrors minimize blind spots.
  • Passive Safety: High-strength cab structure, crash crumple zones, and optional airbags in some models.

5. Flexibility and Versatility

  • Ease of Modification: The dual-row cab design allows for easy installation of additional equipment (e.g., specialized tools for police, emergency rescue).
  • Multi-Scenario Applicability: Suitable for logistics, municipal services, construction, and other industries, meeting both personnel and tool transportation needs.

6. Brand and After-Sales Advantages

  • Isuzu Reputation: Backed by a global commercial vehicle brand, with high resale value.
  • Service Network: Nationwide repair coverage, ample spare parts supply, and manageable maintenance costs.

Recommended Use Cases

  • Urban Delivery: Dual-row seating accommodates shift rotations, ideal for express delivery and fresh produce distribution.
  • Construction Work: Supports power and telecommunications repair teams by transporting both personnel and tools.
  • Special Vehicle Modifications: Suitable for customized chassis needs, such as police cars and ambulances.
  • Summary: The core competitiveness of the Isuzu 600P dual-row cab lies in its combination of practical space, reliable power, and commercial vehicle efficiency, making it particularly suitable for multitasking scenarios that require both passenger and cargo transport. For higher-end configurations (e.g., automatic transmission, smart driving assistance), consider newer or customized versions.





Products Video





Products Parameters



ISUZU Crane Truck With 2Tons Straight Boom Crane

Chassis Specification

Chassis Model

QL107

Driving Model

4x2

Dimension

6800 x 2300 x 3600 mm

Cab

  • Original ISUZU 600P Double Cabin
  • With Air Conditioner
  • Left Hand Drive

Wheelbase

3360 mm

Gross vehicle Weight

7000 kg

Curb Weight

3820 kg

Front Axle Loading Capacity

2500 kg

Rear Axle Loading Capacity

4800 kg

Axle Number

2

Tire

7.00R16

6pcs with 1 spare tire

Engine

ISUZU diesel engine

4 cylinders in a line,

Water cooled, turbocharged, after cooled, cold start.

Model: 4KH1CN6LB

Horse power: 120 HP

Displacement: 2999ml

Emission standard: Euro 6

Transmission

Model: ISUZU

5 Forward & 1 Reverse

Fuel Tank Capacity

100L

Upper Parameters

Cargo Box

Size (L*W*H)

4000 X 2300 X 550 mm

Loading Capacity

5 Tons

Bottom Thickness

5 mm

Side Thickness

3 mm

Material

High quality Q235 carbon steel

Crane

Model

XCMG -K SQS42-2

Working Platform

360°turning (left or right), H-shape legs 360°

Extendable Boom Section

1 main boom + 2 extendable boom

Crane Type

Straight Boom Crane

Max. Lifting Capacity

Effectively: 2100 kg at 2.0 meters

Max. Working Radius

5.45 meters

Max. Lifting Height

7.5 meters

Max. Lifting Moment

42 kN.m

Max. Oil Flow of Hydraulic System

25 L/min

Max. Pressure of Hydraulic System

20 Mpa

Crane Weight

875 kg

Landing Leg

4 Pcs hydraulic handing leg

Optional

Hydraulic tipper box

Box thickness as required

Remote controller is optional

Customized logo and color

Crane Rated Lifting Load
1Crane Rated Lifting Load
2Crane Rated Lifting Road

Products Photos

5isuzu 600P 2Tons Crane Truck
6isuzu nkr 4x2 crane truck
7isuzu 2tons crane truck
8isuzu 6-wheels crane truck

Our factory & Equipment

Factory Photos
precision parts processing line
factory truck
Chassis processing line
factory crane
Crane factory appearance
Customer Visit Photos



1clw visit photos
2clw truck
3clw Lpg truck
4clw fire protection truck
5clw truck photos
6clw truck in factory

Company Profile

our company


ChengLi Special Automobile Co., Ltd. is the core enterpriset Chengli Automobile Group and a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles. The company is located in Suizhou City, Hubei Province, with production bases in the southern suburbs of Zengdu District and the Zengdu Economic and Technological Development Zone.

The company currently has total assets of early 10 billion yuan, covering an area of over 1,000 acres, and employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers. The company has an annual production capacity of 70,000 special vehicles it has signed industry-university-research cooperation agreements with universities such as Huazhong University of Science and Technology, Wuhan University of Technology, and Wuhan University of Science and Technology. Through professional vocational technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.

Advantages



- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different trucks.
- 1000 sets of equipment, 25 assemble lines.

CLW company

Adavantages



- 8000 staffs including 300 senior engineers and technicians.
- 800 kinds of trucks and semi-trailers covering different industry.
- 20 years wholesale experience.
- Export to 90 countries.

The new factory of CLW Group gives wings to Chengli's future development

We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Welcome to visit our factory!
