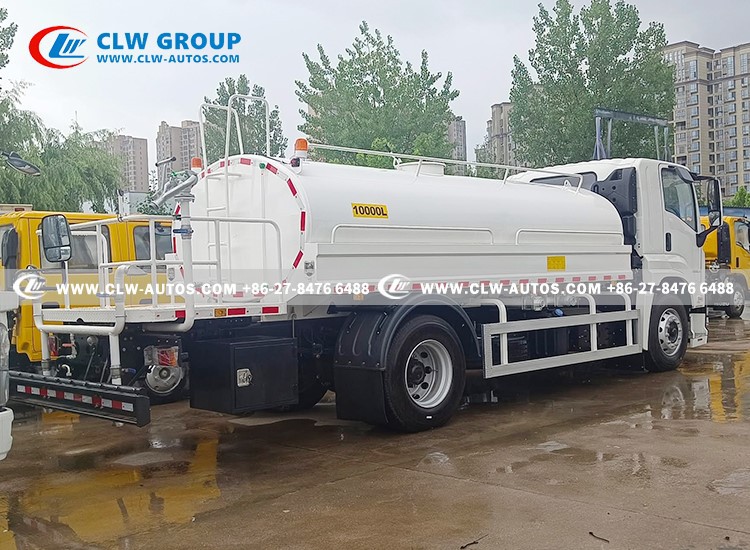

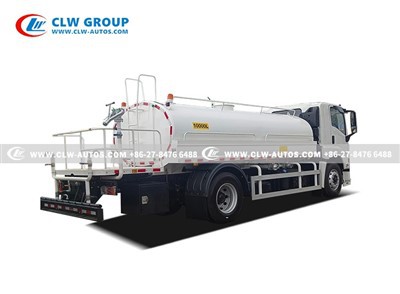

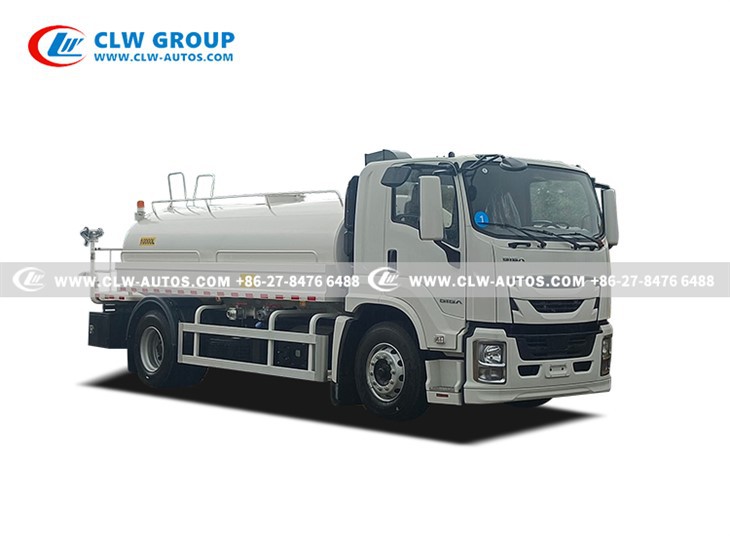

ISUZU 10m3 Water Sprinkler Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 10m3 water sprinkler truck in China. If you're going to buy high quality isuzu 10m3 water sprinkler truck, welcome to get more information from our factory. For price consultation, contact us.





ISUZU 10m3 Water Sprinkler Truck With Rear Spraying System For Mining Areas





Water Sprinkler Truck is also called as Water Tank Truck, Water Bowser Truck, Camion Pulvérisateur d'Eau, Caminhão Aspersor de Água, Mtruk wa Maji wa Kusprinkla,Gwagwalada Mai Satsuwa and so on. It is equipped with rear spray function, it can extend a variety of application scenarios, especially suitable for occasions that require fine dust reduction, road cleaning or special environmental operations.





1. Urban Road Cleaning & Dust Suppression

 - Applications:

• Major city roads, construction zones, and areas near demolition sites.
• Road moisture retention and dust control during hot, dry weather.

 - Functions:

• The rear spray system creates a water mist curtain, effectively capturing airborne dust (PM2.5/PM10) to improve air quality.
• When combined with front-flushing nozzles, it enables integrated "washing + dust suppression" operations.

2. Mining & Industrial Sites

 - Applications:

• Open-pit coal mines, gravel plants, stockyards, and other dust-prone areas.

 - Functions:

• The wide-coverage rear spray rapidly suppresses dust from loading, unloading, and transport, ensuring environmental compliance.
• Reduces dust accumulation on mining equipment, extending service life.

3. Agricultural & Forestry Spraying

 - Applications:

• Orchards, forested areas, and green spaces for pesticide or liquid fertilizer distribution.

 - Functions:

• The system can be fitted with fine mist nozzles for even chemical dispersal, boosting efficiency.
• Saves water and provides broader coverage compared to manual spraying.

4. Landfills & Sanitation Management

 - Applications:

• Waste transfer stations, landfills, and incineration plant surroundings.

 - Functions:

• Controls foul odor dispersion and reduces fly/mosquito breeding.
• Supports disinfection (e.g., sodium hypochlorite spraying) for hygiene maintenance.

5. Emergency Firefighting & Cooling

 - Applications:

• Temporary fire containment (e.g., cooling firebreaks) or pavement temperature reduction in extreme heat.

 - Functions:

• The rear spray generates a rapid water mist barrier to curb fire spread (requires high-pressure pumps).







ISUZU 10m3 Water Sprinkler Truck
Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	8000 x 2400 x 3200 mm

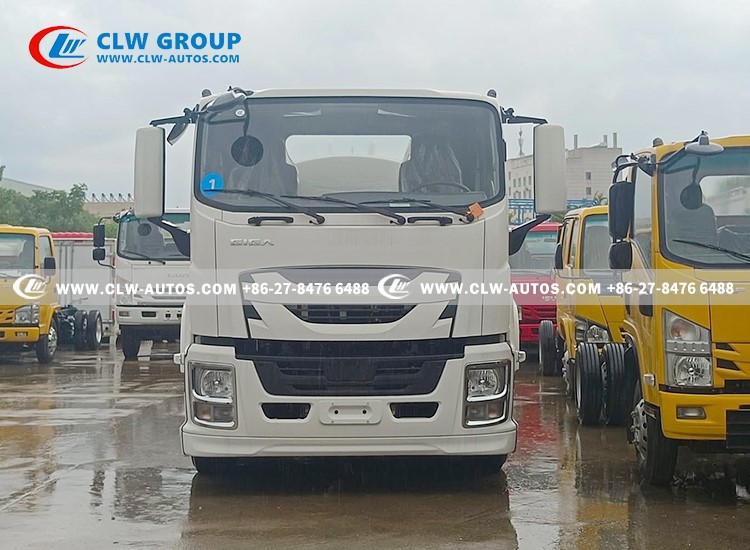

Cab	Original FTR 4X VC61cabin With air conditioner Central locking Power windows and doors Multi-function steering wheel Multi-function LCD instruments
Wheelbase	4500 mm
Gross vehicle Weight	18000 kg
Curb Weight	8000 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1-TC60
	Horse power: 205 HP
	Displacement: 5193ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
	6 Forward & 1 Reverse
Tire	295/80R22.5 18PR
	6pcs with 1 spare tire
Fuel Tank Capacity	120 L
Water Tank Body Specification
Tank Volume		10,000Liters/10Tons
Tank Material		Q235 carbon steel
Tank Thickness		6mm
Suction Height of Truck Pump		＞ 7m
Full Tank Suction Time		＜ 15minutes
Sprinkling Width of Front/Rear/Side Sprinkler		≥ 14m
Range of Water Cannon		≥ 28m

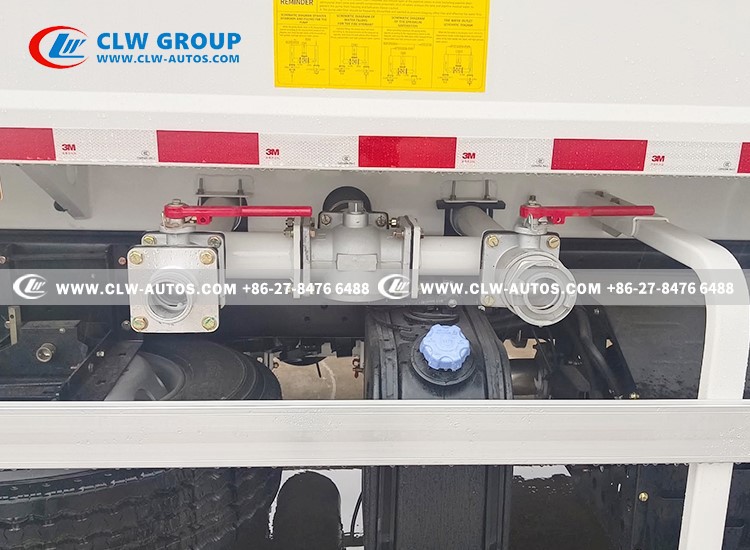

Water Pump		China famous brand self-suction water pump

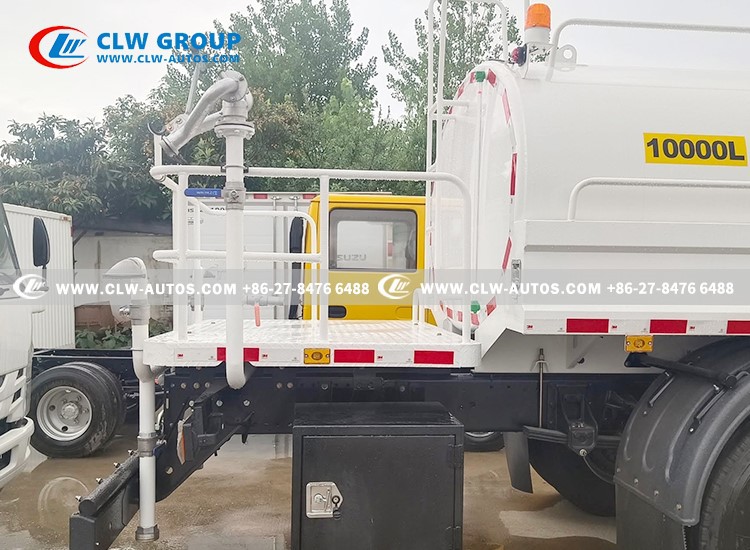

Standard Equipment		Front flush, Rear spray, Side spray, Water cannon
