Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 16 tons 25 tons wrecker towing truck body in China. If you're going to buy high quality 16 tons 25 tons wrecker towing truck body, welcome to get more information from our factory. For price consultation, contact us.

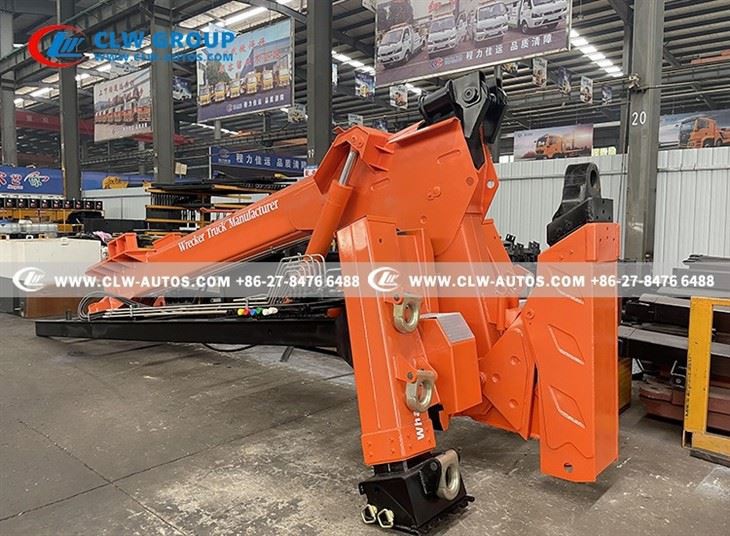

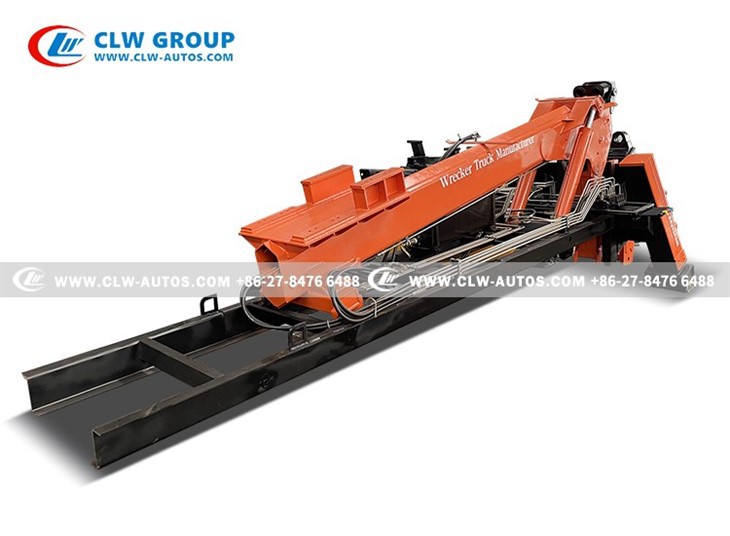

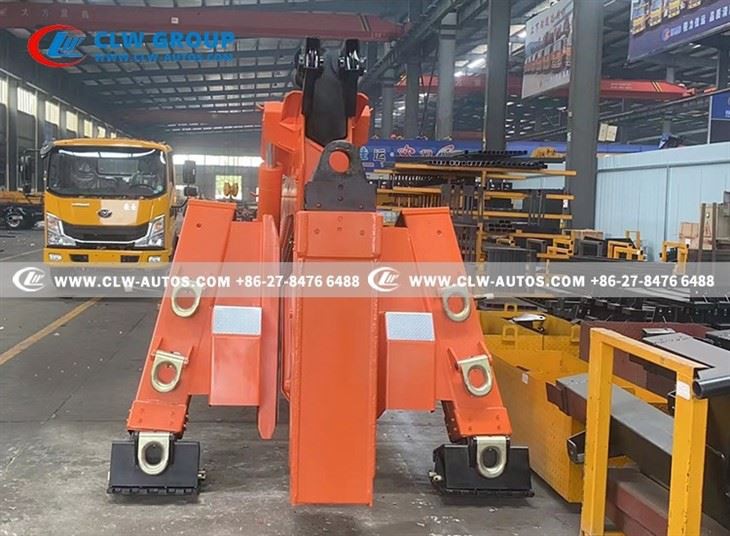

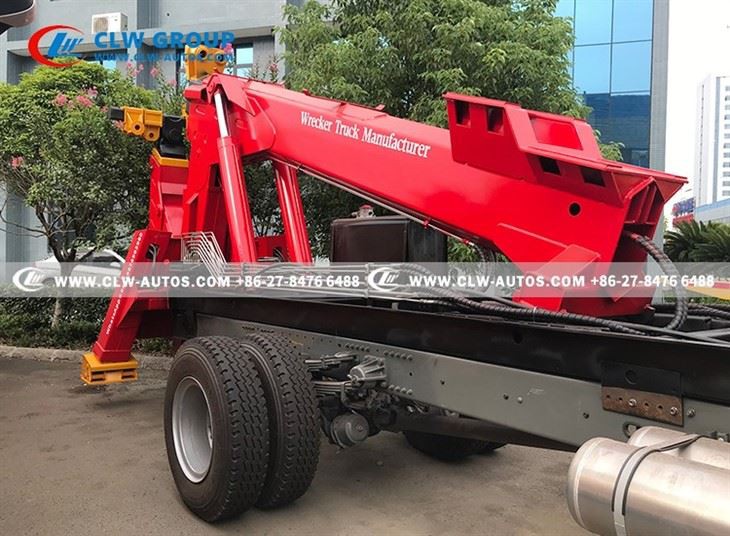

16Tons 20Tons 25Tons Integrated Wrecker Tow Truck Body
Hubei Weiyu Special Vehicle Co. Ltd.
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.
2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.
3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.
4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.
5. We have different brands of truck chassis to make the wrecker tow truck.
6. You can use your own Truck Chassis, Such as VOLVO, BENZ, MAC, or other Europe brands truck chassis. We can customize the wrecker tow truck to meet with your truck chassis perfectly if you can provide truck chassis drawing.
For more information, please contact:
Sales Manager: Helen Jiang
WhatsApp/Mob: +86 135 5419 5719
Email: helen@clw-autos.com
|
Superstructure for 16tons wrecker truck body |
||
|
Maximum Towing weight(KGS) |
16000 |
|
|
Under Lifting System |
Max. Under-lifting Weight(KGS) |
16000 |
|
|
Max. Under-lifting Weight Full extension(KGS) |
5500 |
|
|
Lifting weight not extension(KGS) |
16000 |
|
|
Underlifting arm length all retracted (mm) |
1438 |
|
|
Underlifting arm length all extension (mm) |
3077 |
|
|
Telescopic stroke(mm) |
1850 |
|
|
Fold angle |
-10-92(°) |
|
|
Maximum distance from the surface of the fully retracted cross arm to the ground(mm) |
900(mm) |
|
Hoist Lifting system |
Max. Lifting Weight (KGS) |
16000 |
|
|
Oil Cylinder Telescopic Stroke(mm) |
2900 |
|
|
Boom length all retracted (mm) |
4858 |
|
|
Boom length all extension (mm) |
8154 |
|
Winch |
Quantity |
2 pcs |
|
|
Rated traction force(KN) |
80 |
|
|
Steel Rope Diameter(mm) |
Φ18 |
|
|
Steel Rope Length(m) |
45*2 |
|
|
Minimum linear speed(m/min) |
5 |
|
Outrigger |
Quantity |
2 pcs |
|
|
Support Force(KN) |
50*2 |
By choosing one of our units, your truck will quickly become your best work partner.
Hot Tags: 16 Tons 25 tons Wrecker Towing Truck Body, China, manufacturers, suppliers, factory, price
