Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 29-meters telescopic arm skylift truck in China. If you're going to buy high quality isuzu 29-meters telescopic arm skylift truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
-1. Aerial platform truck refers to special trucks that transport staff and equipment to the site and do the aerial operations. According to the form of its lifting mechanism, it can be generally divided into four basic types: telescopic arm type (straight arm type), folding arm type (knuckle arm type), vertical lifting type and hybrid type.
-2. The whole truck is welded with SSAB imported high-strength steel, with compact structure and beautiful appearance.
-3. The pentagonal arm of the boom has beautiful appearance, strong force and high strength. The boom cylinder is installed externally, and the steel wire rope drives the six-section boom to expand and contract synchronously, which is fast, stable, reliable, and easy to observe and maintain.
-4. The outrigger adopts a square tube inner jacket to expand and contract, the support is stable, and the force is large. The front X and rear H-shaped outriggers have good stability. The outriggers can be operated independently, and the operation is flexible, and the speed block can be adapted to a variety of working conditions. the outrigger is equipped with soft leg protection and weighing protection, and has an alarm function.
-5. It adopts imported controller for automatic control, with display screen, adopts length sensor, angle sensor and encoder to collect signals. Manual and remote control dual-position operation, imported electro-hydraulic multi-proportional valve speed regulation, capable of operating multiple actions at the same time, realizing compound operation, wireless remote control operation of the hanging basket.
-6. Lightweight design of all aluminum alloy hanging basket, static hydraulic automatic leveling, 360° electric continuous rotation, automatic protection against overload of 200kg.
whatsapp Flora +86 13971508969

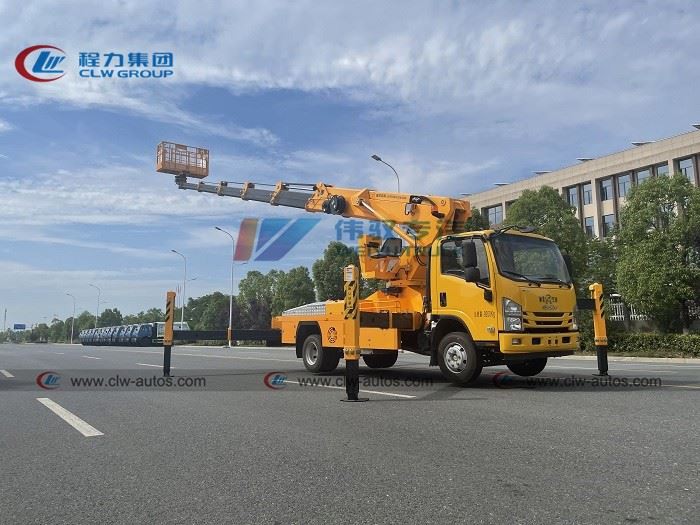

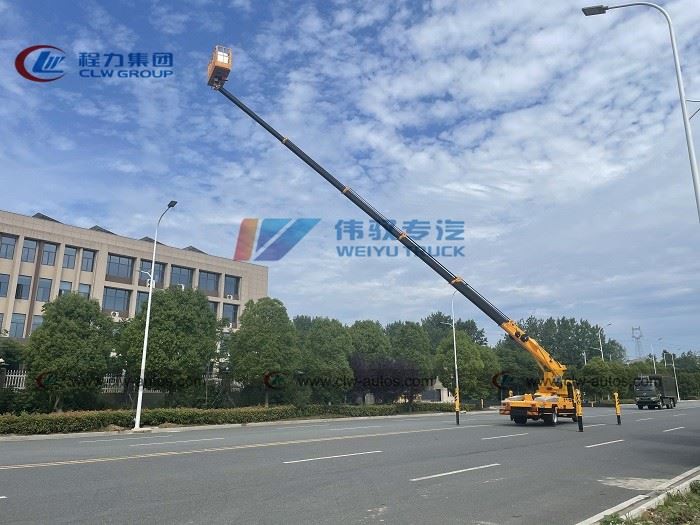

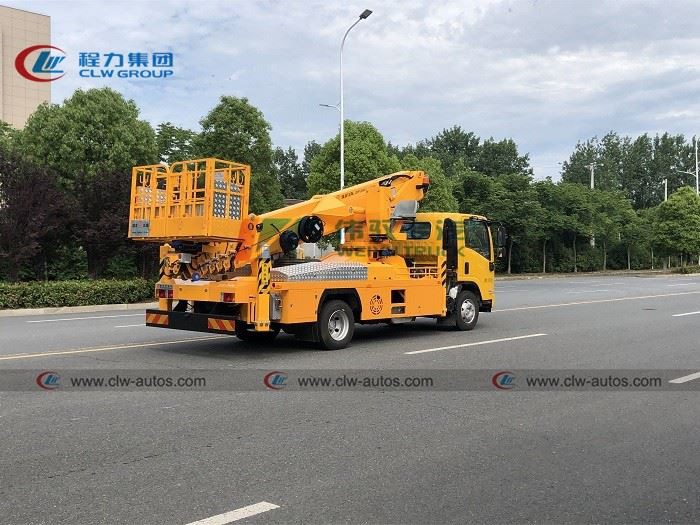

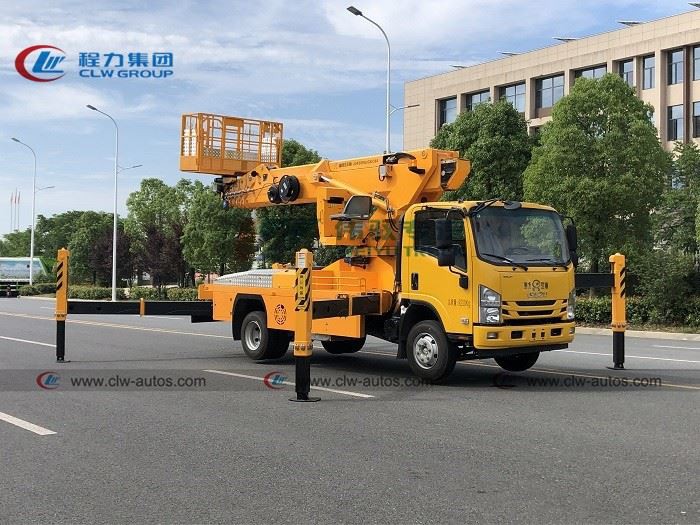

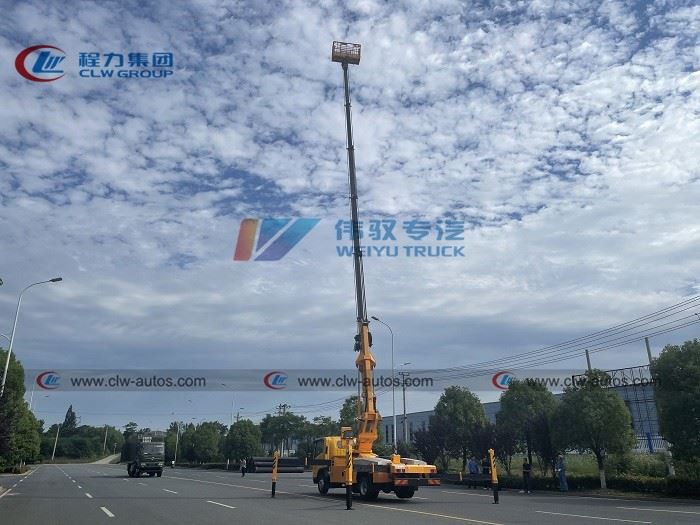

Reference Photos
Successful Cases
Product Specification
| Telescopic Skylift Truck 29-Meters | |||
| Overall dimensions | 7450mm x 2250mm x 3800mm | ||
| Gross vehicle weight | 8950kg | ||
| Wheel base | 3815 mm | ||
| F/R track base | 1110/1990mm | ||
| Approach/departure angle | 21/12° | ||
| Cabin | Dongfeng Single Row Cabin, 2 Passenger Allowed, | ||
| Engine | Isuzu Engine, 4 Stroke, 4 Cylinders in line, Turbocharged, Inter cooling | ||
| Displacement/ HP | 130HP | ||
| Max speed | 95 km/h | ||
| Tire specification | 7.00R16, 6 Pieces with 1 Spare | ||
| Traction system | 4x2 | ||
| Number of axles | 2 | ||
| Bucket | Max. work height: 29 meters | ||
| Max. bucket floor height: 27.3meters | |||
| Max. work radius: 9 meters | |||
| Rated load: 200kg | |||
| Dimension (L*W*H) 1000*650*1200 (mm) | |||
| Boom | Type Four-section telescopic synchronously | ||
| Rotation angle 360° | |||
| Elevation angle -12°~80° | |||
| Outriggers | Type: H | ||
| 4000x4000mm | |||
| Major Feature | Outrigger | computer controlled system, one key to stretch out & balance the level of the truck | |
| Balancing | Automatically Balancing system with Tilting Angle Sensor & level detector | ||
| Getting on & off Lock | Computer control system, | ||
| Telescopic Arm Control | Controlling system in the bucket, with manual control. | ||
| Platform Control System | LED Screen Display with Button control | ||
| Range Control | Large Angle Sensor to Detect the Arm Length & Rotation Range | ||
| Walkie-Talkie | Included | ||
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.
