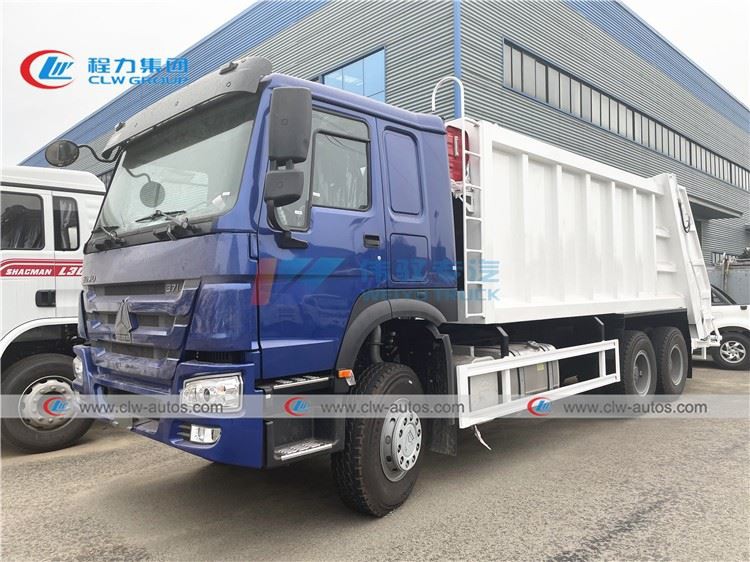

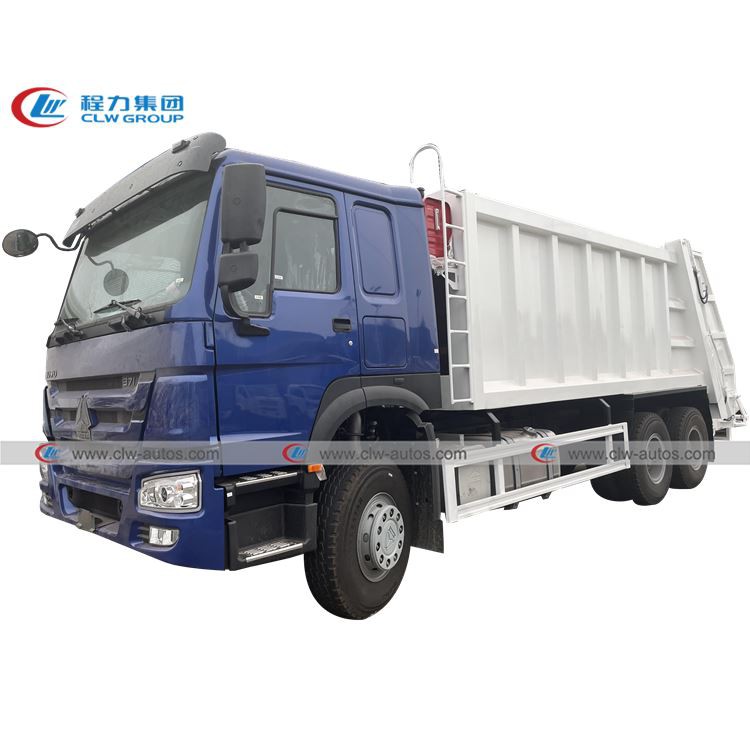

Howo 20m3 Rear Loader Garbage Truck
Engine:Diesel engine,336HP/371HP
Garbage box:18cbm,20cbm
Loading capacity:15tons,16tons
Thickness:Bottom 5mm and Side 5mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 20m3 rear loader garbage truck in China. If you're going to buy high quality howo 20m3 rear loader garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Production Introduction

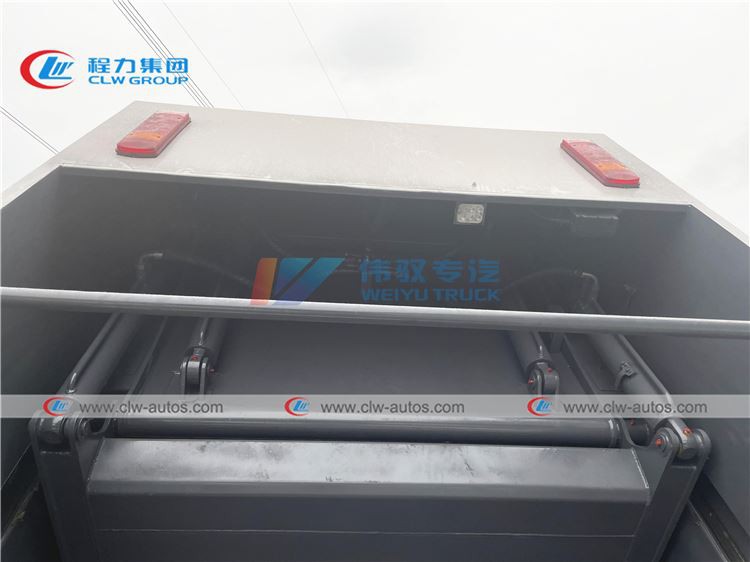

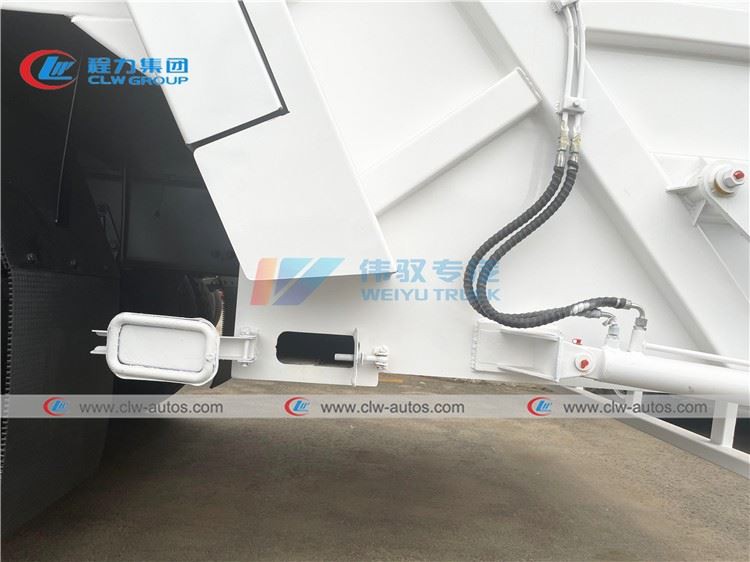

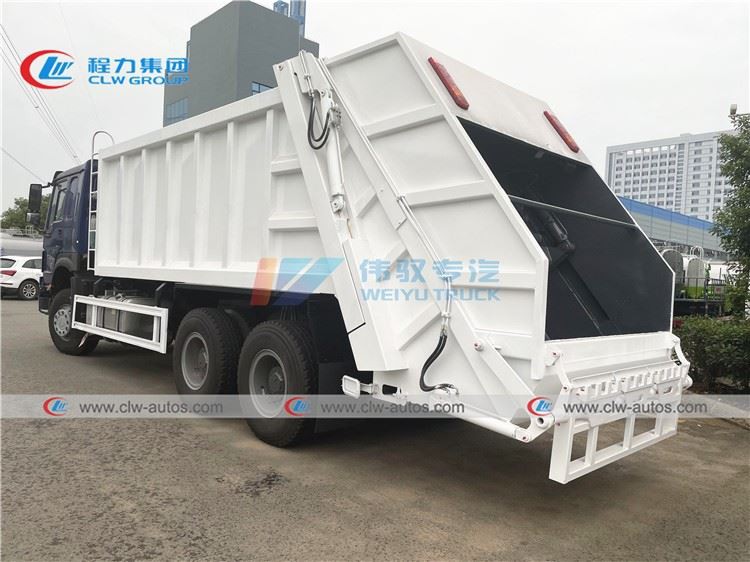

Howo 20m3 rear loader garbage truck(also called howo garbage compressed truck,howo garbage compactor truck,howo compactor garbage truck,howo waste recycling truck,rear loading garbage truck) is composed of a sealed garbage box, a hydraulic system and an operating system.
Rear loader garbage trucks are suitable for waste management companies which using for city
garbage collection & transport: the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck is with characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost
Why do you choose CLW group for garbage trucks?
Chinese top brand oil cylinders;
British DLI seal ring;

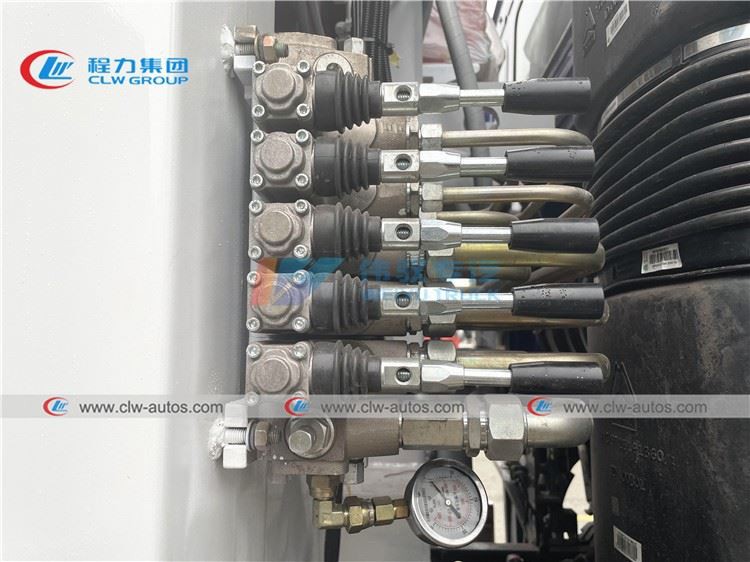

Chinese top brand multi-way valves'
Chinese top brand hydraulic oil pump
Compensates misalignment and deflections

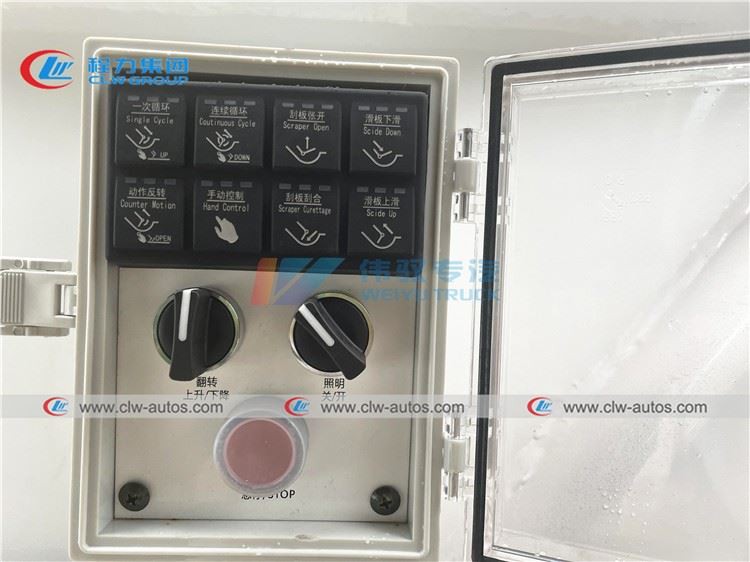

PLC or CAN operation contral model for option;
Capable to deliver batch order in short time;
Chassis model | ZZ1257N4341W | Chassis brand | SINOTRUK |
Overall dimensions | 9800X2496X3048mm | Wheel base | 4325+1350mm |
Front/rear wheel track | 2022, 1830/1830mm | Front/rear suspension | 1500, 2600mm |
Approach/departure angle | 16/15° | Maximum speed | 90km/h |
Cab | Configuration | HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers | |
Color | White, other color is optional | ||
Engine | Model | WD615.47 | |
Emission | Euro 3 | ||
Type | 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine | ||
Rated power | 371hp, rated power speed 2200rpm | ||
Displacement | 9726ml | ||
Max.torque | 1350N.m | ||
Bore x stroke | 126x130mm | ||
Tire | Size | 12R22.5 tubeless tire | |
Number | 10+1 nos | ||
Clutch | φ430 diaphragm clutch | ||
Fuel tank | 400L iron oil tank | ||
Front axle | HF 7 tons | ||
Rear axle | ST 16 tons | ||
Drive form | 6X4 | ||
Suspension | Multi leaf springs | ||
Rated voltage | 24V, DC | ||
Transmissions | gearbox HW19710, 10 speed forward 2 reverse. | ||
Steering device | Power assisted steering | ||
Steering wheel | Left hand drive | ||
Service
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Designed drawings
After Sale Service
--- Overseas installation and commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
According to your request, choose good chassis and refit it to truck.
on trucks as tank and box. |
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
