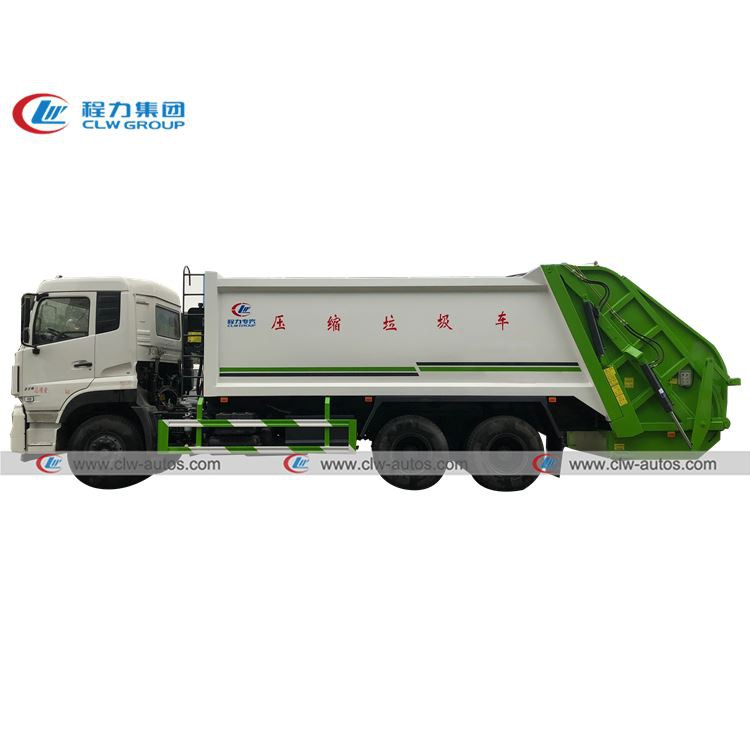

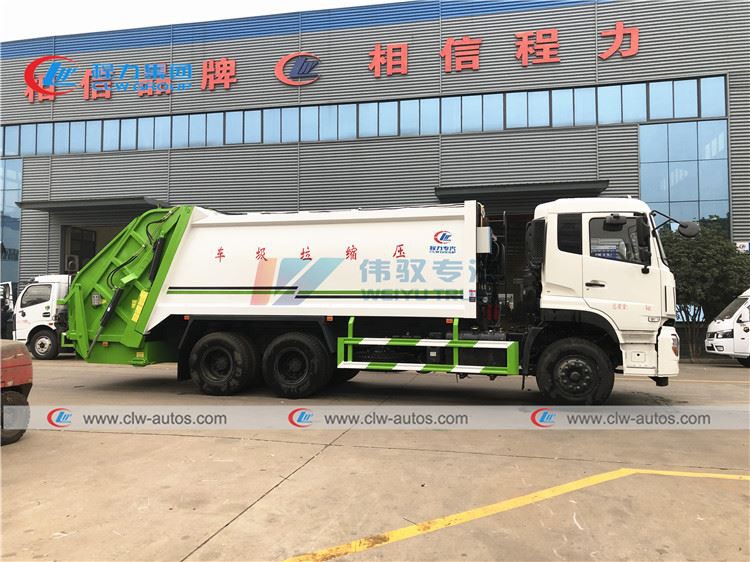

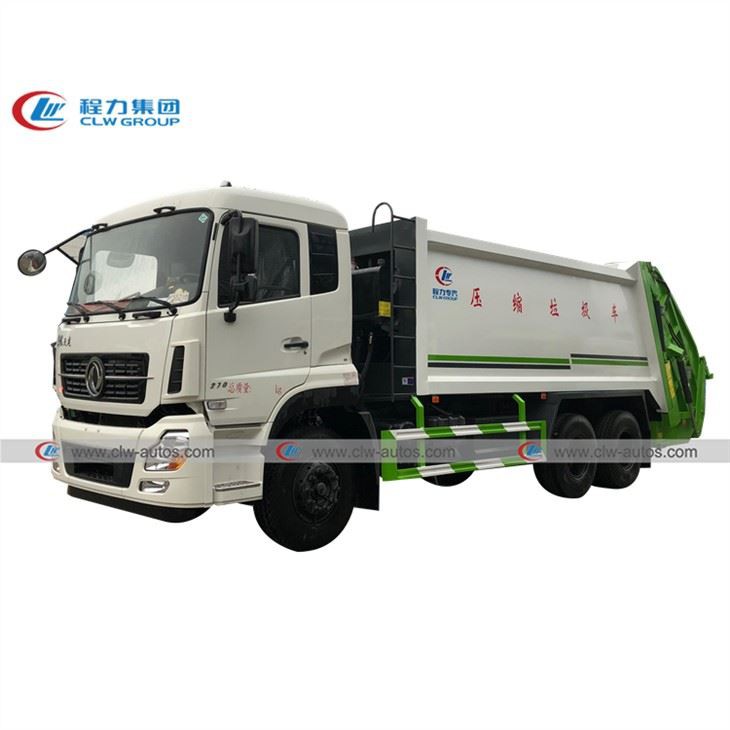

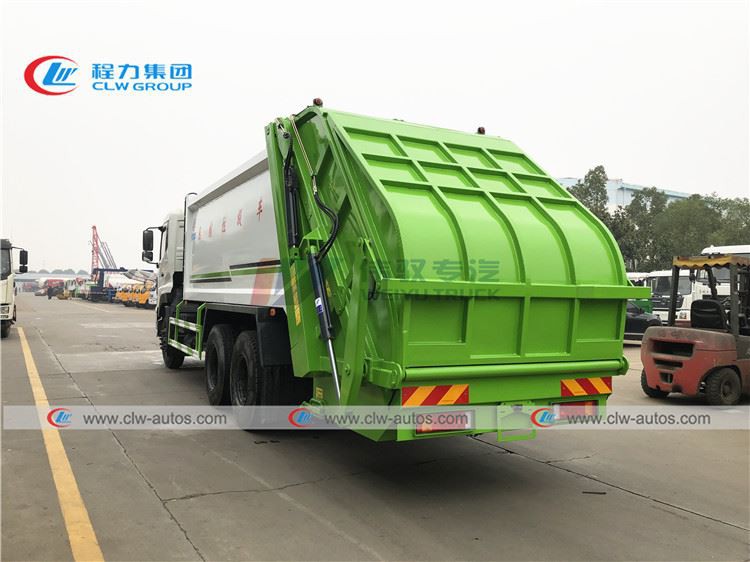

Dongfeng 18CBM Rear Loader Refuse Truck
12tons/14tons garbage truck
Steering:LHD/RHD garbage truck
Garbage box:16cbm/18cbm
Thickness:Bottom 5mm and Side 5mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 18cbm rear loader refuse truck in China. If you're going to buy high quality dongfeng 18cbm rear loader refuse truck, welcome to get more information from our factory. For price consultation, contact us.
Production Introduction
Dongfeng 18cbm rear loader refuse truck(also called 14tons garbage compactor truck,18m3 garbage truck,14tons compactor garbage truck,dongfeng compression garbage truck,14tons refuse compactor truck) is combined with a sealed garbage box, a hydraulic system and an operating system.
rear loader refuse trucks are suitable for waste management companies which using for city
garbage collection & transport, the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck is with advantage of reliable quality, low failure rate, convenient maintenance and low operating cost.
Why do you choose CLW group for garbage trucks?
Chinese top brand oil cylinders;
British DLI seal ring;
Chinese top brand multi-way valves'
Chinese top brand hydraulic oil pump
Compensates misalignment and deflections
PLC or CAN operation contral model for option;
Capable to deliver batch order in short time;
Brand New, 6X4 Drive,heavy duty Dongfeng chassis,perfect performance
Diesel engine 270HP, super powerful, no overhaul within 100,000 km.
English Manual( Other language is available)
General Technical Parameters | ||
Overall Dimension | 10000*2500*3250(mm) | |
Gross Vehicle Weight | 25000(Kg) | |
Curb Weight | 15300(Kg) | |
Chassis Specification | ||
Chassis Brand | DONGFENG | |
Drive model | 6*4 | |
Cabin | Single Row, LHD/RHD, with air condition, audio system, and USB, etc. | |
Number of Passengers | 2 | |
Engine | Model | Cummins 270HP, 4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, with ABS. |
Power | 199KW/270HP | |
Emission standard | EURO III/IV/V | |
Fuel type | Diesel | |
Wheel Base | 4350+1350mm | |
Front/Rear Axle Loading | 5000/10000(Kg) | |
Approach/Departure Angle | 24/12° | |
Tire | 11.00R20, 6pc with 1 spare tire | |
Max Driving Speed | 98(km/h) | |
Upperstructure Specification | ||
Compector Box | Box Volume | 16CBM/18CBM |
Compression density | 0.75-0.85T/CBM | |
Compression ratio | 3-4 | |
Compression cycle time | ≤15 s | |
Unload garbage time | ≤23 s | |
Body Thickness | Side | 5mm, Carbon Steel-Q345A |
Bottom | 5mm, Carbon Steel-Q345A | |
Service
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Designed drawings
After Sale Service
--- Overseas installation and commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
According to your request, choose good chassis and refit it to truck.
on trucks as tank and box. |
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the truck has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
