Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 390hp u shape tipper truck in China. If you're going to buy high quality faw 390hp u shape tipper truck, welcome to get more information from our factory. For price consultation, contact us.

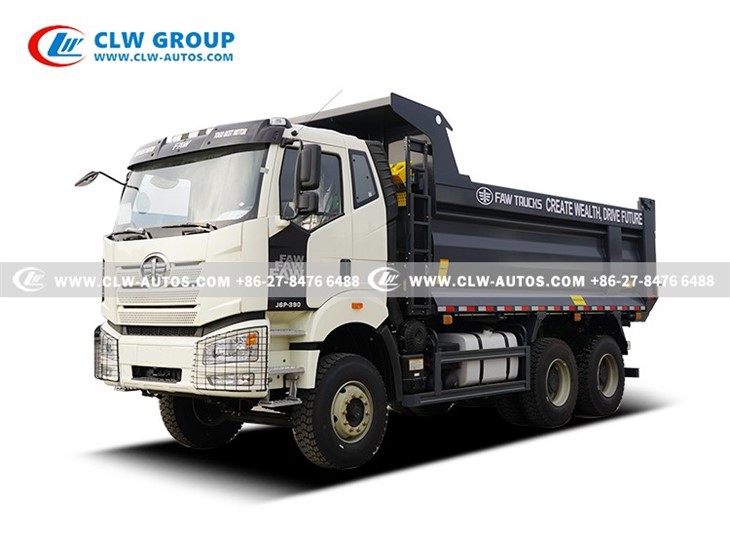

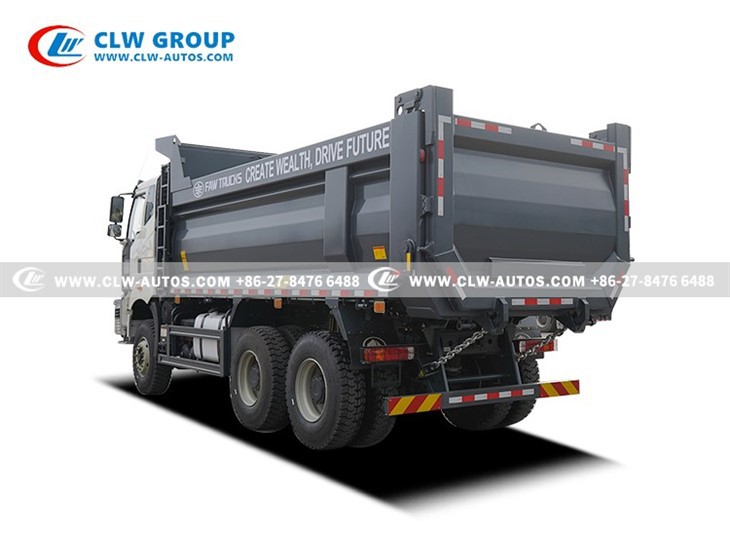

FAW 390HP U Shape Tipper/Dump Truck For Africa
Cheap Price for Sale from Manufacturer in China. Welcome for inquiry!
Product Features:
For more details and inquiry, please contact:
whatsapp: +86 139 2570 3918 Ms.Juniper Gong
email: juniper@clw-autos.com
| FAW J6P 390HP 6x4 Tipper/Dump Truck | |
| Model | CA3250P66K24L2T1E |
| Chassis brand | FAW. (Also optional for HOWO, SHACMAN, ISUZU, DONGFENG, JAC, JMC, FOTON, etc.) |
| Emission | Euro II. (Also optional for Euro 3, Euro 4, Euro 5, Euro 6) |
| Driving type | 6×4 |
| Loading Capacity | 20~25Tons. (Also optional for higher loading capacity) |
| Dead Weight | 17Tons |

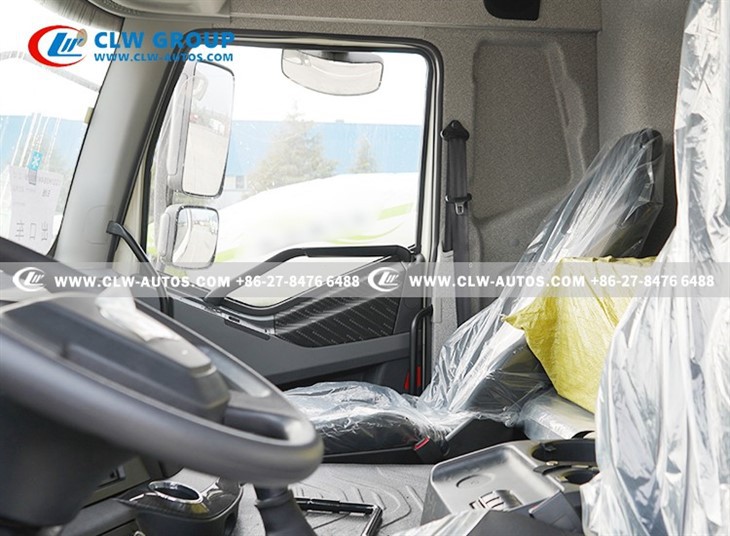

| Cabin | J6P, LHD, fully fioating, 1 sleeper, AC, Electrical Window lifter, Mechanical spring driver's seat. (Also optional for RHD.) |
| Economical speed | 43-58 KM/h |
| Engine | Xichai Engine, 390HP CA6DM2-39E3F, 6 Cylinder, Direct Injection |
| Displacement | 11.04L |
| Maximum torque | 1750N.m |
| Maximum torque speed | 1300rpm |
| Transmission | CA10TAX190F, 10 Forward &2 Reverse |
| Clutch | Φ430 (Eaton) |
| Rear axle | CAR16T230W 16T°2, Casted axle housing, central single reduction with planetary wheel reduction (hub reduction) ratio:6.733 |
| Front axle | Q2055 front axle, 7T*1; Steering with double T-cross section beam, with drum brake system |
| Suspension |

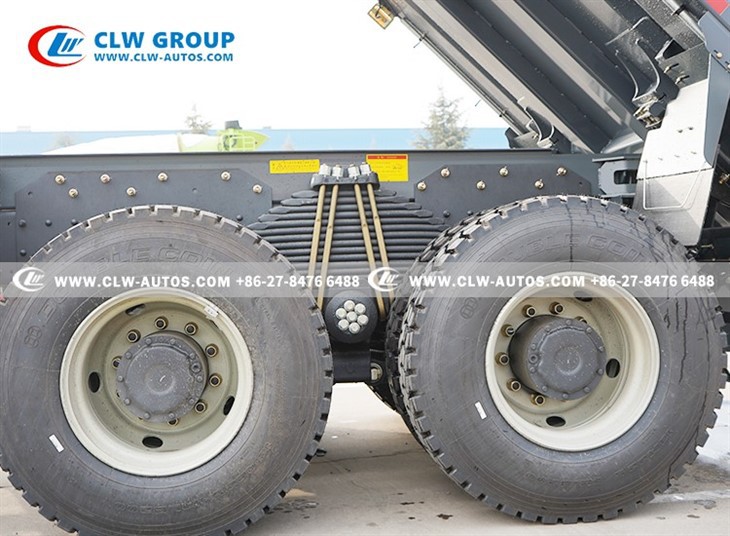

Front: 12 semi-elliptic leaf springs,2*16mm+9*18mm+1*10mm Rear:12*24mm leaf springs |
| Fuel Tank | 400L with locking fuel cap |
| Steering |
Hydraulic steering with power assistance Option:TRW steering box |
| Wheel base | 3800+1350MM |
| Tyres | 12.00R20/13R22.5 |
| Dump Box Material | T700 High Tensile steel |
| Dump Box Size | 5600*2300*1500mm / 19.32 m3 |
| Dump Box Shape | U Shape |
| Dump Box Thickness | Side 6mm, Bottom 8mm |

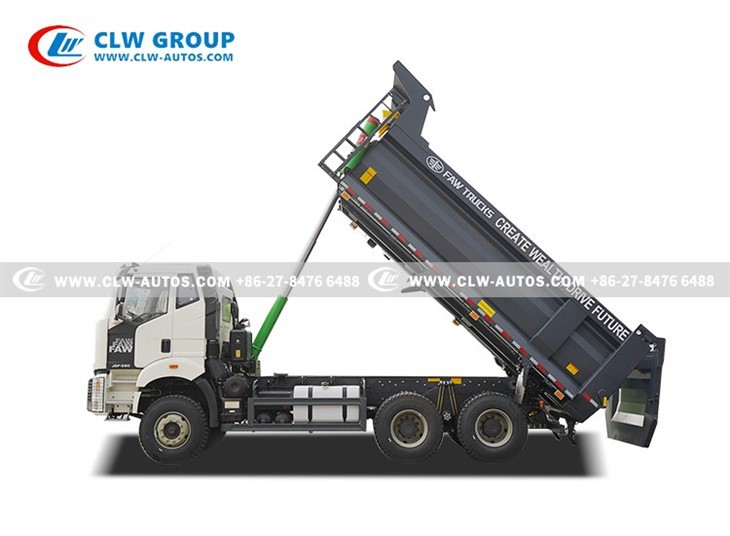

| Oil Cylinder | Front Tipping/φ180 |
English operation videos Before Shipment
Overseas office in Togo,africa
One Year Warrenty for Engine,Transmission,Axles
Acceptable for third party inspection
