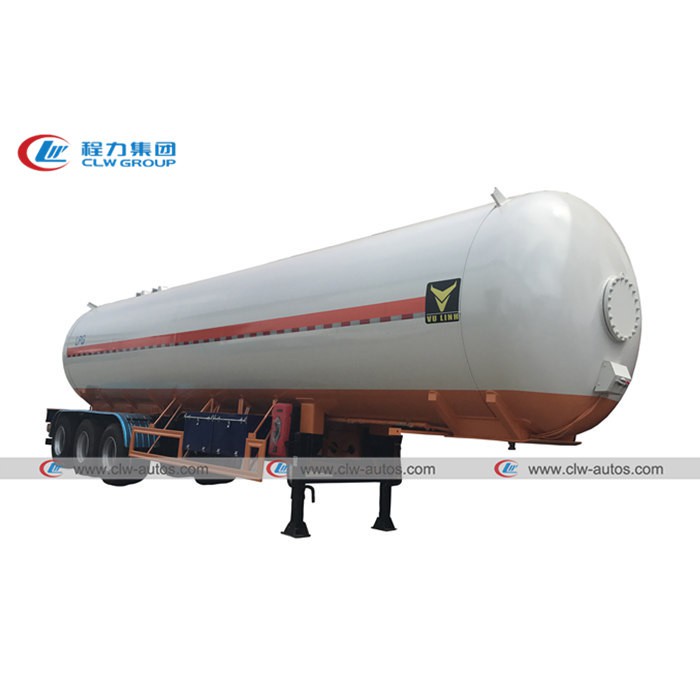

Vietnam 3 Axle 54M3 54000Liters LPG Gas Transport Tanker Semi Trailer
Vietnam 54M3 54000Liters LPG Gas Transport Tanker Semi Trailer
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of vietnam 3 axle 54m3 54000liters lpg gas transport tanker semi trailer in China. If you're going to buy high quality vietnam 3 axle 54m3 54000liters lpg gas transport tanker semi trailer, welcome to get more information from our factory. For price consultation, contact us.
LPG gas trailer tanks, LPG semi trailer tank, LPG tank semi-trailer is mainly used to transport LPG to Filling plant, LPG depot etc. we can provide 40CBM, 50CBM, 56CBM, 59.5CBM, 16MT, 21MT, 23MT and 25MT.
3 axle BPW/FUWA/HJ/L1 Brand 13 tons or 16 tons
Mechanical Suspension or Air Suspension.
Jost Landing Leg, JOST King Pin.
12R22.5 Double Tire, or 385/65R22.5 Single Tire.
Tanker Essential Information | |
Volume of Tank (cbm) | 54 |
Overall Dimensions(L*W*H)(mm) | 12525*2545*3990 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2545*11.5*12525 |
Estimated Tare Weight (kg) | 15184 |
Payload(kg) | 27000 |
Total Weight(kg) | 42184 |
Wheelbase(mm) | 5335+1820+1820 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | 50℃ |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q370R,11.5mm, |
End plate：Q370R,8mm,double spherical | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.1 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN50 or As Customer’s Requirement |
Level Gauge | |
Type | rotor type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*13T FUWA brand |
Tire | 12R22.5 Tubeless tire ,13 including one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |
Control System | |
Emergency Cut-off Valves | 4 |
Ball Valve | 4 |
Liquid Gauge | 1 |
Pressure Indicating Thermometer | 1 |
Pressure Gage | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 6 |
Paint | As Customer’s Requirement |
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
