50000Liters 25Tons LPG Carrier Tanker Tanker
25Tons LPG carrier tank truck to Ghana;
Tank size:49600Liters/49.6m3;
Tank material:Q345R,Q370R,Q420R
Axle:FUWA,BPW,L1
Tire:12R22.5
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50000liters 25tons lpg carrier tanker tanker in China. If you're going to buy high quality 50000liters 25tons lpg carrier tanker tanker, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG Carrier tanker trailer (also called lpg tanker trailer,cooking gas tanker trailer,gas transport truck,lpg bridger truck,lpg road tanker,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities. CLW group is one of the largest lpg tanker manufacturer in Central China.
LPG carrier tanker trailer are
--Optional for tank size from 40,000litera to 61,900liters usually,from 18tons to 30tons,from 18mt to 30mt.
--Design standard: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,lpg dispenser machine,filling hose.
--Material: Q345R,Q370R,Q420R;
--Optional for top axle brands:BPW,FUWA,L1 and so on.
Feature
--high quality steel specialled for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
whatsapp +86 135 4506 4324
youtube https://www.youtube.com/watch?v=HMOz7Xoib4w&list=PLbL-g-SP8MREK5gFx_tXrNFAj34m3-gAZ&index=26
Reference picture

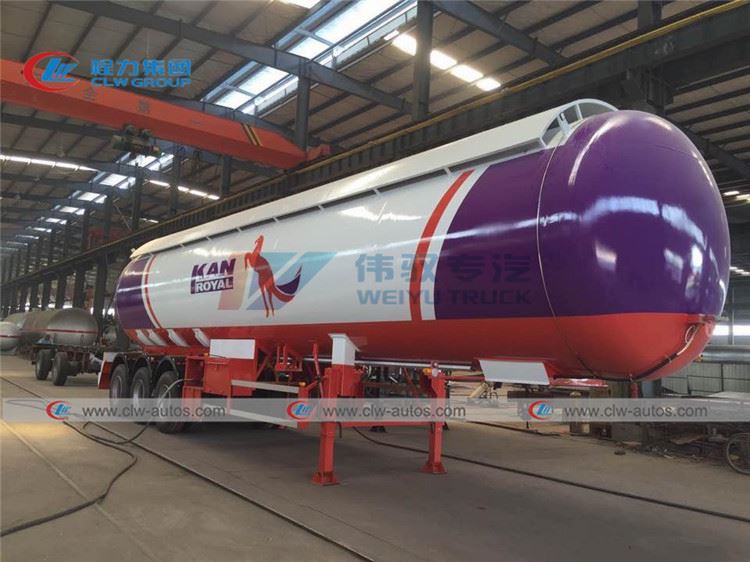

★49600liters lpg carrier tanker trailer with sun shelter for Ghana

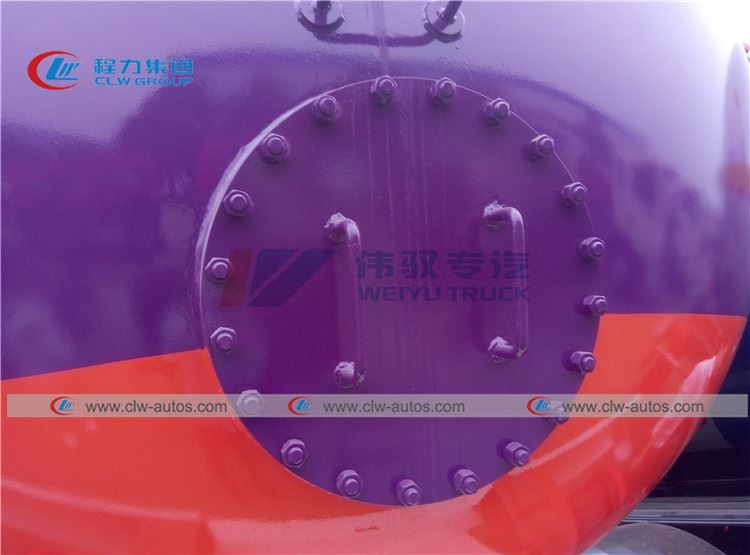

★Rear view of lpg carrier tanker trailer with Manhole at rear of end plate

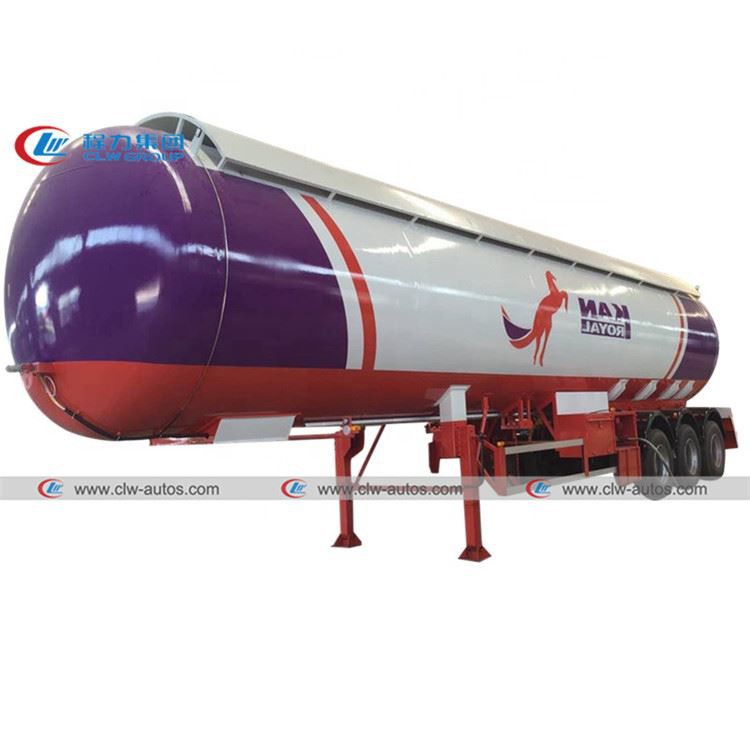

★Side view of lpg carrier tanker trailer

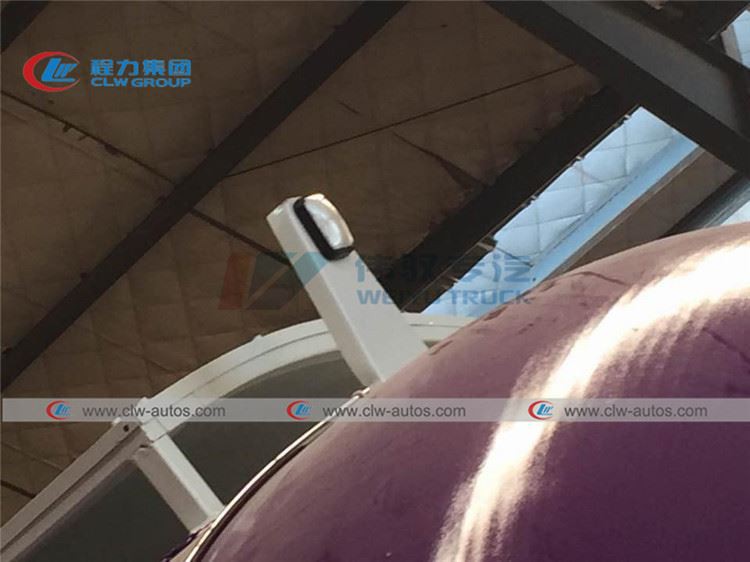

★Light of lpg carrier tanker trailer

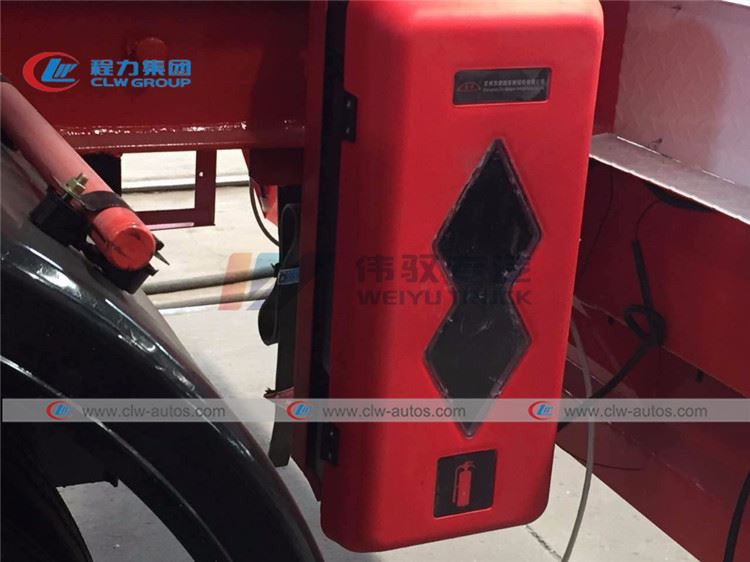

★Fire extinguisher holder of lpg carrier tanker trailer

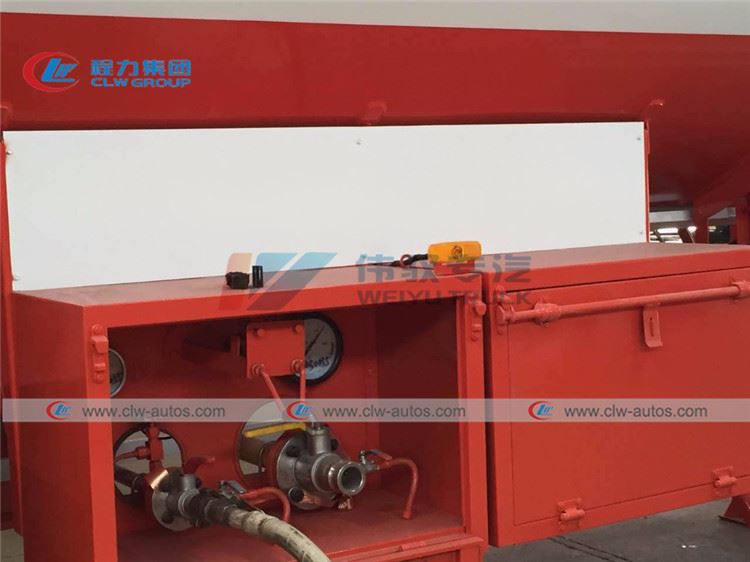

★Liquid and vapour phase of lpg carrier tanker trailer
Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 49.6 |
Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12372 |
Estimated Tare Weight (kg) | 15300 |
Payload(kg) | 20832 |
Total Weight(kg) | 36132 |
Wheelbase(mm) | 6800+1310+1310 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | -19℃~50℃ |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
End plate：Q345R,12mm,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.21 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN50 or As Customer’s Requirement |
Level Gauge 3*13T Fuwa | |
Type | Manuel rotation type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*12T FUWA brand |
Tire | 12R22.5 Tubeless tire ,12 pcs with one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |
Control System | |
Emergency Cut-off Valves | 2 pcs,1 for liquid phase and 1 for vapour phase |
Ball Valve | 4pcs,can be discharged and loading at two sides. |
Thermometer | 1 |
Pressure Gauge | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 2 |
Paint | As Customer’s Requirement |
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
Key word: propane gas tanker,propane tanker trailer,lpg semi-trailer,lpg bridger truck,lpg road tanker,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer.
