10CBM HOWO Cement Mixer Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10cbm howo cement mixer truck in China. If you're going to buy high quality 10cbm howo cement mixer truck, welcome to get more information from our factory. For price consultation, contact us.

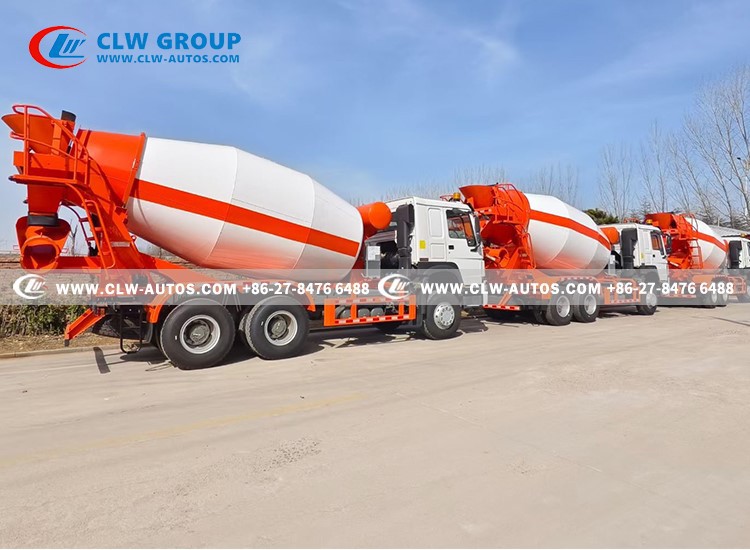

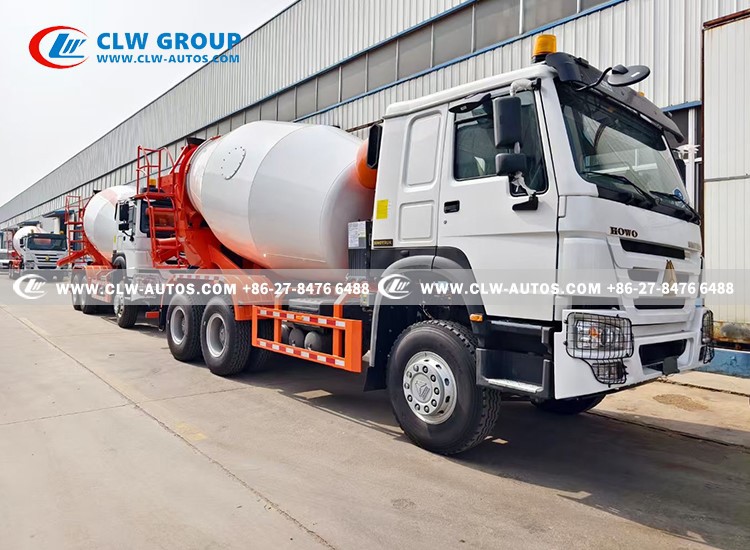

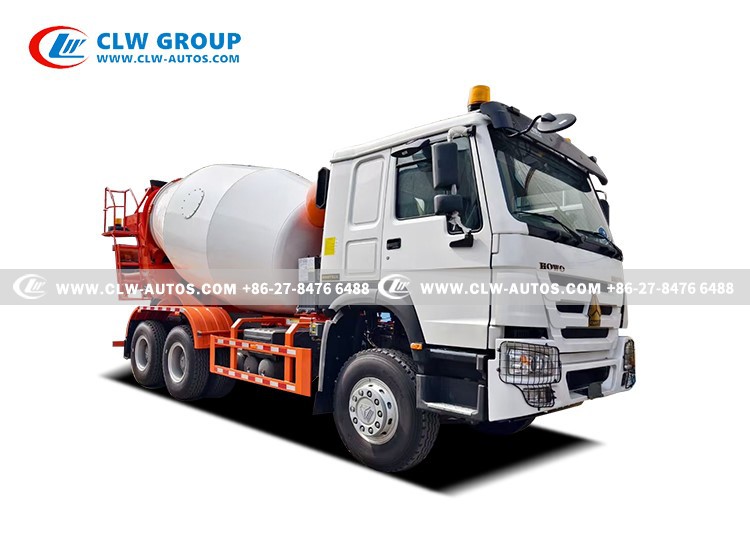

10,000Litres SINOTRUK HOWO 6X4 Concrete Mixer Agitator Truck

Robust Design for Heavy-Duty Construction



We are Straight Manufacturer from China.

Quality First, Service Best, Welcome for Inquiry!









The Sinotruk HOWO 10-cubic-meter 6x4 Concrete Mixer Truck is engineered for high-efficiency concrete transportation in demanding construction environments.

Key specifications include:

--Chassis: 6x4 drive configuration with a wheelbase of 3800+1350 mm, ensuring optimal stability on rough terrain.

--Powertrain: Powered by a Weichai 340-horsepower engine (model D10.34-50), paired with a robust HOWO 10-speed manual transmission for seamless power delivery.

--Capacity: 10m³ drum volume, designed to carry up to 8.97 tons of ready-mix concrete (GVW: 25,000 kg).

--Fuel System: 400L large-capacity fuel tank, enabling extended operational range.

--Tires: Heavy-duty 12.00R20 steel-belted radial tires for enhanced load-bearing and durability









The truck utilizes an integrated hydraulic drive system to maintain concrete consistency:

Power Take-Off (PTO): Engine power is transferred via the PTO to a hydraulic pump, converting mechanical energy into hydraulic pressure.

Mixing Drum Rotation: Hydraulic motors drive the drum at 8-12 RPM, utilizing spiral blades to prevent concrete segregation during transit. Reversible rotation enables efficient discharge through a rear-mounted chute.

Cleaning System: Integrated pressurized water tanks (up to 300L) rinse the drum post-discharge to prevent concrete buildup.







Primary Applications and Sites:



Large-Scale Construction: Ideal for high-rise buildings, bridges, and highway projects requiring continuous concrete supply.

Urban Infrastructure: Compact turning radius (≤12m) suits congested city sites.

Remote Locations: High ground clearance and 6x4 traction adapt to unpaved roads in mining or rural areas.

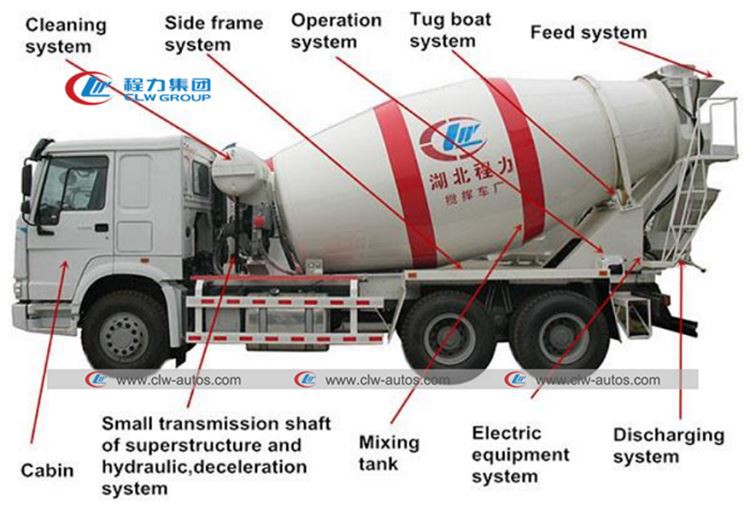

Truck Structure





Technical Chassis Specification
Chassis brand	SINOTRUK HOWO
Driving mode	6X4
Dimension	9200*2500*3900mm
Wheelbase	3800+1350mm
Cabin	HW76 new front face cabin; Left hand driving;
Engine	Engine brand	WEICHAI, WP10.340E22
	Horsepower	340hp; 6 cylinders in line
	Displacement	9.726L
	Emission standard	EuroⅡ
Transmission	HW19710; Manuel, 10 forward gears and 2 reverse
Front axle loading	9,500kg
Rear axle loading	16,000kg
Tyre	12.00R20 18PR
Optional fuel tank	400L
Suspension	Front and rear reinforced multi-leaf springs
Frame	8+8/300
Max. Driving speed	90km/h
Optional device	Front and rear reinforced wheels; Start-stop switch under the truck; Headlight protective cover; Back-up alarm; Rear traction hook; Air intake system; Fire extinguisher;
Superstructure parameters
Max. Loading Capacity	10CBM
Tank material	Manganese steel
Tank thickness	5mm
Tank front head	8mm
Feeding speed	≥2.8m3/min
Discharging speed	≥2m3/min
Discharging residual rate	≤0.5%
Mixing tank rotating speed	0-17RPM
Discharging range	180°full range
Driving system
Hydraulic pump	US SAUER DANFOSS brand
Hydraulic motor	US SAUER DANFOSS brand
Reducer	Italy PMP brand
Radiator	China local brand KLMAKE
Water supply system
Water tank capacity	400liters
Water supply type	Pneumatic water supply
Control system
Control way	Connecting rod controlling
Structure features	Mixer tank and Vane use special anti-resistant material; Discharging slot and feeding plate are the same anti-resistant material as the tank; Humanized operation system, connecting rod controlling, easy, safe and reliable; With US and Italy brand driving system, discharging fast, no residue;
Remarks	Color is optional
