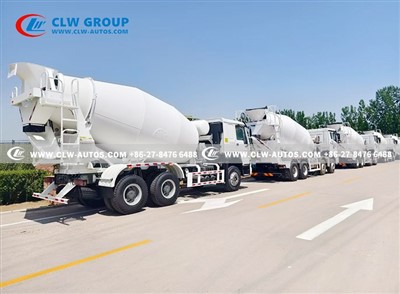

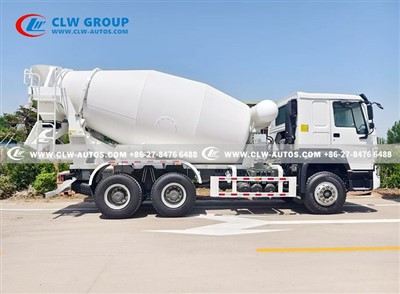

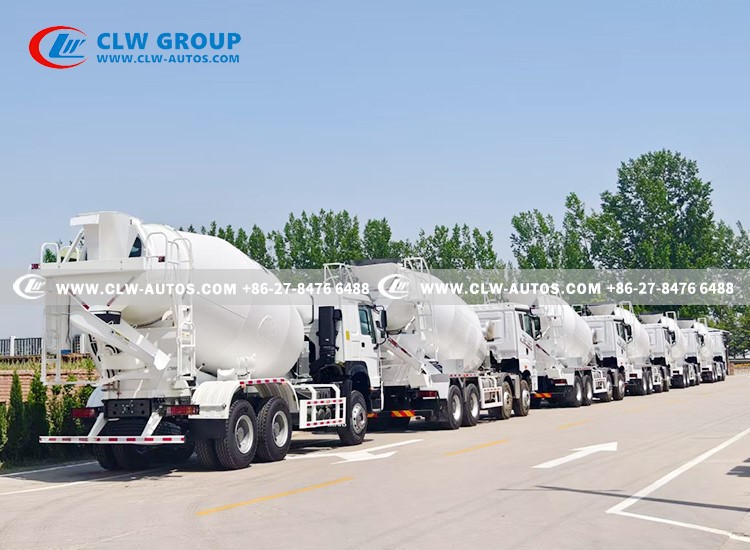

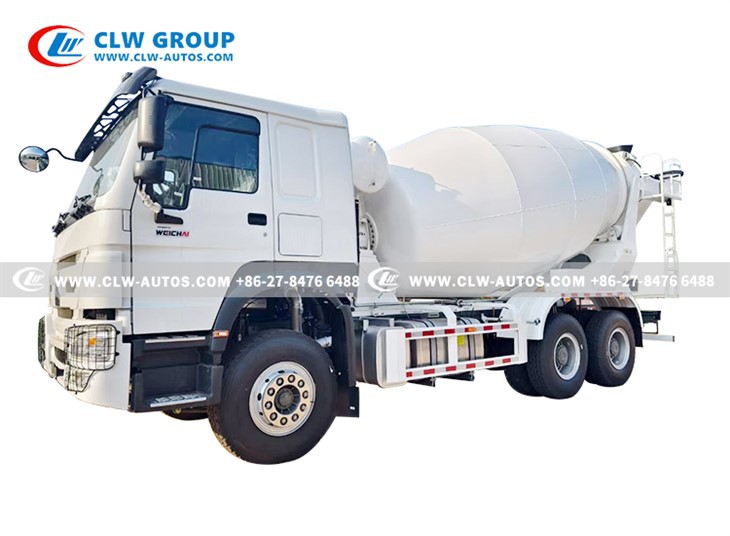

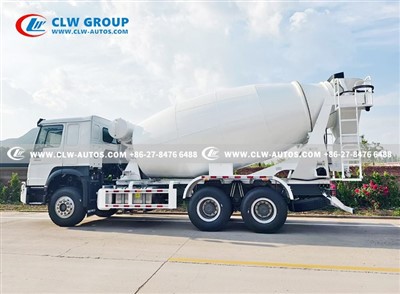

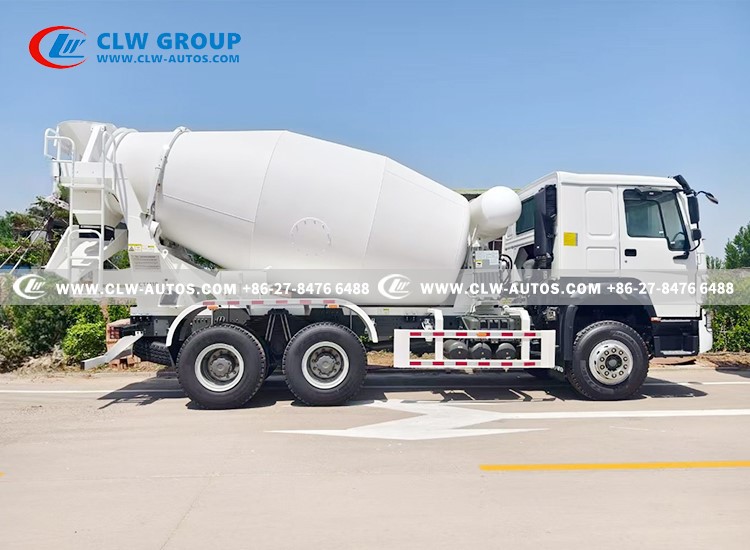

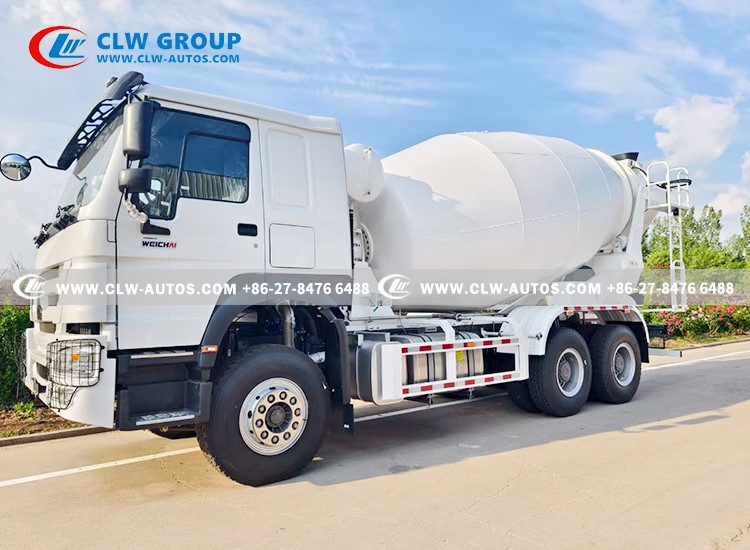

HOWO 9m3 10 Cubic Meter Concrete Mixer Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 9m3 10 cubic meter concrete mixer truck in China. If you're going to buy high quality howo 9m3 10 cubic meter concrete mixer truck, welcome to get more information from our factory. For price consultation, contact us.

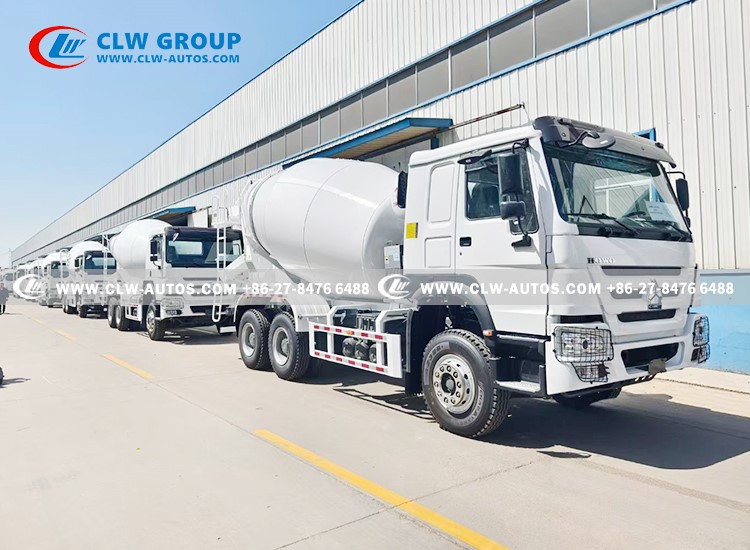

Sinotruk HOWO 9m³ 9 cubic meter concrete mixer truck, cement mixer, ready-mix concrete truck, concrete mixing vehicle, construction mixer truck, transit mixer for concrete delivery is designed for reliable and efficient transport of ready-mix concrete in urban, rural, and large-scale construction environments. Built with durability and operator convenience in mind, this mixer truck ensures high performance even under continuous and heavy-duty use.

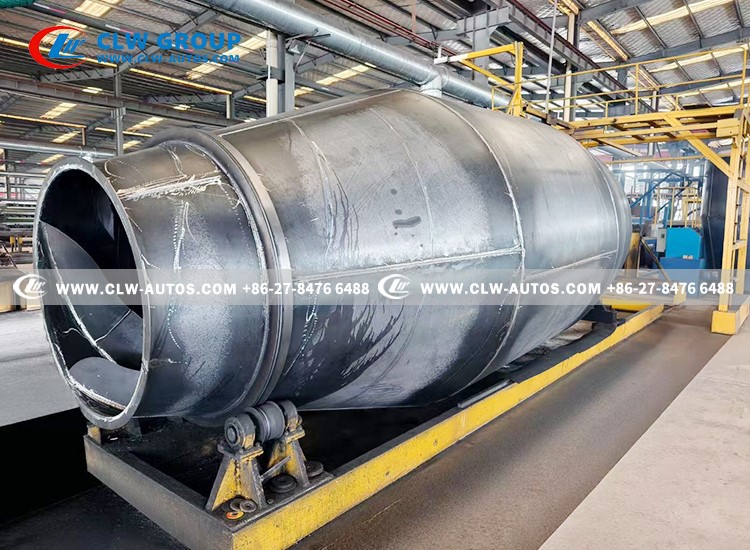

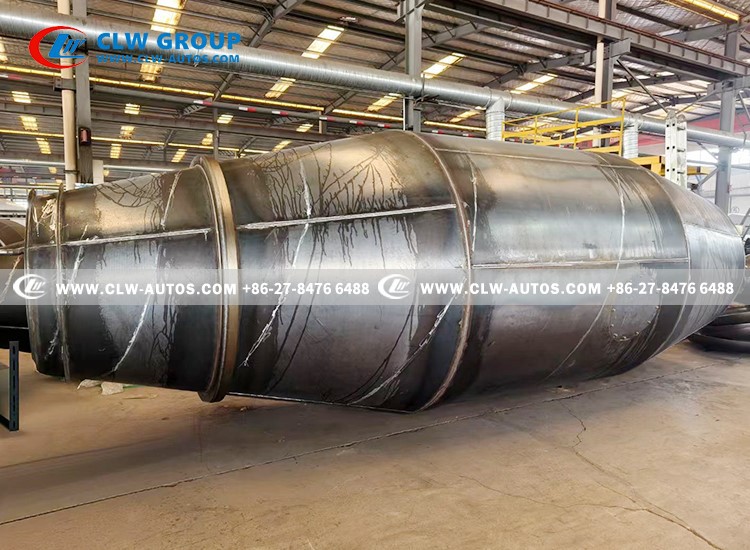

The mixer drum is made of high-tensile Q345 steel with a 6mm thickness, providing excellent wear resistance and long service life during frequent concrete mixing and delivery operations. It is equipped with top-tier international components including the hydraulic motor, pump, reducer, and radiator, ensuring stable mixing speed, efficient power transmission, and consistent cooling under demanding working conditions.



A 400-liter pressurized water tank is included to support cement moisture control and easy drum cleaning, helping maintain the quality of the concrete during transportation. Additional features such as a manual washing system and external water filling system allow operators to clean tools and hands, reducing cement buildup and enhancing hygiene and efficiency on-site.



Whether you're looking for a durable cement mixer truck, a ready-mix concrete transport vehicle, or a high-performance concrete mixing truck for sale, the ISUZU 9m³ mixer truck delivers excellent value and reliability.





• Transporting ready-mix concrete to construction sites
• Mixing and agitating concrete during transit
• Delivering concrete for building foundations and structural columns
• Supplying concrete to road, bridge, and tunnel construction projects
• On-site concrete delivery for high-rise buildings or residential areas
• Supporting batching plants as mobile delivery units





• Robust HOWO Chassis

Built on a heavy-duty HOWO chassis with reinforced dual-layer frame (8+8/300) for enhanced durability on tough job sites.

• Powerful WP10.340E22 Engine

Equipped with a 340 HP Weichai engine featuring rear PTO for stable and efficient mixer drum operation.

• 10-Speed HW19710 Transmission

Ensures smooth power delivery and strong climbing performance, ideal for construction and hilly terrains.

• Reinforced Suspension and Axles

Features strengthened front (VGD95) and dual rear (MCX16ZG) drum brake axles, with heavy-duty multi-leaf springs (9/12) for maximum load capacity.

• Safety and Utility Options

Optional front and rear light guards, reverse buzzer, under-truck engine stop switch, and rear towing hook provide added safety and operational flexibility.

• Comfortable HW76 Cabin with A/C

Ergonomic cabin with integrated heater & air conditioning for driver comfort; equipped with Bosch steering and English instrument panel.

• Large Capacity Fuel Tank

Fitted with a 400L fuel tank for extended operation time on remote sites.

• Heavy-Duty 12.00R20 Tires

Mixed-pattern 18PR tires enhance traction and load endurance across various road conditions.









Cab	Driving type	6x4 LHD / RHD
	Model	Sinotruk HOWO
	Cabin	HW76, 3 persons allowed, 1 sleeper, with AC
Overall size(mm)	9300*2500*3860
Wheel base(mm)	3825+1350
Wheel track (front/rear)	1500mm / 2365mm
Approach/Departure angle	16° / 24°
Tare Weight	10800
Loading Capacity	15690
GVW(kg)	25000
Engine	Brand	Sinotruk
	Model	WP10.340E22
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	displacement	9.726L
	Hose Power (HP)	340
	Emission standard	Euro II
Max speed	90 km/h
Tire	12.00R20, 10 pieces with 1 spare
Transmission	HW19710 transmission, 10 forward and 2 reverse
Front axle load capacity(kg)	VGD95,1x 9500kg
Rear axle load capacity(kg)	MCX16ZG, 2x16000kg
Oil tank	400L
Mixer Volume	9,000 liters / 9m3 / 9 cubic meter
Thickness	End plate	8mm high tensile strength steel
	Mixer body	6mm high tensile strength steel
Hydraulics	Motor, pump	International brand (USA)
	Gearbox	International brand (USA)
Brake system	Service brake:dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Electrics	Operating voltage: 24V, negative grounded
	Batteries: 2x12 V, 165 Ah
	horn, headlamps, fog lights, brake lights, indicators and reverse light
Options	vertical muffler, ABS, automatic break clearance adjusting arm, traveling data
