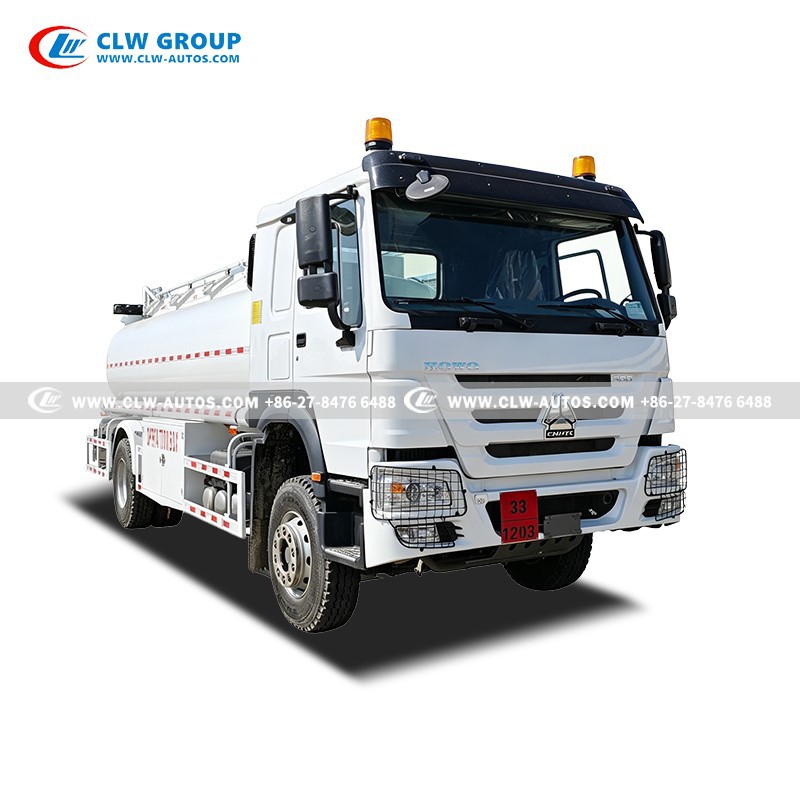

HOWO 13,500 Liters Fuel Tanker Truck

Fuel Tank
Tank volume	13.5m³/ 13,500L Fuel tank
Compartment No	Three compartment ( 4500L+4500L+4500L)
Tank material	Q235 Carbon Steel
Tank thinkness	5mm of tank and 6 mm of end plate
Tank shape	Square or as request
Manhole cover	3 pc of European Aluminum alloy manhole covers, ∮500mm 3 set with breather valve
Volume Flow Meter
Flow Range	55 – 550 L/min
Register Unit	Mechanical Display (Litres)
Display Features	Large-digit reset counter (trip) & Non-resettable totalizer
Preset Function	Mechanical push-button preset (supports volume-set delivery)
Printer	Integrated Mechanical Ticket Printer,prints transaction receipts and delivery records
Hose Reel	Red industrial-grade reel (manual or power rewind)
Control Valve	Manual ball valve with safety handle (Pump Outlet)
Compatible Fluids	Diesel, Gasoline, and other light fuel oils
Oil Pump
Brand	Chinese Brand
Type	80-60 carbon steel pump
Flow rate	80-60m³/h
Drive Mode	PTO-Driven
Pumpline system	2.5 inches
Other configurations
Walkway at top of tanker	Color and design as customer's requirement
Handrail	Manual controlled at two sides of truck

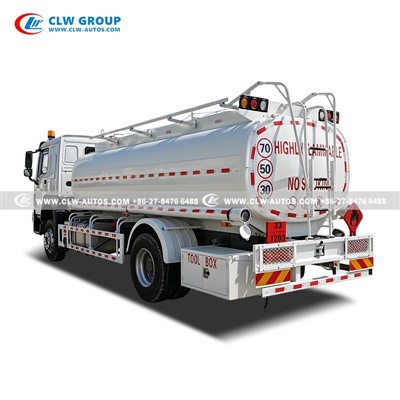

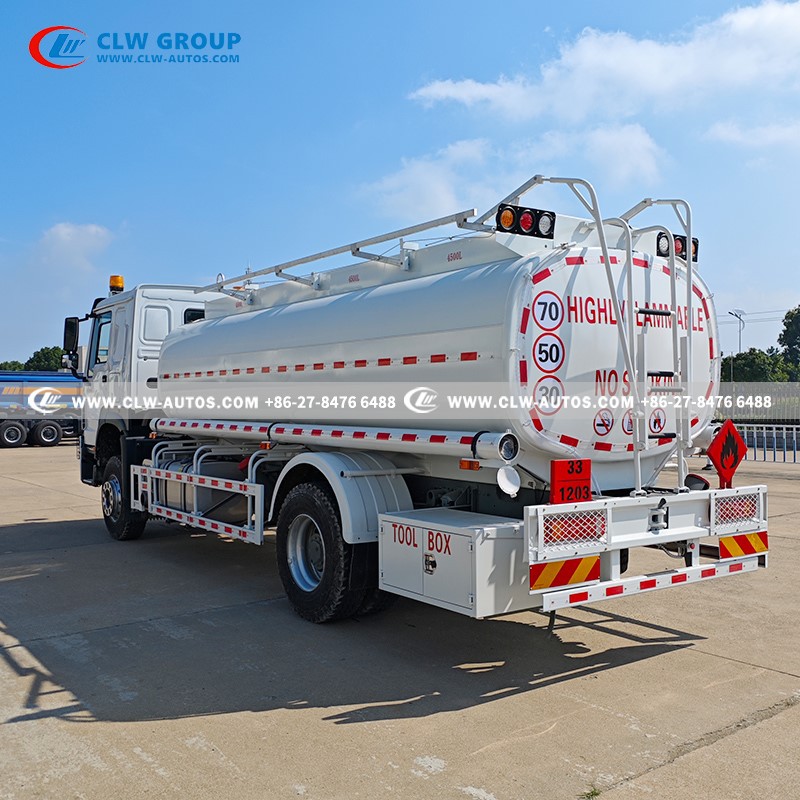

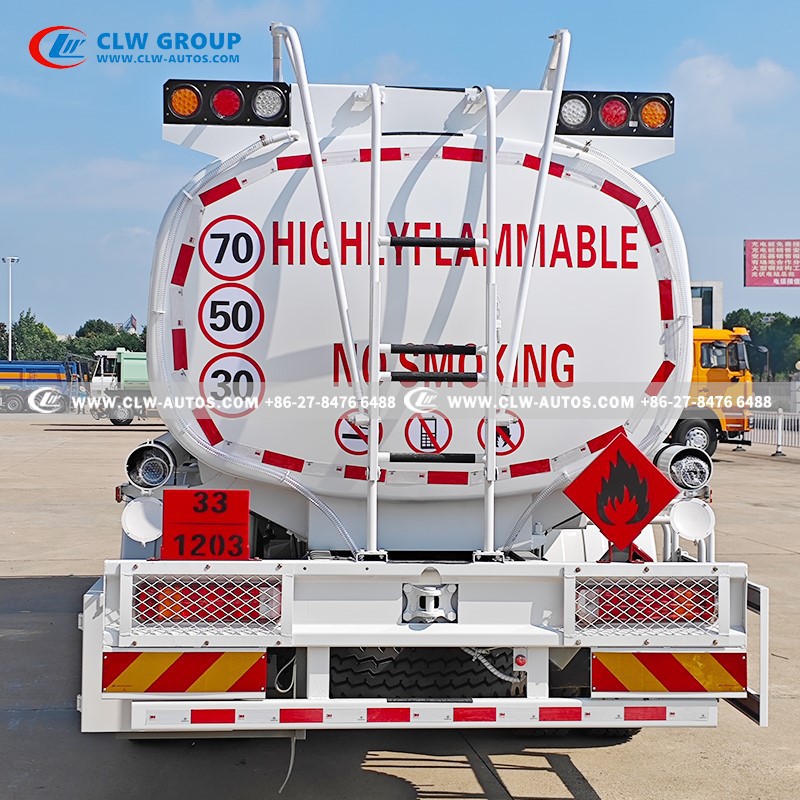

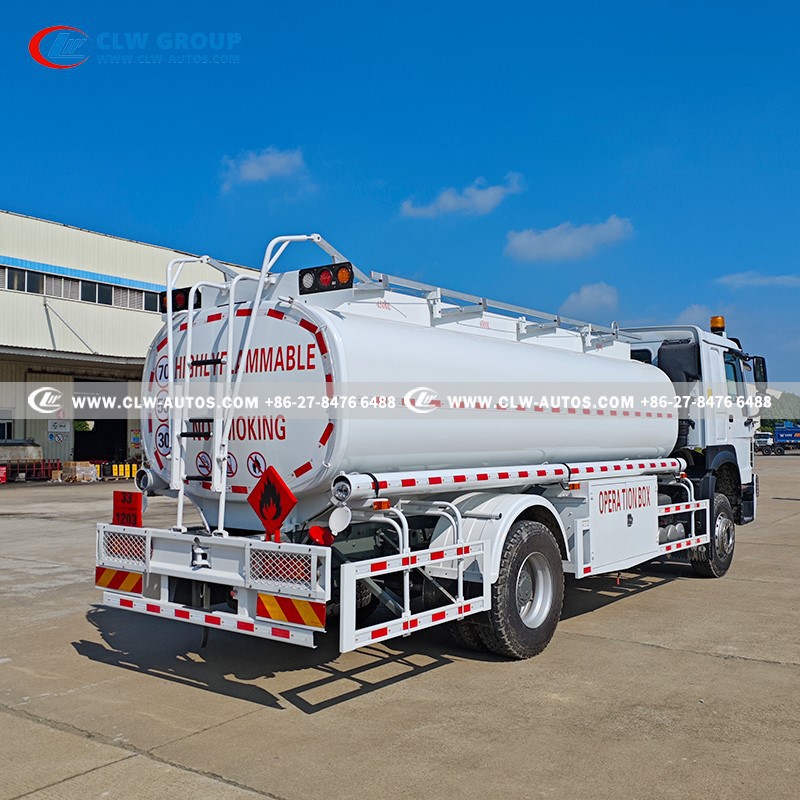

Ladder	At rear of tank
Accessories	Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire(1 pc); Fuel Discharge Hoses(2 pcs); Tool box(1 pc); Truck will be waxed before shipment;

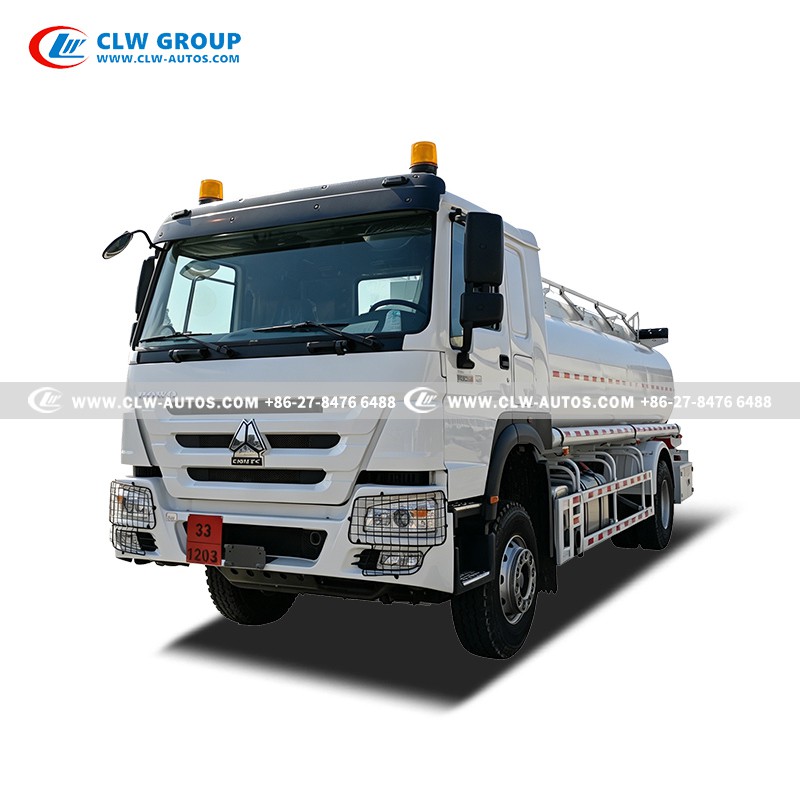

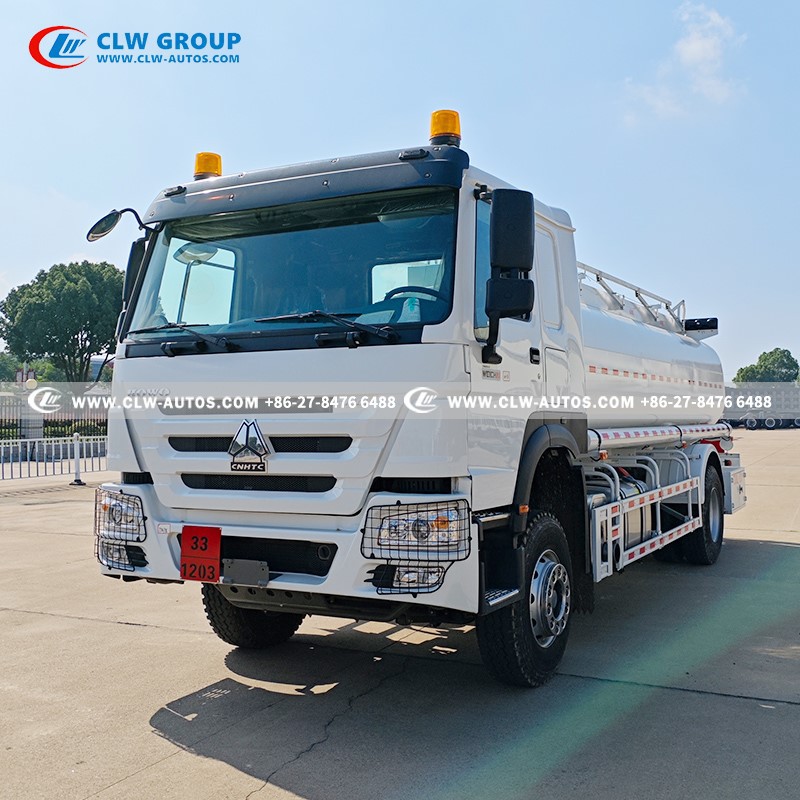

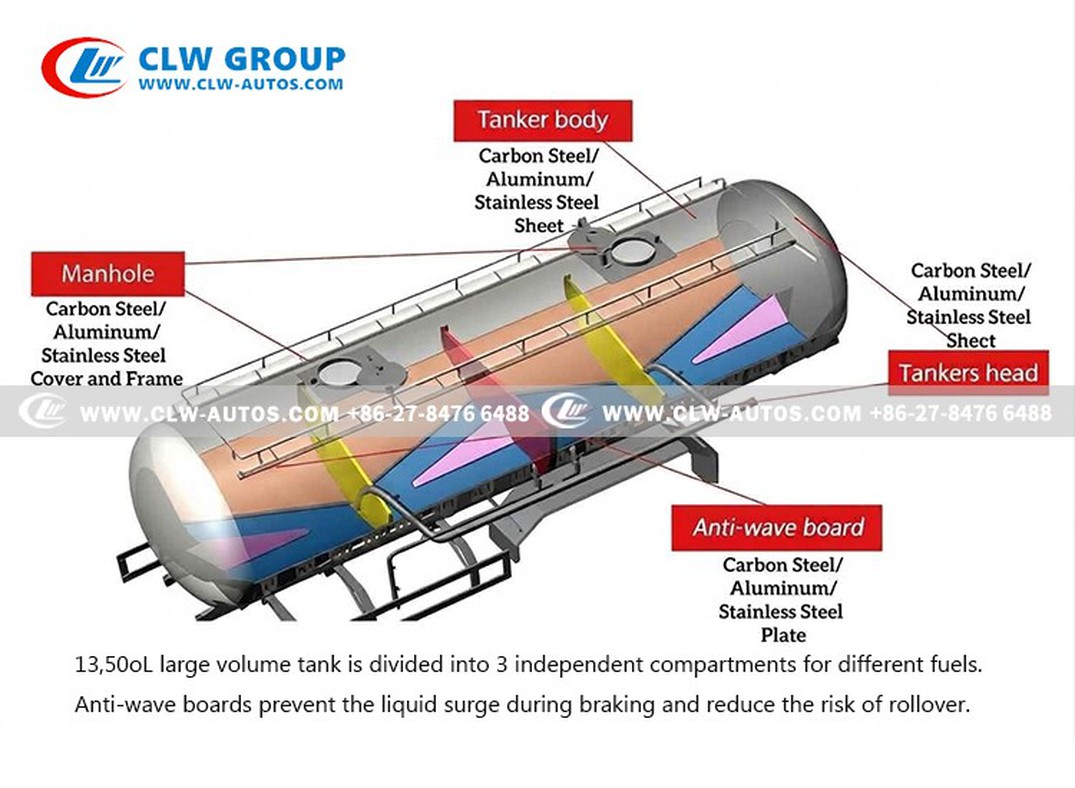

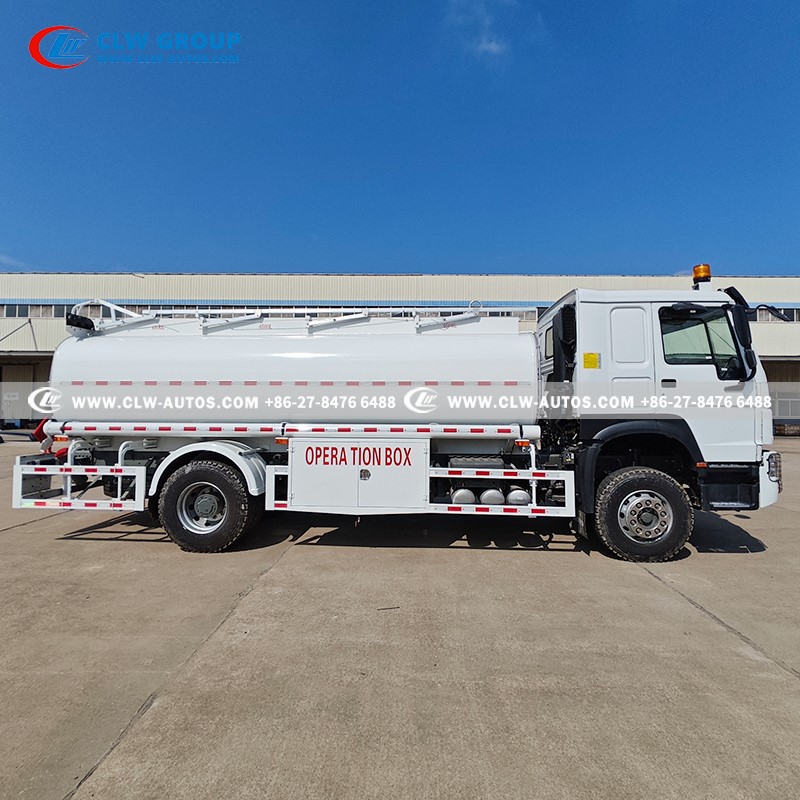

HOWO 13.5m³ (4,500L + 4,500L + 4,500L)  fuel tanker truck, 3-compartment design allows simultaneous transport of different fuel.

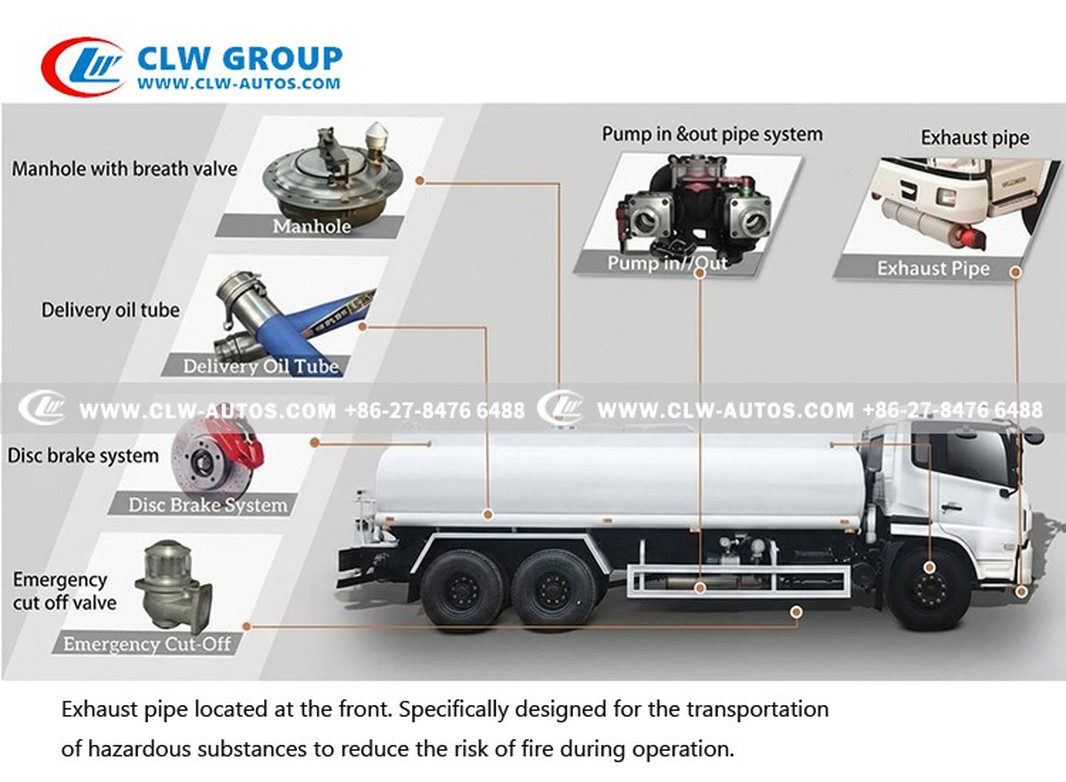

                Safety Features: Emergency shut-off valve (Bottom valve), static grounding reel, and fire extinguishers.

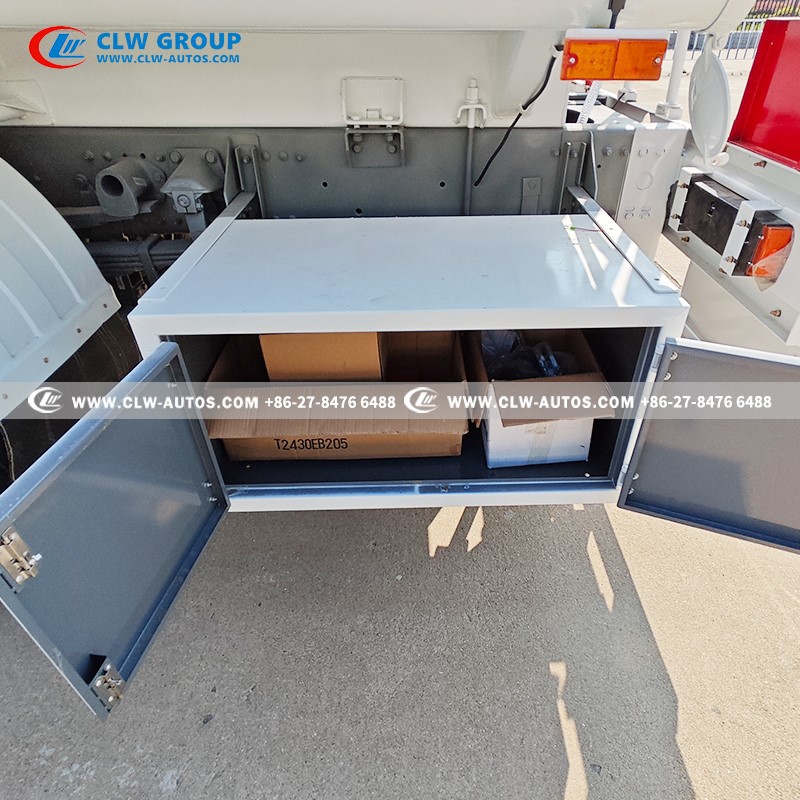

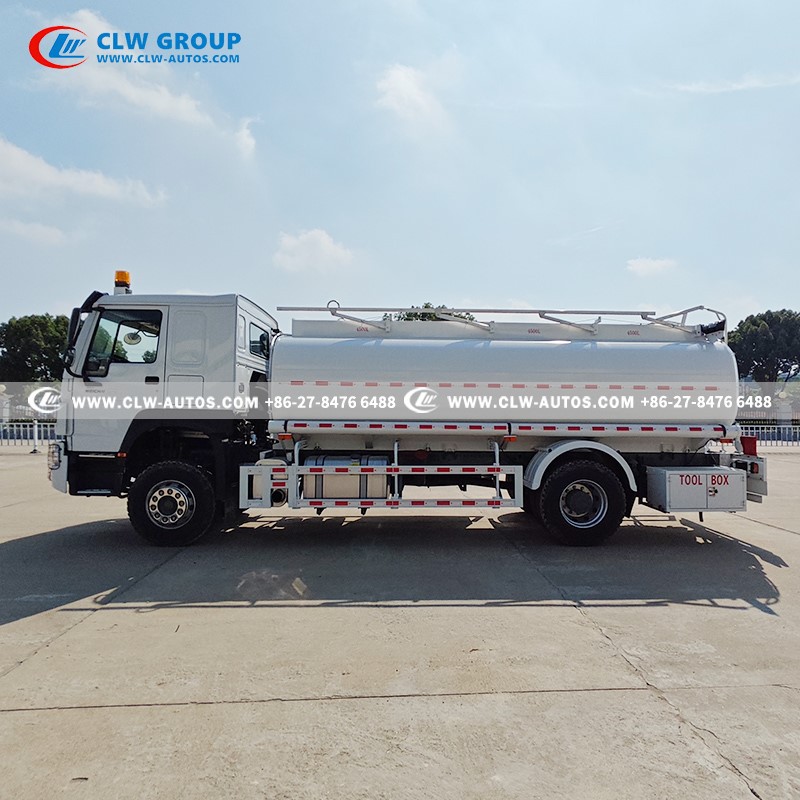

                                                                       Side-mounted tool box for storage tools

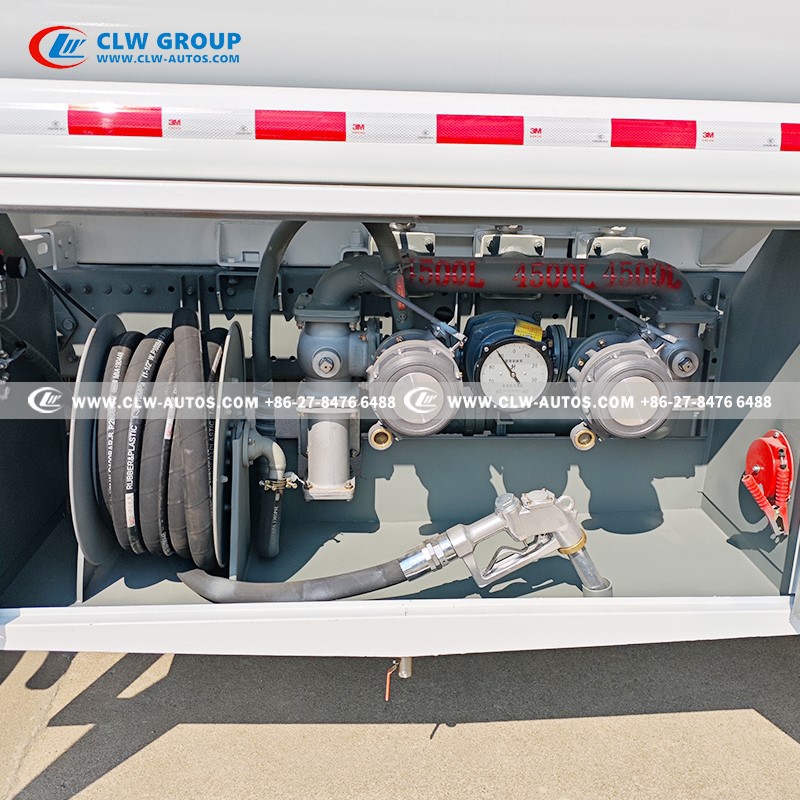

Flow Meter : High-precision mechanical flow meter with a large circular dial for real-time monitoring of delivery volume. It includes both a subtotal reset and a non-resettable totalizer for accurate commercial tracking.



API Bottom Loading: support both high-speed bottom loading and gravity discharge operations.



3 Independent Compartments: Visible above the meter are the labels "4500L | 4500L | 4500L", corresponding to the three independent tank compartments. Each line is equipped with heavy-duty independent control valves.



Automatic Hose Reel: Side-mounted, heavy-duty retractable reel holding a high-pressure, anti-static fuel hose 15m, designed for durability and easy deployment.



Refueling Nozzle: Aluminum automatic shut-off nozzle. It is designed to stop flow instantly once the receiving tank is full, preventing spillage.



Fuel Pump & Pipeline: Piping network integrated with a high-flow gear pump (located behind the paneling) capable of both "Pump-in" and "Pump-out" operations.



Static Grounding Reel: Red safety grounding clamp (visible on the right) used to discharge static electricity during refueling to prevent fire hazards.



Enclosure Box: All components are housed within a weather-resistant, lockable side-mounted operation box for protection and security.



                                               Professional-grade flow meter ensures precise metering for refueling operations.
