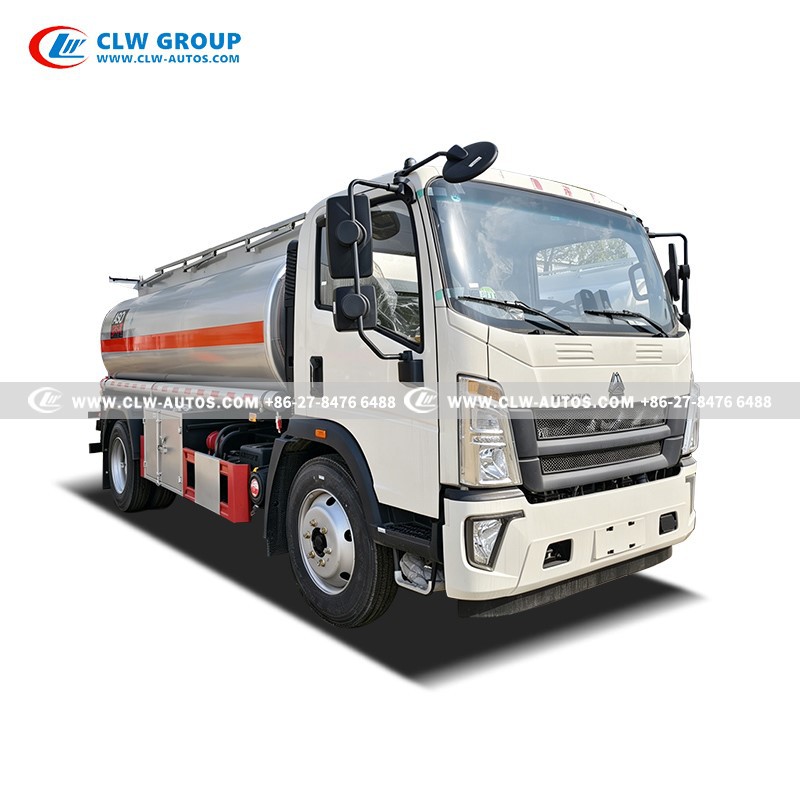

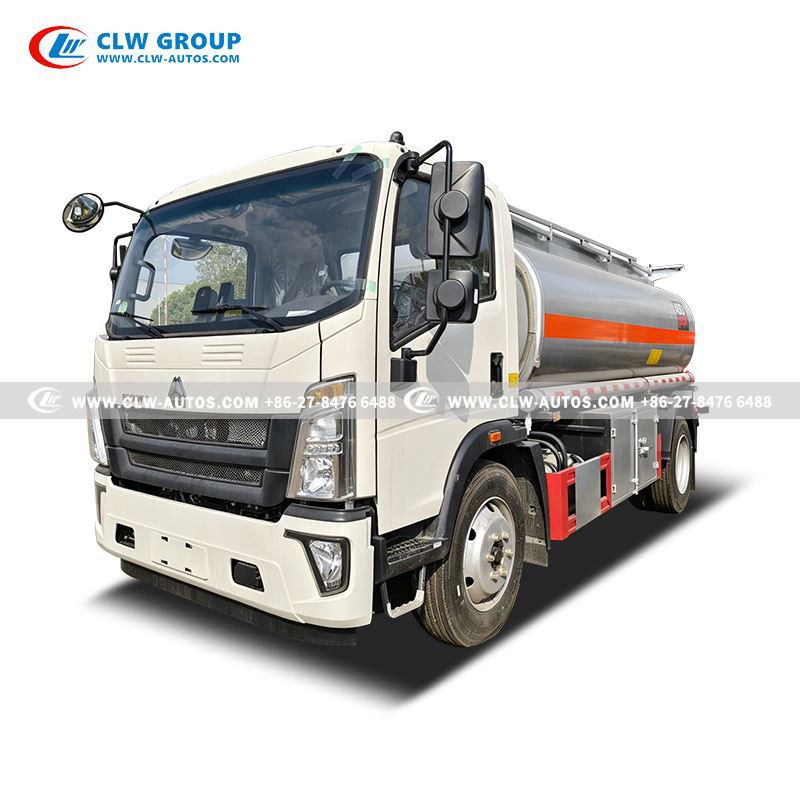

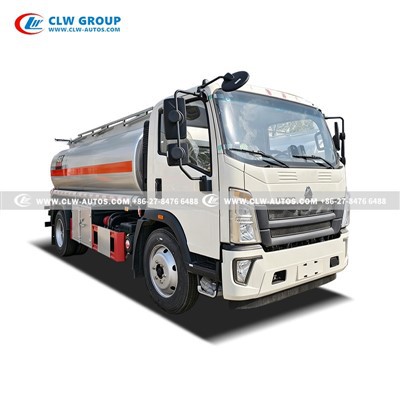

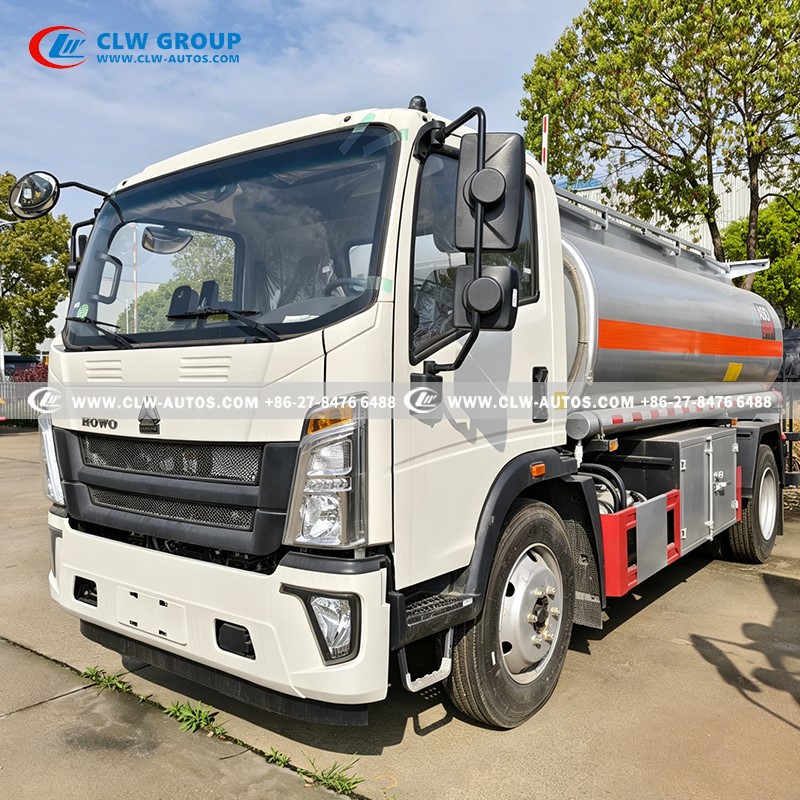

HOWO 8000L Fuel Truck With Flow Meter
HOWO 4x2 refueling truck
Tank volume:8m³/8CBM/8,000Liters
8,000L Fuel Tanker
Transport 6-7tons gasoline or diesel
Divided into 2 compartments
Weichai engine 160hp
Left hand drive
1pc flow meter and nozzle
Exported to Curacao
Euro 4 emission standard
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 8000l fuel truck with flow meter in China. If you're going to buy high quality howo 8000l fuel truck with flow meter, welcome to get more information from our factory. For price consultation, contact us.
8,000L Fuel Truck With Flow Meter Filling Devices
Equipped with High-accuracy Flow Meter with Printer & Automatic Nozzle!
Products Description
comparison of Flow Meter vs. Electronic Fuel Dispenser
| Feature | Flow Meter With Hose Reel | Fuel Dispenser With Hose Reel |
| Core Mechanism | Mechanical positive displacement meter | Electronic computer-controlled system |
| Display Type | Mechanical rolling counter (Non-backlit) | Digital LCD/LED screen (Backlit) |
| Preset Function | Manual Control Only (No auto-stop) | Smart Preset (Set by Liter or Price) |
| Accuracy | High (Industry standard ±0.3% - 0.5%) | Ultra-High (Fiscal/Retail grade ±0.2%) |
| Flow Rate | Higher (Ideal for rapid bulk transfer) | Standard (Optimized for vehicle refueling) |
| Power Source | Driven by liquid flow/Mechanical gears | Requires 12V/24V or 220V electrical supply |
| Data Output | Integrated Mechanical Ticket Printer | Electronic logs / RS485 communication |
| Maintenance | Simple, durable, and low maintenance | Requires technical support for electronics |
| Best Used For | Harsh environments, construction sites, mining | Mobile gas stations, retail fuel sales |
| Durability | Extreme (Resistant to heat, dust, and salt) | Moderate (Sensitive to voltage and moisture) |
Why the Flow Meter Type is better for the Curaçao Market:
- Reliability: In high-temperature and coastal (salty) environments like the Caribbean, mechanical systems are less prone to electronic failure.
- Simplicity: It's "Plug and Play." Drivers can operate and maintain the system without needing advanced electronic diagnostic tools.
- Speed: It allows for faster unloading and refueling for heavy machinery or storage tanks compared to standard dispensers.
Product Name: HOWO 8000L Refueling Truck
Application: Refueling for heavy machinery
Advantages: Fast refueling and low maintenance
Cab: Single row cabin, LHD, A/C
Wheelbase: 4200 mm
Engine: WP4.1NQ160E61
Horsepower: 160HP
Emission standard: Euro V
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 12,000 kg
Front/Rear Axle loading: 3200kg /7200kg
Tires: 9R22.5, 6 pcs with one spare
Related Operational Video
The Main Applications
Products Parameters
|
Fuel Tank |
|
|
Tank volume |
8m³/ 8,000L Fuel tank |
|
Compartment No |
Two compartment ( Or customized multi compartment) |
|
Tank material |
Aluminum alloy steel |
|
Tank thinkness |
4mm of tank and 5 mm of end plate |
|
Tank shape |
Square or as request |
|
Manhole cover |
2 pc of European Aluminum alloy manhole covers, ∮500mm 2 set with breather valve |
|
Volume Flow Meter |
|
| Flow Range | 55 – 550 L/min |
| Register Unit | Mechanical Display (Litres) |
| Display Features | Large-digit reset counter (trip) & Non-resettable totalizer |
| Preset Function | Mechanical push-button preset (supports volume-set delivery) |
| Printer | Integrated Mechanical Ticket Printer,prints transaction receipts and delivery records |
| Hose Reel | Red industrial-grade reel (manual or power rewind) |
| Control Valve | Manual ball valve with safety handle (Pump Outlet) |
| Compatible Fluids | Diesel, Gasoline, and other light fuel oils |
|
Oil Pump |
|
|
Brand |
Chinese Brand |
|
Type |
80-60 carbon steel pump |
|
Flow rate |
80-60m³/h |
|
Drive Mode |
PTO-Driven |
|
Pumpline system |
2.5 inches |
|
Other configurations |
|
|
Walkway at top of tanker |
Color and design as customer's requirement |
|
Handrail |
Manual controlled at two sides of truck |
|
Ladder |
At rear of tank |
|
Accessories |
Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire(1 pc); Fuel Discharge Hoses(2 pcs); Tool box(1 pc); Truck will be waxed before shipment; |
Upper Structure System
• Tank: 8,000L capacity, aluminum alloy steel, 4mm thick, allows for the storage of light fuels such as gasoline and diesel.
• Manhole: European standard manhole cover (with breather valve), overflow prevention device, ensuring pressure balance inside the tank.
• Non-slip walkway & folding guardrail: Provides safety for workers operating on the tank top (e.g., observation, maintenance), with a user-friendly design.
• Ladder: Facilitates workers' access to and from the tank top.
• License Plate Holder: The metal plate located in the center below the ladder is used for installing the vehicle license plate and the lighting fixtures.

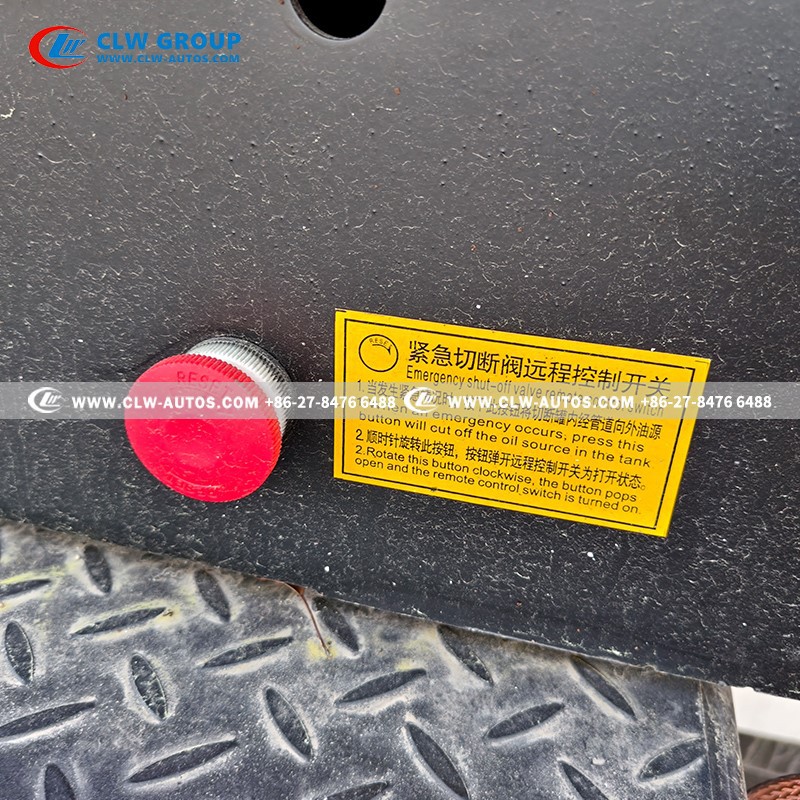

• Bottom valve (emergency shut-off valve): Can be manually/automatically closed in case of an accident to prevent fuel leakage.
• Drain valve: Used to drain residual liquid from the tank during maintenance or cleaning, ensuring operational safety.

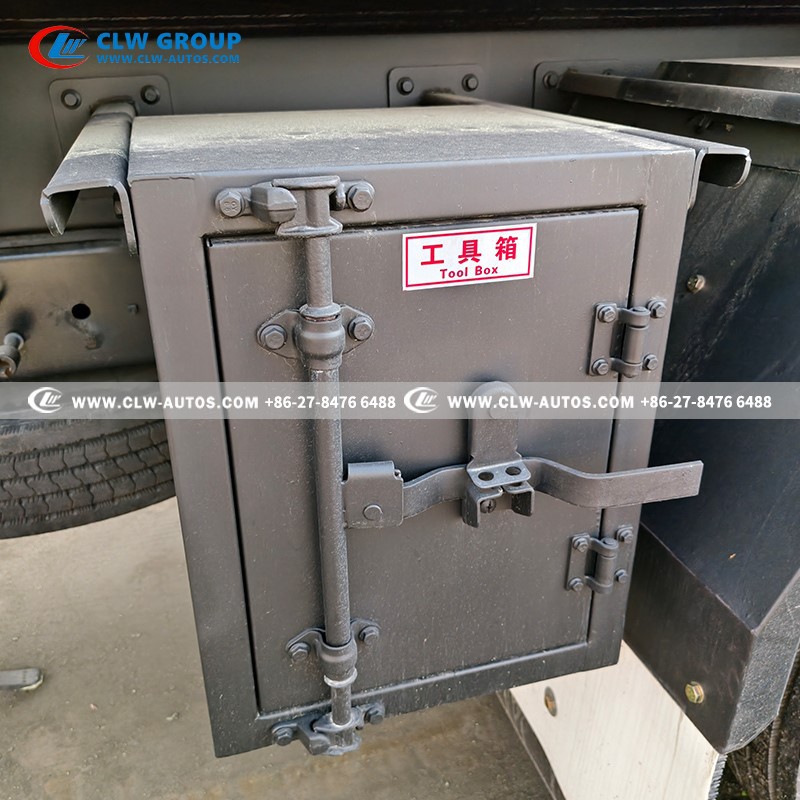

• Toolbox: Made of stainless steel, for storing maintenance tools and accessories.

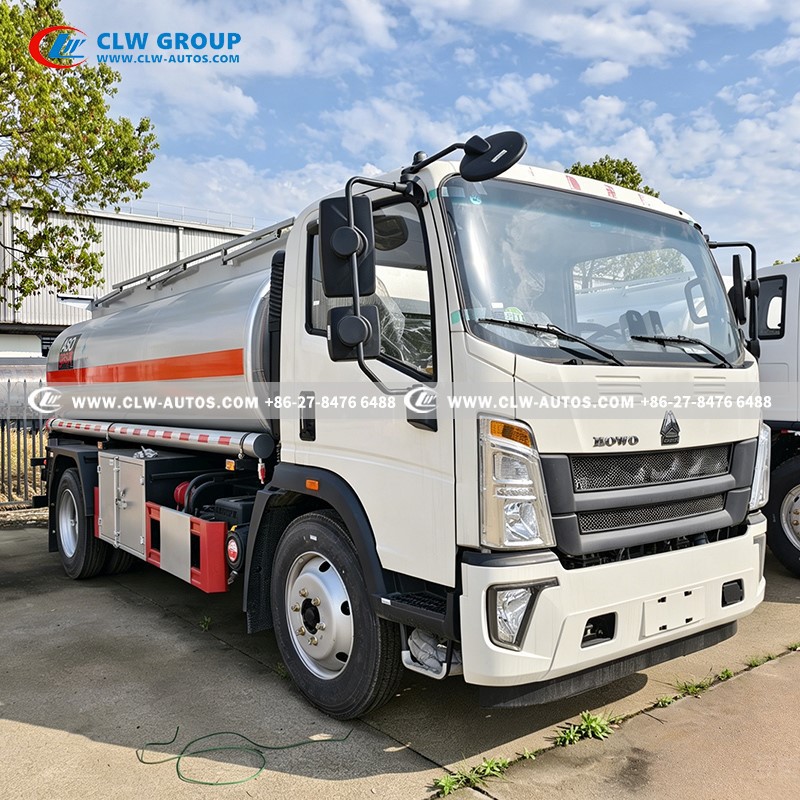

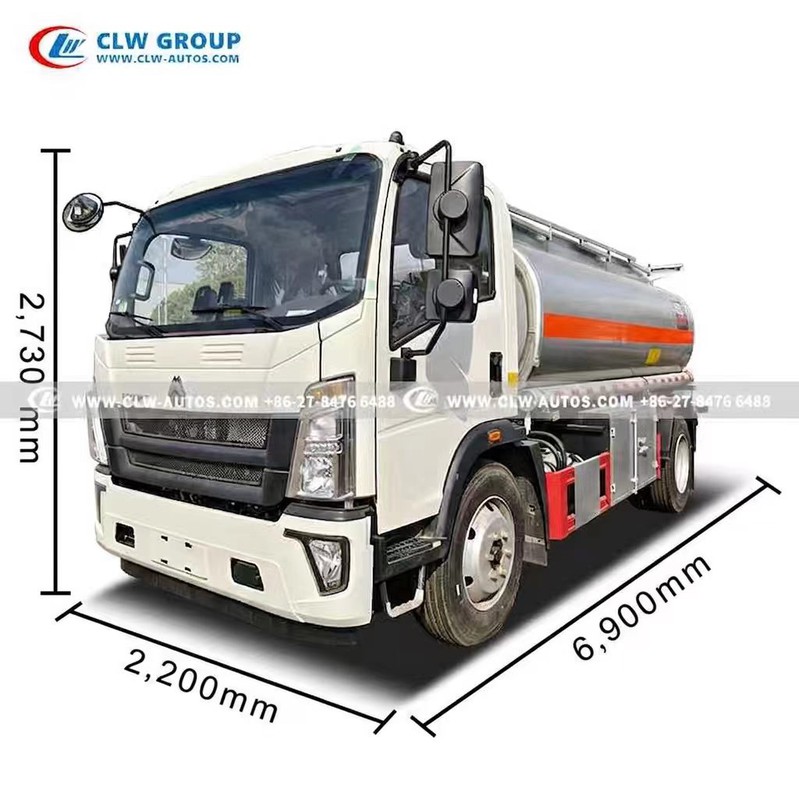

HOWO 9m³ aluminum alloy oil tanker truck overall dimensions: 6900*2200*2730mm, the truck is lightweight and flexible.

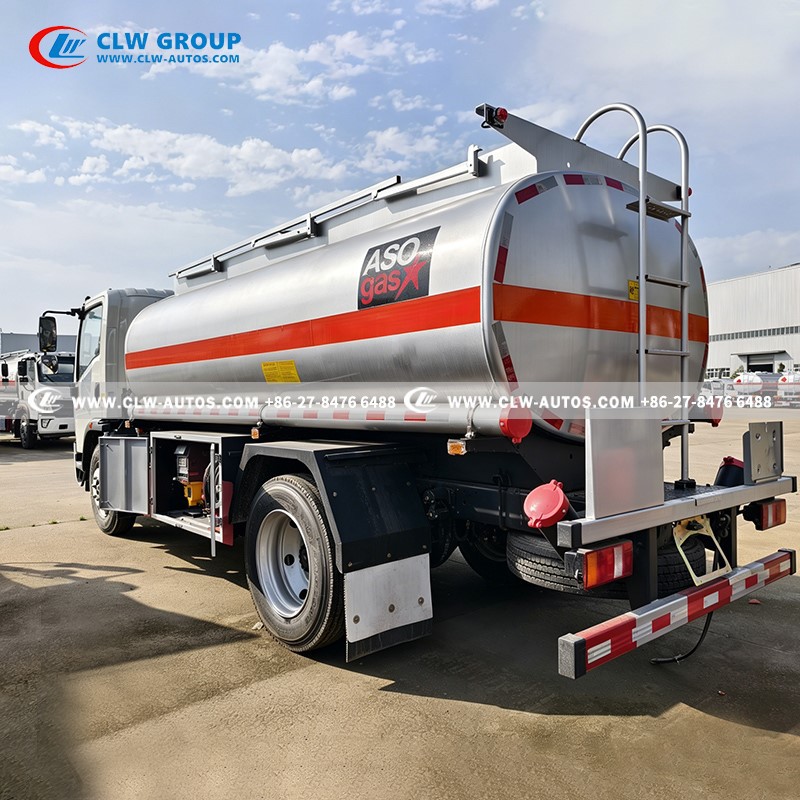

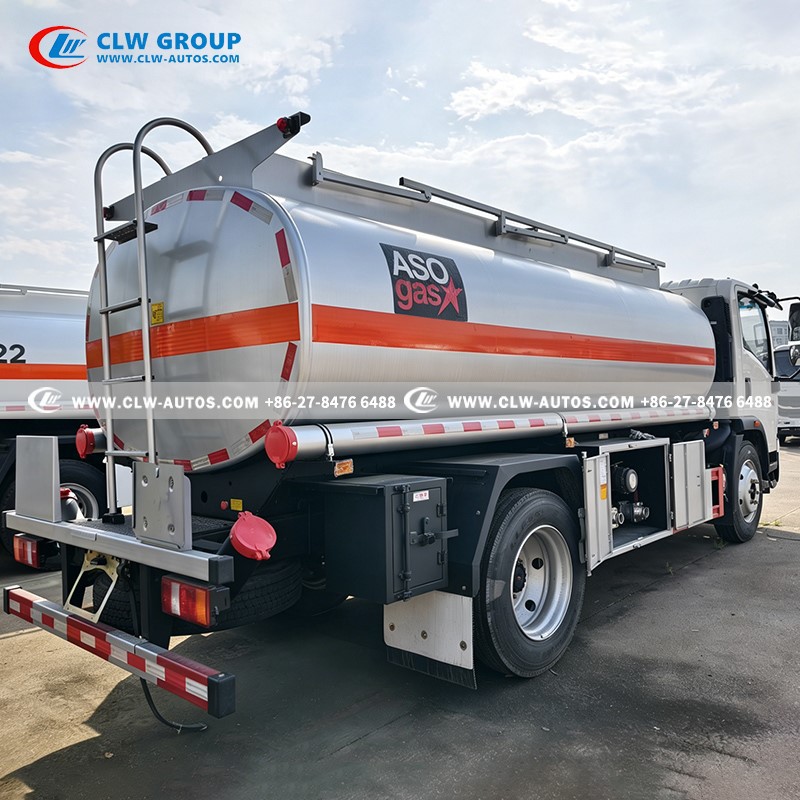

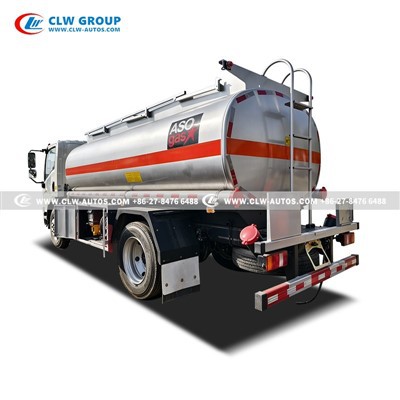

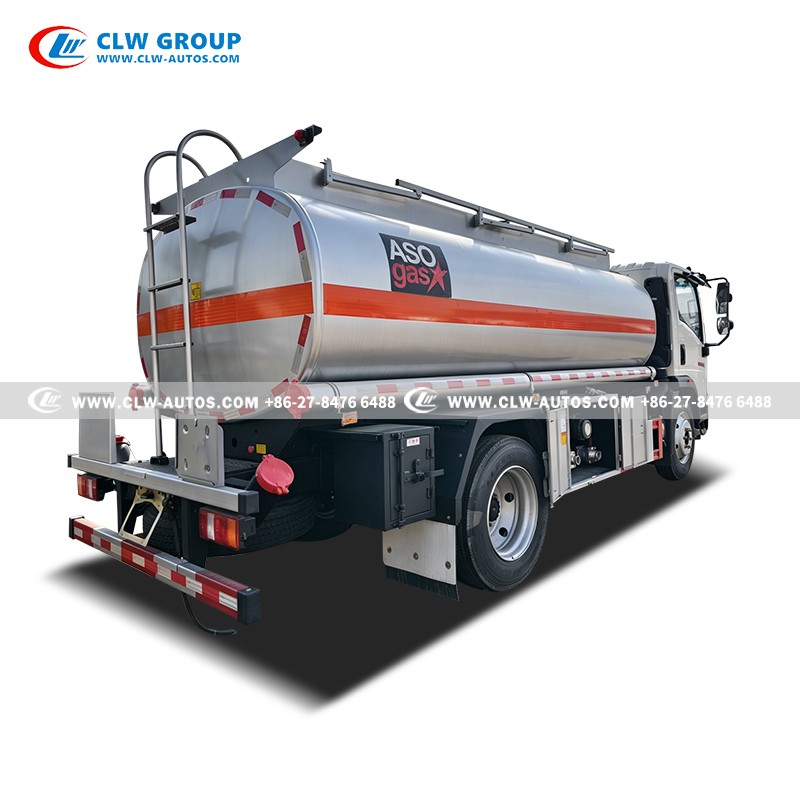

Stainless steel fuel tanker design with a rear-mounted access ladder, side protective guards, and specialized hose storage for safe and efficient fuel transportation.
Refueling System
Oil Pump:
• Flow Rate: 30m³/h. Features strong self-priming capability, large flow rate, stable operation, low noise, and long service life, making it ideal for rapid oil filling and transfer.
Refueling hose reel:
• Volume flowmeter: precisely calculates the amount of oil added
• DN40 pump outlet: High-flow, rapid oil discharge
• Hose: 15-meter automatic retraction refueling hose with anti-static design for easy operation.
• Refueling Nozzle: Refueling nozzles typically have a switch-lock function for convenient operation.
Inlet/Outlet System:
• Pump Inlet/Outlet Lines: Power can be obtained from the chassis via a power take-off to drive the oil pump, enabling rapid oil inlet and outlet.
Drain Hose:
• Two 3-meter-long drain hoses are used to connect the pump to the oil tank or for draining excess oil, enhancing operational flexibility.

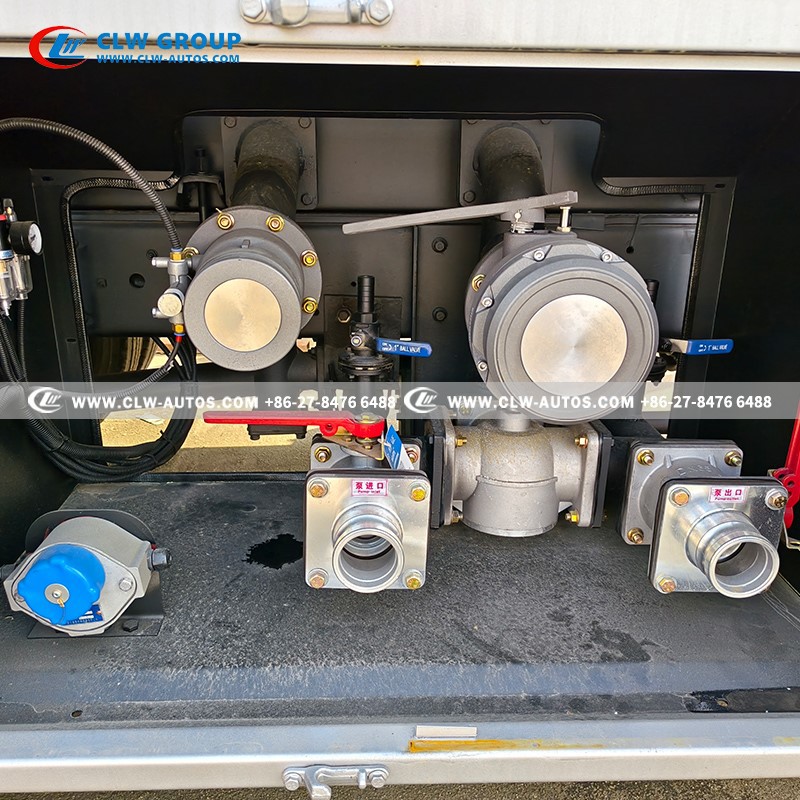

Pumping and piping control system integrated with dual-directional pump ports, pneumatic safety valves, and an anti-static/overflow protection module to facilitate precise fuel suction, delivery, and gravity discharge operations.

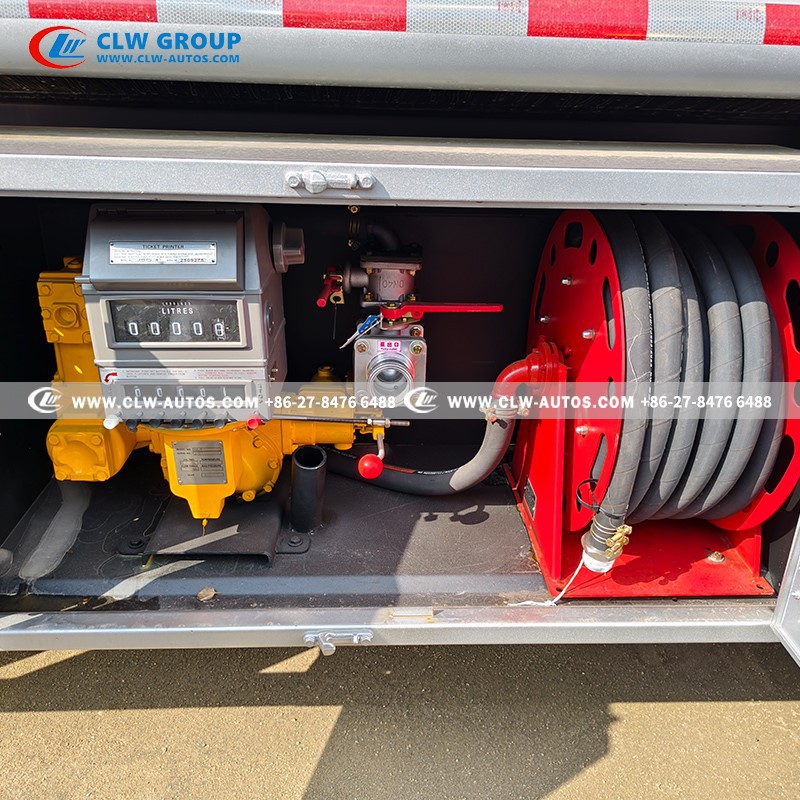

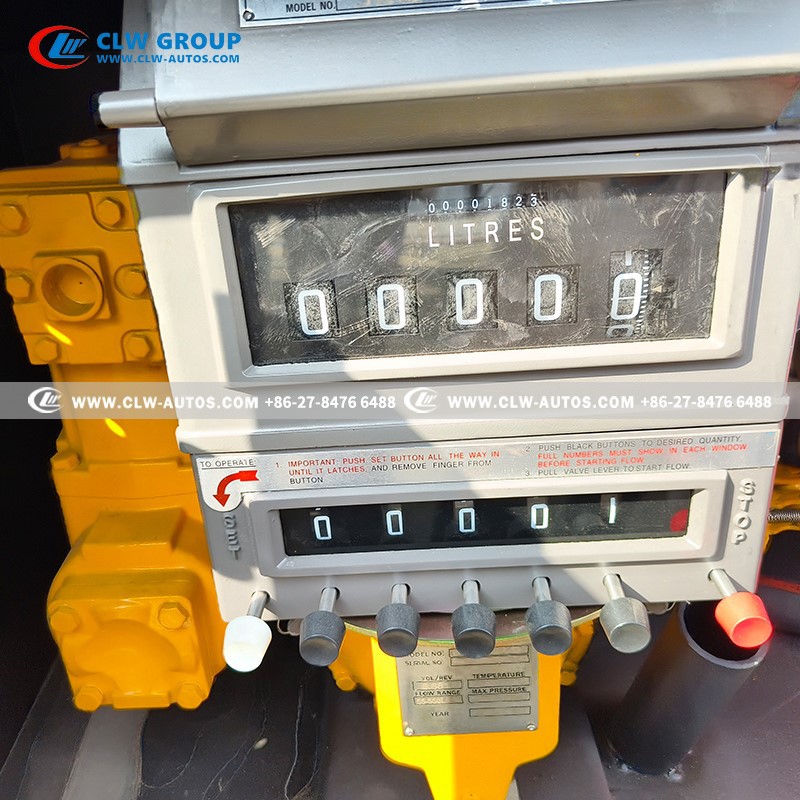

High-precision mechanical positive displacement flow meter system featuring a manual preset counter and an integrated ticket printer, designed for accurate, power-independent fuel measurement and transaction documentation.

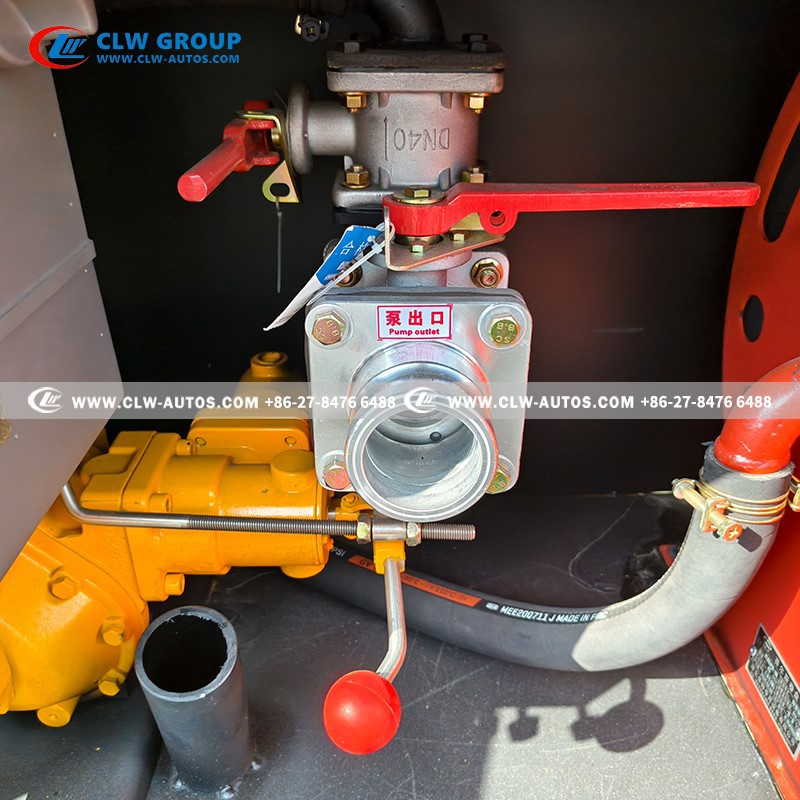

DN40 pump outlet serves as a versatile flow control hub, enabling a seamless switch between high-volume bulk discharge and precision long-reach refueling while ensuring immediate safety shut-off.

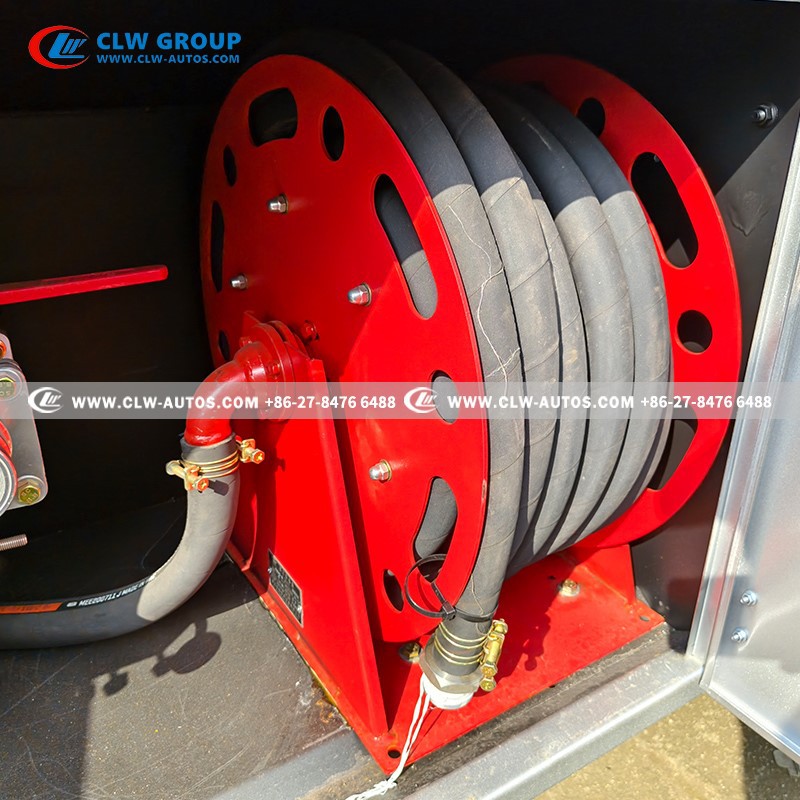

Automatic hose reel provides organized storage and effortless deployment of the fuel hose, featuring a self-retracting mechanism and a high-pressure swivel joint for efficient, tangle-free refueling operations in mobile environments.
More Details Pictures
Our advantage
|
|
100% custom-made |
|
|
3 cbm to 35 cbm fuel truck available |
|
|
Short delivery time 30~45 days |
|
|
Easy operation & Easy maintenance |
|
|
1 years spare parts & Technical support |
Packaging & shipping
There are various modes of transportation for you to choose from!
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
