Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 30 tons towing truck in China. If you're going to buy high quality isuzu 30 tons towing truck, welcome to get more information from our factory. For price consultation, contact us.

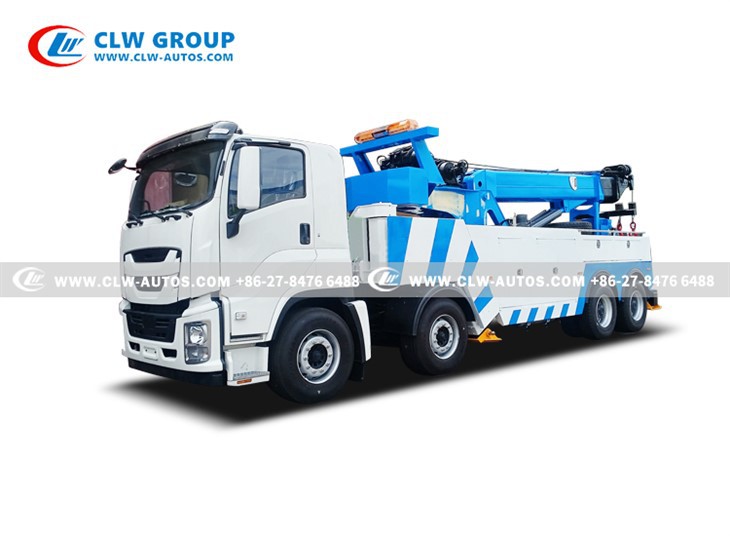

ISUZU GIGA VC66 30 Tons/40Tons/50Tons/60 Tons Towing Truck
We are 100% Straight Factory Manufacturer for tow trucks since 2004
We have 100% Quality Assurance,welcome to visit us before order
Products Description
ISUZU 30 TONS towing truck,also called 30t rotator tow truck,Rotary Wrecker ,30 tons wrecker,breakdown rescue truck,heavy duty wrecker 30 tonnes,360 degree rotation wrecker tow truck,adapts ISUZU GIGA truck chassis 2100+4325+1370mm wheel base,350HP/380HP/420HP/460HP is optional.
Based on the same ISUZU GIGA 8X4 12-wheel truck chassis,we can also build 30 tons/40tons/60 tons rotation tow truck based on your detailed need.
ISUZU rotation tow truck is a tow truck with a 360-degree full-rotation function. It is mainly used for road rescue and obstacle removal. This type of vehicle usually adopts a high-strength design to ensure that it can work effectively in various complex environments.
Key features
360-degree full rotation : This is the most significant feature of the full rotation tow truck, allowing the vehicle to operate in any direction, greatly improving the flexibility and efficiency of operation.
Powerful hoisting/crane capacity: Some full-rotation tow trucks have a hoisting function,able to lift and move heavy objects,which is very useful in rescue scenarios,such as hoisting damaged vehicles or equipment.
Multiple uses: The full-rotation tow truck can not only be used for road rescue, but also can be used in construction sites, ports, airports and other places that require heavy lifting and transportation.
High load-bearing capacity: Some full-rotation tow trucks are designed to carry a huge amount of weight to meet the needs of different scenarios.
Optimized design: In order to adapt to various complex working environments, full rotation tow trucks usually use high-quality materials and advanced technology to ensure the performance and safety of the vehicle.
Why do you choose ISUZU GIGA 30 tons tow truck?
-–ISUZU GIGA beautiful and strong chassis with strong horsepower and engine
-–Easy parts to get from us
--Customized design as per your need
-–Low center of gravity ,rotator crane and under towing equipment is seperate
-–different kinds choices for truck chassis brand
-–High quality steel and directly manufacture factory in suizhou city,Hubei province,China .
hOW Much is ISUZU GIGA 30 tons tow truck?
Contact us for more technical support,video and pictures,
WhatsApp: +86 135 4506 4324
Mail: shirley @clw-autos.com
Wechat: 135 4506 4324
Testing and Operartion Video of ISUZU GIGA 30 tons tow truck
testing Video of Rotation 30 tons tow truck

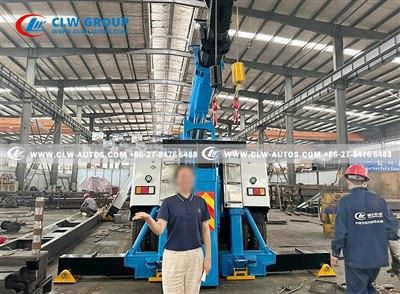

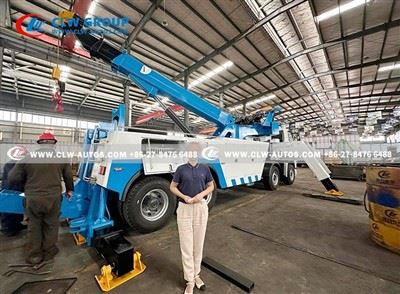

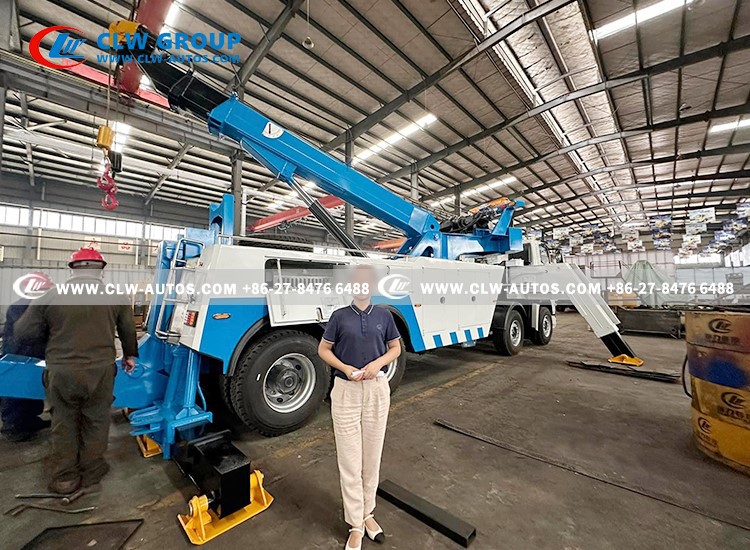

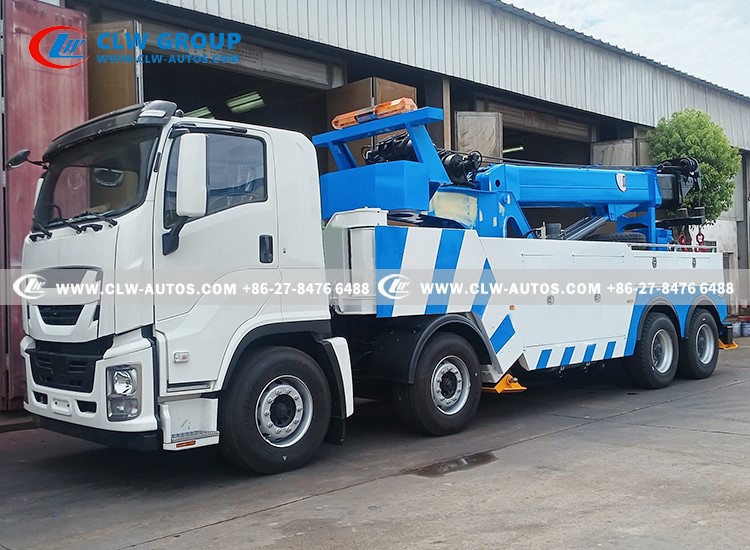

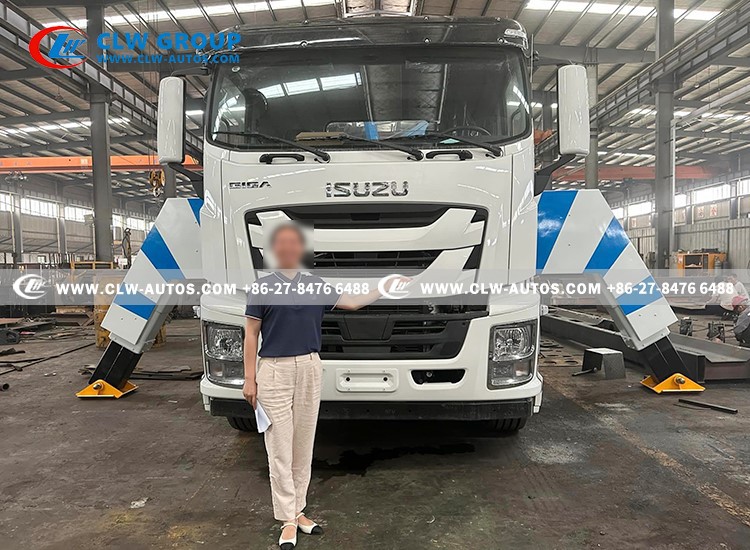

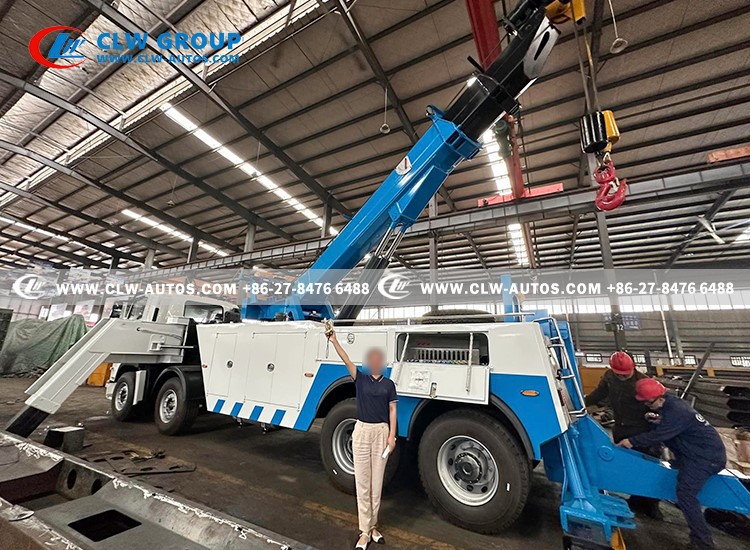

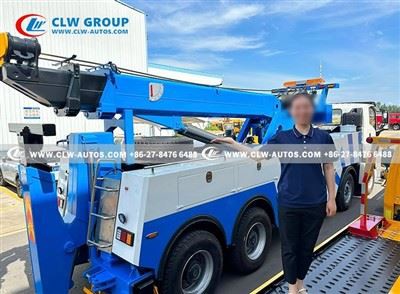

Detailed Pictures
Products Parameters
|
ISUZU GIGA 8X4 50Tons TOW TRUCK |
||
|
Cabin |
ISUZU VC61 standard cabin, Left hand drive, with air conditioner, allowed for 2~3 persons |
|
|
No load(kg) |
Curb Weight |
13070 |
|
Front axle |
9000*2 |
|
|
Rear axle |
13000*2 |
|
|
Full load |
Max. Overall Weight |
33000 |
|
Overall Dimensions(mm) |
Length |
11760 |
|
Width |
2500 |
|
|
Height |
3470 |
|
|
Wheel base(mm) |
2100+4325+1370 |
|
|
Track(mm) |
2022/1830 |
|
|
F/R Suspension(mm) |
1500/2200 |
|
|
A/D Angle(°) |
16/18 |
|
|
Driving Model |
8X4 |
|
|
Max. Speed(km/h) |
105 |
|
|
Max. Grade-ability(%) |
30 |
|
|
Min. Turning Diameter(m) |
22.6 |
|
|
Min. Ground clearance(mm) |
310 |
|
|
Engine-option 2 |
Brand |
ISUZU |
|
Model |
6WG1-TCG61 or 6UZ1-TCG61 |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horsepower(HP) |
460HP or 380HP |
|
|
Displacement(mL) |
15618ml or 9839ml |
|
|
Em mission Standard |
EURO VI |
|
|
Transmission |
FAST,12 forwards&2 reverses |
|
|
Tyre |
315/80R22.5 |
|
|
Fuel Box |
400 L |
|
|
30 Tons WRECKER EQUIPMENT |
||
|
Towing |
Max Towing Weight(kg) |
Above 30,000 |
|
Under-lift System |
Max. Lifting Weight(kg) |
20,000 |
|
Max. Lifting Weight under all extension(kg) |
8300 |
|
|
Effective Length of under lift boom(mm) |
3350 |
|
|
Extend-retract of under lift boom(mm) |
1650 |
|
|
Folding angle under no load(°) |
-7~92 |
|
|
Folding angle under load(°) |
-7~16 |
|
|
Max. Ground Distance(mm) |
1835 |
|
|
Landing Strength(KN) |
80*2 |
|
|
Hydraulic Hose |
Tianhe,Guangdong Province |
|
|
Hydraulic Joint |
Germany technology and exported Sealing rings |
|
|
Hoisting System |
Max. Hoisting Weight(kg) |
30,000 |
|
Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg) |
9000 |
|
|
Max. Hoisting Weight under no extension when Hoisting Angle is 30°(kg) |
12,000 |
|
|
Extension Distance of Oil Cylinder(mm) |
5580 |
|
|
Length of Crane Arm(mm) |
5880 |
|
|
Section No. Of Crane Arm |
3 |
|
|
Max. Hoisting Height(mm) |
12300 |
|
|
Max. Operation Diameter (mm) |
10710 |
|
|
Max. Hoisting Angle(°) |
0~60 |
|
|
Rotation angle(°) |
360 |
|
|
Winch |
No. |
2 |
|
Curb Traction/Per(KN) |
150 |
|
|
DN of Steel Rope(mm) |
Φ22 with model 22-6X25Fi+IWR1870 |
|
|
Length of Steel Rope(m) |
60*2 |
|
|
Min. Line Speed(m/min) |
5 |
|
|
Front Outrigger Type |
"H" type |
|
|
Rear Outrigger Type |
"L" type |
|
|
Front Outrigger Span(mm) |
6200 |
|
|
Rear Outrigger Span(mm) |
4030 |
|
|
Span between front and rear Outriggers |
7760 |
|
oTHER TOWING SERVICE TRUCKS FOR OPTION

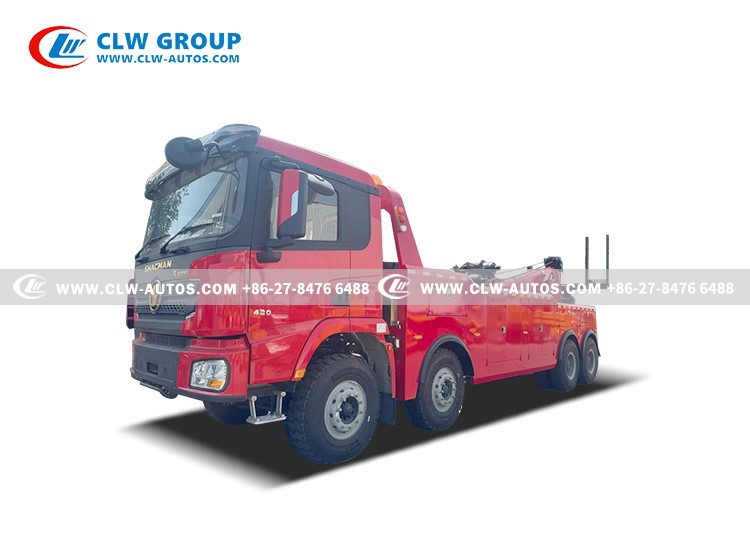

SHACMAN X3000 8X4 30 tONS ROTATION TOW TRUCK
WEICHAI POWER: High horsepower engine combined with AVL and BOSCH for golden power.Engines are customized for SHACMAN vehicles with intelligent fuel saving system that can automatically adjust according to changing vehicles weight.
CUMMINS POWER: cummins and SHACMAN group develop the ISM series fully electrinically controlled engines with intelligent controles together with excellent power.
FAST GEARBOX：large center distance 10/12 gearbox with unique twin shafr structure.

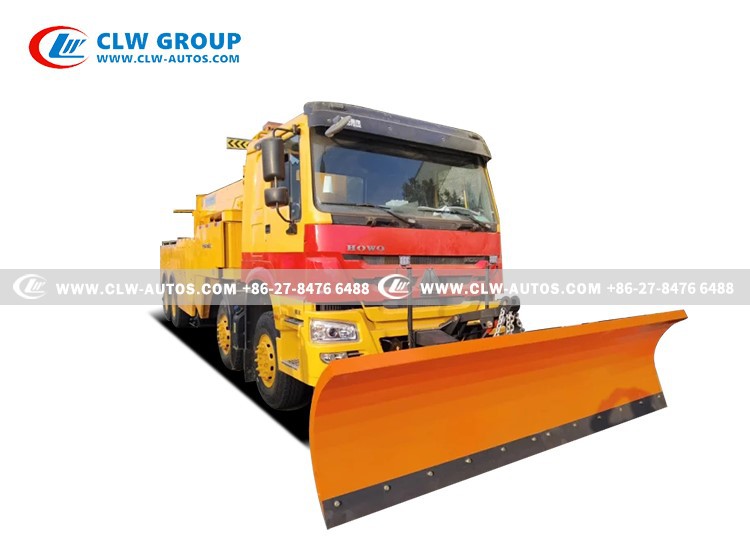

SINOTRUK HOWO 8X4 50 tONS ROTATION TOW TRUCK
WITH shovel
The omni-directional rotation function allows the vehicle to move and operate freely in compact spaces.
Equipped with a variety of obstacle clearance tools to adapt to different obstacle clearance needs.
Design focuses on operational safety and efficiency to reduce road recovery time.
This kind of vehicle is widely used in urban roads, highways, highways, and other situations where rapid clearing of obstacles is required. The use of full-rotation tow trucks can significantly improve the efficiency of road clearing, reduce traffic congestion, and ensure road safety and smoothness.

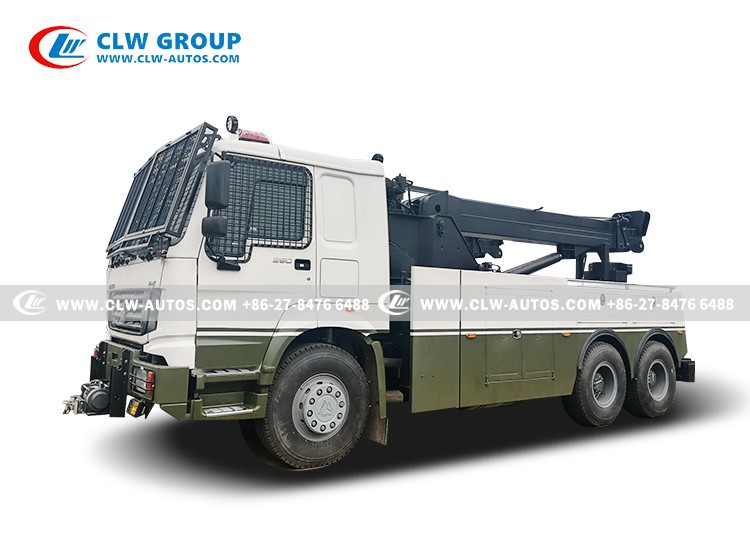

SINOTRUK HOWO 6X6 Rotation Road Wrecker with Winch
The 6×6 chassis is a vehicle chassis design with six drive wheels, which provides excellent traction and passability, and is particularly suitable for complex and harsh road conditions.
The design features of the 6×6 chassis include:
Strong traction and passability: The 6×6 chassis has six drive wheels, which means that the vehicle can maintain strong traction and good passability under various road conditions. This design is particularly suitable for application scenarios that need to overcome complex terrain and heavy loads.
Wide application: The 6×6 chassis is widely used in mining, construction engineering, road construction, emergency rescue and other fields, and is favored for its excellent performance and adaptability.

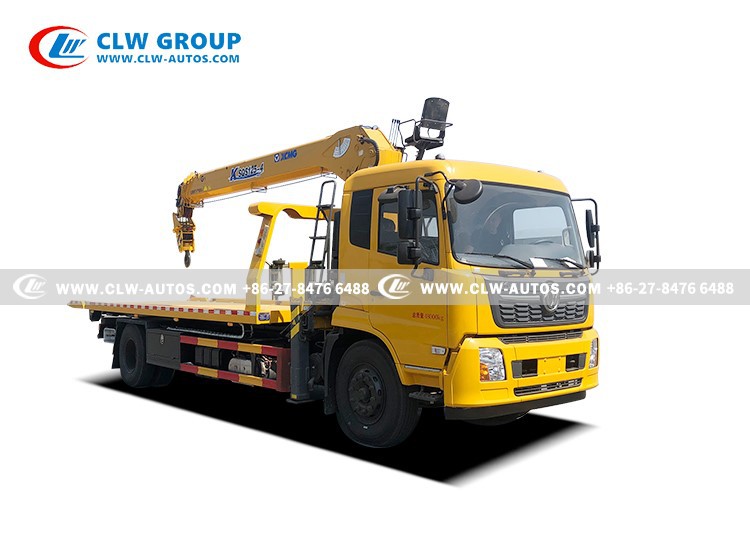

DONGFENG FLATBED TRUCK WITH XCMG CRANE
The flatbed tow truck with a crane is installed on the basis of the flatbed tow truck. Generally, the installed crane is a XCMG/pafinger/clw/UNIC crane. As the name suggests, it can also be called a flatbed tow truck with a crane or a tow truck with a crane. Because of its characteristics, it can not only tow two tow trucks, but also hoist faulty vehicles. It is also called a multi-functional tow truck. This type of vehicle is a type of tow truck.
The most commonly used is to lift a faulty vehicle, an accident vehicle that has overturned in a ditch, or a vehicle that has fallen into a river and is not easy to be directly pulled up by a flatbed one-to-two tow truck. The faulty vehicle can be hoisted onto the flatbed with the crane installed on the vehicle or the vehicle can be pulled to the repair shop using the rear support arm.
