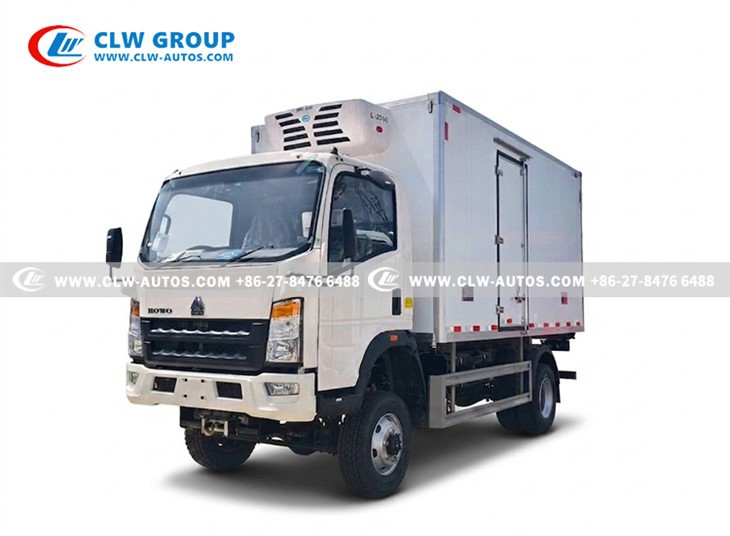

HOWO AWD 6Ton Refrigerator Truck

Sinotruk HOWO 4x4 off-road Chassis
Yuchai 160HP Diesel Engine
HANXUE L-Z560 Refrigeration Unit
5.4-Ton Front Electric Winch
Temperature ranged from 5℃ to -15℃
High-Strength Sandwich Insulation
Aluminum Anti-slip Plate Floor
Single door on the left side
Right hand drive type
4.2m length van body

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo awd 6ton refrigerator truck in China. If you're going to buy high quality howo awd 6ton refrigerator truck, welcome to get more information from our factory. For price consultation, contact us.





SINOTRUK HOWO 4x4 RHD Refrigerated Truck

Military, Peacekeeping & Humanitarian Cold Chain Support

Products Description



    Refrigerated trucks (commonly known as reefers) are specialized vehicles essential for transporting temperature-sensitive goods such as fresh produce, frozen meat, dairy, and pharmaceuticals. Choosing the correct model depends on three critical variables: cargo volume, payload weight, and transport distance.



Classification by Loading & Payload Capacity:

    To optimize your fleet operation and comply with local highway regulations, trucks are categorized into three practical weight classes



  • Light-Duty Class (< 2.5 Tons Standard Payload)

     Engineered primarily for inner-city distribution. They feature low fuel consumption and high flexibility, seamlessly cutting through heavy urban traffic.



  • Medium-Duty Class (2.5 to 10 Tons Payload)

     The bridge between local markets and regional hubs. These trucks perfectly balance high payload capacity with mid-to-long-range transit capabilities.



  • Heavy-Duty Class (≥ 10 Tons Payload)

     The workhorses of mass transit. They are deployed to move high-volume bulk goods from agricultural hubs or seaports directly to central processing warehouses.





Key Vehicle Specifications:

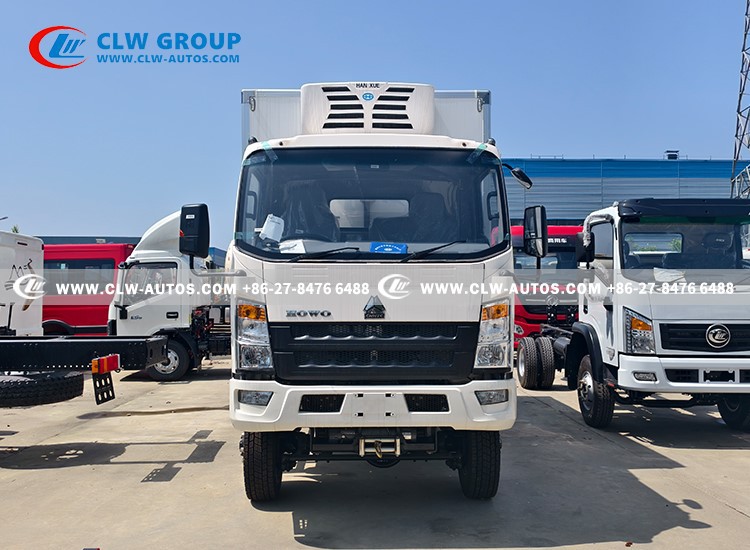

Refrigerated van

Overall Dimensions: 5995×2470×3450 mm

Advantage: All wheel drive with a 5.4 Ton electric winch

Cab: Single row cabin, 1drive + 2 passenger seat , RHD

Wheelbase: 3360 mm

Engine: YC4E160-33

Horsepower: 160HP

Emission standard: Euro II

Gearbox: 8 Forwards and 2 reverse

Gross Vehicle Weight9500 kg

Front/Rear axle loading: 3500kg/6000kg

Tires: 235/75R17.5, 6 pcs with one spare

Fuel Tank: 120L Fuel Tank



Related Operational Video



The Main Applications

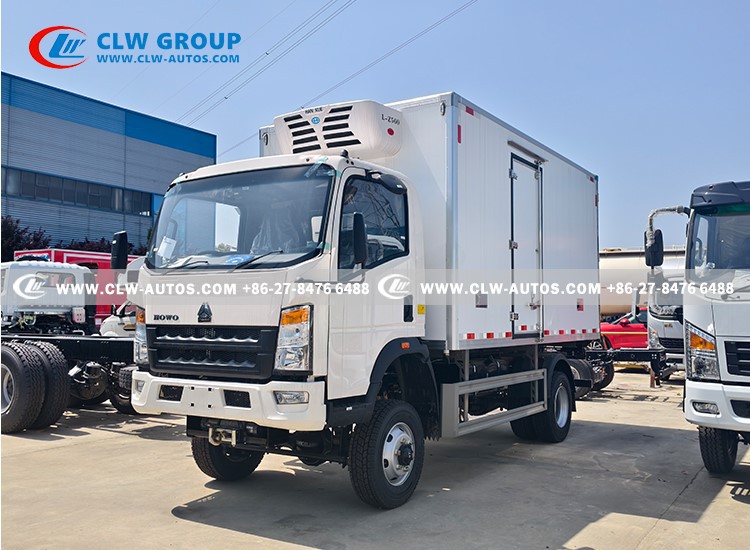

howo Refrigerated vehicle

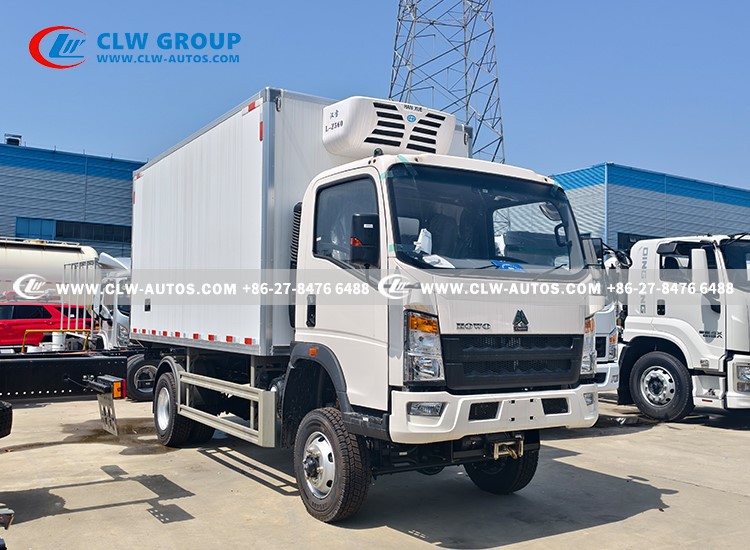

Refrigerated truck
howo Reefer truck
4x4 Refrigerated truck
Refrigerated van
HOWO ThermoKing Refrigerator Refrigerated Van Freezer Reefer Box Transport Food Cooling Truck

Products Parameters

Van box
Box  Dimensions
Box Dimension (Internal Size) 4150 × 2100 × 2000 mm
Box Structural Material
Inner Skin 80mm Premium Nano Fiberglass (High hardness, anti-oxidation, non-light absorbing)
Middle Core 80mm Void-free filled high-density Polyurethane (PU) foam + integrated WISCO rust-proof light steel skeleton
Outer Skin 80mm Premium Nano Fiberglass (Excellent heat insulation & weather resistance)
Flooring System
Surface Layer Heavy-duty anti-slip aluminum checker plate (Engineered to withstand heavy hydraulic pallet jacks)
Inner Layer Waterproof plywood base + high-density polyurethane insulation layer
Refrigeration Unit
Brand/Model HANXUE / L-Z560
Type Direct-drive Non-independent unit (Powered via truck engine belt)
Temperature Range Pulls down rapidly from 5°C to -18°C
Special Off-Road Equipment
Front Electric Winch Premium Runva 12.0 X Series heavy-duty winch integrated below the front bumper
Max Rated Line Pull 12,000 lbs (5,443 kg / 5.4 Tons) mechanical pulling force
Core Purpose Provides extreme self-recovery and vehicle extraction in severe mud/sand/snow terrains, and handles trail clearing obstacles
Side Door Configuration
Opening Option Left or Right side optional
Door Size 1.2m ultra-wide opening for quick side-loading
Sealing & Locks Equipped with food-grade multi-layer labyrinth sealing strips and heavy-duty stainless steel locksets
Rear Door Configuration
Door Type Full-size, 270-degree double-opening rear door
Hardware Thickened heavy-duty stainless steel hinges and vertical lock rods
Door Frame & Hardware
Material 100% Full Stainless Steel material, thickened heavy-duty marine grade
Performance Highly corrosion-resistant and rust-proof against saltwater/blood
Electrical Lighting System
Marker Lights 2 sets of White LED marker lights on the front upper corners; 2 sets of Red LED marker lights on the rear upper corners
Interior Light 2 sets of 24V waterproof, recessed high-brightness LED ceiling lights
Drainage System
Drainage Holes 2 drainage holes with automatic one-way sealing valves located at the front corners of the floor
Function Drain wash water while blocking external air
Advanced Fleet Equipment
Dual-use Cooling & Heating Function Built-in temperature reversal system for winter/high-altitude medicine or tropical fruit transport

Reference Picture

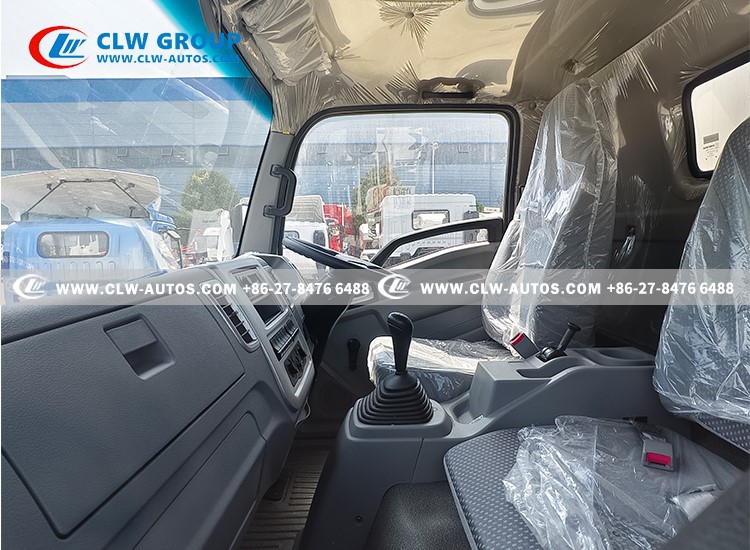

Refrigerated Van TRUCK
Right-hand drive cab with 3 seats

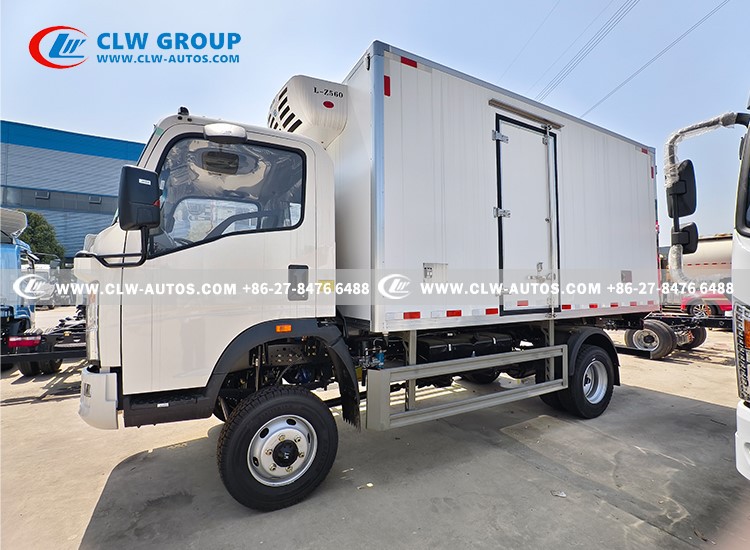

Reefer truck
4.2m length van box

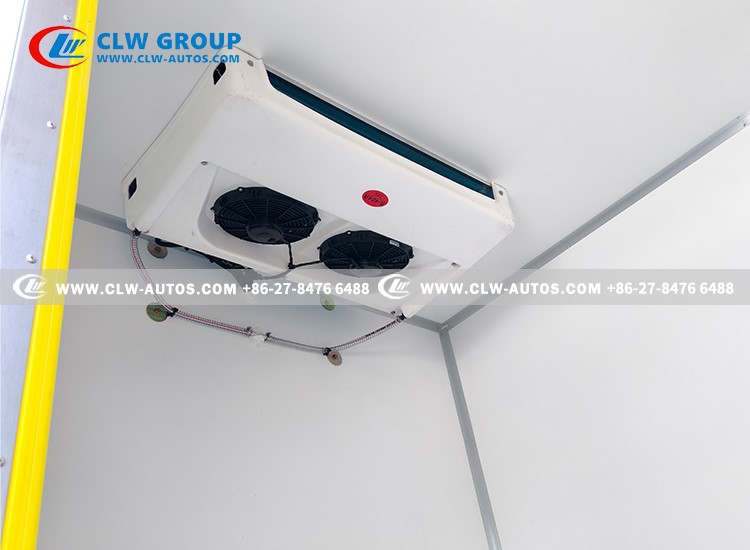

Thermal truck
 temperature range: 5°C to -18°C

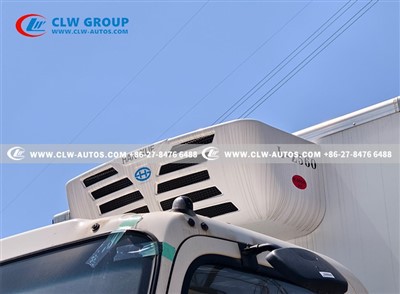

Reefer Box Transport Food Cooling Truck

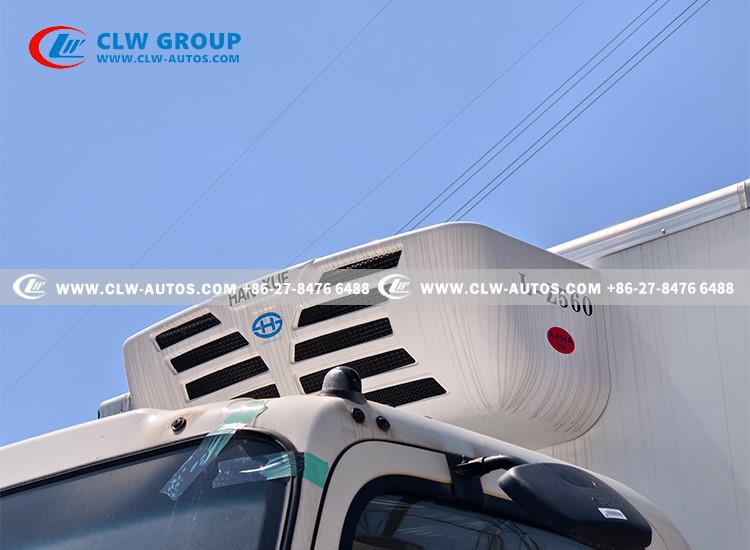

Hanxue L-Z560

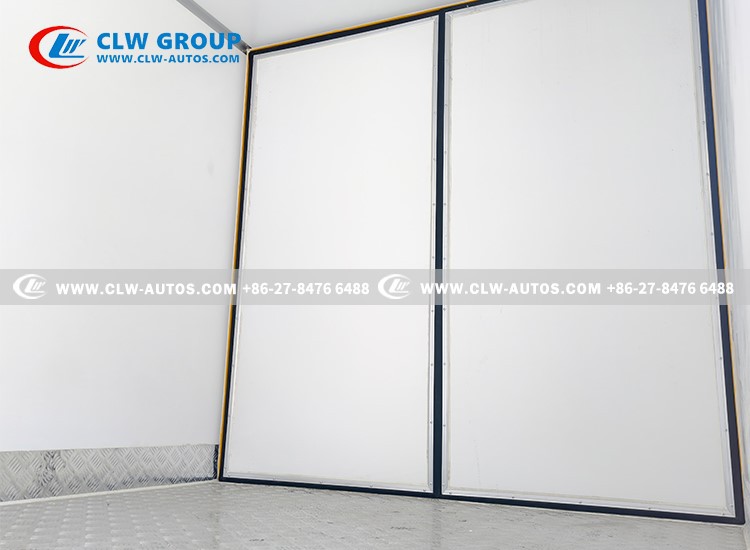

Insulated truck

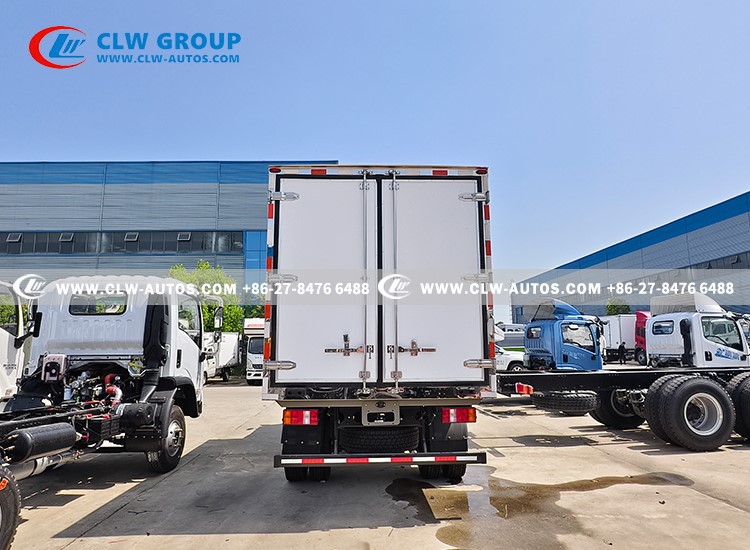

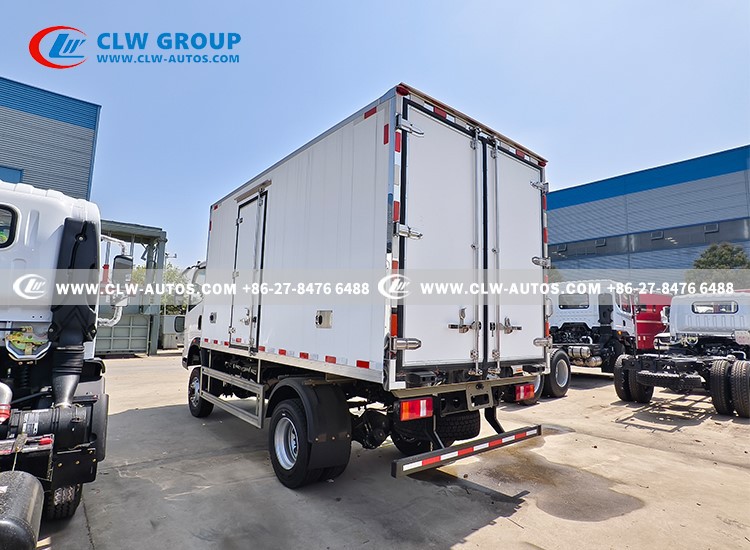

Double rear door, anti-slip floor
HOWO ThermoKing Refrigerator TRUCK

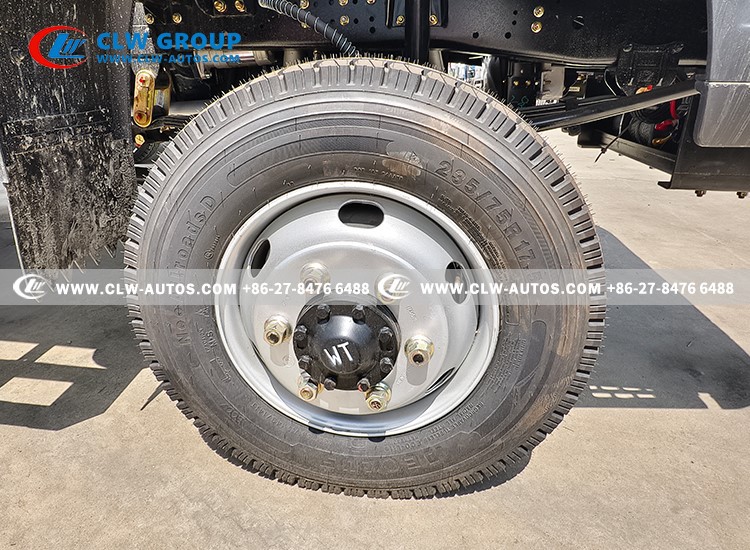

235/75R17.5 Off-Road Tubeless Radial Tyres
5-6 ton Chiller van

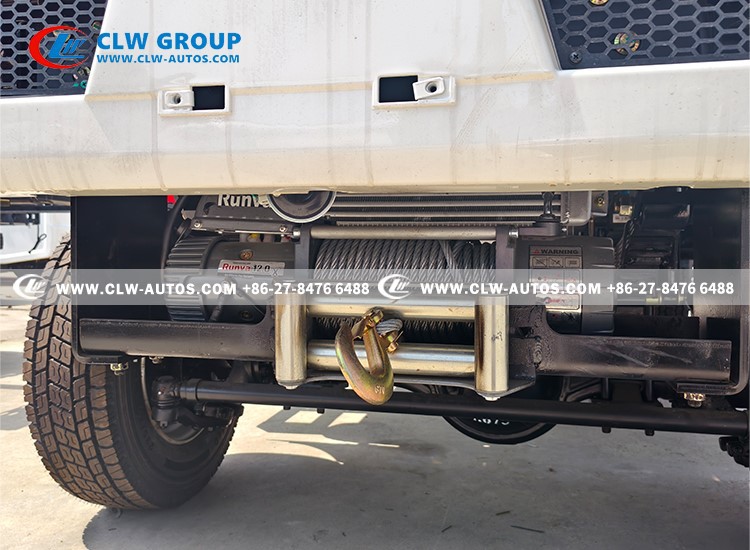

Runva 5.4 Tons Front Electric Winch
AWD Refrigerated trailer

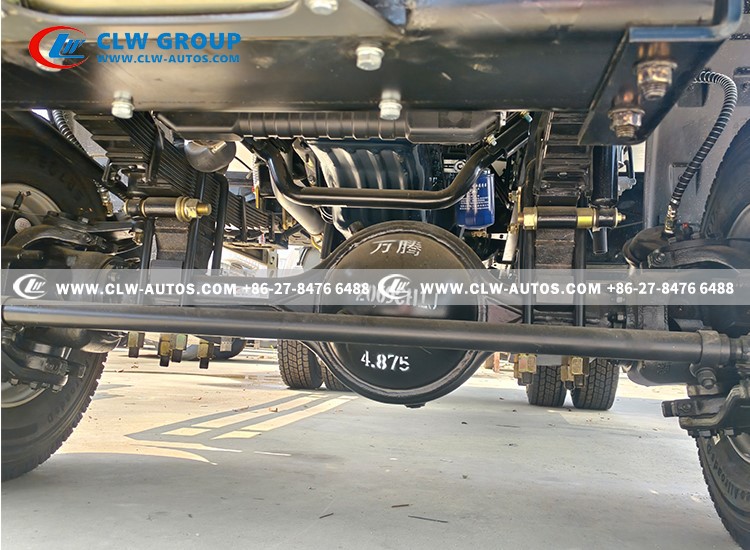

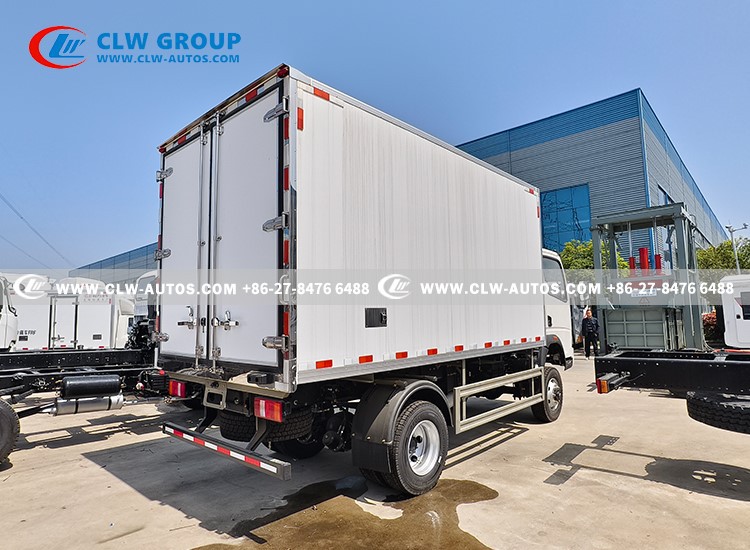

4x4 All-Wheel Drive Chassis

Product Details

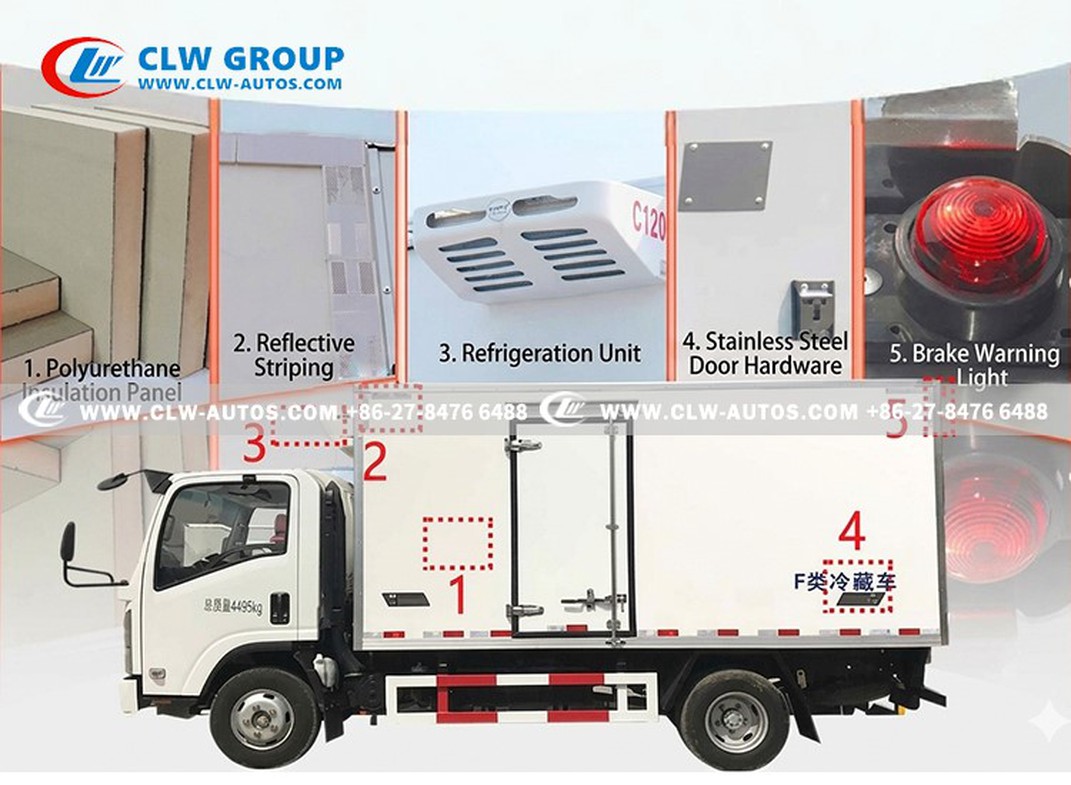

HOWO AWD 6Ton Refrigerator Truck

Manufacture Technology





Refrigerated Truck Technology



cool Refrigerated Trucks

Refrigerated Box Manufacturing Process

The cargo box is constructed with inner and outer FRP (fiberglass reinforced plastic) skins. Environmentally friendly thermal insulation wood panels are mounted on the galvanized steel frame, with an 8cm thick polystyrene (EPS) insulation core filling the cavity.

Refrigerated cargo box Truck

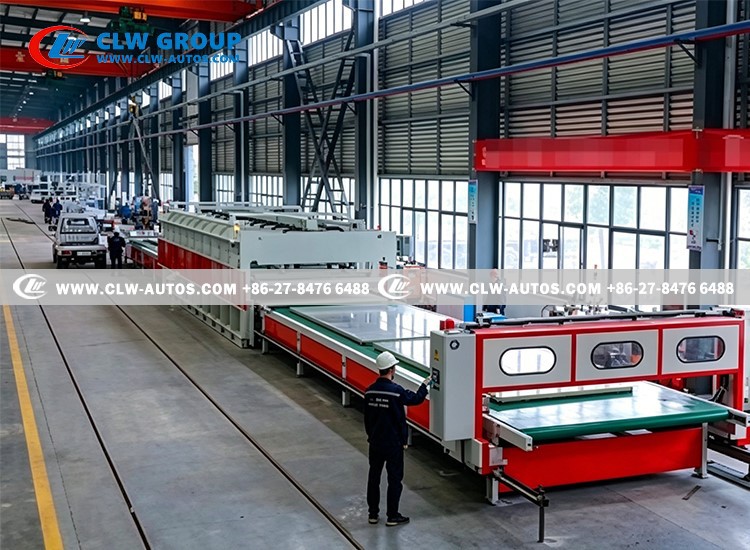

Advanced Hot Press Equipment



It adopts the 18-meter-long, most advanced automatic glue-spraying and heating positive pressure table. The system heats while pressing the panels, ensuring even force distribution. This allows the resin adhesive to bond perfectly with the FRP skins inside the panels.

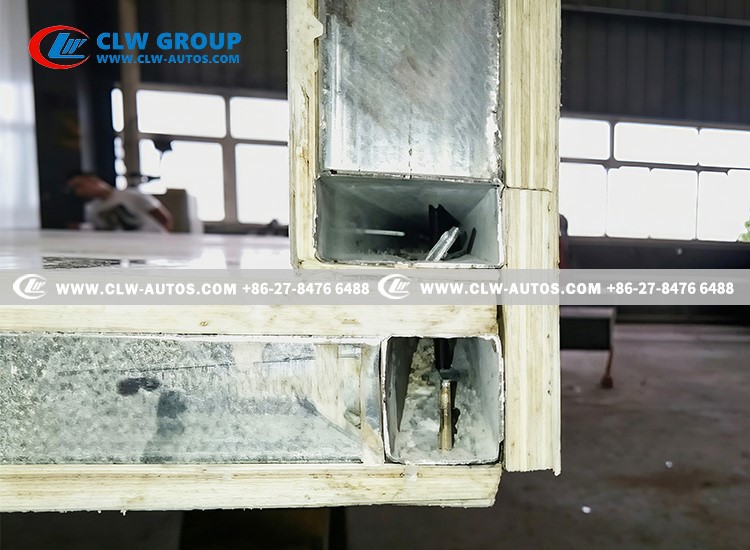

5ton reefer truck

High-strength Screw Connection

The cargo box panels are assembled using 8mm high-strength bolts. The exterior is reinforced with aluminum profile trim and stainless steel rivets. This construction ensures a more robust, durable cargo body that adapts to various terrains and environments.

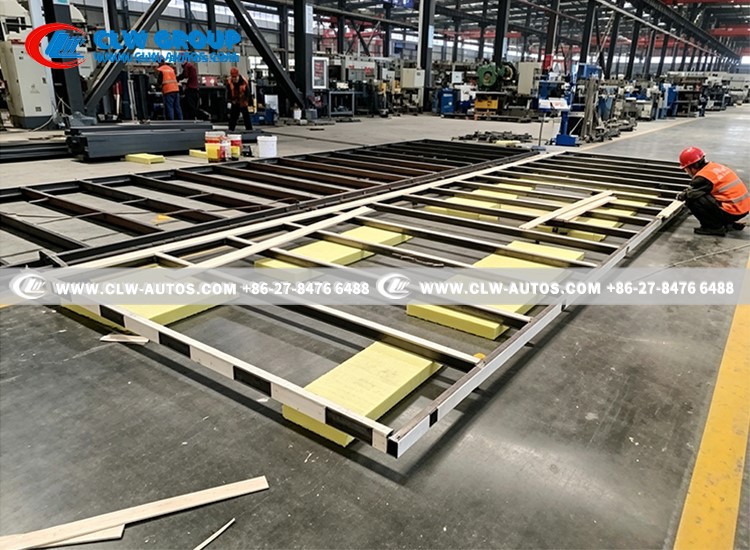

Refrigerated Truck

Thermal insulation Material & Structure

The floor uses eco-friendly waterproof wood panels reinforced with galvanized steel pipes for high load capacity. After hot pressing, panels are seamlessly joined, with all seams fully filled with structural adhesive for superior insulation and durability.

Products Delivery



Packaging & shipping

There are various modes of transportation for you to choose from!

truck shipping loading by container
by 20" or 40" container
truck shipping by bulks
by bulk carrier
truck shipping by frame
By Flat Rack
truck shipping by Ro-ro
By Ro-ro ship
