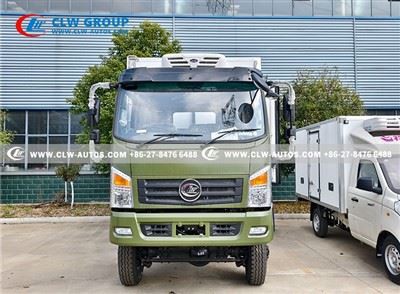

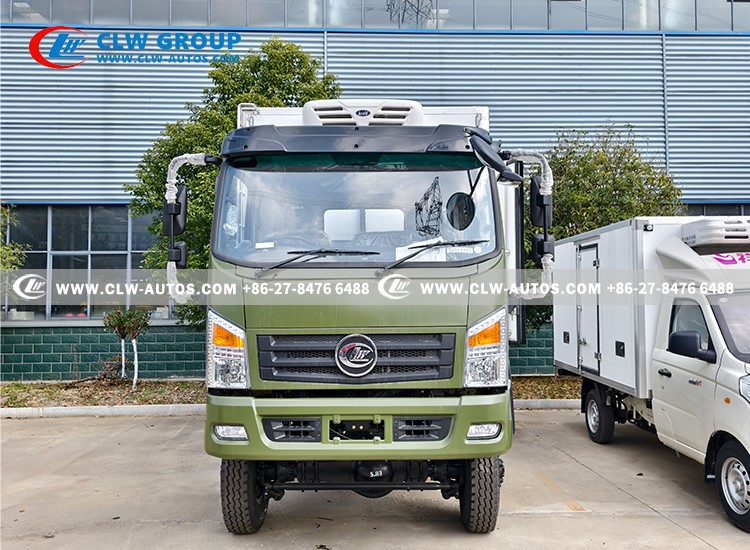

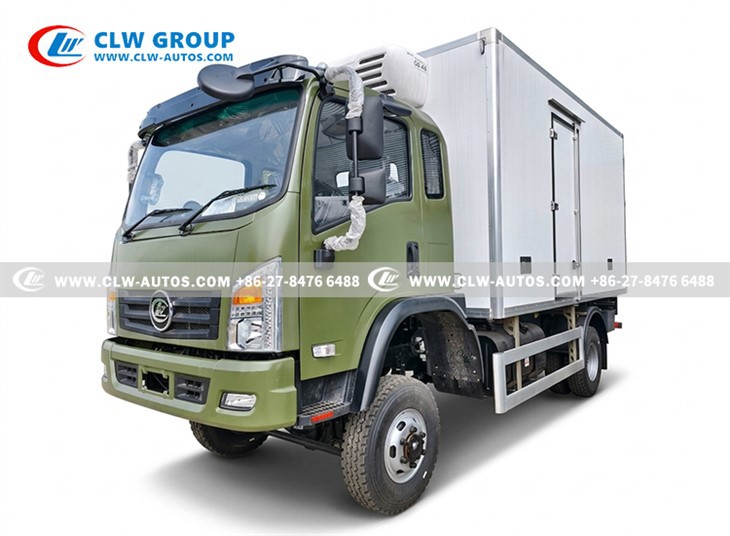

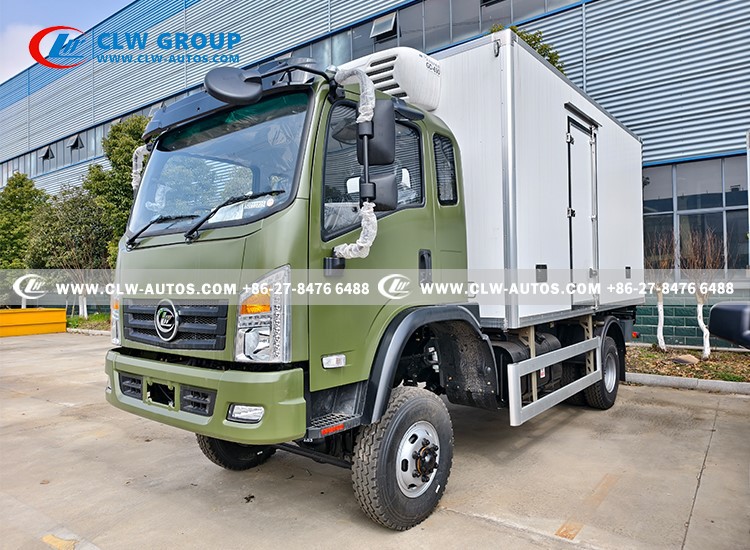

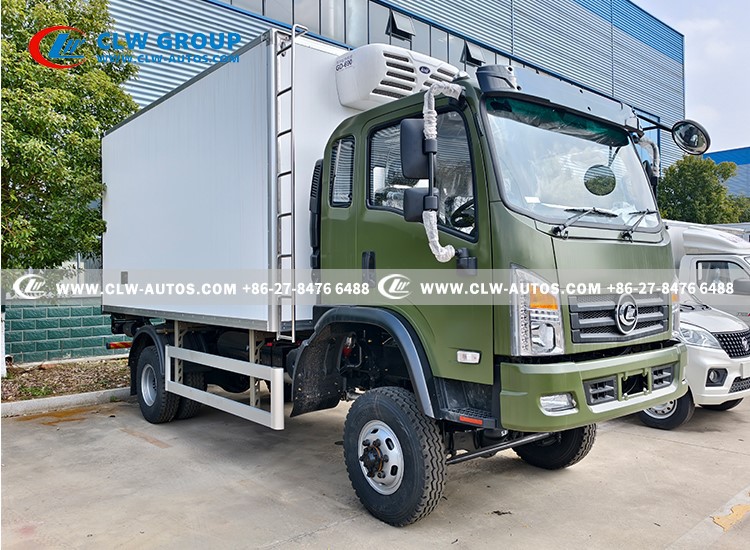

4X4 5Tons Refrigerated Truck
4X4 All-Wheel Drive Chassis
Yuchai 160HP Diesel Engine
Kcold GD-690 Reefer

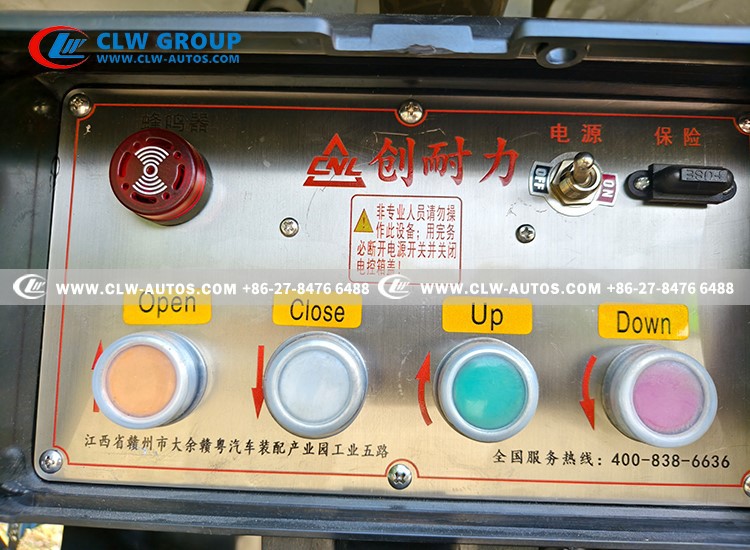

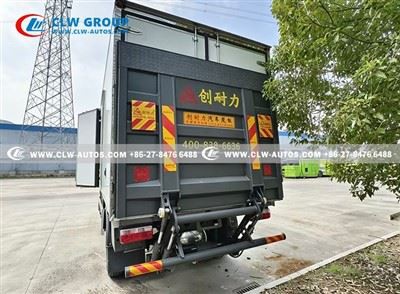

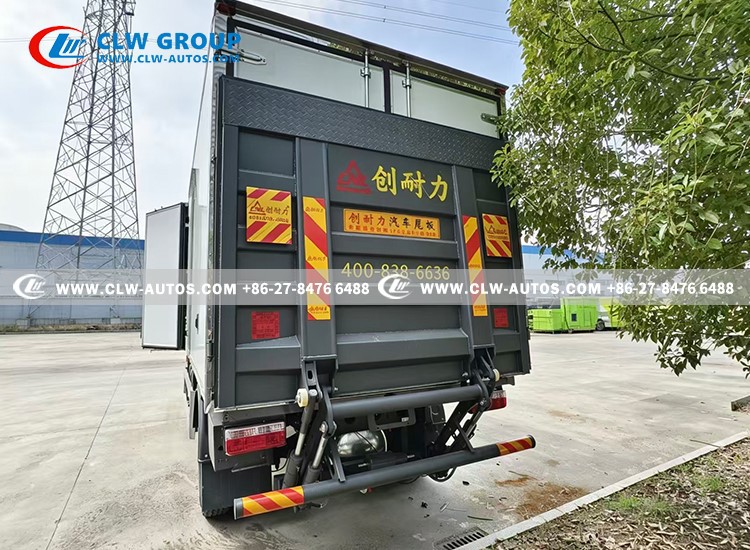

1.5-Ton Hydraulic Tail Lift At Rear
24V Electrical System

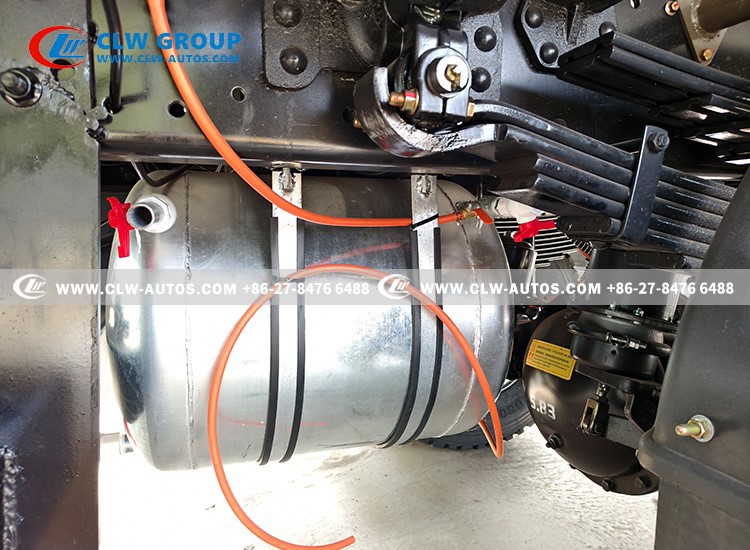

Water Tank Mounted on the chassis

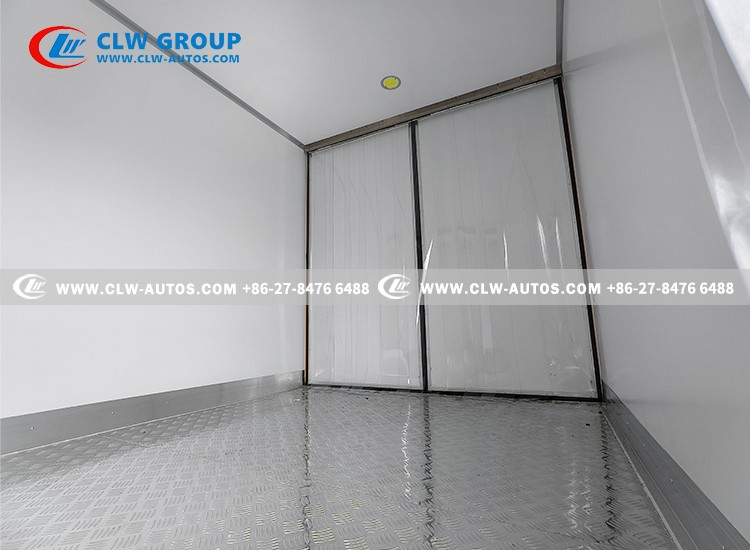

Aluminum Anti-slip Plate Floor In the Van

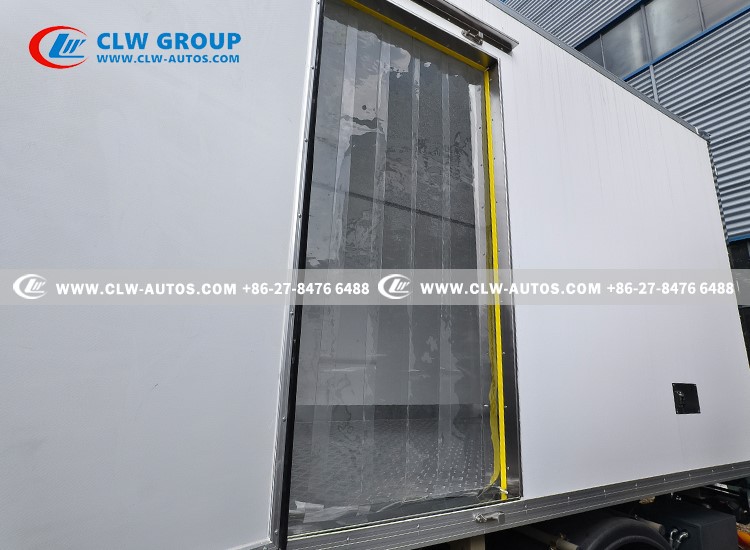

Transparent rubber curtain at the doors
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x4 5tons refrigerated truck in China. If you're going to buy high quality 4x4 5tons refrigerated truck, welcome to get more information from our factory. For price consultation, contact us.
All Wheel Drive 4.2m length Freezer Truck
The 4X4 refrigerated truck is a special type specially designed for harsh road conditions !
Products Description
1.4X4 Off-Road Chassis ：
The 4x4 off road refrigerated box truck is a cold-chain transport vehicle specifically engineered for complex road conditions. Built on a 4×4 all-wheel-drive, RHD (Right-Hand Drive) chassis and powered by a robust 160HP Yuchai YCD4P32-160 engine, it delivers exceptional driving power and superior off-road passability.

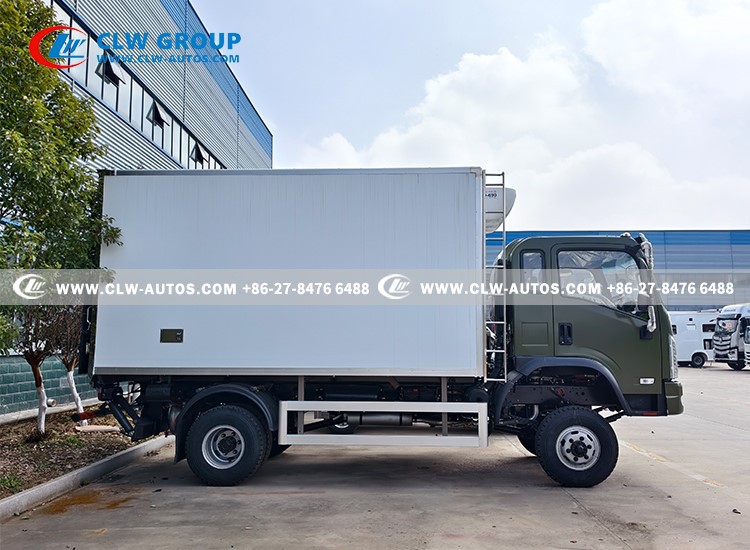

2. Cargo Box Dimensions & Loading Capacity :
- Cargo Box Length:
The length of this cargo compartment is approximately 4.2 meters.
- Loading Volume：
The internal volume of the cargo box is approximately 15 to 18 cubic meters.
- Applicable Cargo Types
High-Density Heavy Cargo : For transporting heavy items such as frozen meat, seafood, and ice blocks.
Light & Bulky Cargo / Perishables : Suited for leafy vegetables, fresh fruits, bakery products, and pharmaceutical foods.
3. Non-Independent Unit Advantages :
- Working Principle :
The unit is connected directly to the chassis's 160HP Yuchai engine via a drive belt. As long as the truck engine is running, it drives the reefer compressor to generate refrigeration.
- Technical Advantage :
160HP Yuchai engine driving this heavy-duty reefer eliminates any "underpowered vehicle with oversized load" issues. It delivers an ultra-fast pull-down/cooling speed.
- Temperature Range :
According to the technical specifications of the GD-680, it features advanced deep-freezing capabilities, allowing the internal box temperature to drop down to -15℃ to -18℃ or even lower.
- Applicable Goods :
It can easily transport temperature-critical products such as frozen meats, ice cream, and quick-frozen seafood. Additionally, the temperature can be modulated to 0℃-5℃ via the control valves for transporting fresh fruits, vegetables, or medical vaccines.
Key Vehicle Specifications:
Overall Dimensions: 5995×2300×3300 mm
Drive type: All wheel drive/ RHD

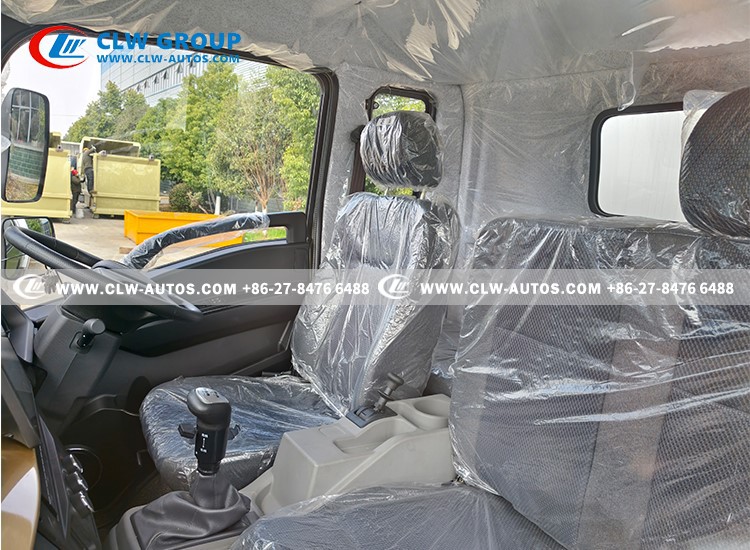

Cab: Single row cabin, 1drive + 2 passenger seat
Wheelbase: 3360 mm
Engine: YCD4P32-160
Horsepower: 160HP
Emission standard: Euro II
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 7000 kg
Curb weight: 4000 kg
Loading weight: 3000 kg
Suspension: Front/Rear Multi-leaf Spring
Tires: 8.25R16, 6 pcs with one spare
Fuel Tank: 120L steel material
Related Operational Video
The Main Applications
Products Parameters
| Van Box Specifications | |
| Box Dimension | Internal Size: 4150 x 2100 x 2000mm |
| Box Material |
Inner: 80mm Premium Nano Fiberglass (High hardness, anti-oxidation, non-light absorbing); Middle: 80mm Void-free filled polyurethane foam + WISCO rust-proof light steel skeleton; Outer: 80mm Premium Nano Fiberglass (Excellent heat insulation & weather resistance) |
| Flooring |
Surface layer: Heavy-duty anti-slip aluminum checker plate (Withstands hydraulic pallet jacks); Inner layer: Waterproof plywood base + high-density polyurethane insulation layer |

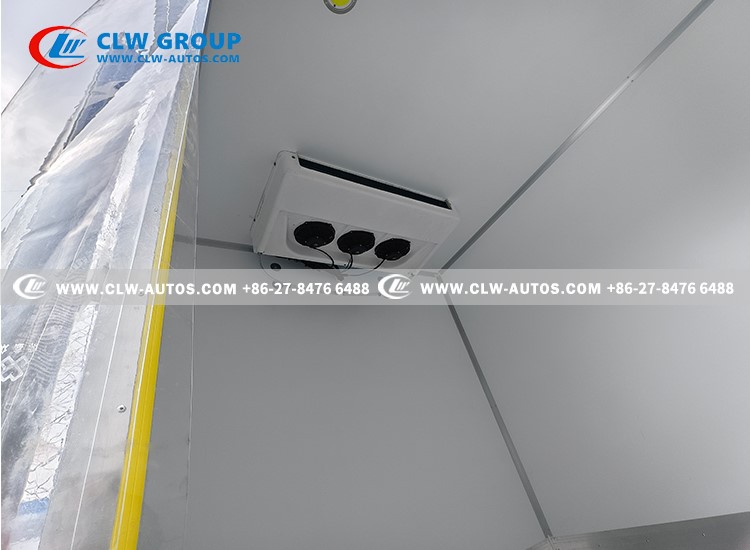

| Refrigerator Unit |
Brand/Model: Kcold / GD-680 (or GD-690); Type: Non-independent unit ; Temperature: Down to 5°C ~ -18°C |
| Side Door | Left/Right side optional, 1.2m width, equipped with food-grade multi-layer sealing strips and heavy-duty stainless steel door locks. |
| Rear Door | Full-size double-opening rear door with thickened heavy-duty stainless steel hinges and lock rods. |
| Marker Light | 2 sets of White LED marker lights on front; 2 sets of Red LED marker lights on rear. |
| Ceiling Light | 2 sets of 24V waterproof high-brightness LED ceiling lights. |
| Door frame & lock | Full Stainless steel material, thickened heavy-duty grade, corrosion-resistant and rust-proof. |
| Drainage | 2 drainage holes with one-way sealing valves located at the front corners of the floor. |
| Other equipment |
1. Dual-use units for cooling and heating (For winter/high-altitude medicine or fruit transport); 2. Hydraulic lifting tailgate (1.5-Ton capacity, 24V 2.5kW motor) ; 3. Chassis-mounted pressurized aluminum water tank ; 4. Transparent PVC rubber curtains for side & rear doors . |
Reference Picture

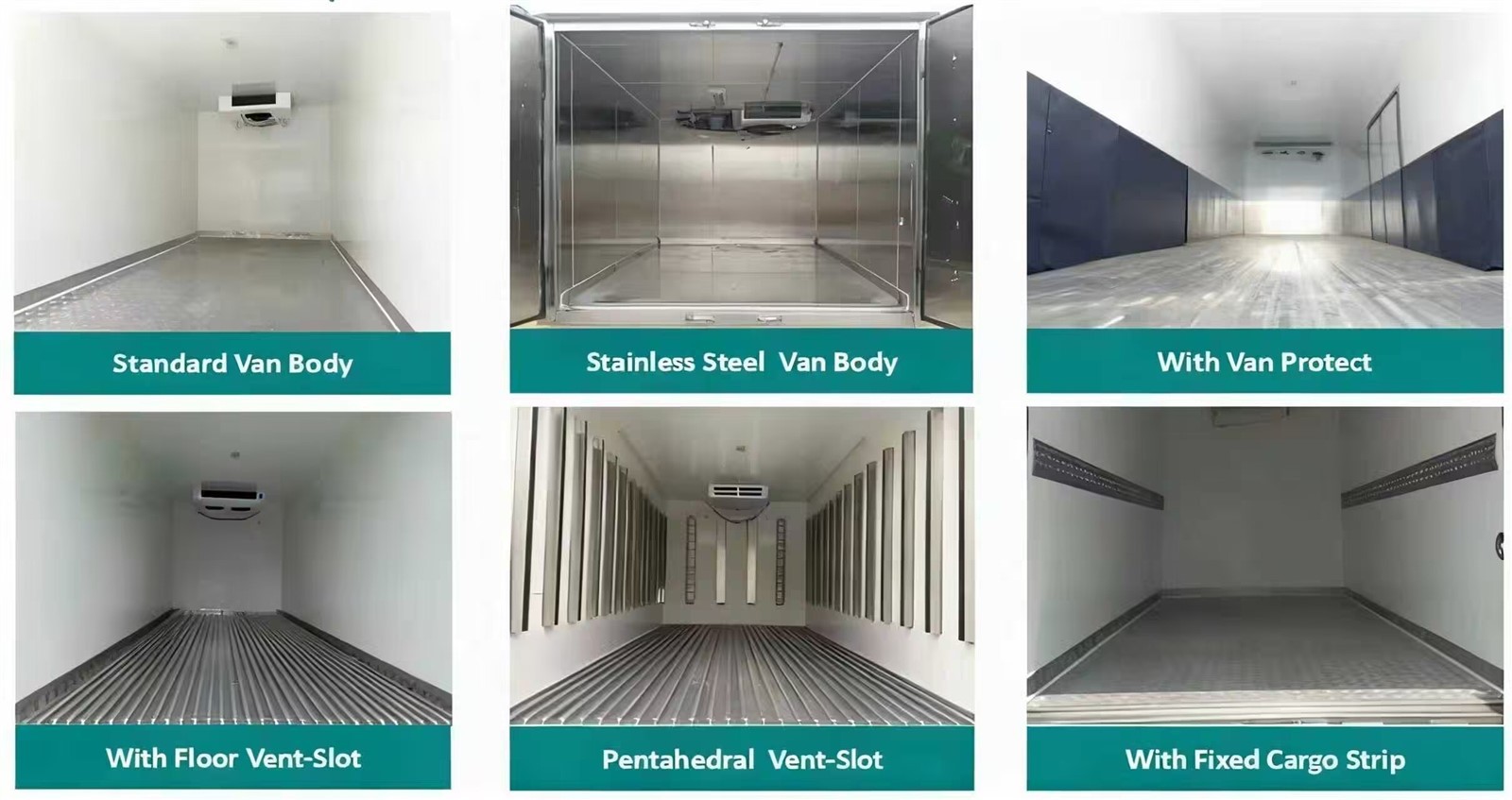

Optional Configurations
Other Optional Configurations For Refrigerated Truck
Manufacture Technology
Refrigerated Truck Technology
Refrigerated Box Manufacturing Process
The cargo box is constructed with inner and outer FRP (fiberglass reinforced plastic) skins. Environmentally friendly thermal insulation wood panels are mounted on the galvanized steel frame, with an 8cm thick polystyrene (EPS) insulation core filling the cavity.
Advanced Hot Press Equipment
It adopts the 18-meter-long, most advanced automatic glue-spraying and heating positive pressure table. The system heats while pressing the panels, ensuring even force distribution. This allows the resin adhesive to bond perfectly with the FRP skins inside the panels.
High-strength Screw Connection
The cargo box panels are assembled using 8mm high-strength bolts. The exterior is reinforced with aluminum profile trim and stainless steel rivets. This construction ensures a more robust, durable cargo body that adapts to various terrains and environments.
Thermal insulation Material & Structure
The floor uses eco-friendly waterproof wood panels reinforced with galvanized steel pipes for high load capacity. After hot pressing, panels are seamlessly joined, with all seams fully filled with structural adhesive for superior insulation and durability.
Products Delivery
Packaging & shipping
There are various modes of transportation for you to choose from!
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
