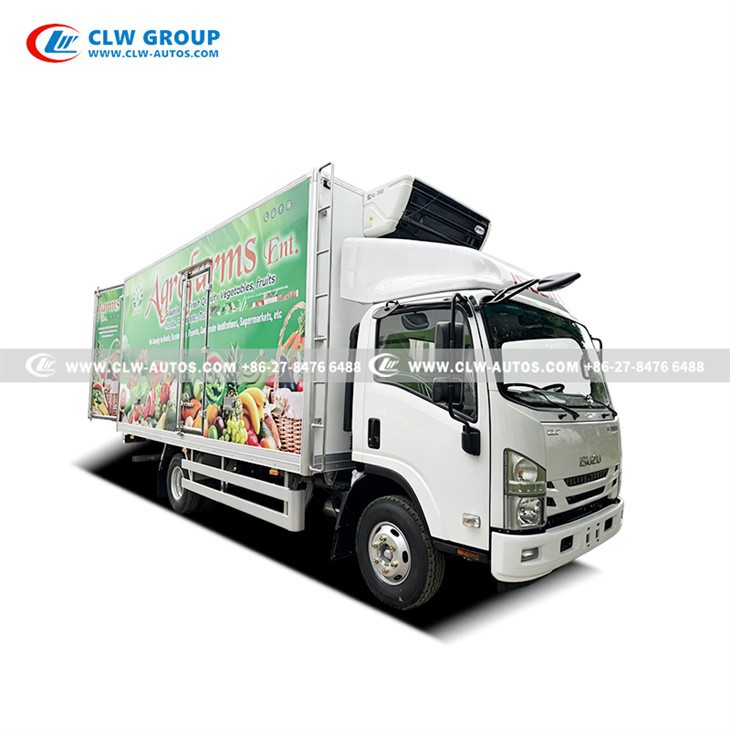

Ghana ISUZU 5Ton Refrigerator Truck

Drive Type: 4x2
Wheelbase: 3815mm
Engine Power: 132hp
Loading Capacity:5~8Ton
With KL Refrigerator
Exported to Ghana

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of ghana isuzu 5ton refrigerator truck in China. If you're going to buy high quality ghana isuzu 5ton refrigerator truck, welcome to get more information from our factory. For price consultation, contact us.

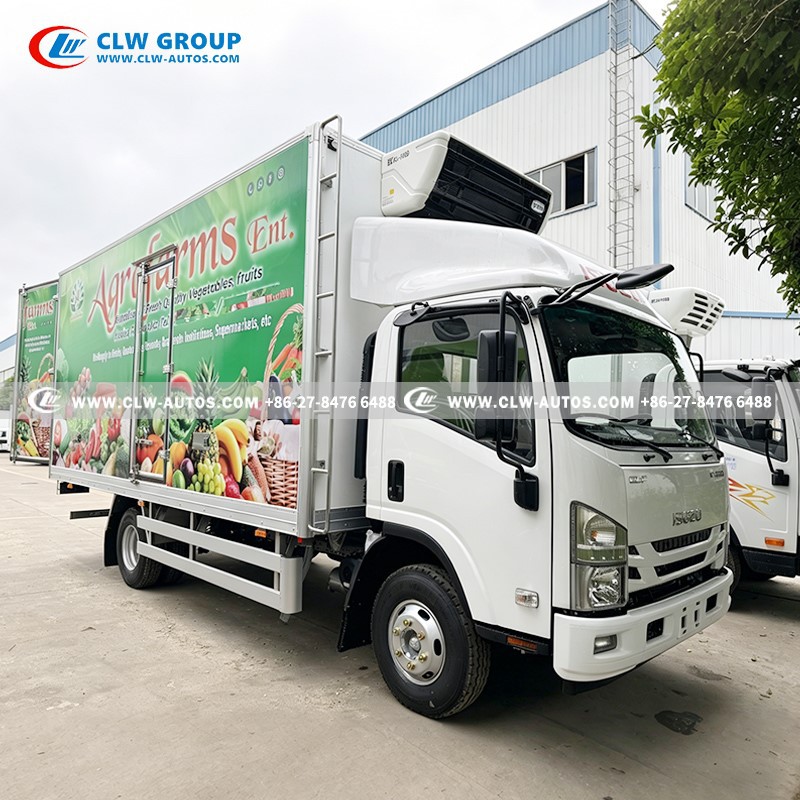

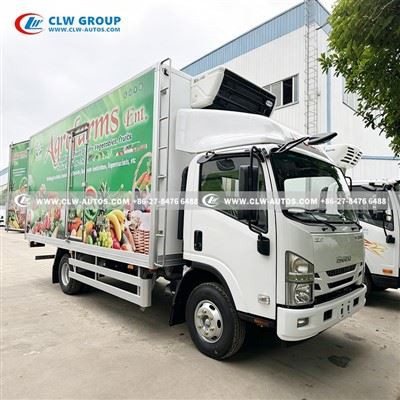

ISUZU 4X2 KV600 5Ton Refrigerated Truck With KL Refrigertor - Exported To Ghana

Products Description

our Truck

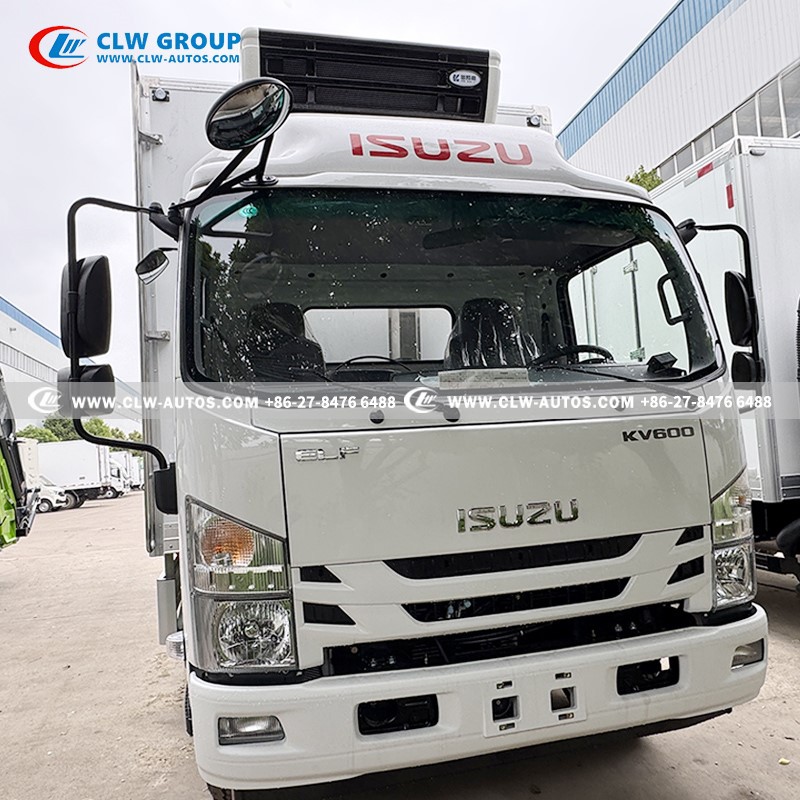

ISUZU KV600 cabin

Reliable power, excellent fuel economy
Equipped with a 132-horsepower Isuzu engine, it delivers stable power output and outstanding fuel efficiency, making it highly suitable for medium- and short-distance transportation under Ghana's complex road conditions. The engine features mature technology, ample spare parts supply, and extensive coverage of local maintenance service networks, resulting in a low failure rate and high operational uptime, effectively reducing operating costs.
Strong load capacity, high durability
Built on a 3815mm wheelbase light truck platform, it incorporates a high-strength frame and reinforced leaf spring suspension, providing exceptional heavy-load capability. Even on Ghana's rough rural roads, it can steadily carry fully loaded cargo, minimizing damage to the cargo box and refrigeration system caused by bumps and vibrations.
High brand recognition
Isuzu has a long-standing reputation in the African market, with users widely recognizing its "rugged and durable" quality. It also enjoys high resale value, making it a low-risk investment choice for local logistics companies.

KL-700D refrigerator

Strong Forced Cooling Capability for High-Temperature Environments
The cooling unit is specifically designed for tropical climates, offering high refrigeration efficiency. It can rapidly lower the temperature inside the compartment to the set value. Even in Ghana's high-temperature environment exceeding 30°C, it maintains stable temperature control, reducing spoilage of perishable goods such as fruits, vegetables, and meat-directly addressing a key pain point in the local cold chain transportation.
Stable Operation and Easy Maintenance
Equipped with imported core compressors, the unit features a low failure rate, strong corrosion resistance, and excellent vibration resistance, making it well-suited for Ghana's humid and dusty transport environment. Additionally, it supports one-click defrosting and self-diagnostics, simplifying routine maintenance and reducing the need for highly skilled local technicians.
Precise Temperature Control to Ensure Food Quality
The system achieves precise temperature control within ±1°C, meeting the diverse temperature requirements for fresh and frozen foods in the Ghanaian market. This minimizes the risk of spoilage caused by temperature fluctuations, thereby reducing economic losses for customers.

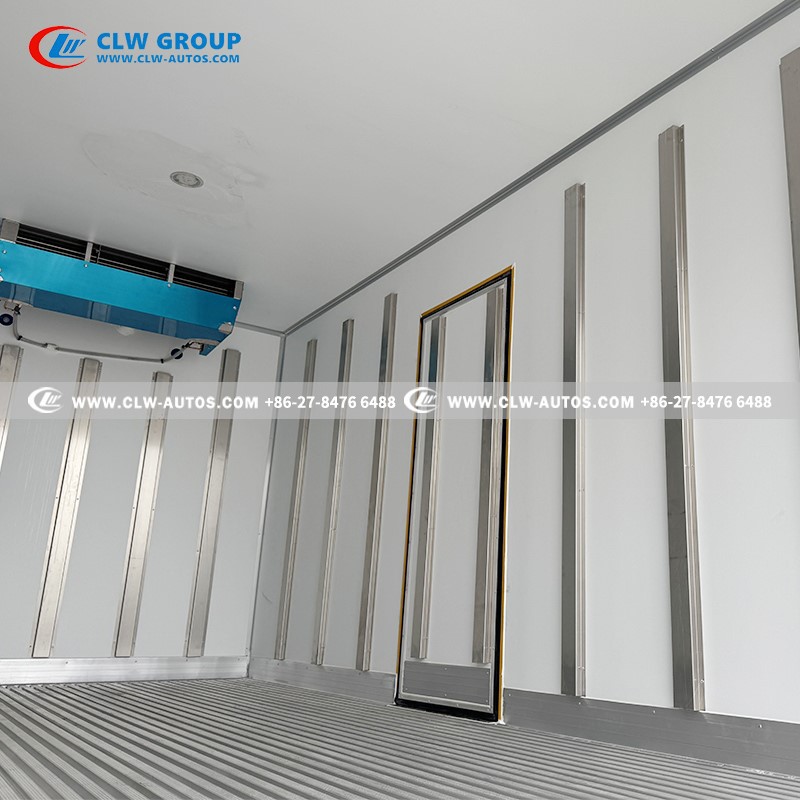

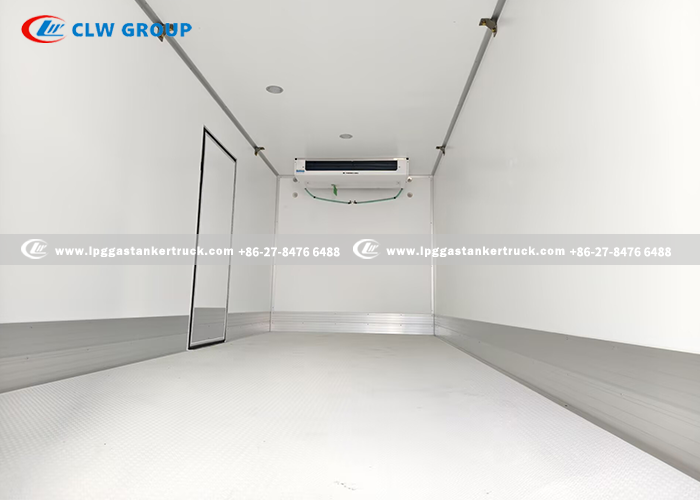

Aluminum alloy ventilation guide rails

Promote cold air circulation to ensure uniform temperature.
After the cold air is blown out from the ceiling cooler, it flows along the sidewall guides and bottom ventilation channels to form a complete air circulation loop. This allows the cold air to evenly reach every corner of the compartment, preventing localized temperature fluctuations. It is especially suitable for transporting temperature-sensitive goods such as fruits, vegetables, and pharmaceuticals.
Protect the compartment body and prevent cargo from freeze damage or contamination.
The guides keep the cargo separated from the compartment walls, preventing direct contact with cold surfaces, which could cause freeze damage, moisture absorption, or contamination by condensation. Additionally, they reduce impact damage to the compartment walls during loading and unloading.
Adapt to special transport requirements.
These guides can also be fitted with meat hooks for transporting fresh meat. At the same time, they meet the GSP pharmaceutical transport requirement that "cargo must maintain a safe distance from the compartment walls," offering strong versatility.

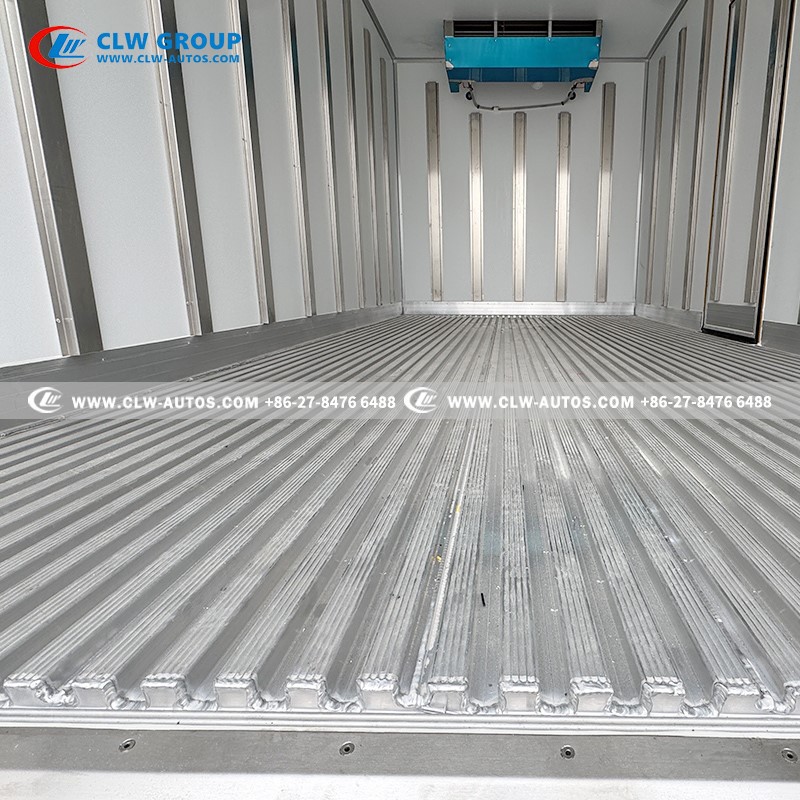

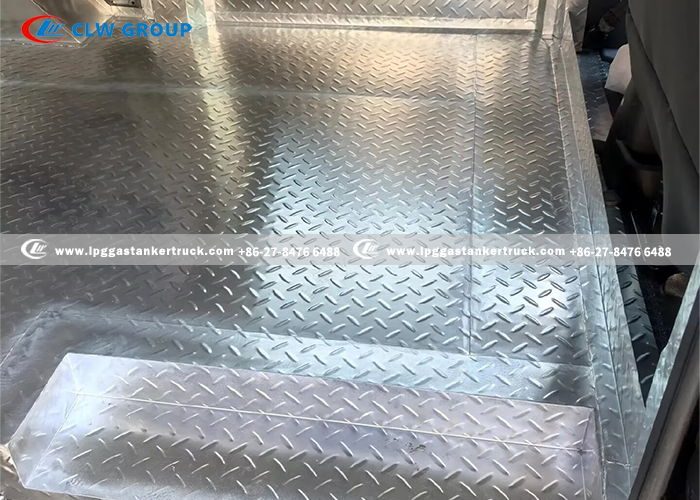

Aluminum alloy ventilation trough

Ensure proper cold air circulation and uniform temperature inside the container.
The cold air from the refrigeration unit flows along the grooves of the ventilation channel, creating a complete "bottom-in, top-out" airflow loop. This prevents the cargo at the bottom from blocking the cold air pathway, allowing the cold air to evenly cover every part of the container, eliminating local temperature differences, and preventing cargo spoilage due to uneven temperatures.
Raise the cargo to avoid moisture or frost damage.
The ventilation channel separates the cargo from the cold container floor, preventing direct contact that could cause frost damage, while also keeping the cargo away from condensation or melted ice water, maintaining a dry interior.
Non-slip, wear-resistant, and easy to load and unload.
The raised patterns on the surface increase friction, preventing cargo from sliding or shifting during transport. Additionally, the high-strength aluminum alloy material is impact-resistant, corrosion-resistant, and facilitates the use of forklifts and manual pallet jacks inside the container, extending the service life of the container.

5ISUZU 4x2 KV600 5Ton Refrigerator Van Truck

Products Video

Products Parameters

Chassis Specification
Chassis Model	QL1080
Driving Model	4x2
Dimension	7120 x 2510 x 3460 mm
Cab	Original KV600 Wide cabin With air conditioner Central locking Power windows and doors Multi-function LCD instruments
Wheelbase	3815 mm
Gross vehicle Weight	8000 kg
Curb Weight	5020 kg
Front Axle Loading Capacity	3000 kg
Rear Axle Loading Capacity	5500 kg
Axle Number	2
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4KH1CN6HB
	Horse power: 132 HP
	Displacement: 2999 ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	6 Forward & 1 Reverse
Tire	7.00R16
Tire	6pcs with 1 spare tire
Fuel Tank Capacity	100 L
Refrigerated Compartment Body
Van Body Size (LWH)	5150 x 2300 x 2300 mm
Van Body Material	Extruded Polystyrene Sheet - XPS
	Polyurethane - PU
	Fiber Glass - FPR
Van Body Thickness	80mm / 100 mm
Refrigerator	KL-700D
Temperature	-20 ~ 12 ℃
Optional Configuration	Ventilation Slot
	Both Sides Fixing Slot
	Top-hook / Rail
	Hydraulic Tailgate - Carbon Steel / Aluminum Alloy

Optional - Products Detailed Specifications

Truck Plate Meterial

Aluminium Alloy

Core Uses: General-purpose cold chain transportation, especially for short- and medium-distance delivery of fruits, vegetables, food, and general fresh produce.

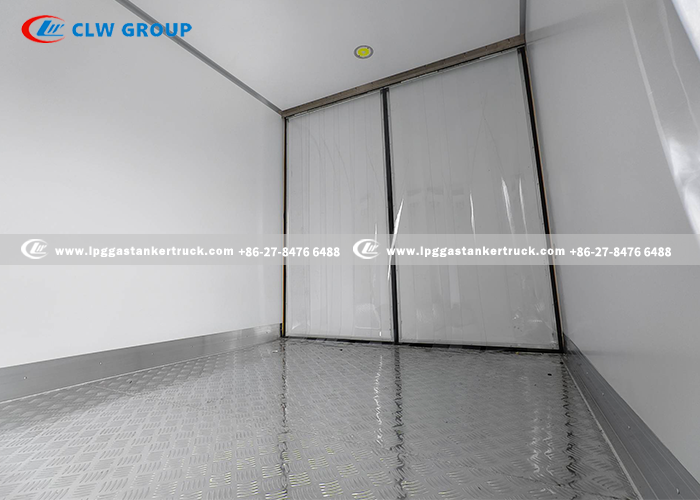

Surface Plate

Core Uses: Standard lightweight refrigerated transportation, commonly used for pharmaceuticals, dry goods, and transportation of goods with high hygiene requirements but no heavy cargo.

Stainless Steel

Core uses: Heavy-duty, corrosive, and high-hygiene-requirement special cold chain transportation.

Optional - Door/ Hydraulic Board

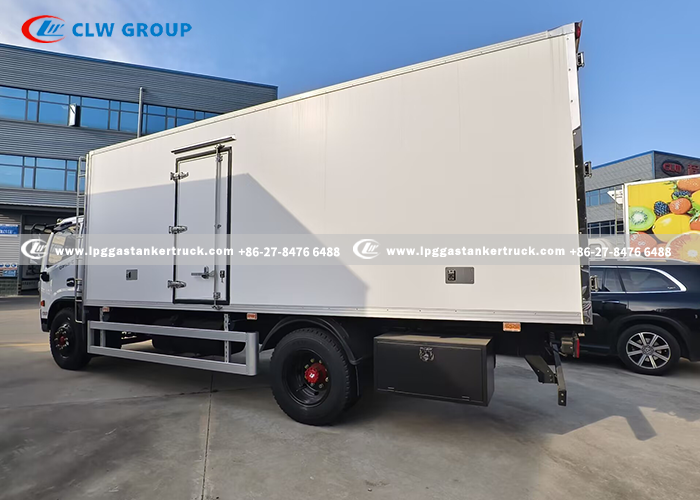

Side Door (Left/Right)

Improve loading and unloading efficiency and reduce door opening time.
Adapt to confined spaces.
Partial loading and unloading reduces temperature fluctuations.

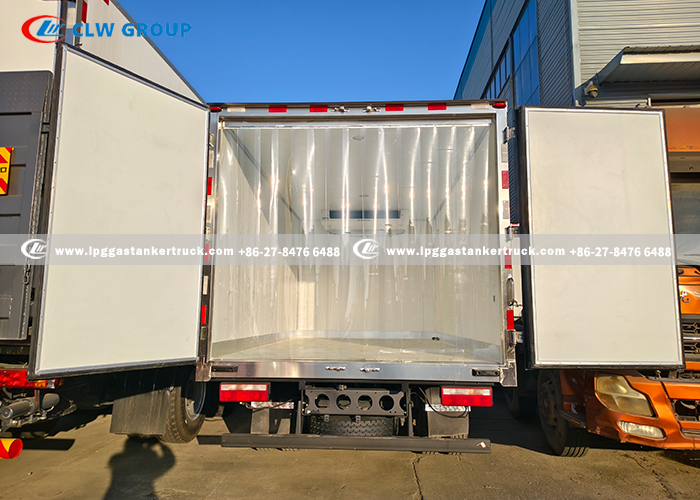

Transparent Fabric Curtain

Effectively blocks the exchange of hot and cold air, reducing refrigeration unit load.
Reduces condensation and icing inside the compartment.

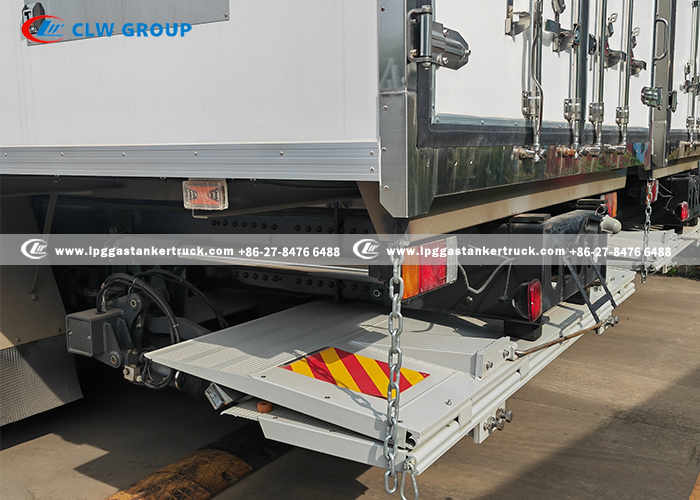

5isuzu 8x4 refrigerated truck with folding tailplate

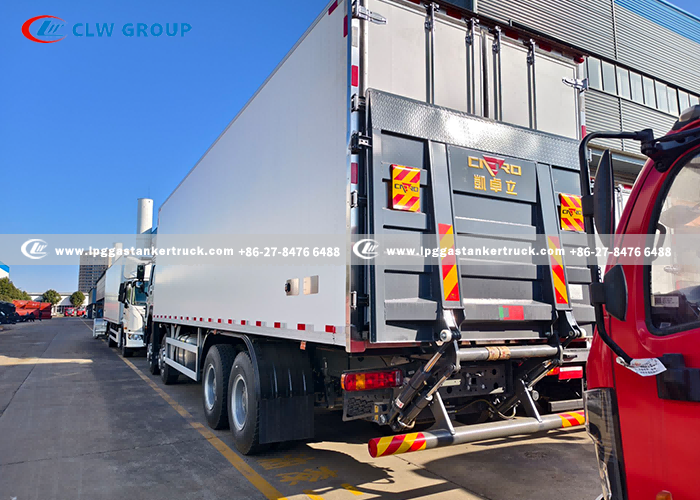

Hydraulic Folding Board

No loading/unloading platform required, maximizing site adaptability.
Significantly improves loading and unloading efficiency and reduces door opening time.
