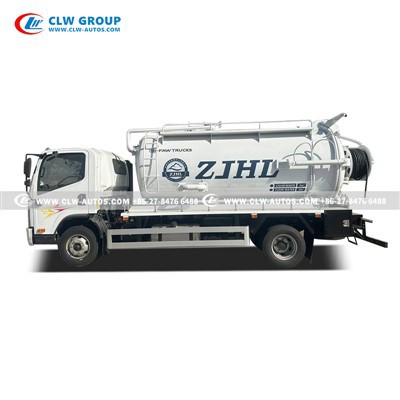

Vacuum Sewer Cleaning Truck 7cbm

5,000 L sewage tank + 2,000 L water tank
Vacuum suction and high-pressure cleaning
Jurop vacuum pump, strong and reliable
German PINFL water pump
Rear hydraulic dumping system
Durable carbon steel tank
For sewer and sludge cleaning

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of vacuum sewer cleaning truck 7cbm in China. If you're going to buy high quality vacuum sewer cleaning truck 7cbm, welcome to get more information from our factory. For price consultation, contact us.

Products Description

This vacuum sewer cleaning truck is designed for efficient sewage suction and pipeline cleaning. It features a 5,000 L sewage tank and a 2,000 L clean water tank, combining powerful vacuum suction with high-pressure water flushing in one unit. Equipped with a Cummins diesel engine, a reliable Jurop vacuum pump, and a German PINFL high-pressure water pump, the truck delivers stable performance, easy operation, and high working efficiency. It is an ideal solution for municipal sanitation, septic tank cleaning, and industrial wastewater applications.

Main Features

High-efficiency vacuum suction system for sludge, liquid waste, and semi-solid materials

Clean water tank allows pipeline flushing and continuous operation

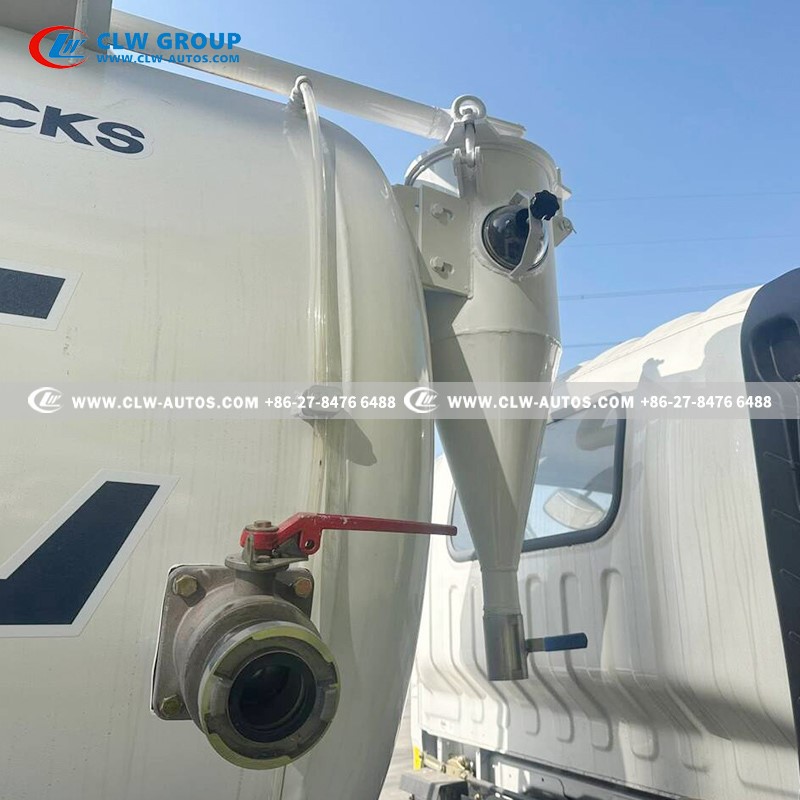

Cyclone oil-water separator protects the vacuum pump and extends service life

Vacuum pressure gauge for real-time working status monitoring

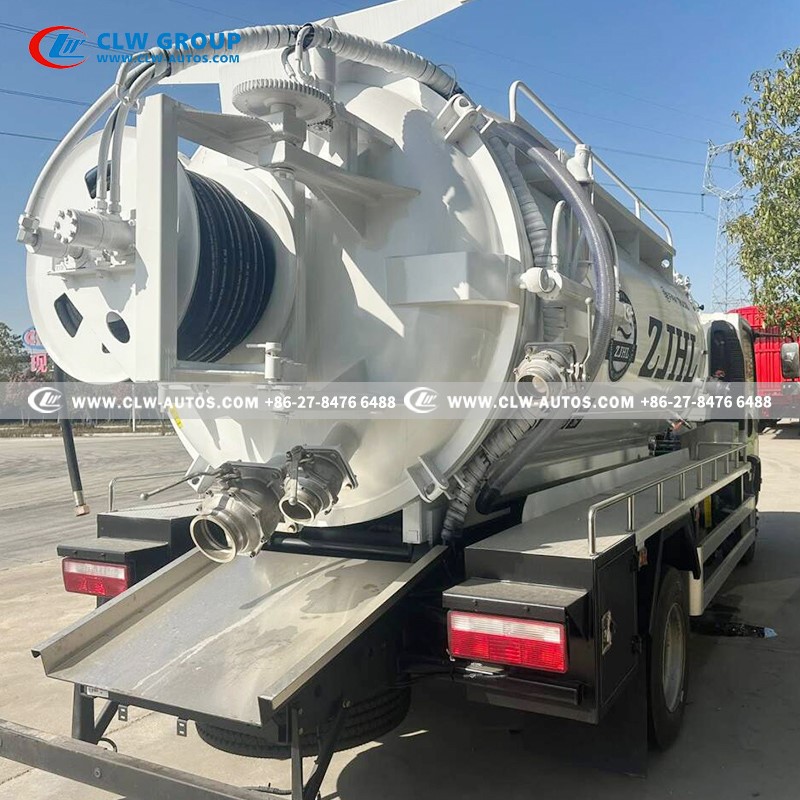

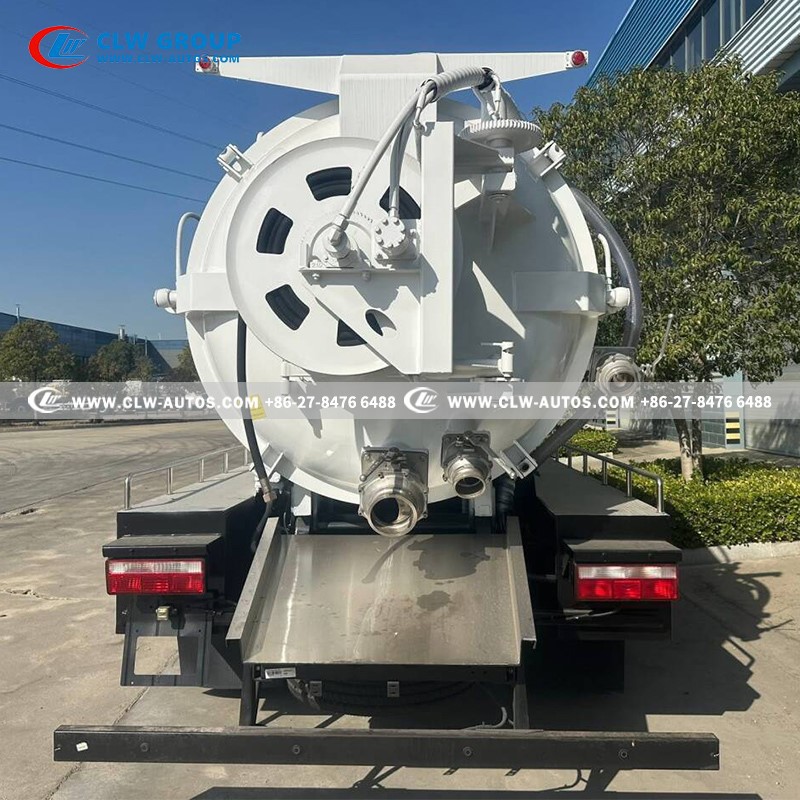

Large-diameter rear suction inlet with flexible hose reel

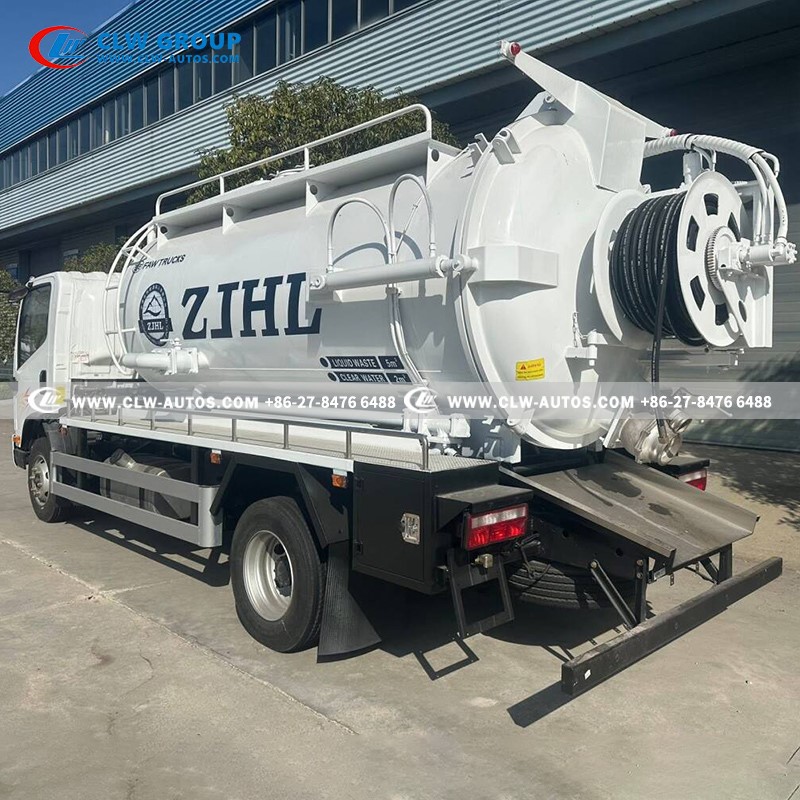

Rear working platform with safety handrails for safe and easy operation

Reliable pipeline and valve system, easy maintenance and long service life

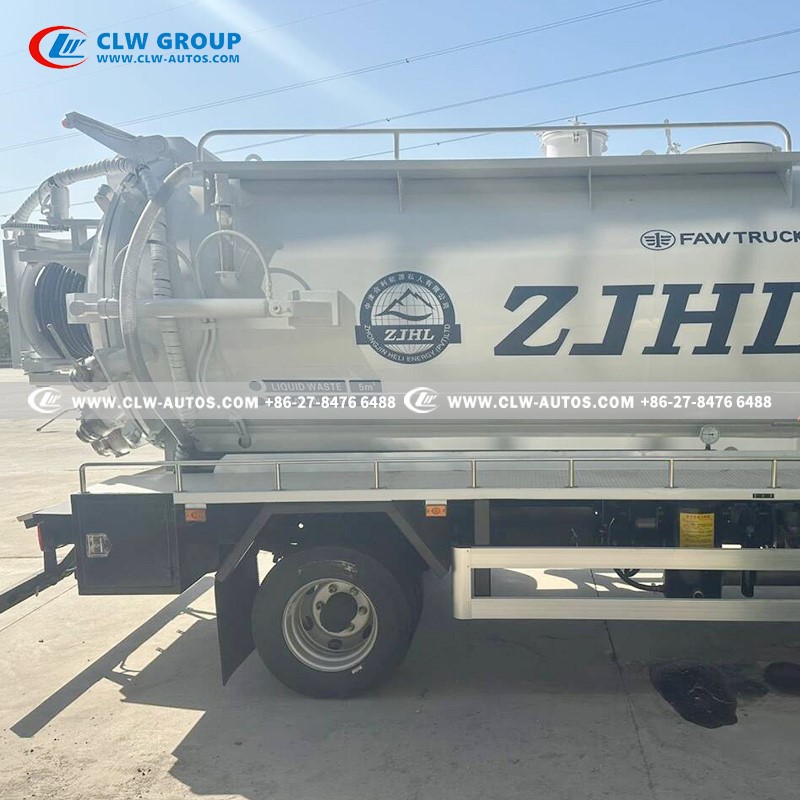

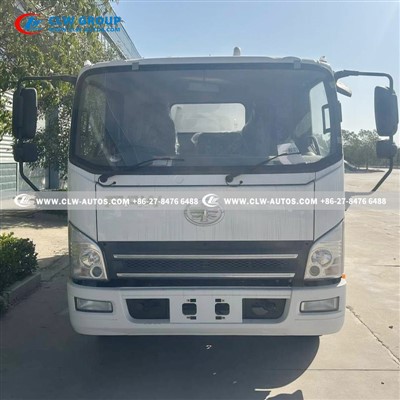

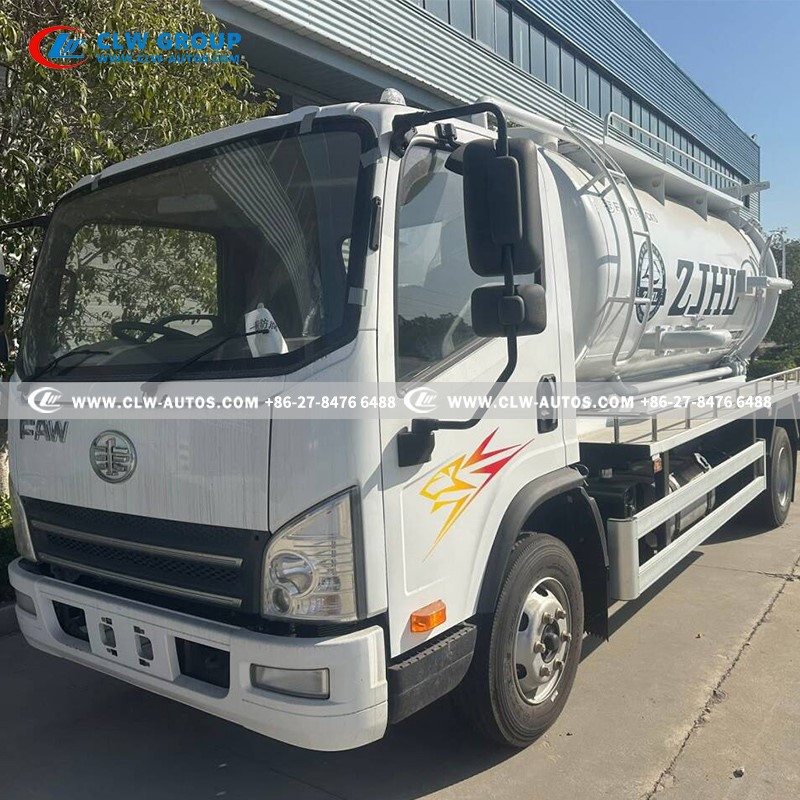

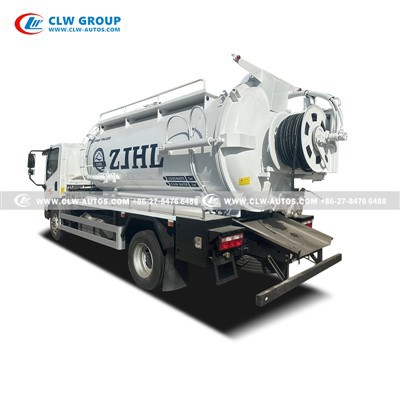

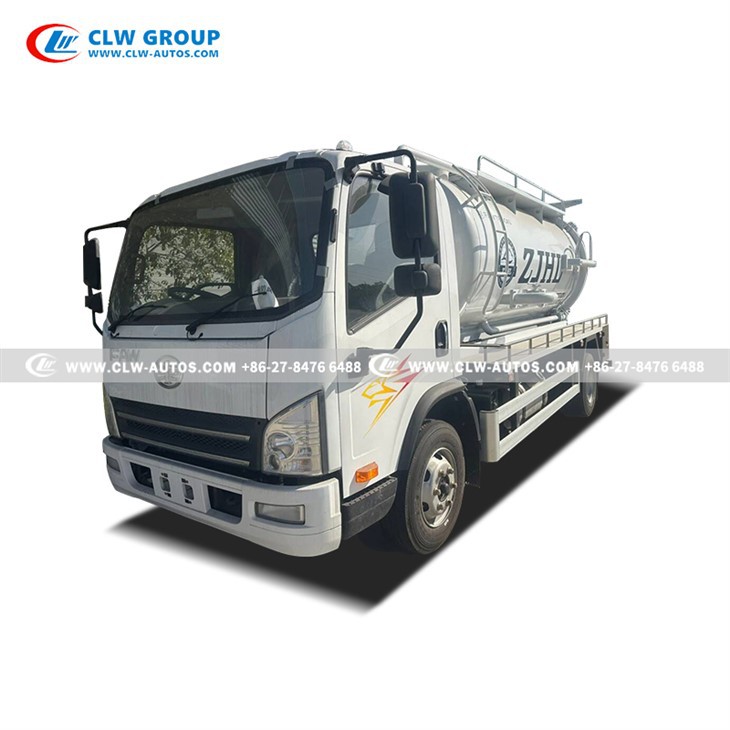

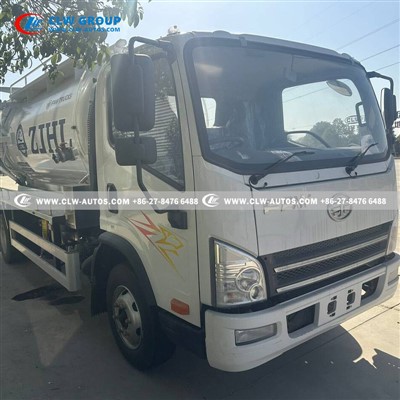

Products Reference image

Product Parameters

FAW 7000L combined jetting truck
Cab	Chassis Brand	FAW Tiger VH
	Overall Dimension	7250 x 2350 x 2580 mm
	GVW	112000 kg
	Axle loads	4000/7000 kg
	Cab Capacity	flat-roof, single-row cabin, with A/C direction assistance
Engine	Fuel Type	Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled
	Brand	Cummins
	Model	ISF3.8s5154
	Power	154 HP / 113kW
	Rated speed	2600rpm
	Max torque	491 N·m
	Max torque speed	1200-1900rpm
	Displacement	3.76L
	Emission Standard	Euro 5
Chassis	Drive Type	4x2, left hand drive or right hand drive option
	Transmission	Wanliyang 6G55, 6-speed manual
	Wheelbase	4200mm
	Number of axle	2
	Tyre Specification	235/75R17.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	110km/h
	Fuel tank	100L
	Paint	customization
Superstructure	Tank	Tank Capacity	5000L sewage tank,2000L cleaning water tank
		Tank Material	5mm carbon steel with antiseptic treatment
		Tank lifting angle	≥45°
	Vacuum Pump	Vacuum Pump	Jurop PN106D
		TYPE	Air cooled
		MAX Vacuum	92%
		Max Pressure	1.5 bar
		Power Vacuum Max.	Vacuum pump 13.6kW
	High cleaning water pump	Water pump brand	PINFL (German brand)
		Model	PF36
		Flow rate	122 L/min
		Rated pressure	16 Mpa
		Speed	800 r/min
		Power	50kw
	All standard accessories: manhole, tool kit, English manual.....
Hose Length	80m high pressure hose
Suction hose	8m
Discharge Method	Rear hydraulic opening and dumping
Suction Hose	Large-diameter suction hose with rear reel
Operation Type	Vacuum suction + water flushing
Optional	Tank material could be stainless steel. Chinese or Spain vacuum pumps
