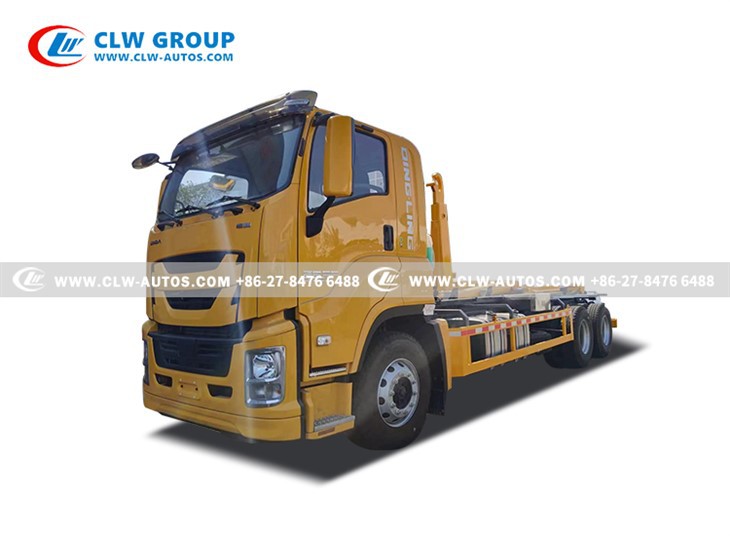

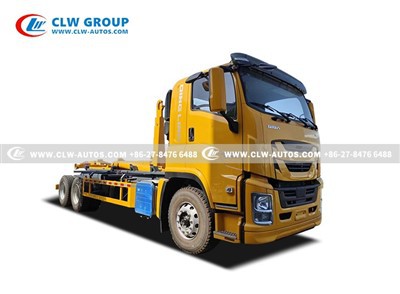

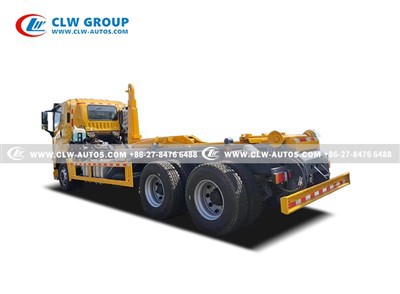

ISUZU 20m3 Hook Arm Garbage Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 20m3 hook arm garbage truck in China. If you're going to buy high quality isuzu 20m3 hook arm garbage truck, welcome to get more information from our factory. For price consultation, contact us.

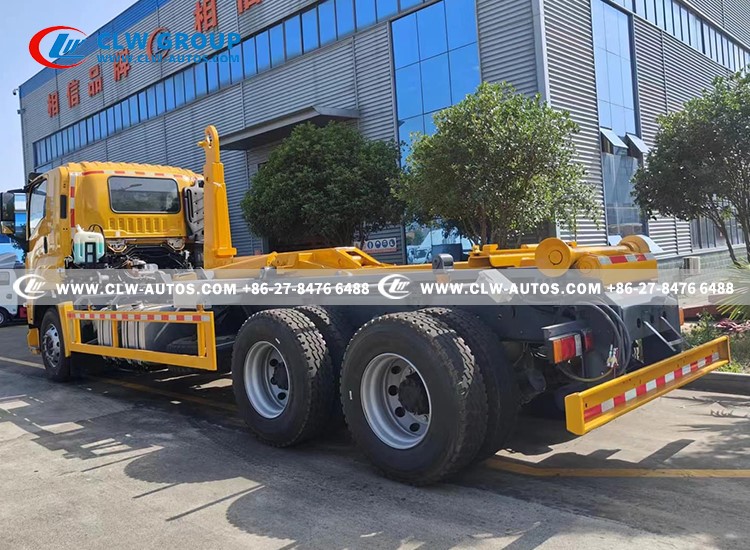

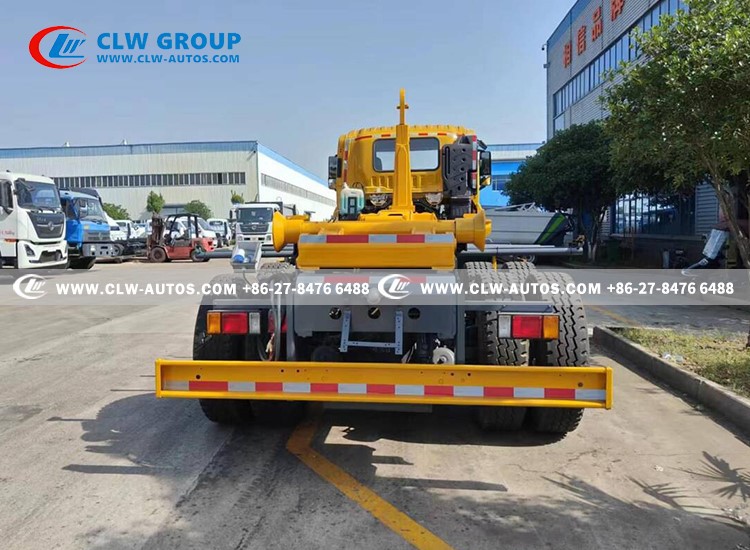

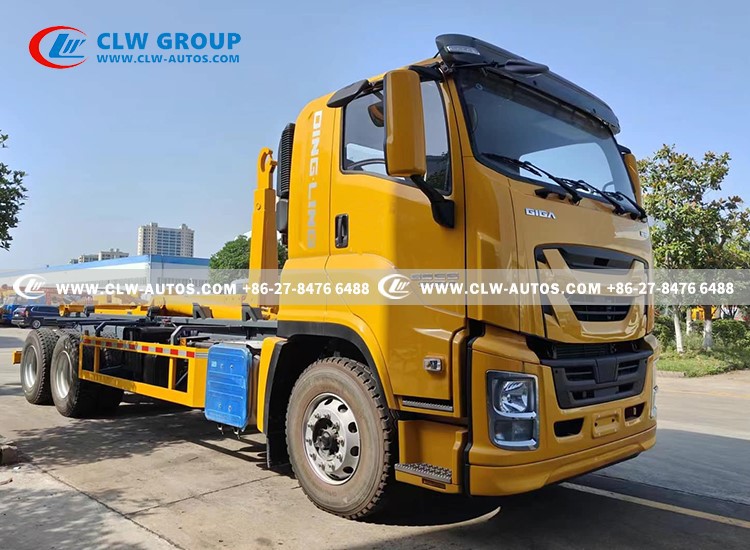

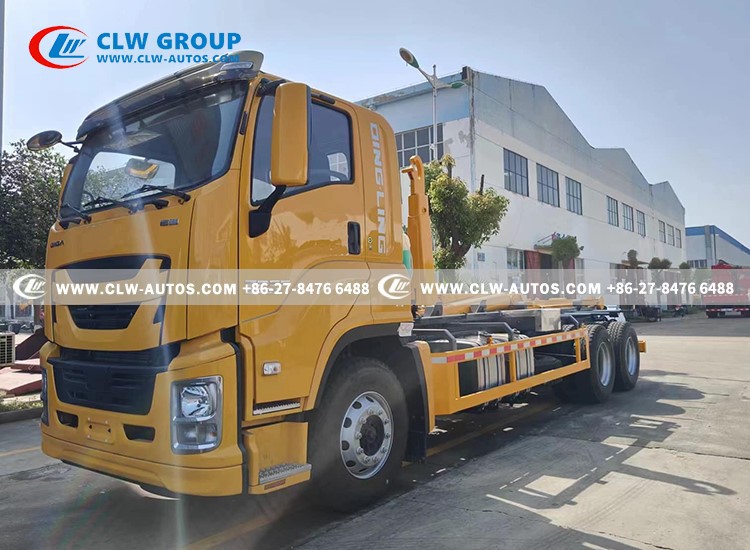

Japanese Brand ISUZU FVZ 5X 10 Wheels 6x4 20m³ Hook Arm Lift Garbage Truck





The Arm-type Garbage Truck, also known as the hook-arm garbage truck, is a detachable garbage truck. The whole vehicle adopts full hydraulic operation. The garbage bin and the chassis can be completely separated. The sanitation workers can complete all operations in the cab.

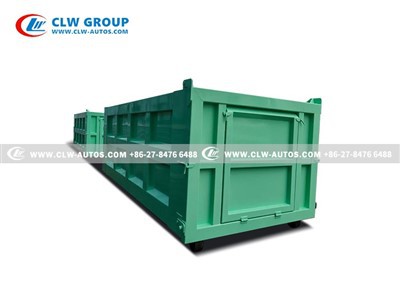

The Garbage Bin is a fully sealed design to prevent secondary pollution. The garbage bin has a self-unloading function, which makes garbage dumping more convenient. One vehicle can be equipped with multiple garbage bins. One vehicle can complete all garbage collection work, effectively reducing sanitation costs!

Applications: Schools, factories, logistics parks, markets, streets, rural areas, communities, etc. to collect domestic garbage and scattered garbage. In many urban areas with narrow roads abroad, small hook-arm garbage trucks are also widely loved.

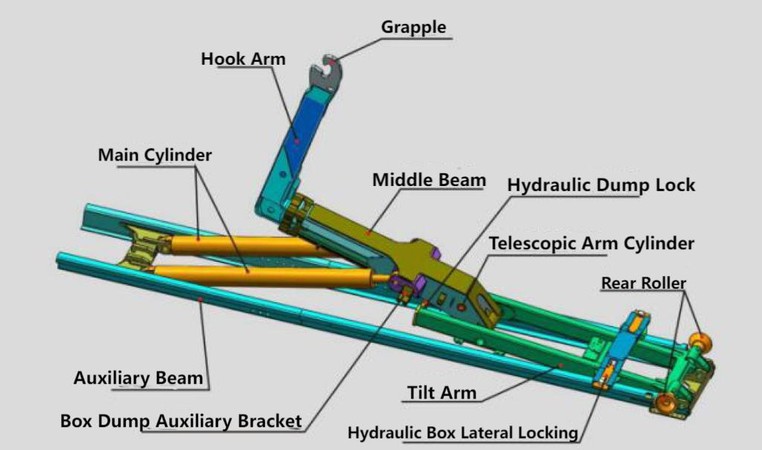

The main components of the hook-arm garbage truck are: hook arm mechanism, hydraulic system, and control system. The mechanism is simple, and one vehicle can have multiple bins.





ISUZU 20m³ Hook Arm Garbage Truck
Chassis Model	QL125
Driving Model	6 x 4
Cab	Left Hand Driving With air conditioner Central lock Steer Assistance Electric Window
Wheel Base	4650+1370 mm
Axle Loading (front/rear)	7000 / 10000x2 kg
External Dimensions (L x W x H)	10260×2550×3280 mm
Net Weight	9870 kg
Approach / Departure Angle	20/12°
Max. Driving Speed	105 km/h
Engine	Model: 6HK1
	ISUZU diesel engine, 6 cylinders in a line, Water cooled,turbocharged,after cooled , cold start.
	Horse Power: 300Hp
	Emission standard: Euro 6
	Displacement: 7790 ml
Gearbox	Manual type 9 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	295/80R22.5 18PR
	10 Pcs with 1 spare tire
Fuel Box	400L /steel material
Garbage Truck Body(20m3)
Tanker Body Material	Quality high tensile carbon steel
Thickness	Side 3mm, Bottom 4mm
Garbage Container Size	20 CBM
Straight Arm Hooking Capacity	16000 ~ 18000 kg
Telescopic Arm Hooking Capacity	18000 ~ 20000 kg
Max. Pressure Hydraulic System	16 Mpa
Operation and Control	Both Automatic(Electrical) and Manual (hydraulic)
Optional Configuration	Hydraulic drum rear outriggers Hydraulic cover (wingspan) Hydraulic rear door





Working principle
◆ Hook loading and unloading of the garbage bin: the cylinder piston rod extends, the arm hook rotates backward to unload the garbage bin, and the cylinder piston rod retracts, the arm hook rotates forward to realize the hook loading operation of the garbage bin.
◆ Operation of the garbage bin: after completing the hook loading operation of the garbage bin, turn the locking soft shaft handle to the locking position, complete the locking of the garbage bin, and then operate the operation.
◆ Lifting the car to unload: drive the car to the unloading position, open the rear door of the car, make sure the arm locking soft shaft handle is in the locking position, operate the hydraulic system to drive the cylinder to move, then the garbage bin, arm hook and flip frame rotate together, lift the car to the maximum tilt angle, and unload the garbage. Operate the solenoid valve handle, lift the cylinder back to its original position, and drive the car to return to its original position to realize the garbage self-unloading function.



• A single Garbage bin is standard, and can be equipped with a garbage bin as needed.
• More than 12 m³ do not come with a garbage bin, which needs to be customized.
• According to needs, the bin can be made of different materials and shapes, with optional thickness, quantity, and color.
• The bin can be square or rectangular. Choose the opening method and the number of bottom rollers.
