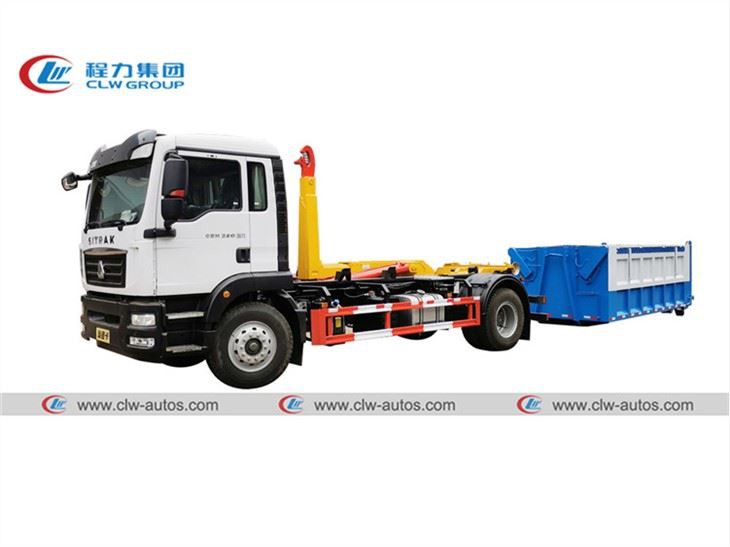

Construction Garbage Transport Sinotruk 14Ton Hook Lift Truck

Construction Garbage Transport
Sinotruk High Chasss
14Ton Hook lift Arm

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of construction garbage transport sinotruk 14ton hook lift truck in China. If you're going to buy high quality construction garbage transport sinotruk 14ton hook lift truck, welcome to get more information from our factory. For price consultation, contact us.

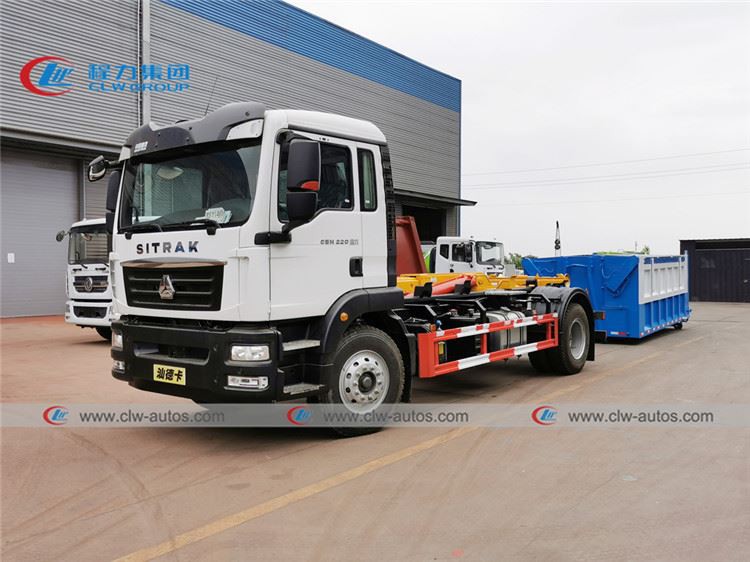

2021 Sinotruk Heavy Duty 14 ton pull arm Hook Lift Truck

For construction garbage Trasnport

Chasiss Data

Ø Equipped with 220 HP Or 245 horsepower engine, Vehicle model: HDW5188ZXXZ6,

Ø G5-M cab, 8-speed gearbox,

Ø 4.5T front axle, 9T rear axle,

Ø Double-layer frame (7+4/250),

Ø Bosch steering gear, SBS (4-channel brake),

Ø 10.00R20 tires, 200L fuel tank,

Ø Airbag seat, original air conditioning, cruise control, electric glass,

Ø Adjustable multifunctional steering wheel, central control door lock + remote control key, etc.

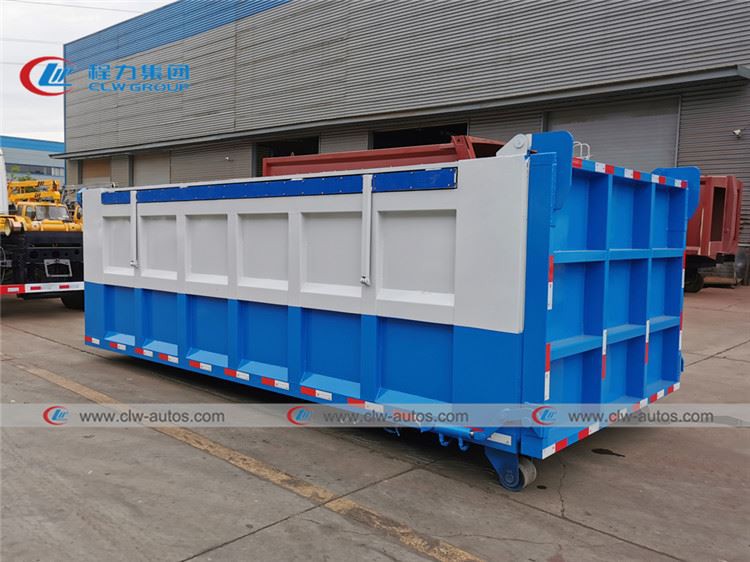

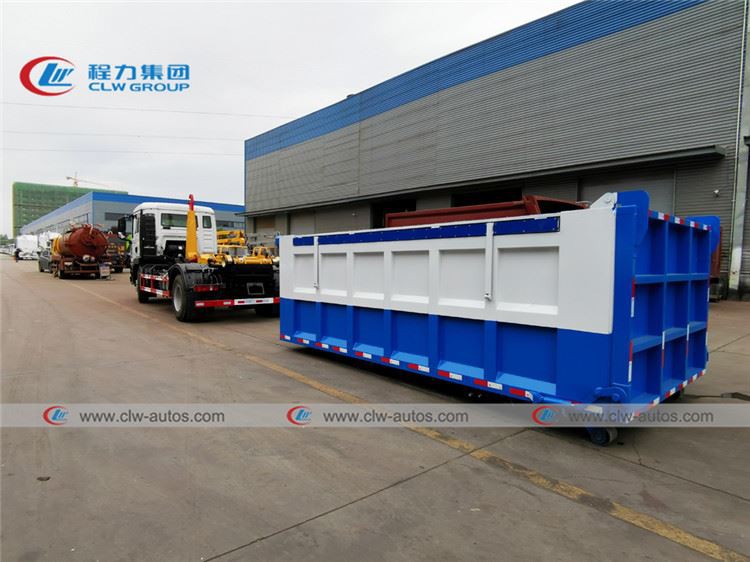

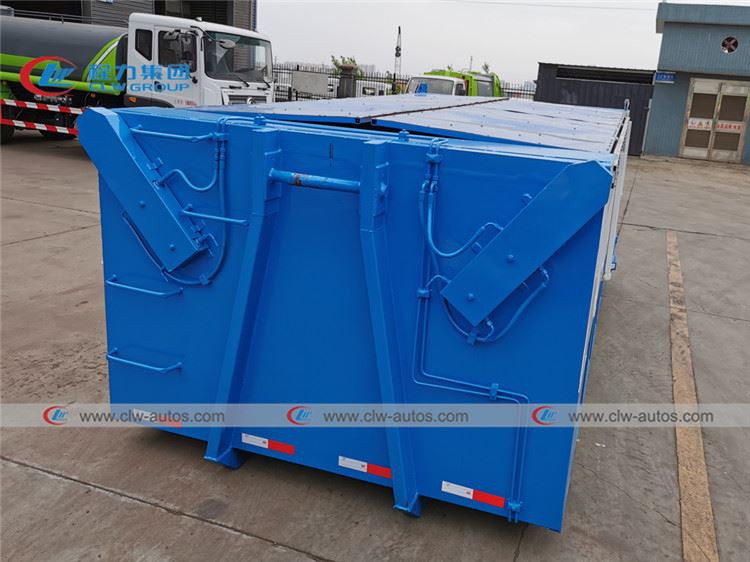

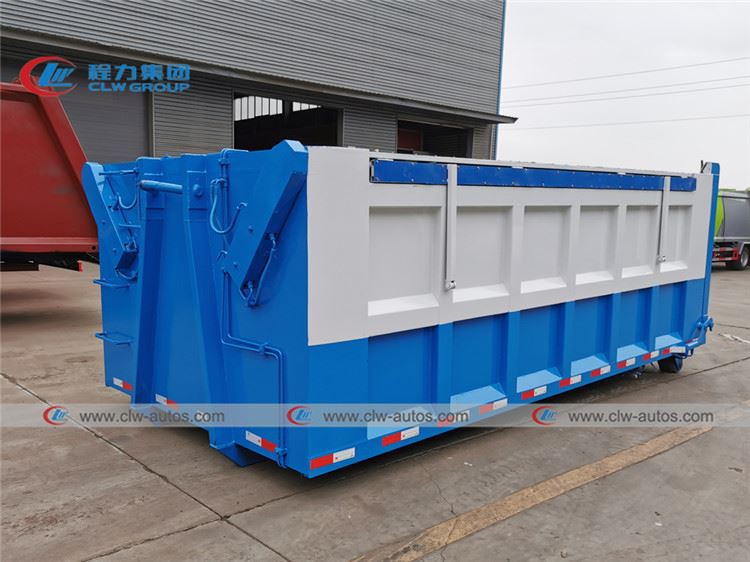

Garbage Container:

Garbage Box Volume: 12 -14 cubic meter
Garbage Box with Hydraulic Open Cover

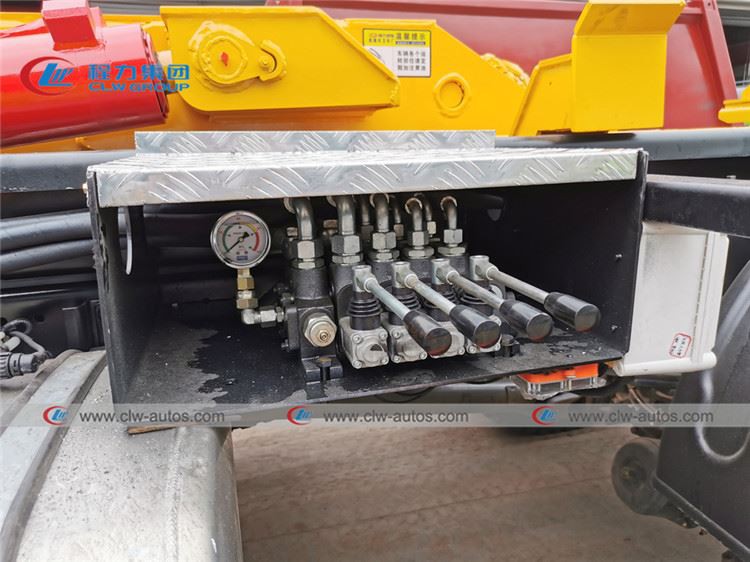

Hook Lift Systme choose factory & Palfinger 16-ton hook arm top,
With hydraulic rear outrigger, with quick coupling,
Suitable for 12-14 square mobile garbage compression station

Ordinary dustbin (used for construction waste, decoration waste, sand and gravel, etc.) transfer.

The top is equipped with optional wireless remote control operation device, dual-cylinder operation rear outrigger, and quick-connect connector to facilitate the opening of the tailgate or wingspan cover of the cabinet.

It is a high end hook-arm truck and also a cost-effective pull-arm garbage truck.

Garbage Truck Specification:

Sinotruk 14Ton Construction Garbage Transport Truck
Brand	CLW Brand	Model No.	HDW5188ZXXZ6
Overall Weight(kg)	18000 kg	Tare Weight(kg)	8290
Loading Weight (Kg)	9,780	Overall Size (mm)	7570 x 2500 x 3855
Passenger Allowed (persons)	2,3	Approaching/Departure Angle (°)	16/19,16/21
Axle Loading Weight(kg)	6500/11500	Front/Rear overhang (mm)	1450/1420
Max Speed (km/h)	110	Remark	Design for garbage transport

Chassis Specification
Chassis No.	ZZ5186XXYK501GF1	Chassis Type	Special Chassis
Brand	Sinotruk	Wheel Base(mm)	4500mm
Axle Quantity	2	Tire Quantity	6
Tire Size:	295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR
Leaf Spring:	11/9+8	Front Wheel Track (mm):	1900
Fuel Type:	Diesel	Rear Wheel Track (mm):	1850
Engine Model	Manufacturer	Displacement(ml)	Power(Kw)
MC05H.20-60	Sinotruk	4910	147
MC05H.23-60	Sinotruk	4910	166
MC05H.25-60	Sinotruk	4910	180
MC07.25-60	Sinotruk	6870	188
MC07.27-60	Sinotruk	6870	202
MC07.29-60	Sinotruk	6870	213
MC07H.29-60	Sinotruk	7360	213
WP4.6NQ220E61	Weichai Power	4580	162
WP6H245E61	Weichai Power	6220	180
WP6H270E61	Weichai Power	6220	199
WP7.270E61	Weichai Power	7470	199
WP7.300E61	Weichai Power	7470	220
