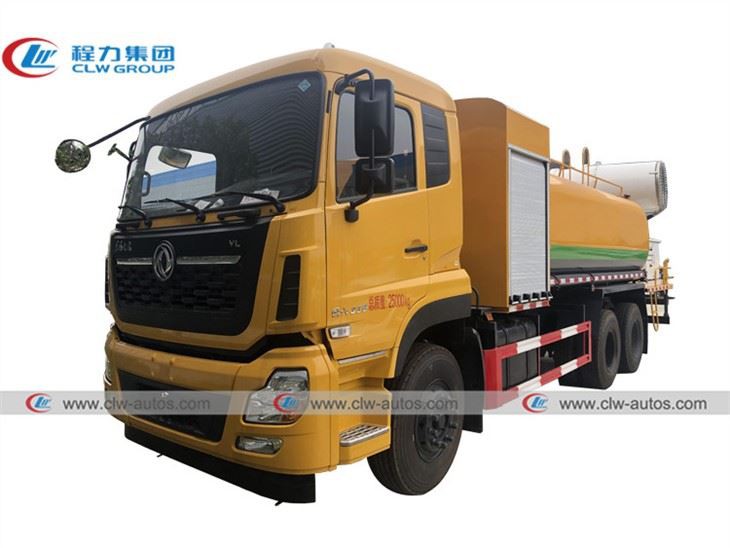

Dongfeng Kinland 10000 Liters Water Tank Dust Suppression Truck
Product Description: 1) Dust suppression spray device: The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades,...
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng kinland 10000 liters water tank dust suppression truck in China. If you're going to buy high quality dongfeng kinland 10000 liters water tank dust suppression truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.
2) Low pressure flushing device
Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, greening irrigation, pressure outlet interface, etc.
Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.
Advantage:
1. Water, disinfectant, dust suppressant and other liquid materials can be added in the tank, and the spray arm can rotate 360 degrees;
2. Contact induction spray system, uniform spraying, suitable for different size cars and vehicles, no spillage, spray arm with vehicle number recognition and recording function.
3. Simple operation: In the cab, all the operation functions of the vehicle can be completed.
Product Specifications:
| Production name | Dongfeng Kinland 6x4 10000Liters water tank dust suppression truck |
| Type | 6x4, Left hand drive |
| Weights | |
| Payload weight (kg) | 10000 |
| Curb weight (kg) | 14100 |
| Dimensions | |
| Wheelbase(mm) | 4650+1350 |
| Overall Dimension(mm) | 11280×2480×3550 |
| Box/tank capacity | 10000Liters |
| Engine | |
| Engine model | B245 33 |
| No of cyliner | straight-8 cylinder |
| Displacement(ml) | 8900 |
| Rated power | 180kw/245hp |
| Emission standard | EURO 5/6 |
| Drive Line | |
| Transmission | Fast, 9 forwards, 1 reverse gear, Manual operation |
| Steering | Power steering |
| Brake | Air brake |
| Cab | |
| Cabin | One row and half, 3 persons allowed |
| Configuration standard | Air conditioner, electric window, ABS, central locking |
| Tire | 11.00R20, 10 pcs + 1 spare tire |
| Water specification | |
| Water tanker material | High quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |
3. with the working platform at the back, wich can be installed green high-pressure water spray gun. (The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |
| Manhole | Man way access hole on top of tank; 1 unit DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m): 1.5 | |
| Efficiency(%): 95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw): 22 | |

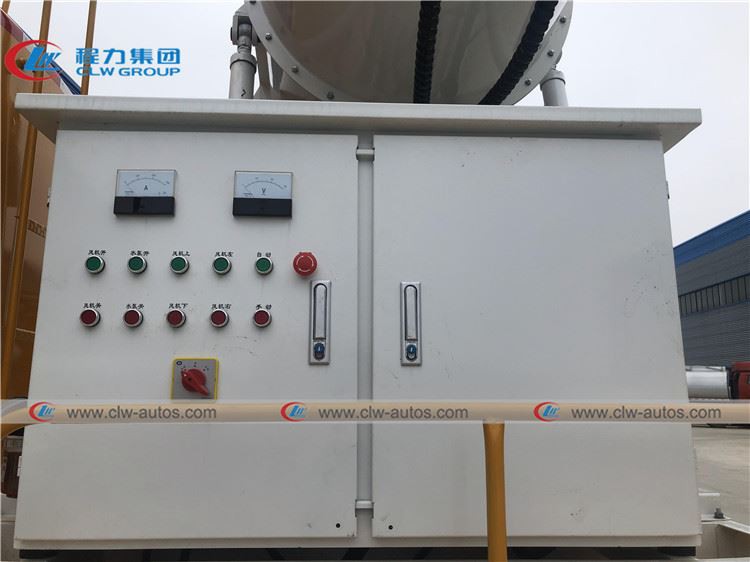

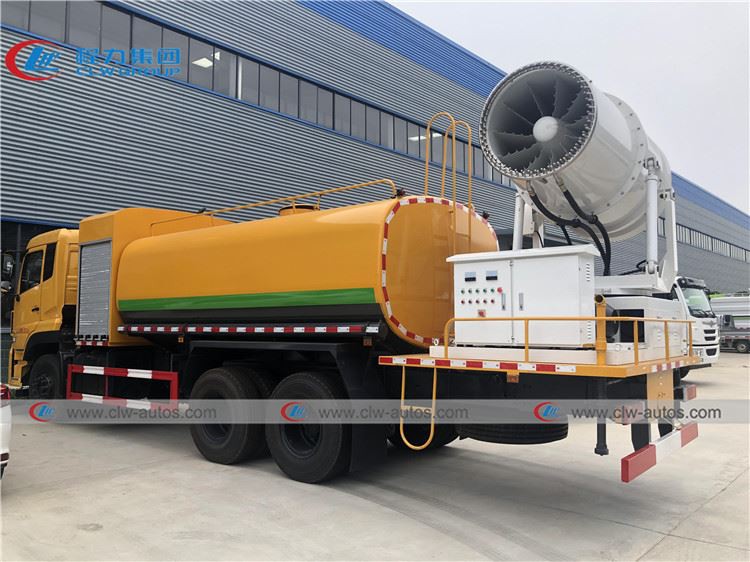

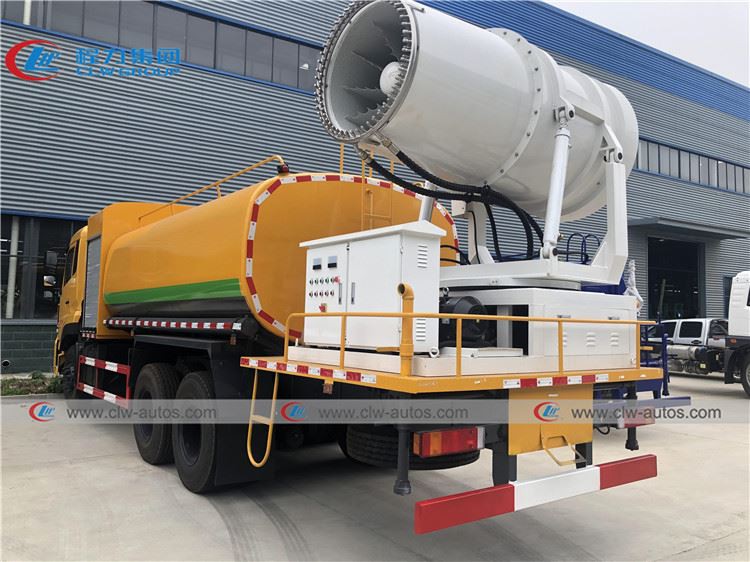

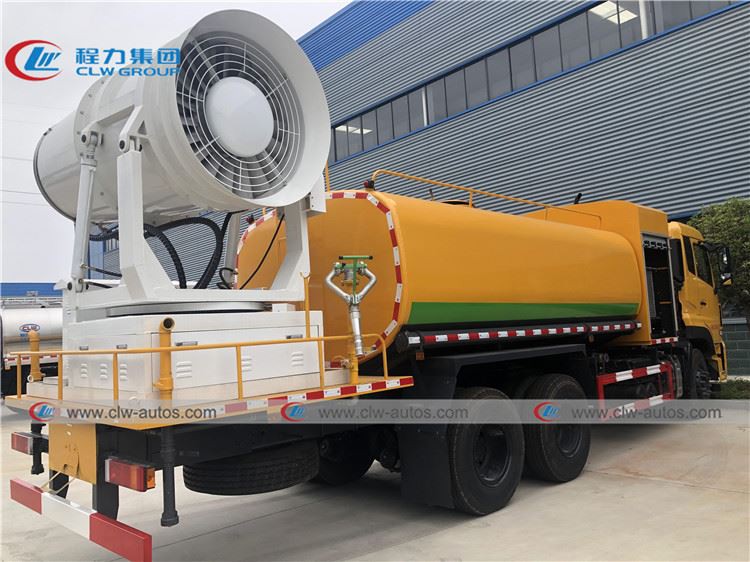

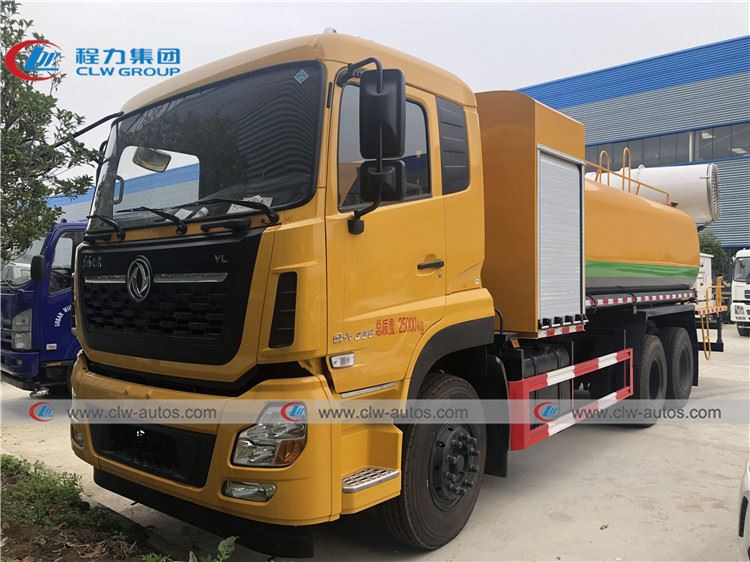

Product photos
