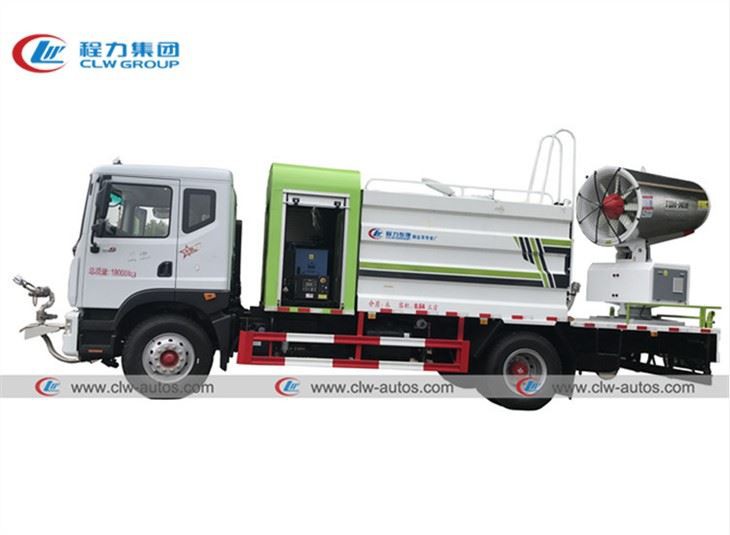

China 10Tons Dust Suppression Tank Truck
Dust Suppression Tank Truck with Water Mist Cannon Dongfeng Brand Tank Volume: 10CBM, 10m3, 10TONS, 10000Liters
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of china 10tons dust suppression tank truck in China. If you're going to buy high quality china 10tons dust suppression tank truck, welcome to get more information from our factory. For price consultation, contact us.
Applications: Used in street cleaning, plants watering, dust supression etc.
Truck Chassis: DFAC,JAPAN ISUZU,Foton (Other brand chassis available)
Water Tank: max loading weight 10000kg. (other chassis with bigger or smaller capacity available)
Feartures:
1. Multiple water spraying and sprinkling methods
2. High quality carbon steel or stainless steel water tanks
3. Multi-functions: street cleaning, water
Main Market: our water springkler tank trucks are widely sold in Africa, N. & S. America, Middle East and Asian countries.

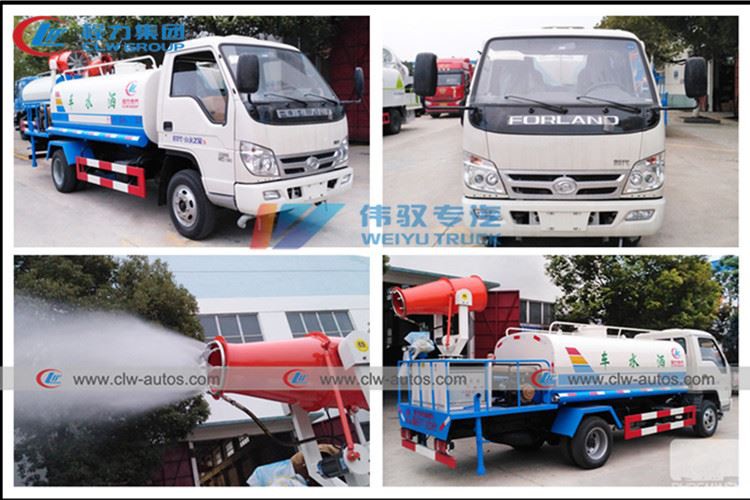

Below photo includes our different water tank trucks, and the spec is a 7cbm capacity model using DFAC chassis for reference.
Please contact us (mobile/whatsapp +86 13545915671) to learn more details before placing order.
The specification for Dongfeng 10cbm Street Cleaning Dust Suppression Plants Watering Tank Truck with Water Mist Cannon.
Specifications of Euro 4 GCC 10cbm Street Cleaning Dust Suppression Plants Watering Tank Truck with Water Mist Cannon | |
| Model | CLW5161GSSD3 |
| Chassis brand & Year | Dongfeng, 2020 new |
| Wheel Drive | 4x2, LHD |
| Overall Dimension | 9350*2500*3850mm |
| Gross Weight | 16000kg |
| Curb Weight | 7580kg |
| Engine | Cumins 190HP Eruo 3 6-cly 5.9L diesel engine |
| Wheelbase | 5000mm |
| Tires: | 6+1, 10.00-20 tires |
| Cabin | Dongfeng classical cab, 3 seats, with a 1/2 sleeper bed |
| Transmission | Manual, 8 front gears and 1 rear gear |
| Brake | Full Air brake |
| Max Speed | 90km/h |
| Fog Cannon Parameters | |
| Brand & Model | CLW ZX-80P |
| Spray Range | 0~80 meters |
| Cover Area | 17,850m2 |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Equipped Power | 120 kW(6-cylinder) |
| Water Pump Power | 15 kW |
| Water Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Water Pump Flowrate | 160~200L/m |
| Water Ring | Double stainless steel waer ring |
| Spraying Nozzle No. | 80pcs |
| Rotation Motor | 0.4 kW |
| Rotation Angle | 0~360° |
| Vertical Angle | -5° ~ 45° |
| Hydraulic Motor | 3 kW |
| Control Method | Manual/wirelss remote control/auto-control |
| Wireless Remote Control Range | Within 300m |
| Watering System | |
| Tank Volume | 10,000liters-12,000liters |
| Material | Carbon steel, 6mm thickness |
| Front spraying pipe | 14~18m |
| Rear spraying | 5~9m |
| Water suction depth | 7m |
| Water shooting valve | >28m |
More detailed pictures:

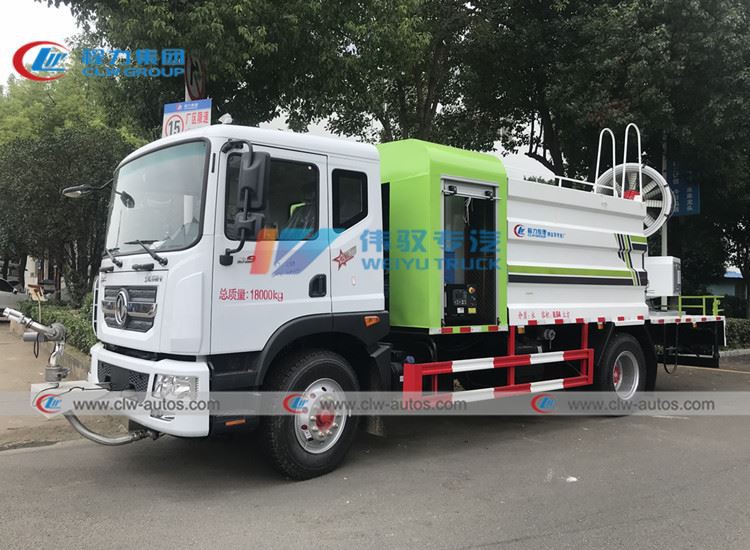

1. Famous brand Dongfeng chassis, Cummins 190HP diesel engine, FAST 8 speed transmission, 10.00-20 tires, full air brake, with A/C
10,000 liters water tank, square shape, beautiful appearance

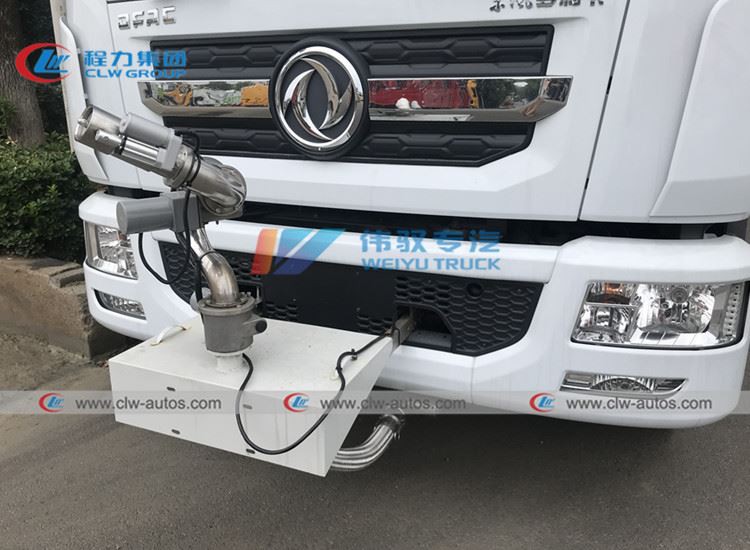

2. Water Cannon in front of cabin with more than 50 meters distance spraying capacity.

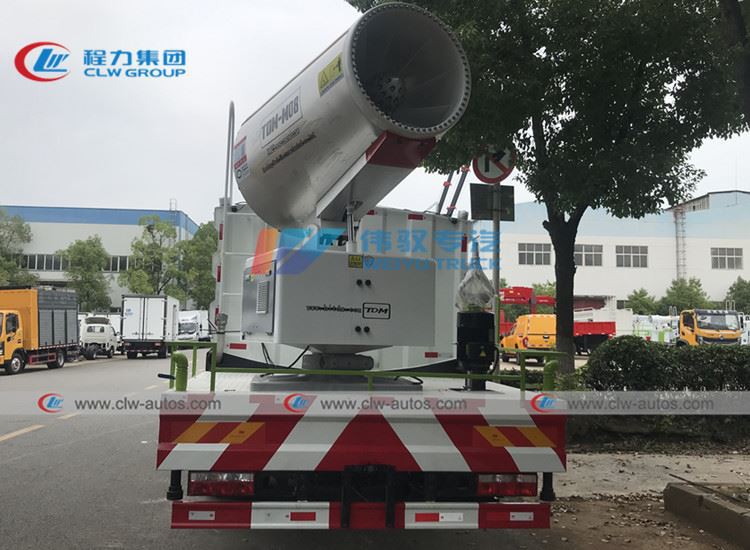

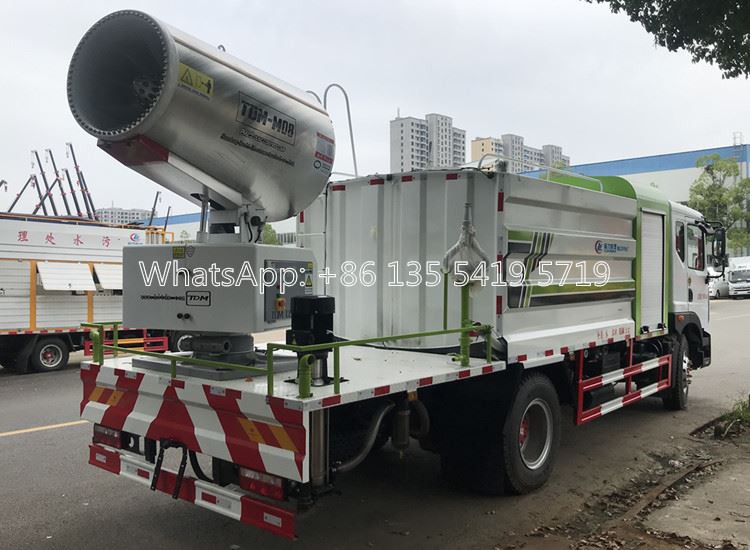

3. CLW-120 powerful FOG CANNON, spray range 100m, spray covering area 27,800m2, wind capacity 162,000m3/h, 3,620Pa wind pressure, 100 pcs spray nozzle, vertical -5° ~ +45°, 360° rotation, wireless remote control within 300m range, 55KW fan machine, 11KW water pump, 0.4KW rotation motor, 3KW hydraulic motor.
4. Power Unit of fog cannon: 150KW(6-cylinder) generator, the compartment is behind the cabin, in front of water tank.
Structures of CLW China Multi function dust suppression vehicle

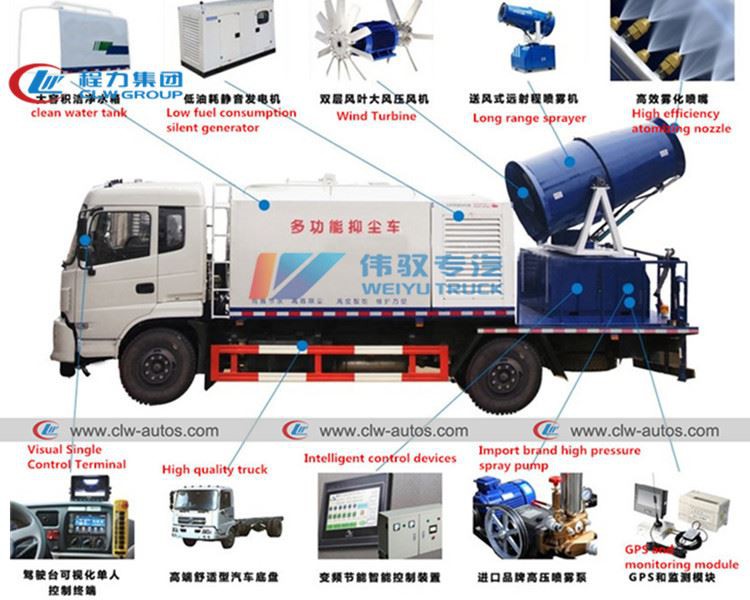

5. The structures of Dust suppression Truck:

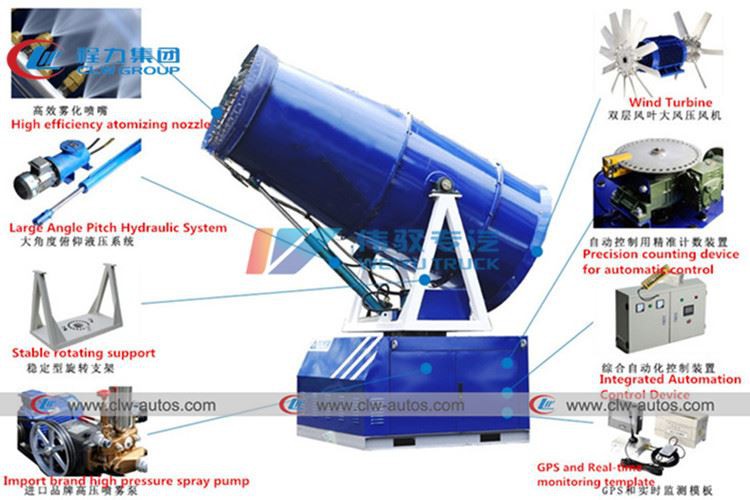

6. The structures of Water Mist Cannon:

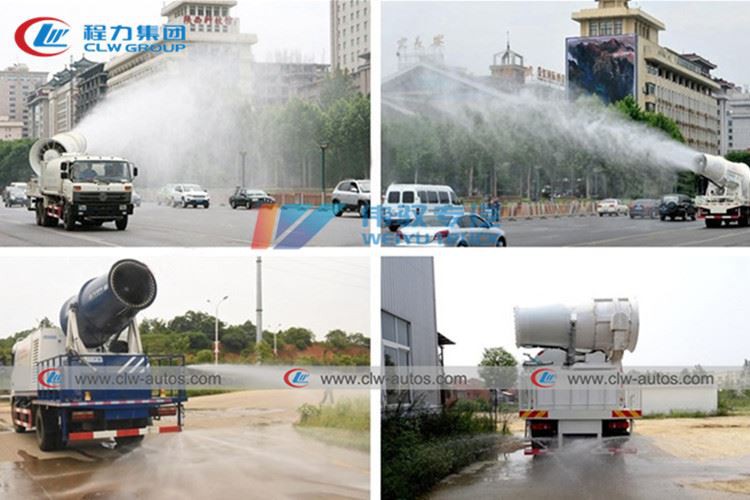

7. Working pictures for Dust Supression Truck:
