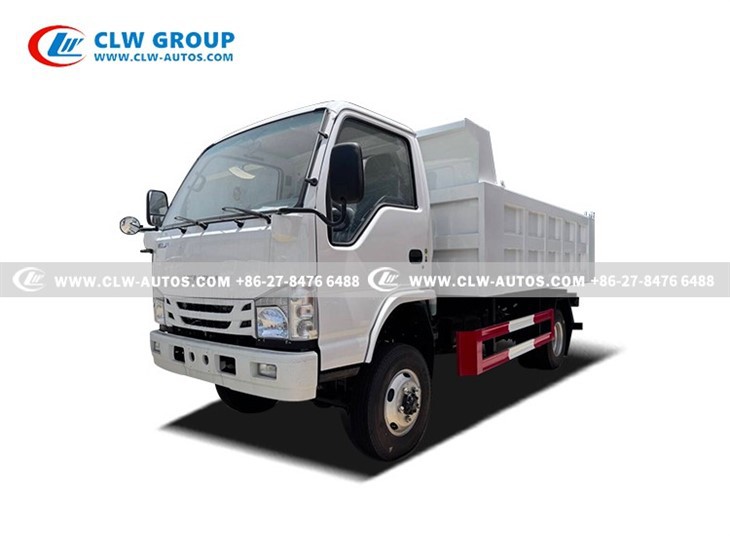

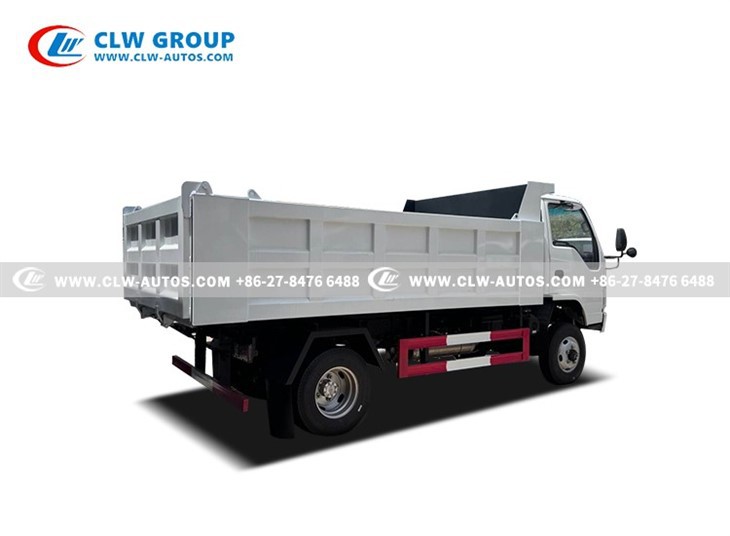

ISUZU 100P 4x4 Off Road Dump Truck
product Description
What is the dump truck?
Dump truck in civil engineering often work jointly with excavators, loaders, belt conveyors and other construction machinery to form a loading, transporting and unloading production line for loading and unloading and transportation of earth, sand and gravel, and bulk materials. It is a commonly used special vehicle for transportation.
Application Scenario
Advantages
As the loading compartment can be automatically tilted at a certain angle for discharging
|
ISUZU 100P 4X4 Dump Truck Parameters |
|
|
Chassis Specification |
|
|
Chassis Model |
QL104 |
|
Driving Model |
4x4 |
|
Dimension |
5900 x 1980 x 2200 mm |
|
Cab |
|
|
Wheelbase |
3360 mm |
|
Gross vehicle Weight |
4000 kg |
|
Curb Weight |
2050 kg |
|
Front Axle Loading Capacity |
2000 kg |
|
Rear Axle Loading Capacity |
4000 kg |
|
Axle Number |
2 |
|
Tire |
7.00R16 |
|
4 pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 4KH1CN6LB |
|
|
Horse power: 120 HP, 88KW |
|
|
Displacement: 2500 ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
5 Forwards & 1 Reverse |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
3800 X 2300 X 800 mm |
|
Loading Capacity |
5 Tons |
|
Bottom Thickness |
4 mm |
|
Side Thickness |
3 mm |
|
Shape |
Tofu block, tailgate folio with locking level, center double top cylinder |
|
Material |
High quality Q235 carbon steel |
Cabin
Chassis
Cargo Box
Hydraulic System
