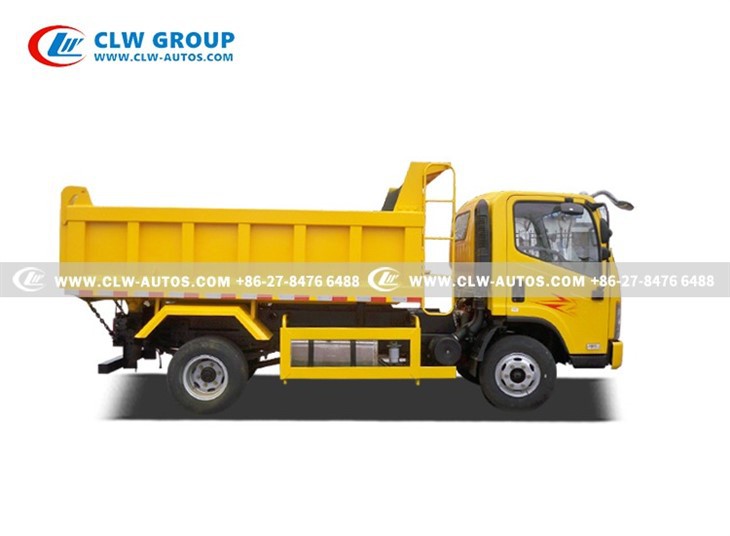

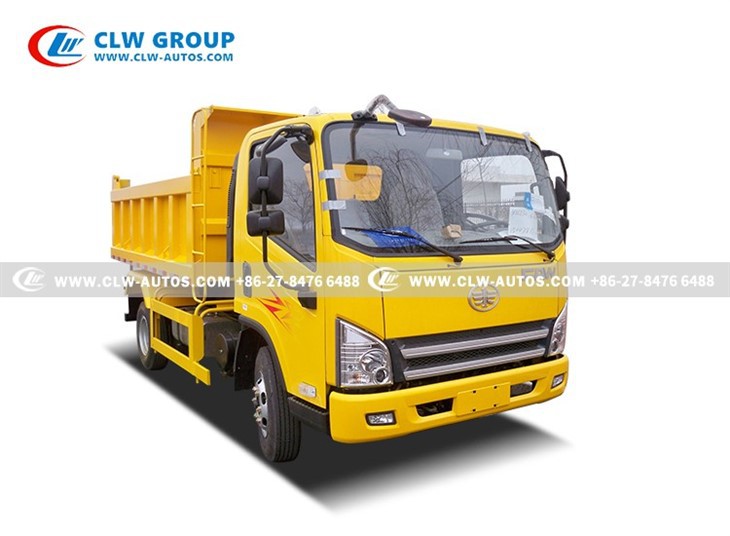

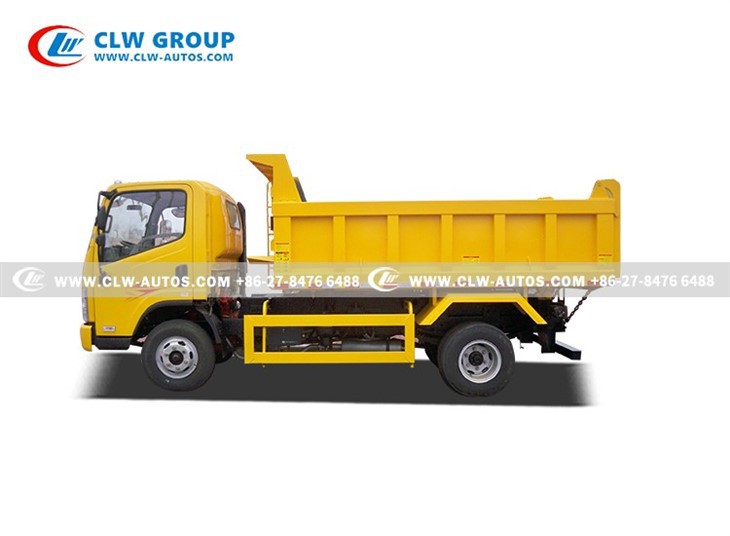

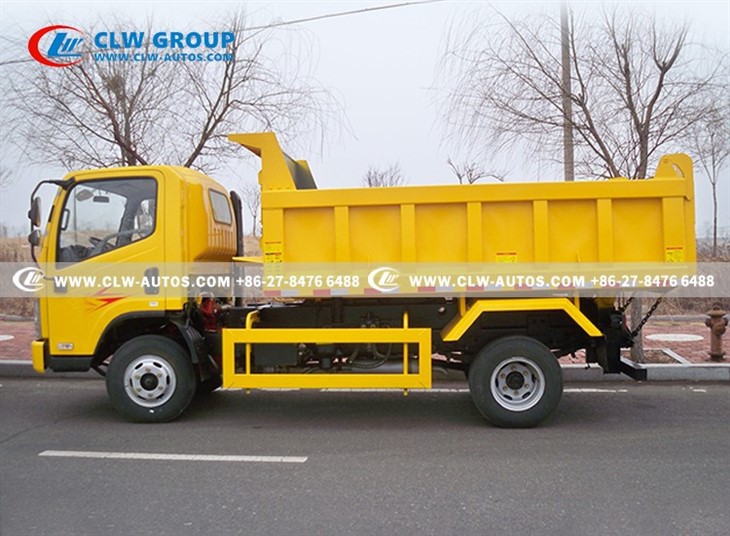

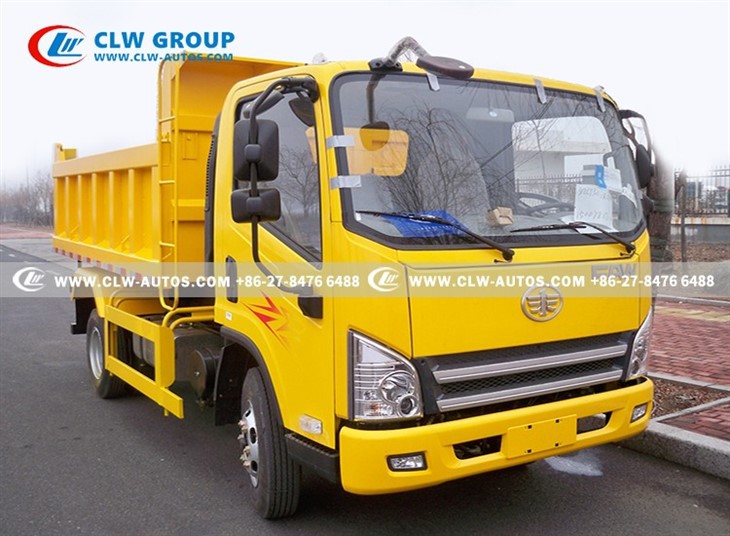

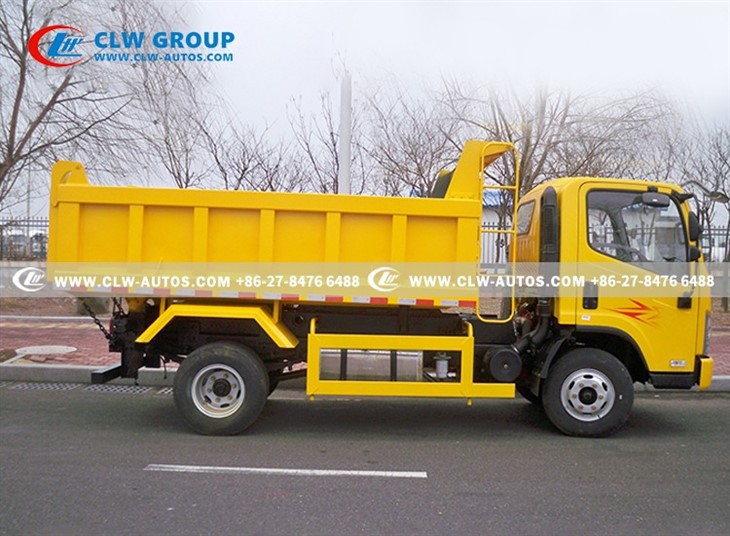

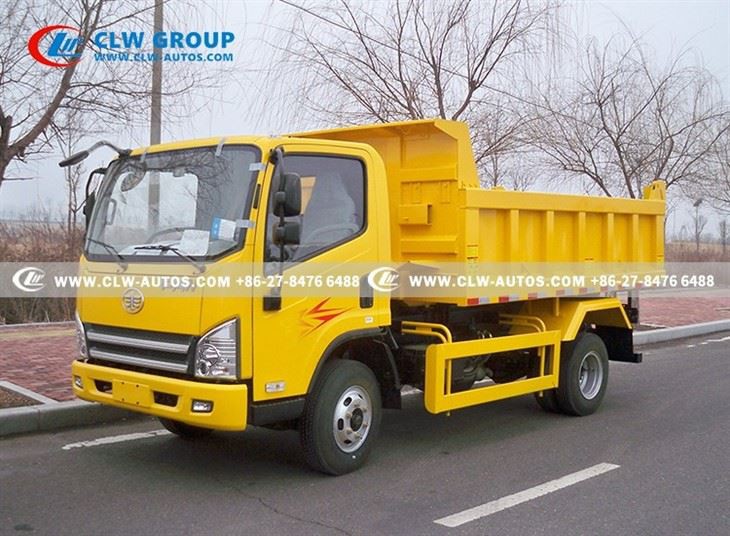

FAW 5Tons Small Rear Tipper Truck

Chassis brand:FAW Tiger V
Loading Capacity:5,000kgs
Engine:Yuchai diesel engine,130HP
Oil cylinder:Middle tipping

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 5tons small rear tipper truck in China. If you're going to buy high quality faw 5tons small rear tipper truck, welcome to get more information from our factory. For price consultation, contact us.

FAW Tiger VH 4x2 5Tons Small Rear Tipper Truck

Brand New Truck, Factory Price For Sale.

Products Descriptions

What is rear tipper truck?

Rear tipper trucks, also known as rear dump trucks or rear tipping trucks, are vehicles designed for transporting heavy loads. They feature a rear part that can be raised at one end to allow the contents to be emptied out. This type of dump truck, equipped with a hydraulic cylinder driven by the engine, is commonly used for urban waste disposal, construction projects, mineral transportation, and other similar tasks.

Is FAW a Chinese brand?

Being a domestic truck manufacturer in China, FAW boasts a global user base of 7 million, with its heavy and medium-duty trucks consistently ranking as the top-selling single-brand vehicles worldwide in 2018, 2019, and 2020. The Tiger V stands out as FAW's flagship product among the new generation of wide-body light trucks.

Key Product Features:

- FAW chassis: Leading commercial vehicle brand in China, top-tier globally.
- Made of Q235 carbon steel, with a thickness of 3mm on the sides and 4mm at the bottom.
- Equipped with China's renowned middle tipping hydraulic oil cylinder.

For quick inquiry, please contact Juniper:

Whatsapp/Wechat: +86 139 2570 3918

Email: juniper@clw-autos.com

Products Parameters

Chassis brand	FAW
Driving type	4x2
Loading Capacity	5,000kgs
Cabin	Tiger VH, LHD, single row, with AC
Engine	Yuchai Diesel Engine YC4D130-33, 130HP
Emission	Euro II
Displacement	4.2L
Transmission	Manual, WLY 6TS55, 6 Forward & 1 Reverse
Clutch	Ф330
Front axle load	2,900kgs
Front suspension	Leaf spring
Rear axle load	8,000kgs
Rear suspension	Leaf spring
Fuel Tank	100L with locking fuel cap
Wheel base	3300mm
Tyres	8.25R16, 6 pcs with 1 spare tire
Dump Box Material	Q235 carbon steel
Dump Box Size	42002300410mm / 3.9m3
Dump Box Thickness	Side 3mm, Bottom 4mm
Oil Cylinder	Middle Tipping
