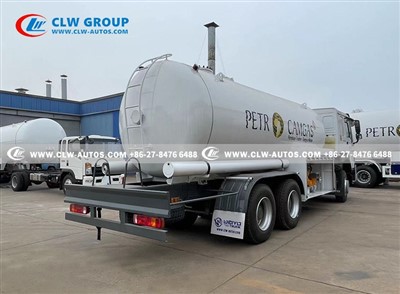

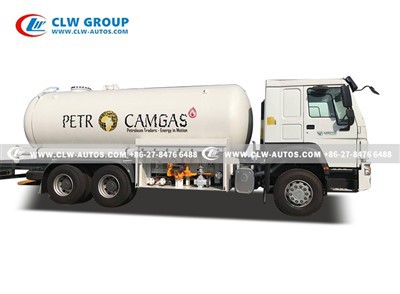

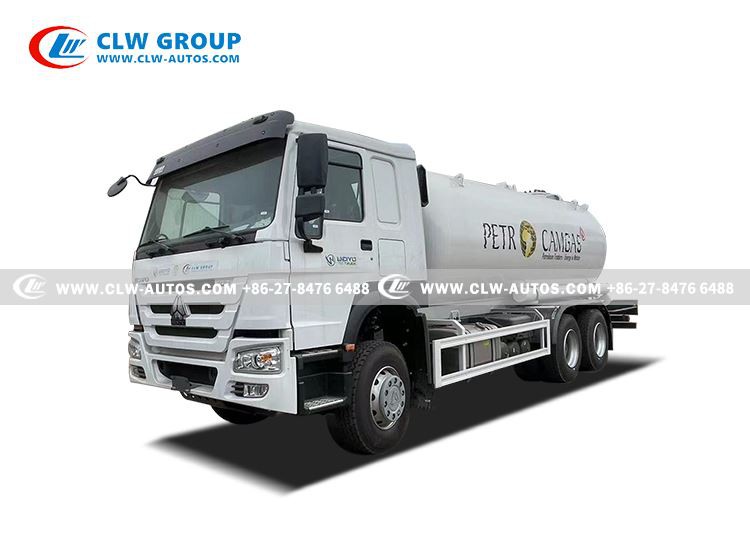

SINOTRUK HOWO 20000 Liter LPG Bobtail Truck
HOWO Truck with 400HP Weichai Engine
Tank capacity: 20000Liter/10tons
LPG pump, Mechanical flow meter for small tank refill
LPG pump with LPG dispenser for cylinder refill
15 meters filling hose
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 20000 liter lpg bobtail truck in China. If you're going to buy high quality sinotruk howo 20000 liter lpg bobtail truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description
HOWO 20000 Liter LPG bobtail truck,is also known as LPG dispenser truck, LPG gas refiiling truck, LPG tank truck with pump,LPG bobtail tanks, butane bobtail truck, lpg truck, Which are popular used by oil and gas companies for small tank or cooking cylinder refilling. CLW Group has more than 20 year experience in design and producing LPG product which including LPG storage tank, LPG skid station, LPG bobtail truck, LPG tank semi trailer, underground tank etc.
Factory supplied bobtail trucks;
Truck brand: HOWO, dongfeng, Shacman, Foton, Faw, ISUZU, JAC,JMC etc.
The tank capacity varies from 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 16000L, 20000L, 25000L, 30000L etc.
Pump brand: Chinese brand, or US corken Z2000 or US blackmer LGLD2.
Level gauge: Chinese brand or Rochester brand.
Filling system one: LPG pump with flow meter, rego adapter for small tank refilling. Filling system two: LPG pump with LPG dispenser for cooking cylinder refill. Factory can also combined two function to support multi purpose.
Filling hose 15m, 20m, 25m, 30m, can be customized.

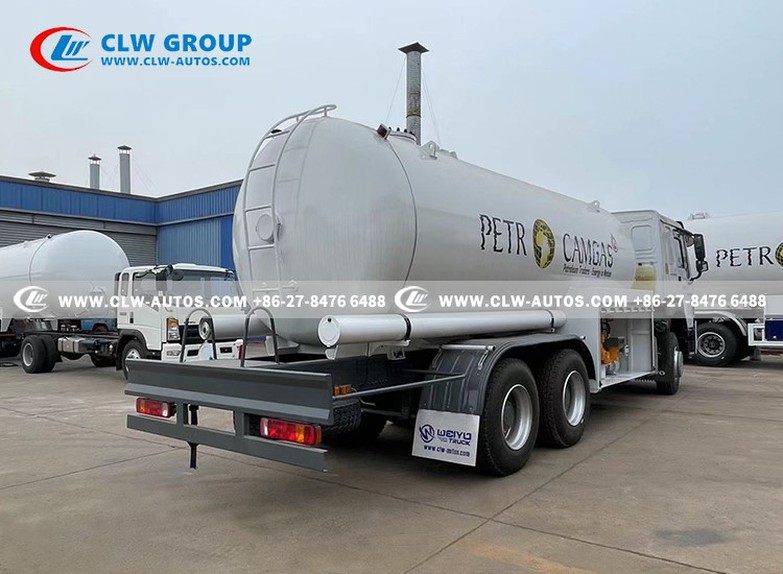

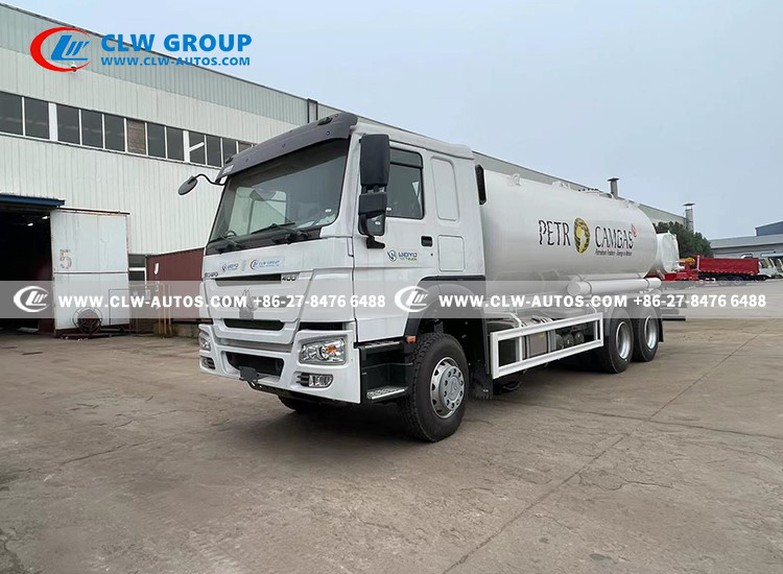

Reference Picture
|
Specification of Truck Chassis |
||||
|
Chassis Brand |
SINOTRUK HOWO | |||
|
Driving Model |
6X4 |
|||
|
Cab |
HOWO, HW76 cabin, with one sleeper. Left or Right Hand Driving with air conditioner, suitable for 3 passengers. |
|||
|
Wheel Base |
4600+1350mm |
|||
|
Axle Loading (front/rear) |
9500/16000/16000 kg |
|||
|
External Dimensions (L x W x H) |
1020X2500X3500mm |
|||
|
Max. driving speed |
95 km/h |
|||
|
Engine |
Model |
Weichai brand, WP12.400E201 | ||
|
Type |
6-cylinders in a line, turbo-charging and inter-cooling |
|||
|
Horse Power |
400Hp |
|||
|
Max output power |
296 kW |
|||
|
Emission standard |
Euro 2 |
|||
|
Displacement |
11.596 L |
|||
|
Min. Fuel consumption at full load |
≤185g/kw.h |
|||
|
Gearbox |
Manual type, HW19710, 10 forwards & 2 reverse |
|||
| PTO | HW70 | |||
|
Clutch |
Reinforced diaphragm clutch |
|||
|
Tire |
315/80R22.5, 10 pieces with 1 spare tire. |
|||
|
Fuel box |
400L /steel material |
|||
|
LPG tank |
||||
|
|
||||
|
Filling Medium |
Liquefied Petroleum Gas |
|||
|
Working temperature |
-40~50 ℃ |
|||
|
Volume: |
5,000Liters |
|||
|
Tank material: |
Q345R |
|||
|
Tank diameter: |
2050mm |
|||
|
Tank thickness: |
12mm |
|||
|
End plate thickness: |
12mm |
|||
|
Tank length: |
As designed |
|||
|
Gas phase |
Flange type,DN50/2" or according to customer request |
|||
|
Liquid Phase |
Flange type,DN50/2" or according to customer request |
|||
|
Filling gas |
Propane(LPG) |
|||
|
Working Pressure: |
1.61Mpa |
|||
|
Design Pressure |
1.71 Mpa |
|||
|
Testing pressure |
2.21Mpa |
|||
|
Corrosion Allowance |
1.0 mm |
|||
|
Refilling Accessory |
||||
|
Directly driven by PTO(easy for future maintenance) |
||||
|

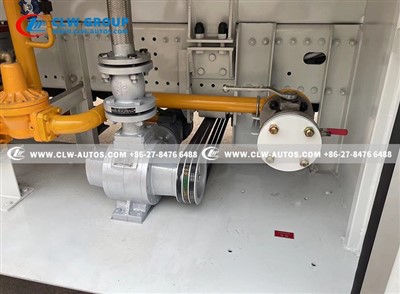

LPG Pump |
Chinese brand CLW 15-5 |
|||
|
Inlet 2" NPT and Outlet 2" NPT |
||||
|
Flow rate :15.5 m3/h |
||||
|
780 r/min for rotation speed |
||||
|

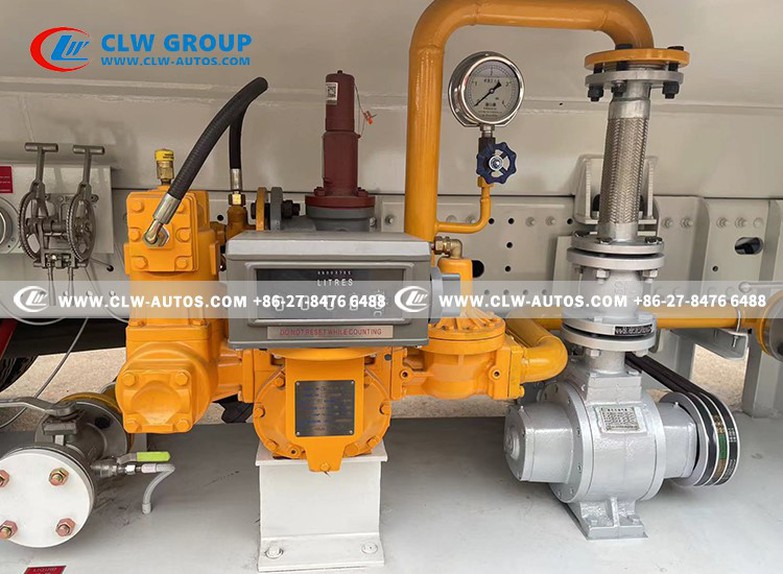

LPG Flow meter |
TSC-50 model Showing filling volume Inlet/Outlet 2"/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer. |
|||
|
Filling hose |
15 meter,retractable with REGO adapter for small tank refilling |
|||
|
Level Gauge |
Rochester level gauge or Chinese brand |
|||
|
Safety Valve |
Model No. |
A412F-25-16 |
||
|
Type |
Built-in |
|||
|
Nominal Pressure |
2.5 Mpa |
|||
|
Safety return valve |
1 PC |
|||
|
Pipeline safety valve |
1 PC |
|||
|

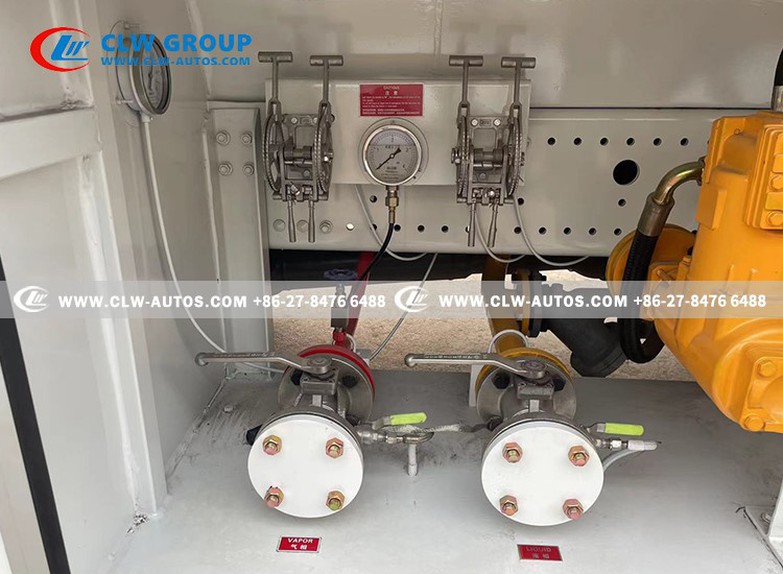

Equipment and Valve Box |
Located at side of LPG bobtail (opposite driver's side) Strong design with rolling off cabinet |
|||
|
Manhole |
DN450 |
|||
|
Thermometer |
1 pc WTQ-280 |
|||
|
Pressure Gauge |
2 pc YN-100T |
|||
|
Emergency shut off Valve |
2 pcs with switch inside valve box and at rear of truck |
|||
|
Fender |
Steel |
|||
|
Fire Extinguisher Holder |
1 set |
|||
|
Static conductive tape |
1 pc |
|||
| Painting and logo | can be customized | |||
successful cases
Contact Alice for a quick offer
whats app/Wechat +86 18071542196
email: alice@clw-autos.com

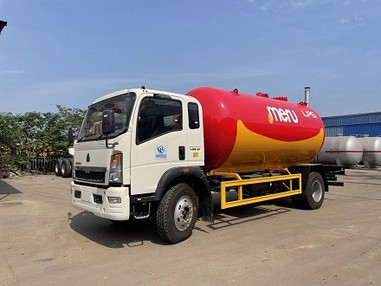

7.5tons LPG bobtail Truck for Meru Gas in Zambia

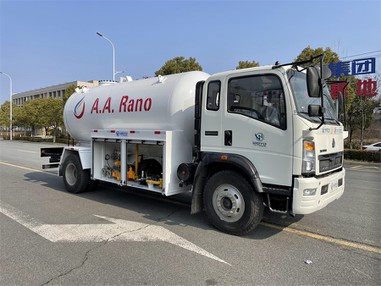

6 Tons LPG bobtail truck for AA RANO

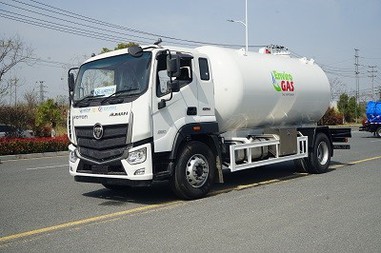

7.5 tons LPG bobtail Truck for Enviros Gas in Zimbabwe
