ISUZU 4X4 38Meters Telescopic Boom Lift Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4x4 38meters telescopic boom lift truck in China. If you're going to buy high quality isuzu 4x4 38meters telescopic boom lift truck, welcome to get more information from our factory. For price consultation, contact us.





ISUZU 4X4 38Meters Telescopic Boom Lift Truck



Factory Price For Sale



We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance







• What is telescopic boom lift truck?



Telescopic boom lift truck, also known as telescopic boom trucks, telescopic boom lifts, telescopic aerial lifts, telescopic aerial trucks, telescopic working platforms, articulated telescopic aerial trucks, articulated boom lifts, articulated basket platforms, etc., which is a utility truck equipped with a hydraulic boom that incorporates a man-carrying bucket at its extremity. Aerial working truck plays a crucial role in maintenance tasks such as servicing traffic lights, street lights, trimming trees, cleaning or installing signboards, and other high-elevation operations.





• What telescopic boom lift truck do we have?



1. Various aerial platform heights available include: 14m, 16m, 18m, 20m, 21m, 22m, 24m, 26m, 28m, 29m, 30m, 32m, 34m, 45m, and more.

2. Diverse chassis brands such as ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG, BEIBEN, JAC, JMC, KAMA, and others are offered.

3. Choose from a range of insulated buckets for your convenience.

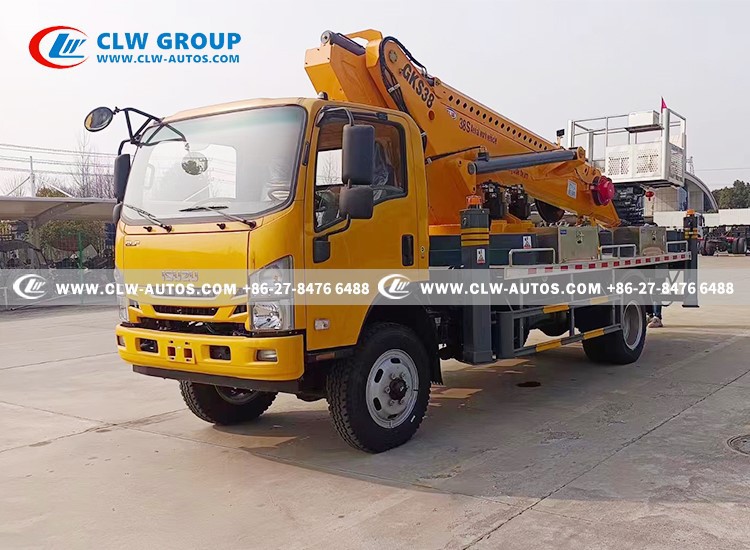

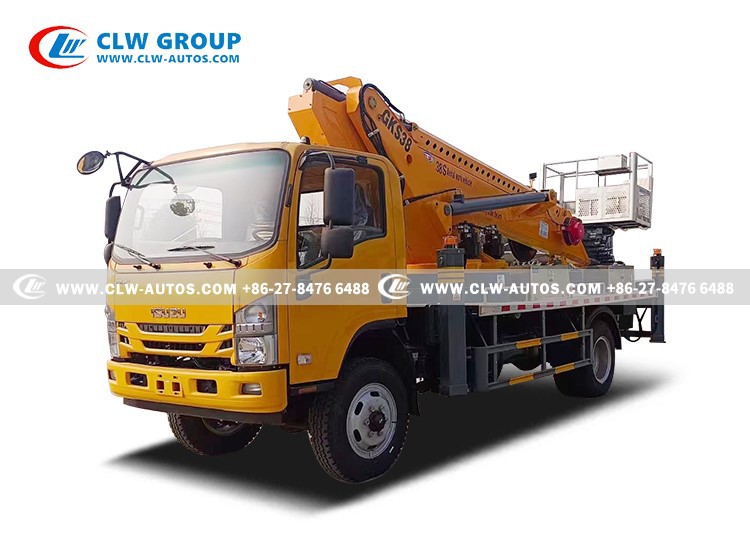

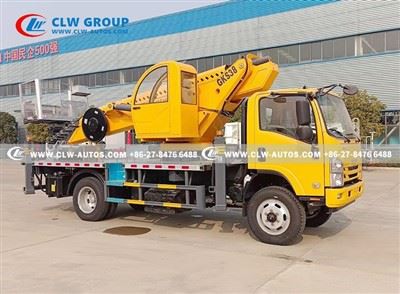

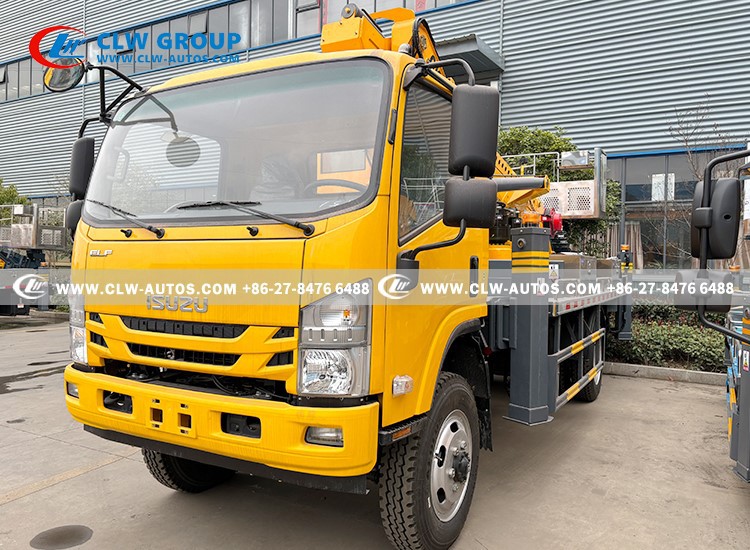

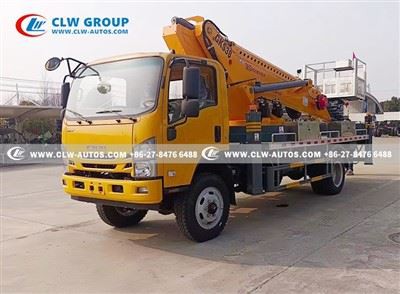

• Introduction of ISUZU 4X4 38meters telescopic boom lift truck:

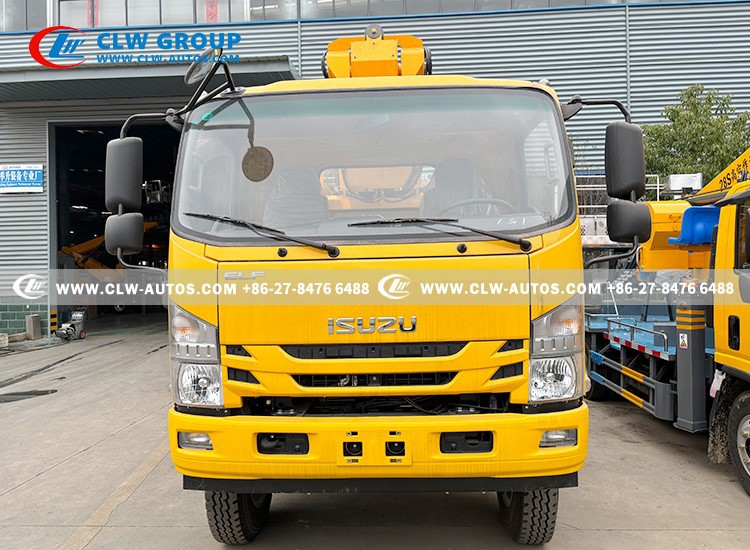

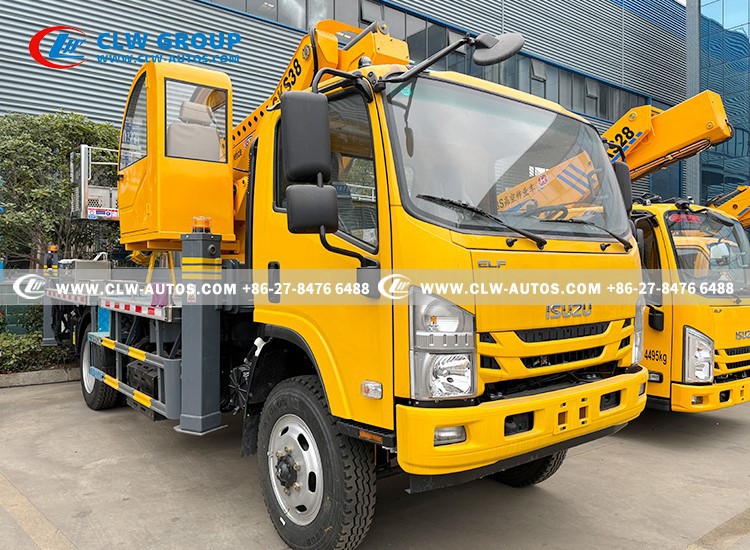

1. The chassis of the ISUZU truck remains true to its original design, incorporating cutting-edge Japanese technology.

2. Featuring all drive axles, this vehicle excels in traversing steep inclines and rough terrains with ease.

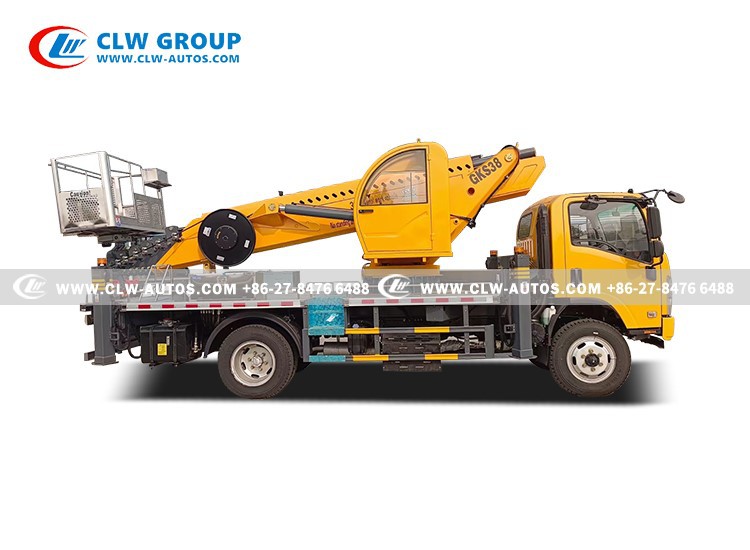

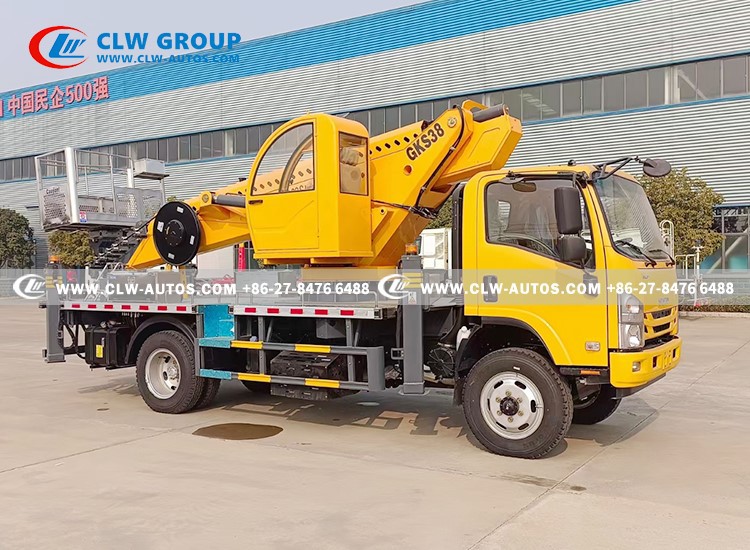

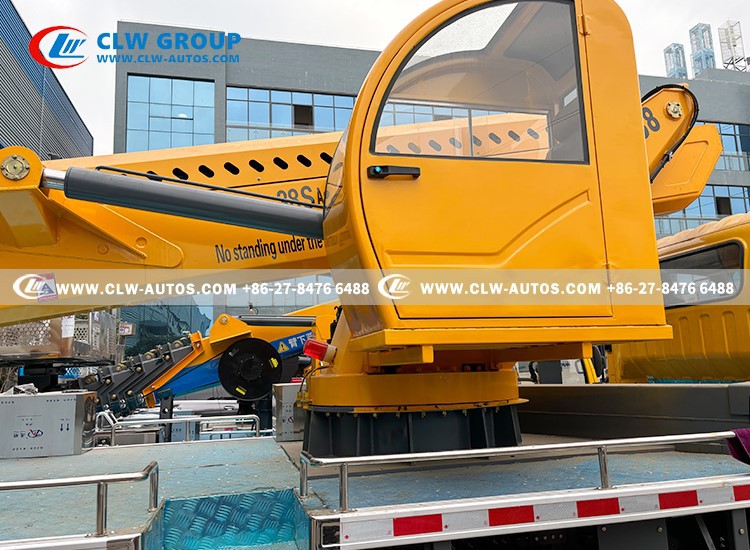

3. The truck showcases a sophisticated four-section telescopic boom, offering a full 360° rotation capability.

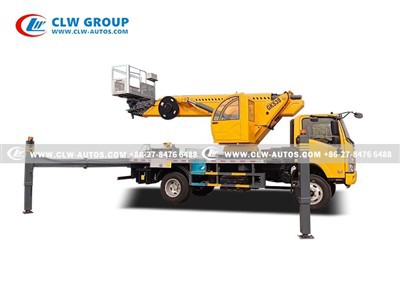

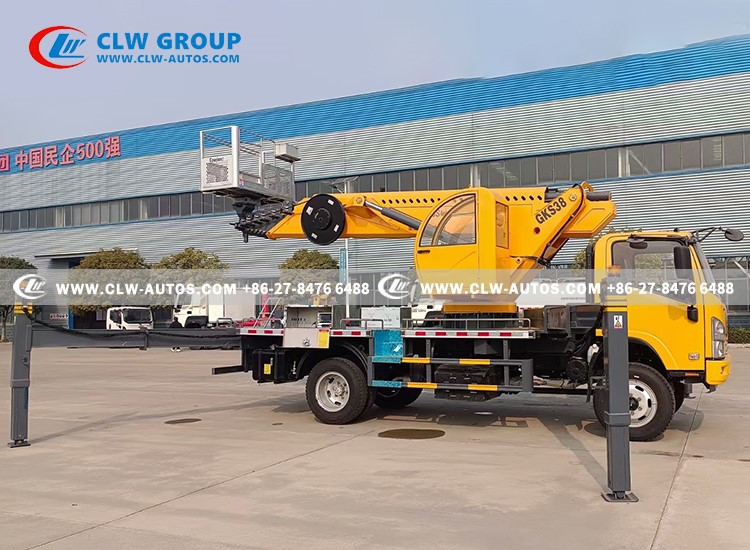

4. To ensure optimal stability, the truck is equipped with four adjustable landing legs that provide extensive span for superior support.

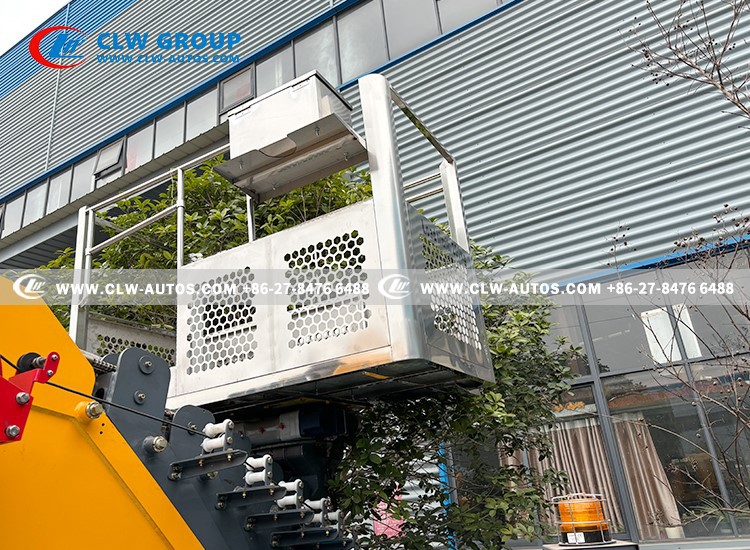

5. Boasting a stainless steel bucket with a loading capacity ranging from 200 to 400kg.

6. The bucket's design prioritizes maintaining a consistent balance throughout operations.

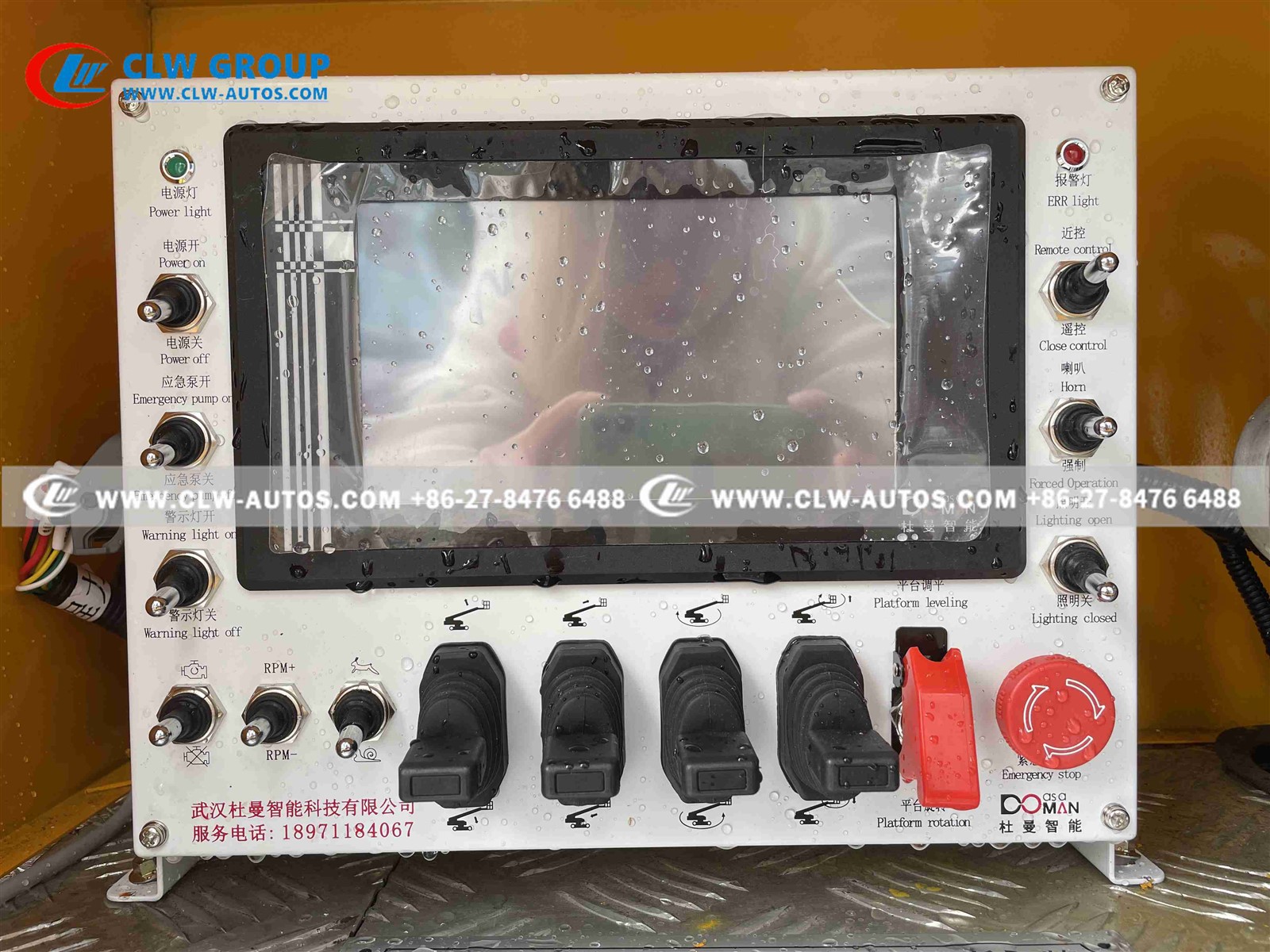

7. The monitor display provides real-time data on working amplitude, working height, working angle, and boom length for maximum operational efficiency.





• For quick inquiry, please contact Ms.Juniper Gong:



 Whatsapp/Wechat: +86 139 2570 3918

 Email: juniper@clw-autos.com







Overall Dimension	8600×2060×3050mm
Gross Vehicle Weight	18000 kg
Wheel Base	3815mm
Driving Type	4x4 all drive
Cabin	Left hand driving, single row cabine, with air conditionor
Engine	Diesel Engine 4KH1-TC60, 205 HP, Euro VI (Euro 6)
Gearbox	Manual type, ISUZU MLD 6 Forward & 1 Reverse Gear
Axle	6.3 Ton Front Axle, 13 Ton Rear Axle
Tire	295/80R22.5, 6 pieces with 1 spare tire
Working height	38m
Maximum operating range of the platform	≥19m
Platform operating range when operating height is maximum	≥7m
Platform operating height when operating range is maximum	≥7m
Landing leg	4 landing legs, Individually adjustment
Leg span	Lateral leg span: 5385mm, Longitudinal leg span: 5195mm

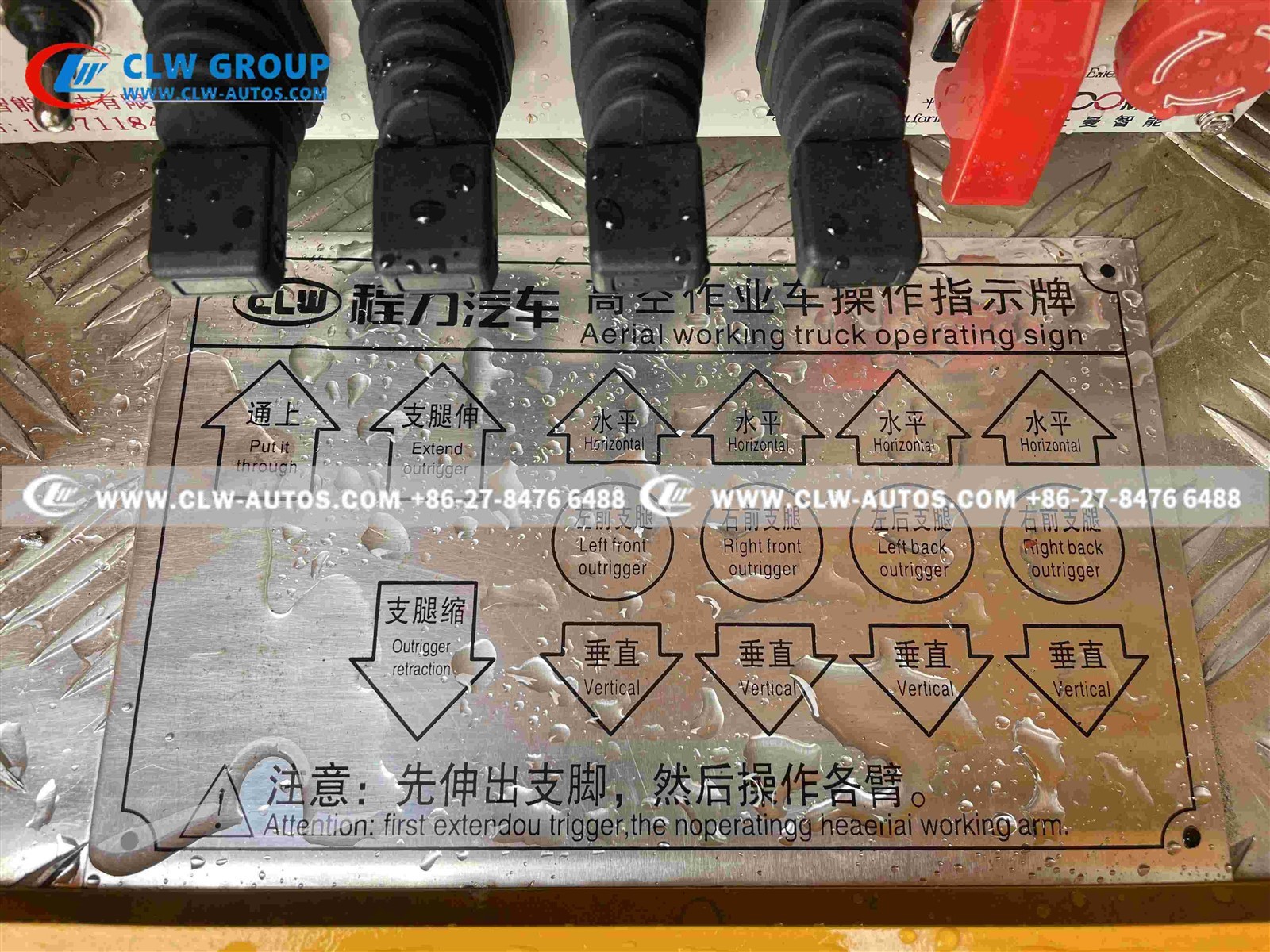

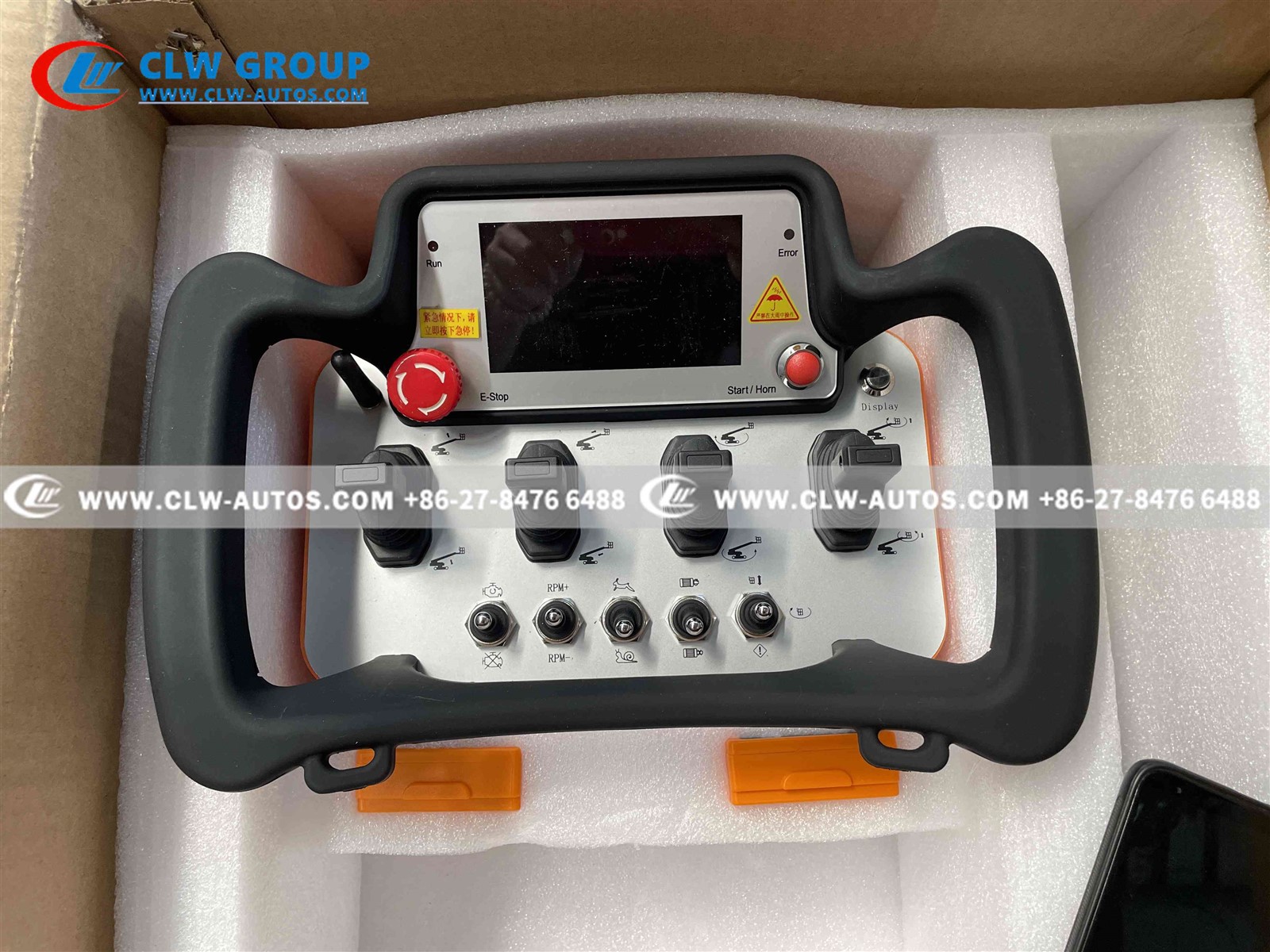

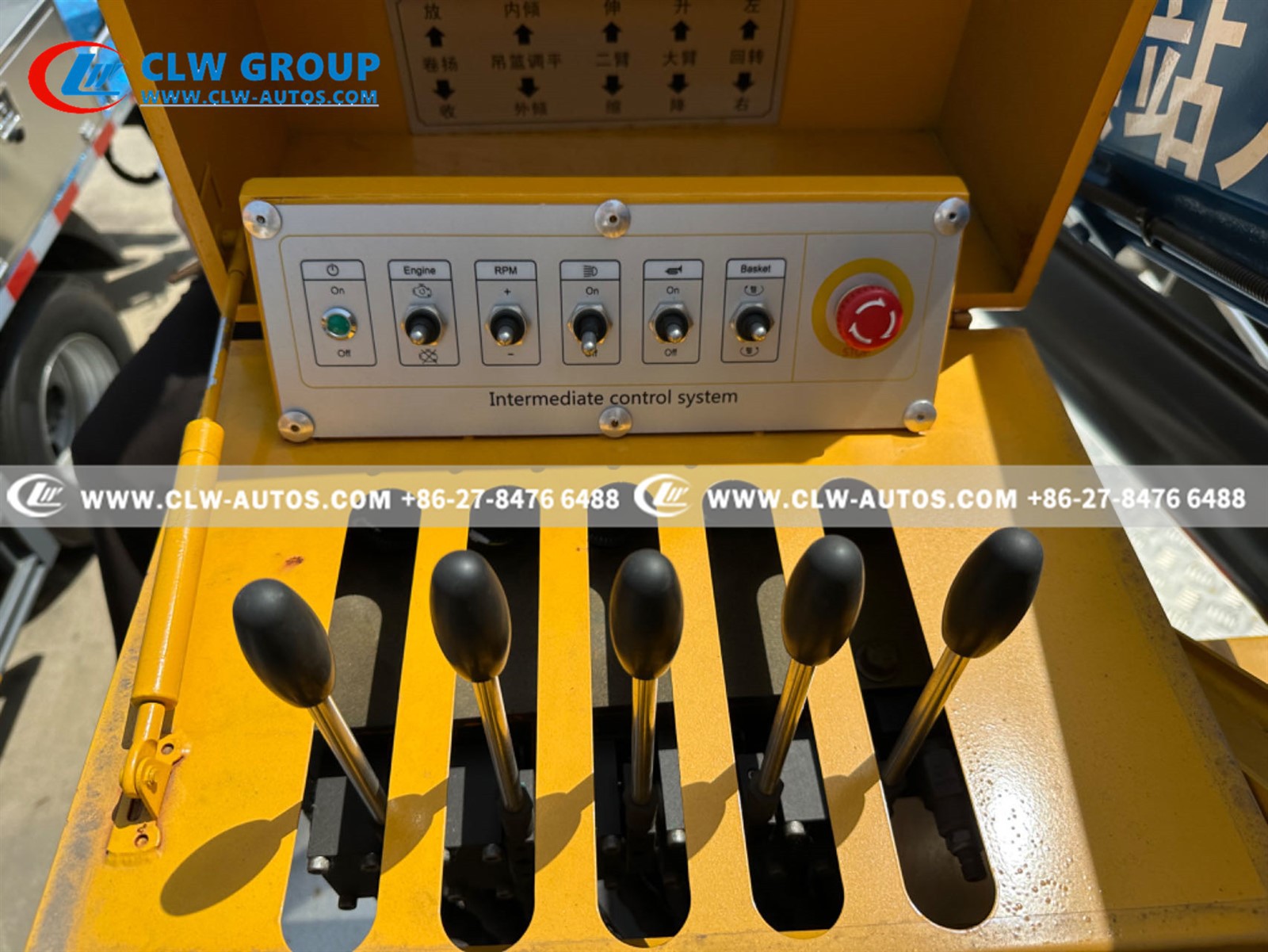

Control system	Manual control and remote control system
Bucket Loading Capacity	200kgs~400kgs, optional for insulated bucket
