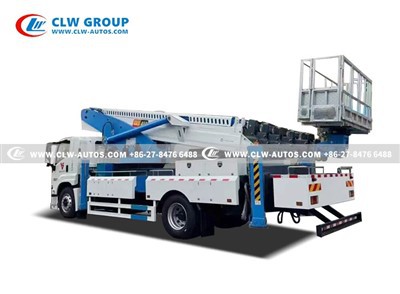

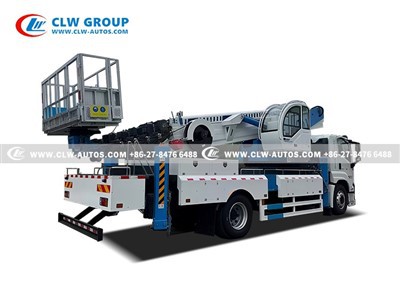

ISUZU 45m Manlift Truck
Drive Type: 4x2
Engine Power: 205 HP
Manlift Max. Lifting Length: 45meters
Basket Loading Capacity:200kg
Left Hand Drive
ISUZU FTR Cabin
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 45m manlift truck in China. If you're going to buy high quality isuzu 45m manlift truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FTR 6 Wheels 4x2 45meters Aerial Work Platform Truck
product key technologies
ISUZU FTR Chassis
- Designed for heavy loads: The FTR's robust chassis structure provides an ideal foundation for installing a truck crane. Its frame offers high torsional rigidity, effectively distributing the immense pressure during lifting operations.
- Strong load capacity: As a medium-duty truck, its carrying capacity aligns well with the lifting capability. It can handle lifting tasks while maintaining cargo transport function, achieving dual-purpose utility.
45Meters manlift
- Telescopic Boom Design
Hydraulic cylinders enable synchronized or sequential section extension.
- Flexible Operation Range
Lifting cylinders adjust boom angles for optimal positioning.
- Precision Control System
Electro-hydraulic controls ensure smooth and accurate movement.
- Comprehensive Safety Protection
Integrated safety systems include load moment and emergency descent.
Products Parameters
|
ISUZU FTR 45meters Aerial Work Platform Truck |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
9000 x 2400 x 3800 mm |
|
Cab |
|
|
Wheelbase |
4500mm |
|
Gross vehicle Weight |
18000 kg |
|
Curb Weight |
8200 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 |
|
6pcs with 1 spare tire |
|
|
Engine |
|
|
Model: 4HK1-TC60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5193ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forward & 1 Reverse |
|
|
Fuel Tank Capacity |
200L |
|
Upper Specifications |
|
|
Working Platform |
Size: 1600 x 700 x 1000 mm |
|
Material: Stainless Steel |
|
|
Rated Load: 200 kg |
|
|
Boom Form |
Synchronization telescope |
|
Max. Working Height |
45 meters |
|
Outrigger Span |
Landscape: 4200 mm |
|
Portrait: 4000 mm |
|
|
Front "V" type, Rear "H" type Independently adjustable (controlled) |
|
|
Partition Boards & Walkway Boards |
Material: Stainless Steel & Anti-slip |
|
Rotator |
360 ° of continuous rotation |
|
Operation |
Electrically controlled operation Manual emergency operation |
|
Control System |
CAN control system, equipped with wireless remote control, realize stepless speed regulation |

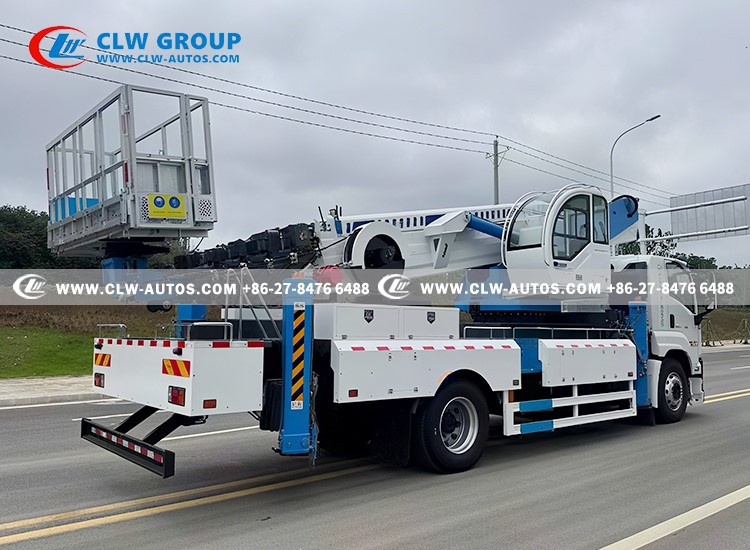

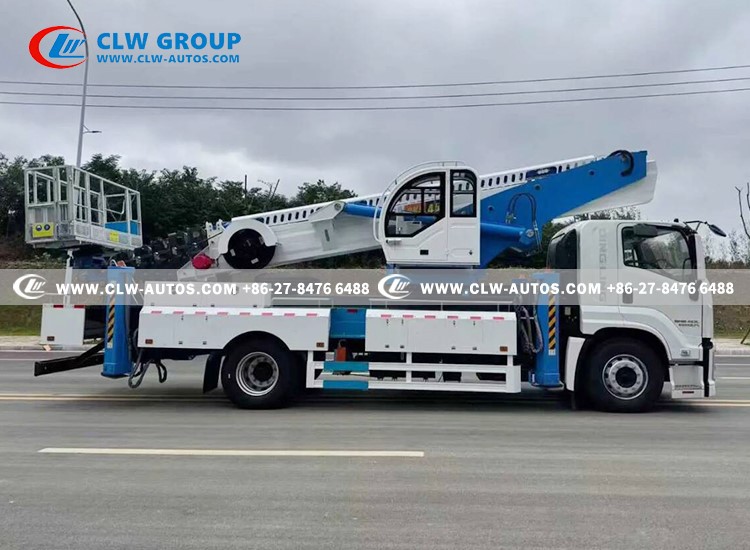

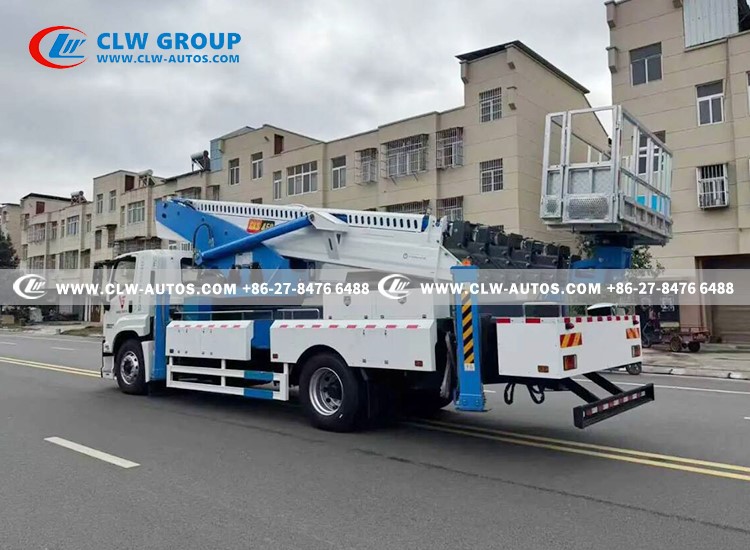

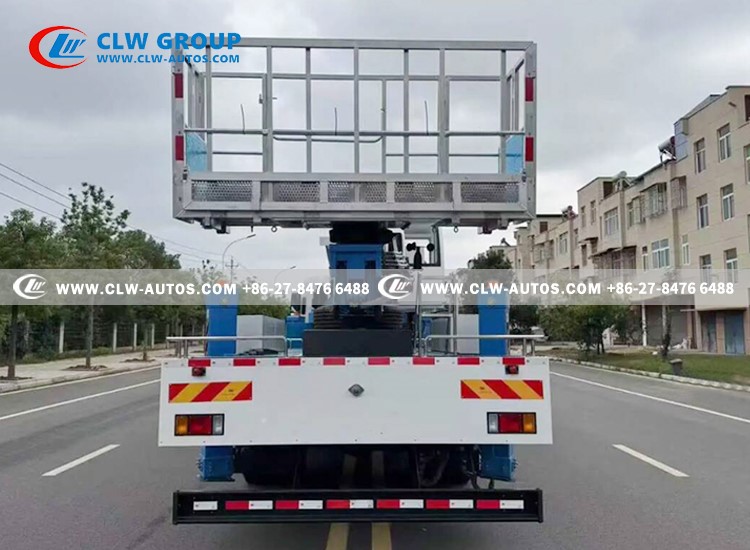

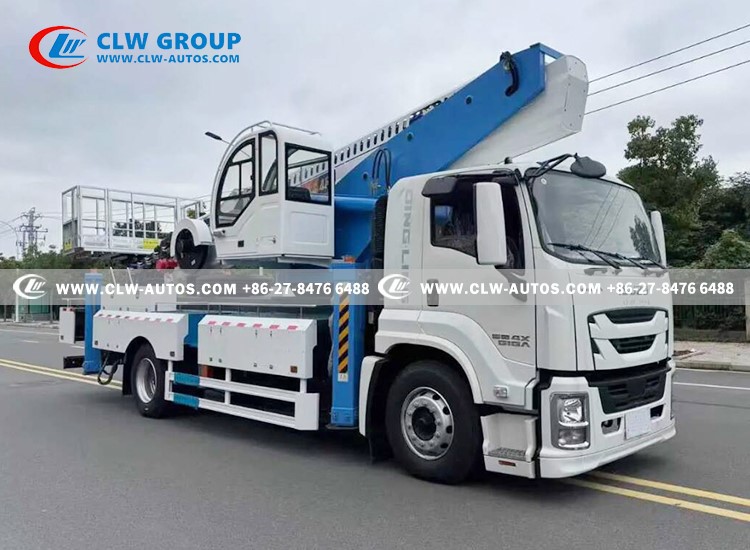

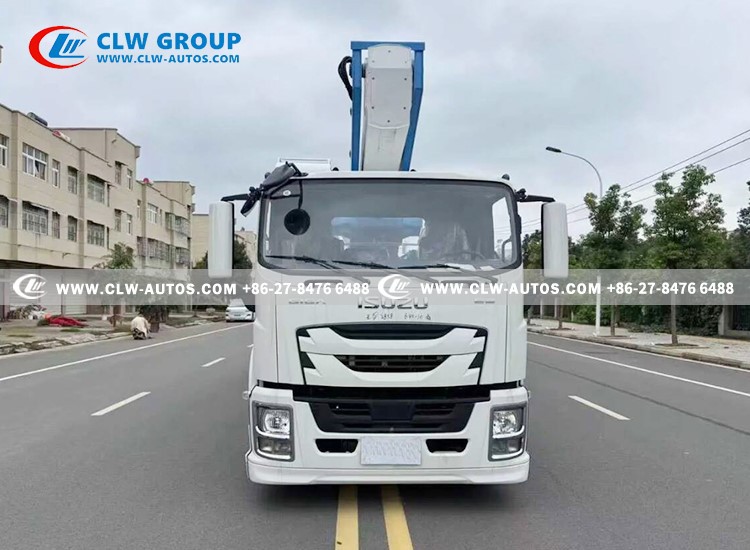

Chassis Pictures
Features Of ISUZU FTR Manlift Truck
ISUZU FTR Chassis
- Mature Powertrain: Typically equipped with an Isuzu 4HK1-TC60 high-pressure common rail turbocharged diesel engine, with a displacement of 5.2L, delivering robust power and complying with China's National VI emission standards. It is paired with a technologically mature Isuzu manual transmission, ensuring efficient and reliable power delivery.
- Professional Commercial Vehicle Chassis: The FTR is a heavy-duty truck chassis built with a high-strength steel double-layer frame (beam), providing a solid foundation for mounting the superstructure. The 4500 mm wheelbase is specifically designed as an ideal size for 45 meters manlift truck.
- Excellent Driving Comfort and Safety: The cab is designed with a human-centric approach, offering a wide field of vision, excellent sealing, and low noise levels. Standard safety features include ABS and exhaust brakes, while some higher-end models are equipped with air brakes, parking brakes, power steering, and other features, ensuring easy and safe driving.
45 Meters Manlift
1. Great working height and range
- Impressive working height: Reaches up to 45 meters, covering most construction and maintenance needs.
- Strong horizontal reach: Over 20 meters of extension, allowing broad coverage without moving the base.
2. Strong obstacle-crossing ability
- Compact chassis design: Enables passage through standard doorways and indoor use.
- Excellent obstacle navigation: Multi-section arms can "reach over" obstacles for precise positioning.
3. Excellent stability and safety
- Multi-level safety protection: Tilt protection, load sensing, emergency descent, and anti-misoperation systems.
- Solid stabilization system: Four or more hydraulic outriggers with auto-leveling ensure extreme stability.
4. High load capacity and large platform
- Spacious platform: Accommodates 2-3 workers with tools and over 200 kg capacity.
- Flexible platform rotation: 180° or 360° continuous rotation for full-range coverage.
Application of Manlift Truck
- High-rise Building Maintenance
For glass curtain wall cleaning, exterior painting, and facade repairs.
- Municipal & Landscape Maintenance
Used for street light repair, tree trimming, and viaduct upkeep.
- Industrial Equipment Servicing
Performs equipment installation and pipeline maintenance in plants.
Products Video
