ISUZU 22m Manlift Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 22m manlift truck in China. If you're going to buy high quality isuzu 22m manlift truck, welcome to get more information from our factory. For price consultation, contact us.

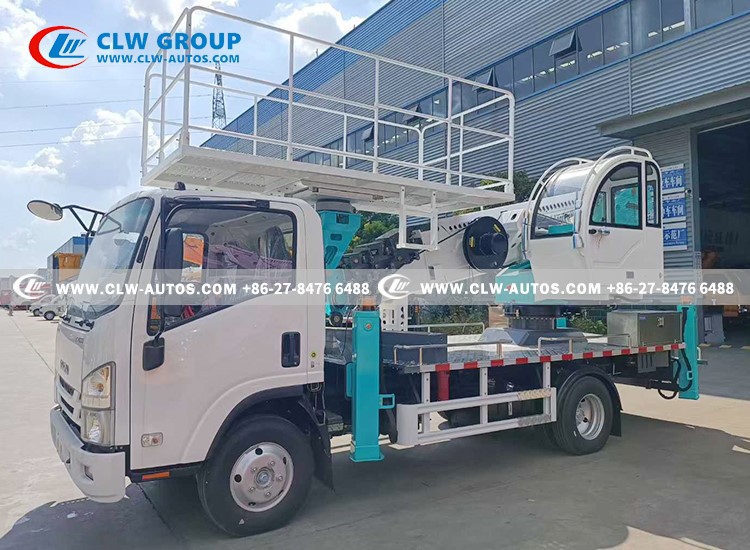

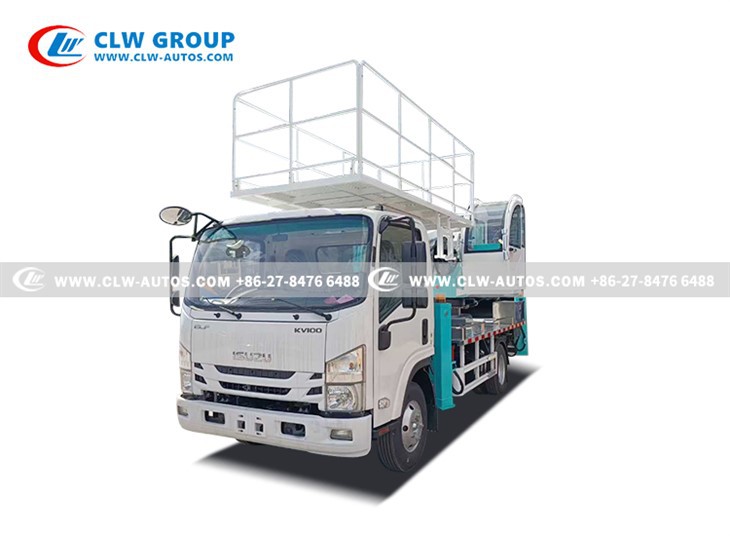

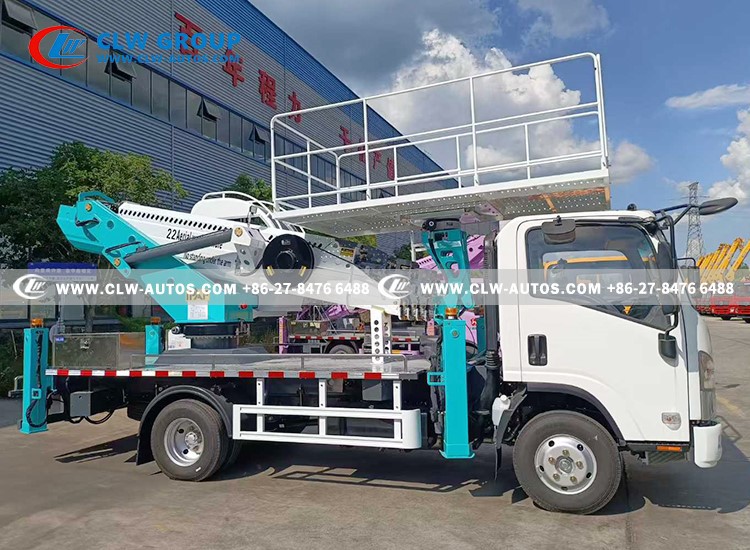

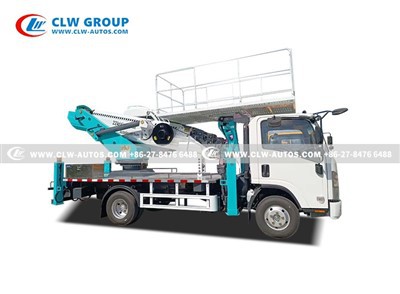

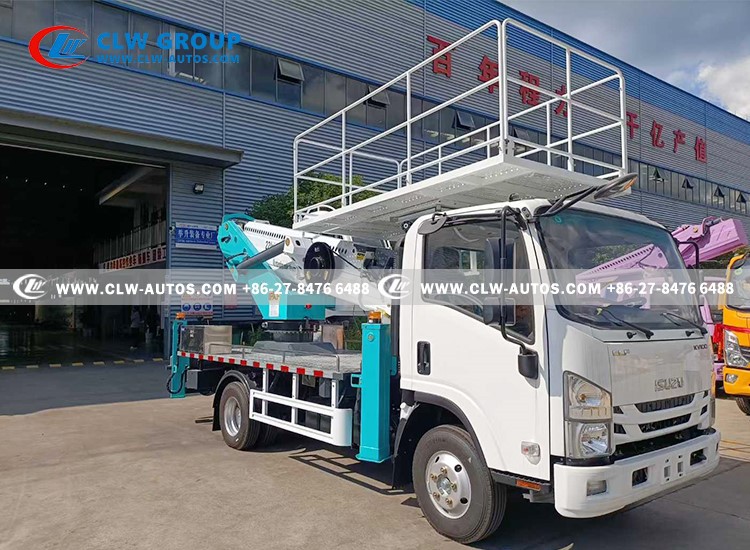

ISUZU KV100 22m Manlift Truck



We are professional special vehicle manufacturer in China since 2004



Brand New Truck Factory Price For Sale

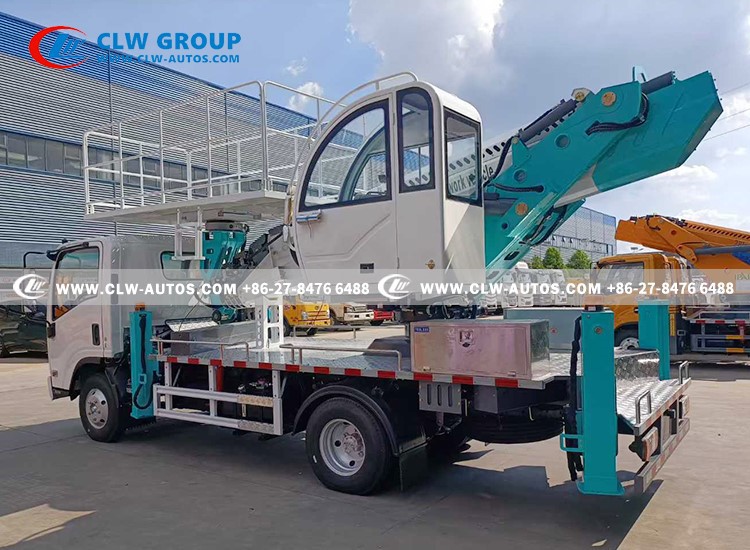

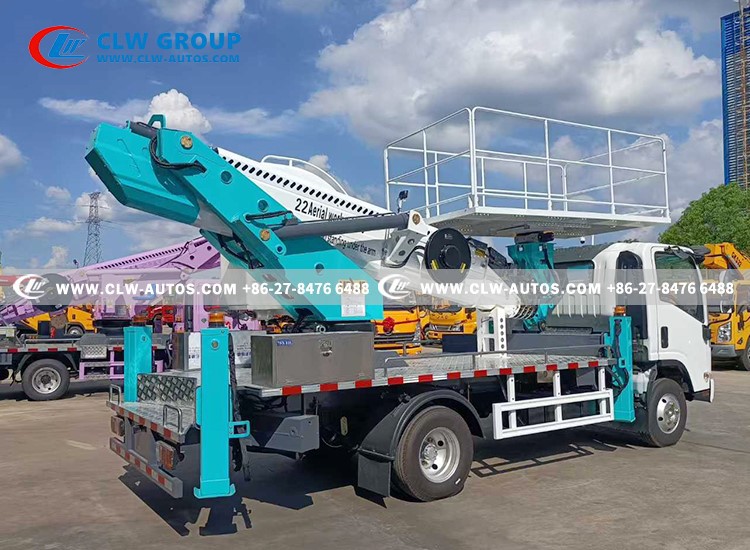

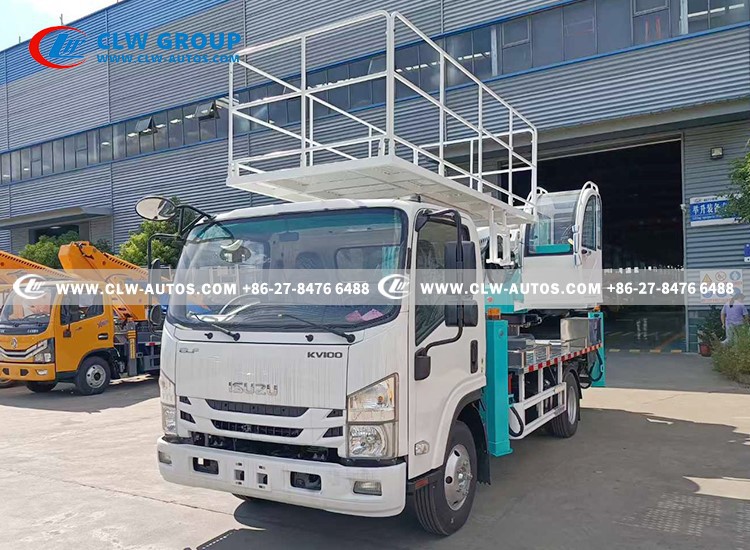

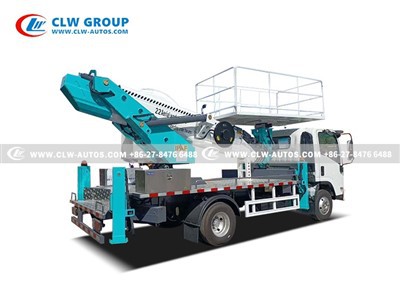

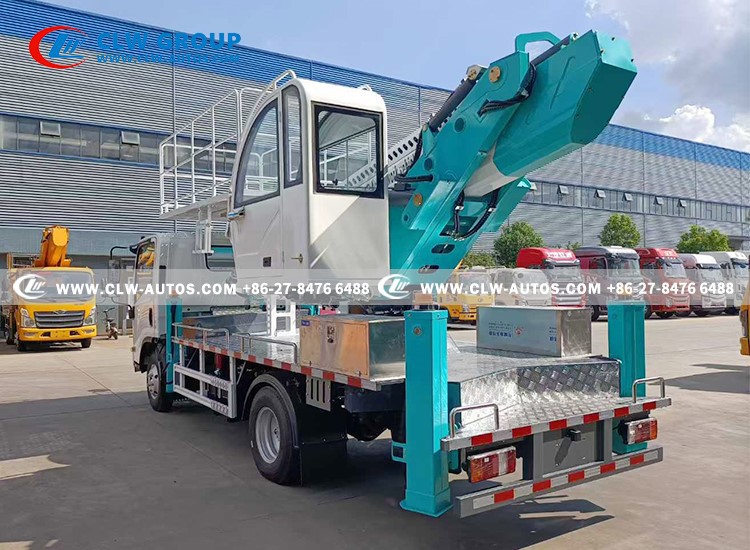

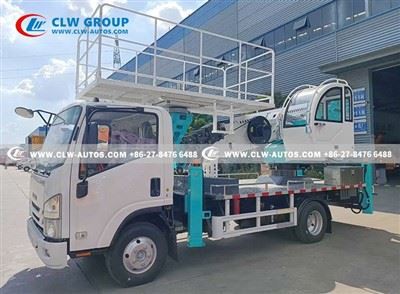

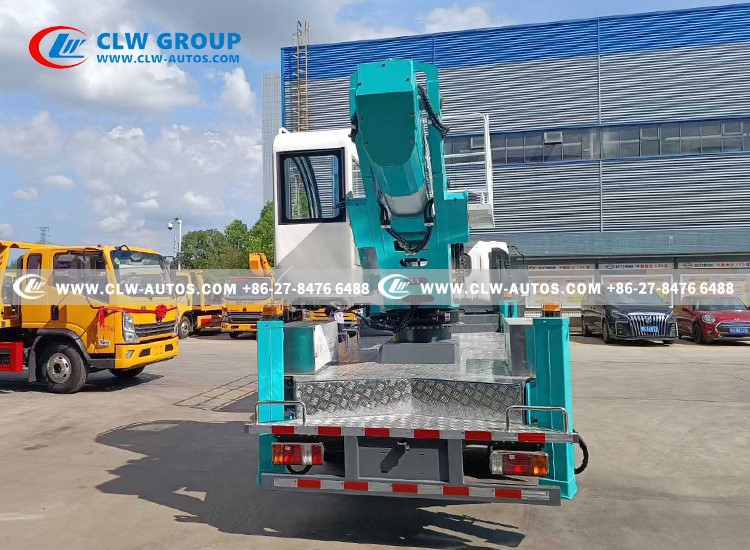

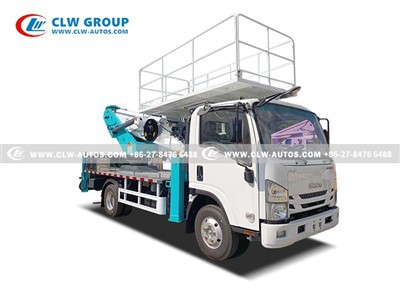

ISUZU KV100 22m Manlift Truck, also known as 22m aerial work platform truck, 22m high attitude working truck, 22m cherry picker truck, 22m bucket truck, is manufactured by CLW Group. ISUZU 22 meter aerial work platform with a 3-meter basket is engineered for efficiency, safety, and versatility. Designed to meet the demanding requirements of construction, maintenance, and utility projects across Southeast Asia, the Philippines, and South America, this vehicle combines Isuzu's renowned reliability with advanced aerial functionality.



Key Features:

• 22-Meter Working Height

Reaches elevated areas with ease, ideal for high-rise maintenance, lighting installation, and tree trimming.

• 3-Meter Long Basket

Provides ample space for workers and tools, enhancing productivity and safety during operations.

• Robust Isuzu Chassis

Built to withstand tough terrains and climates, ensuring durability in regions like the Philippines and South America.

• 360-Degree Rotation

Offers full-range mobility for precise positioning and efficient workflow.

• Easy Operation

User-friendly controls and stable performance reduce training time and operational errors.



Applications:

• Construction: Facade work, painting, and installation.
• Maintenance: Streetlight repair, signage installation, and building upkeep.
• Utilities: Power line maintenance and telecommunications.



Qiuck Inquiry,contact Juniper:

 Whatsapp: +86 139 2570 3918

 Email: juniper@clw-autos.com





Parameters Of Truck Chassis
Overall Dimension(LxWxH)	7260 x 2550 x 3550 mm
Wheel Base	3360mm
Cab	ISUZU KV100 Left hand drive 2 or 3 seats Air conditioned Power steering Central locking
Engine	Diesel Engine, ISUZU 4KH1CN6LB, 120HP, Euro VI 6 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection
Gearbox	Manual type ISUZU 5 Forward & 1 Reverse Speed
Axle Loading	Front axle 2500kg Rear axle 4800kg
Tire	7.00R16 6 pieces with 1 spare tire
Parameters Of Upper Structure
Boom type	7 sections sexangular telescopic boom
Max. working height	22 meters
Max. working radius	12 meters
Bucket lifting capacity	200kg
Bucket material	High-strength stainless steel
Bucket size(LxWxH)	3000x1500x1100mm
Rotation Angle	360 degrees continuous rotation for the main boom
Landing leg	4 units, front V rear H type, individually adjustable
Leveling system	Hydrostatic self-leveling
Anemometer	When wind speed reaches level 5 or higher, the aerial work platform activates the alarm and restricts operations to ensure operator safety.
Basket load sensor	It precisely measures basket's load, enabling operators to monitor current weight and prevent overload-related safety incidents.
