70CBM Bulk Feed Delivery Semi-trailer

Volume Capacity:70,000litrs
Tank Dimension:13800*2550*4000mm
Multi Compartments:3 Partition or as requested
Gross weight:49,000kg
Tyre:11R22.5 14PR
4 axles:13 tons FUWA brand
Suspension:16 tons FUWA air and mechanical suspension

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 70cbm bulk feed delivery semi-trailer in China. If you're going to buy high quality 70cbm bulk feed delivery semi-trailer, welcome to get more information from our factory. For price consultation, contact us.

4 axles 70,000litres Bulk Feed Delivery Semi-trailer

with Liftable Front Axles

Products Description

This advanced 70 cubic meter (70m³) bulk feed semi-trailer features a robust 4-axle configuration, with the crucial advantage of a liftable front tandem axle group. Designed specifically for the efficient and economical transport of powdered, granulated, or pelleted animal feed, this trailer combines high capacity with intelligent weight management and superior flexibility.
Constructed using high-tensile steel, the main frame (or chassis) is engineered for exceptional durability and payload optimization. Crucially, the trailer offers the option of a custom-engineered gooseneck frame, significantly lowering the deck height compared to standard designs. This gooseneck configuration dramatically enhances overall vehicle stability, maneuverability (especially on farm tracks and uneven terrain), and improves road safety by lowering the center of gravity.
The cylindrical feed tank (or body) is meticulously crafted from quality materials to ensure structural integrity and protect feed quality. It is available in a versatile multi-compartment design, standardly configured as three (3) compartments, but readily customizable to four (4) or more compartments based on specific customer requirements. This segmentation allows for the simultaneous transport of different feed types, additives, or customized rations in precise quantities for direct farm delivery.

Core components and Advantages

How it works

Filling: The trailer is positioned under a feed mill's bulk load-out spout. Each compartment is filled sequentially with the designated feed type via gravity or pressure.

Discharge:

The driver selects the desired compartment using internal valves.

Compressed air is introduced into the compartment's discharge cone/auger system, fluidizing the feed.

The fluidized feed is conveyed pneumatically through the discharge hose into the farm's storage bin.

The process repeats for each compartment as needed.

Completion and Clean-Out: Once discharged, residual air clears the hose. Compartments can be inspected and cleaned as necessary before the next load.

key Advantages

High Capacity and Efficiency: A substantial 70m³ volume maximizes payload per trip, significantly reducing transportation costs per ton of feed delivered.

Liftable Front Tandem Axles: The defining feature allowing the front two axles to be hydraulically raised when the trailer is empty or partially loaded. This provides major advantages:

Reduced Running Costs: Lowers fuel consumption and tire wear significantly during unladen or return journeys.
Reduced Toll Fees: In regions with axle-based tolling, lifting axles lowers the toll class and associated costs.
Improved Maneuverability: Lifting axles decreases the effective wheelbase, enhancing turning radius for easier navigation in tight farmyards and feed mills.
Reduced Road Wear: Minimizes impact on road surfaces when not needed.

Primary Use Cases and Applications

Large-Scale Livestock Farm Supply: Direct delivery of bulk feed from feed mills to large dairy, poultry, swine, or cattle operations.
Feed Mill Distribution: Efficient transport from central production facilities to regional distribution points or directly to farms.
Cooperative and Integrator Operations: Supplying feed to member farms or within vertically integrated livestock production systems.
Custom Feeding Operations: Transporting specialized rations prepared for specific client farms.
Long-Distance Feed Haulage: Economical transport over significant distances, leveraging the liftable axles for cost savings on return trips.

Bulk feed trucks/semi-trailers are mainly used to transport feedstuff finished products or feed raw materials like soy bean meal from feed mills to livestock farms, poultry farms and feed processing users, and at the same time it is also available to transport some of the non-corrosive powder and granular materials, such as liquor-making materials, pharmaceutical raw material powsers as well as grain.
This heavy-duty 4-axle bulk feed semi-trailer boasts a significant 70 cubic meter capacity, intelligently divided into multiple independent compartments. Constructed from high-strength, corrosion-resistant steel, it features a robust pneumatic conveying system powered by an onboard air compressor and blower. Designed for smooth over-the-road travel and precise on-farm discharge, it ensures feed arrives fresh, uncontaminated, and ready for consumption.

Products Specification

Technical specification
Product	70,000liters bulk feed transportation semi-trailer
Capacity	70cbm/ 70,000litres
Loading medium	Bulk feed, grain,powder,bran, plastic particle,etc
Dimensions	1380025504000mm
Gross vehicle weight	49,000kg
Rated loading weight	35,000kg
Curb weight	12,500kg
Tyre	11R22.5 14PR
Axle number	Four axle
Axel loading weight	13tons FUWA axle per one, 16ton brake pad
Suspension	16 ton FUWA air and mechanical suspension
Lifting leg	28tons JOST lifting leg
Tractor	50#, 90# JOST traction pin
Tool box	2 pcs
Tank body thickness	4mm, high-quality titanium steel plate
Partition	Optional 3 or more compartments for different kinds of feed
Average discahrge rate	400~500kg/m
Discharge system rotation angle	±180 degree
system elevation angle	60°
Discahrge type	electric screw; optional for hydraulic screw
Discharging parts	3 augers, 1 unit horizontal auger, 1 unit vertical auger, 1 unit lifting auger
Transmission distance	maximum horizontal distance: 6.1m; vertical distance:8m
Residual rate	≤0.10
Painting and logo	As customer's request

Factory Real Shot Video for You

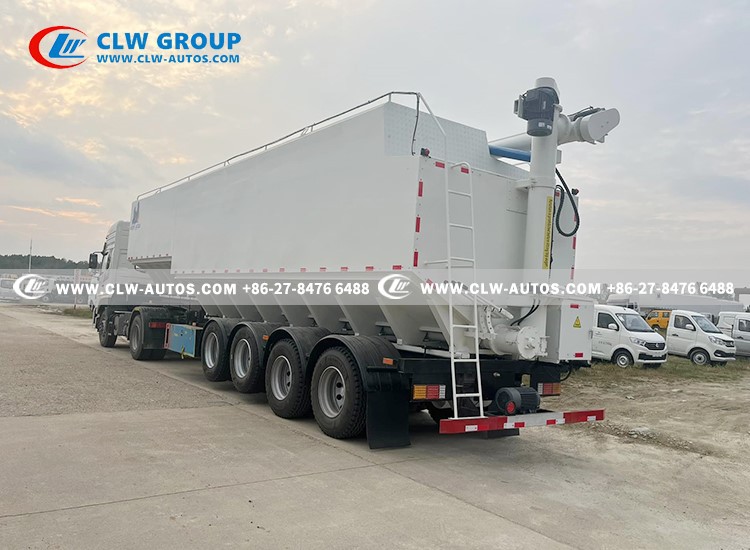

Bulk feed delivery trailer with front two liftable axle

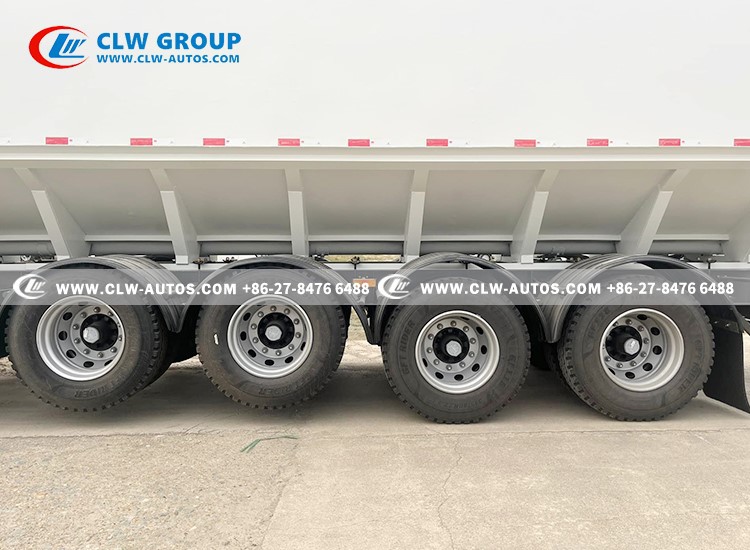

Bulk feed delivery trailer with multiple compartments

Bulk feed delivery trailer

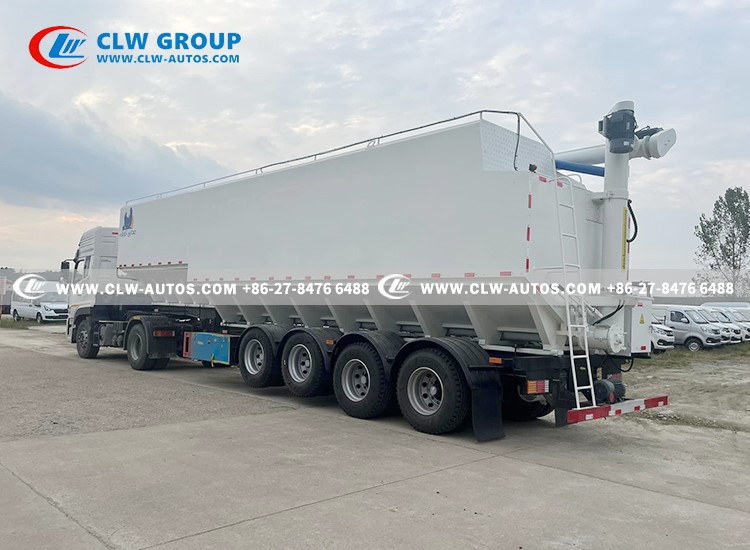

Bulk feed delivery trailer manufacturer
