25tons Bulk LPG Bullet Tanks
Tank Volume:25tons,50m3,50,00Liters
Media Density: 420 kg/m3
corrosion allowance :1mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25tons bulk lpg bullet tanks in China. If you're going to buy high quality 25tons bulk lpg bullet tanks, welcome to get more information from our factory. For price consultation, contact us.
Bulk LPG Bullet Tank Applications
a. gas storage for domestic cooking and heating
b. gas stations in countrysides
c. large LPG gas transfer for energy companies
CLW-WEIYU Team Advantage
1.High qality, competitive price, inspected by a third government department
2.Wide range of tank capacity, from 10m3 to 200m3 are available
3.Related LPG solutions like LPG filling stations designing and installation are also provided
4. If you need any installation work for the whole plant in Nigeria, we have engineer team who can help you during the whole installation process.
Standard Safety Accessories Come with LPG storage tank
Cut-off valve, DN50, 6 pcs
Globe valve, DN25, 1 pcs
Safety valve, DN80, 1 pcs
Level gauge, 1 pcs
Pressure gauge, 1 pcs
Thermometer, 1 pcs

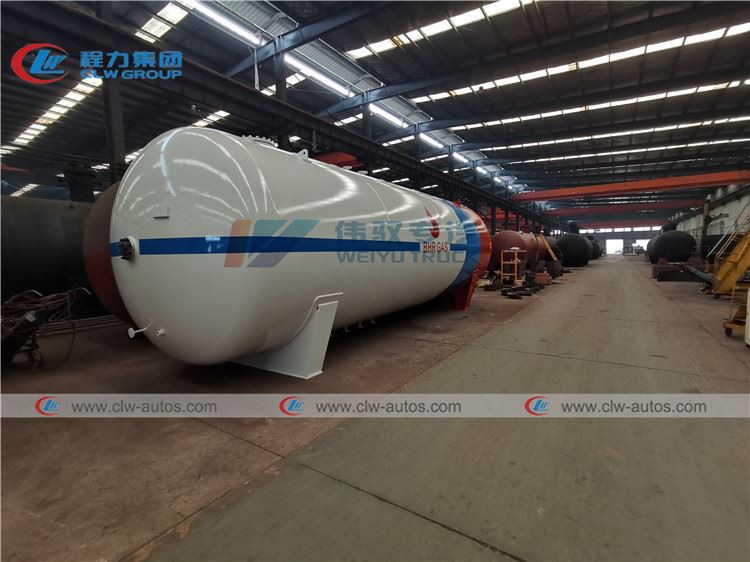

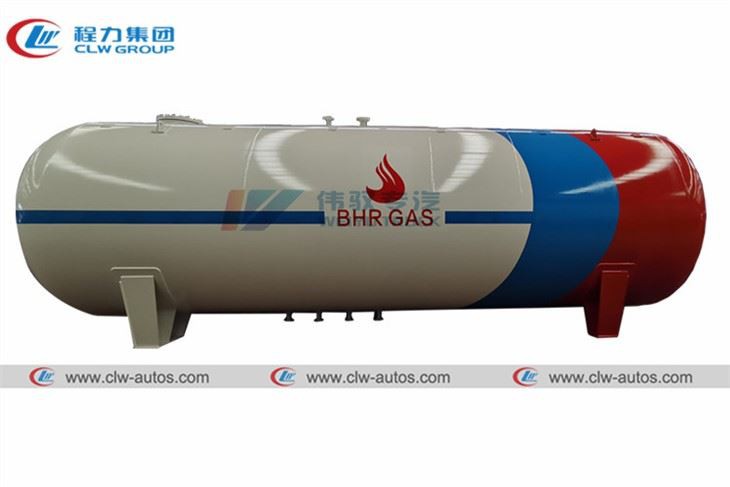

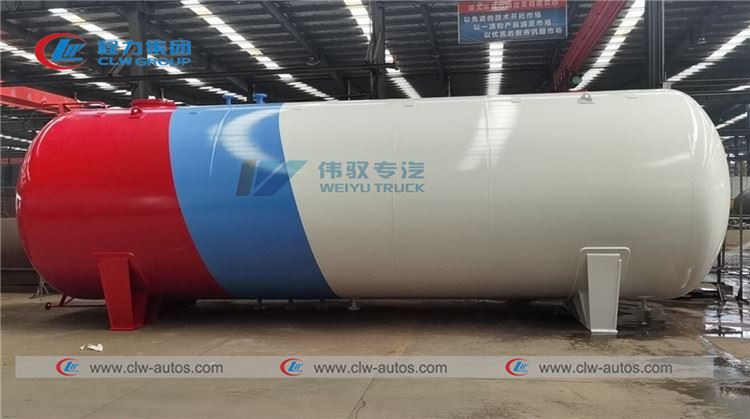

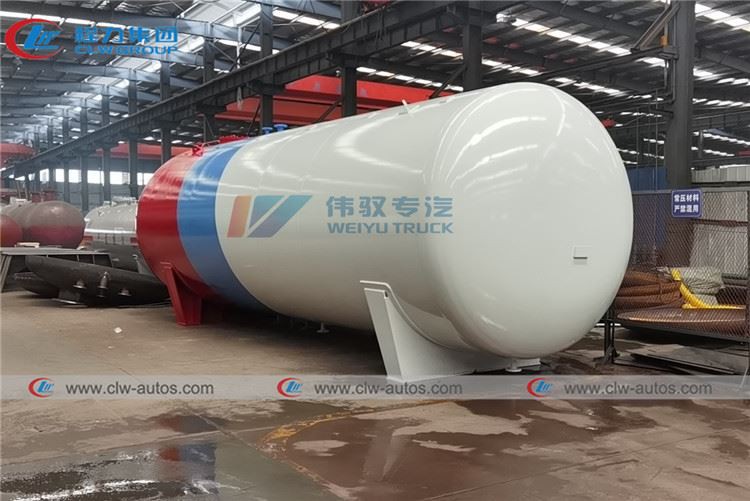

Reference picture
Specification
25tons Bulk LPG Bullet Tanks | |||
Volume of Tank | 50 cbm | ||
Filling Weight | 19950 kg | ||
Tank Weight | 10640 kg | ||
Thickness of Shell (mm) | 14 mm | ||
Thickness of End plate (mm) | 16 mm | ||
Tank Diameter (mm) | 2700 mm | ||
External Dimensions (mm) (length x width x height) | 9182 x 2728 x 3318 mm | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa / 17.7Bar | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 500 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification | Quantity | |
Discharge Pipe | DN80 | 1 | |
Inflow Pipe | DN80 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Drain Hole | DN50 | 1 | |
Manhole | DN450 | 1 | |
Air-out Pipe | DN50 | 1 | |
Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): | |||
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. | |||

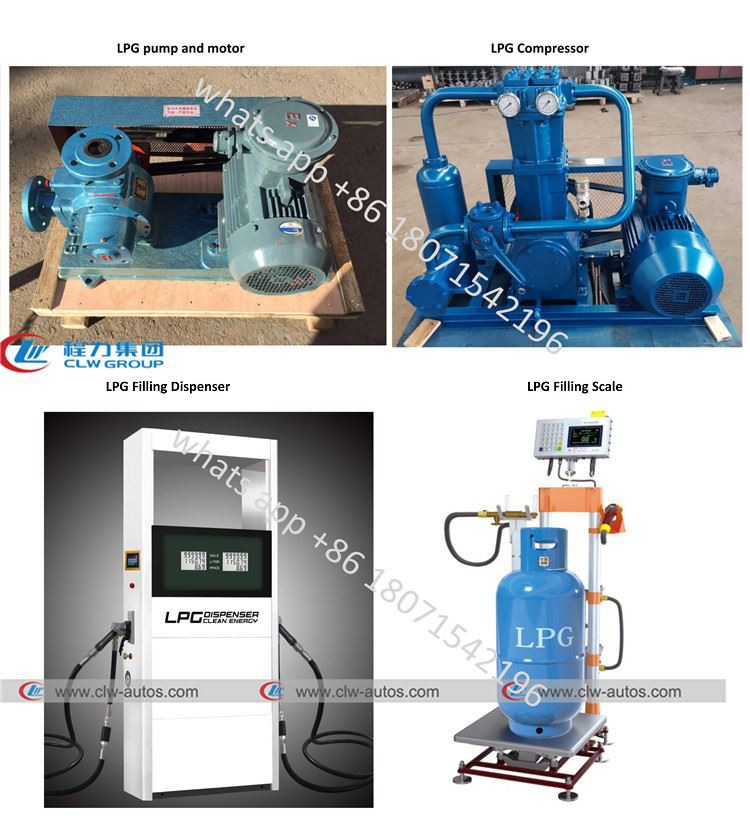

LPG Plant accessories for your option
