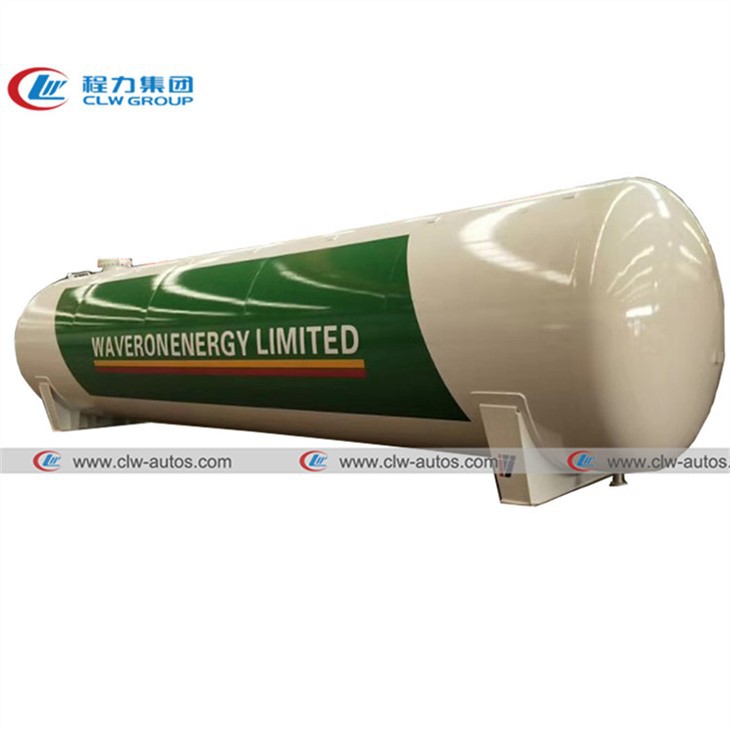

60tons LPG Storage Tank For Nigeria
Tank Capacity:35tons,70m3,7000Liters
Design Pressure:1.77Mpa
corrosion allowance :1mm
Tank Material: Q345R
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 60tons lpg storage tank for nigeria in China. If you're going to buy high quality 60tons lpg storage tank for nigeria, welcome to get more information from our factory. For price consultation, contact us.
Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
CLW-WEIYU Team Advantage
1.High qality, competitive price, inspected by a third government department
2.Wide range of tank capacity, from 10m3 to 200m3 are available
3.Related LPG solutions like LPG filling stations designing and installation are also provided
4. If you need any installation work for the whole plant in Nigeria, we have engineer team who can help you during the whole installation process.
Standard Safety Accessories Come with LPG storage tank
Cut-off valve, DN50, 6 pcs
Needl valve, DN6, 1 pcs
Safety valve, DN80, 1 pcs
Level gauge, 1 pcs
Pressure gauge, 1 pcs
Thermometer, 1 pcs

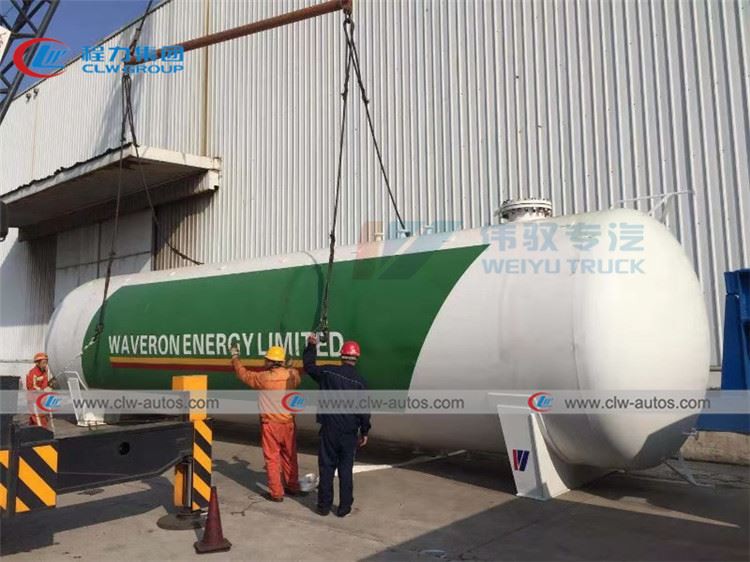

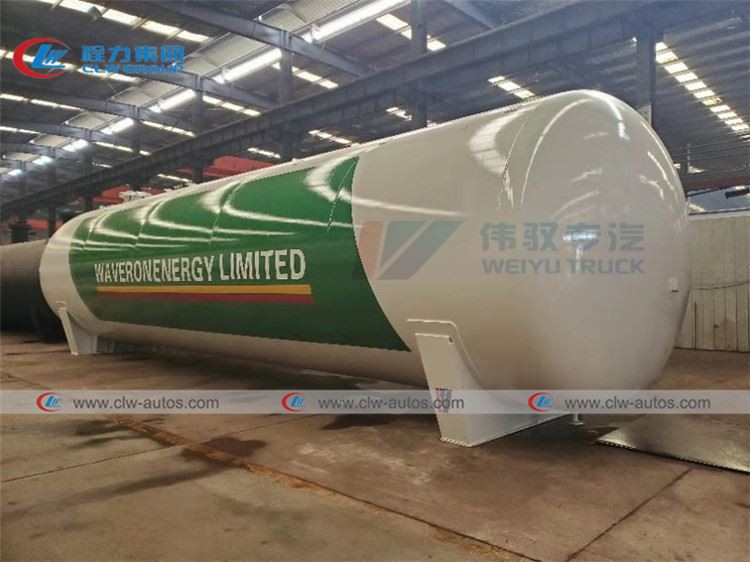

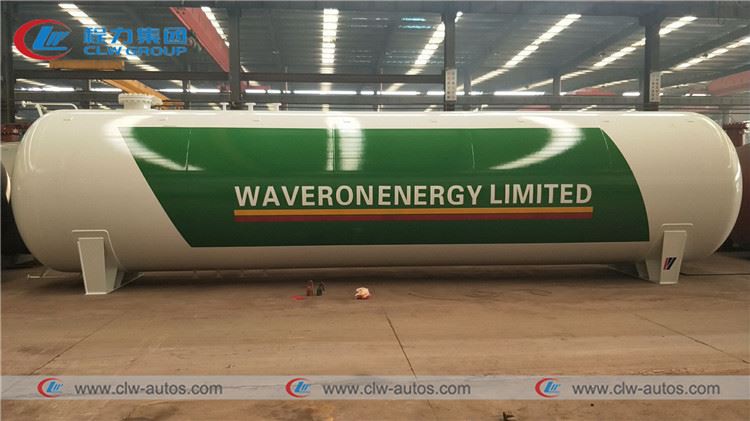

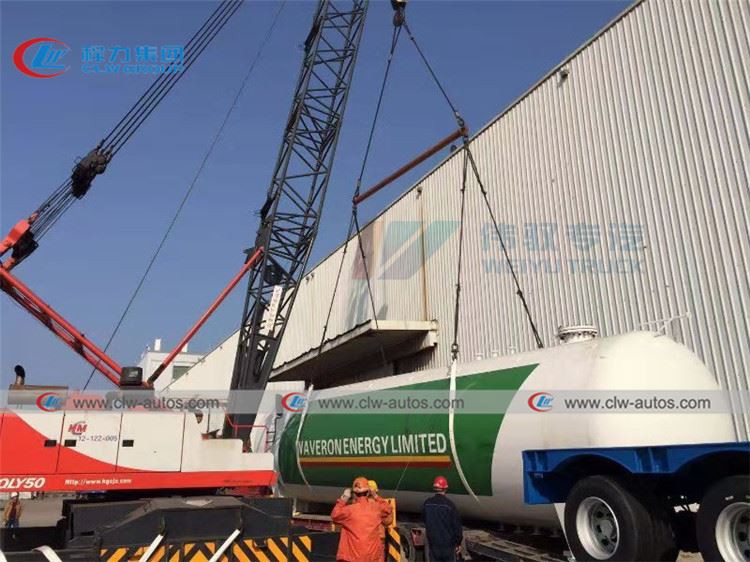

Reference picture
Specification
60tons LPG Storage Tank DIMENSIONS | |||
Volume of Tank | 120CBM | ||
Filling Weight | 47880 kg | ||
Tank Weight | 24960 kg | ||
Thickness of Shell (mm) | 18 mm | ||
Thickness of End plate (mm) | 20 mm | ||
Tank Diameter (mm) | 3400 mm | ||
External Dimensions (mm) (length x width x height) | 13820 x 3436 x 4026 mm | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa / 17.7Bar | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 500 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification | Quantity | |
Discharge Pipe | DN80 | 1 | |
Inflow Pipe | DN80 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Drain Hole | DN50 | 1 | |
Manhole | DN450 | 1 | |
Air-out Pipe | DN50 | 1 | |
Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): | |||
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. | |||
LPG Plant accessories for your option
